SAXSdb — 2qfe

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calpain-7

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 684–813	Fragment：Distal C2-Like Domain	BR BROMIDE ION × 18	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；The crystals were grown in 1.4 M NaKPO4 pH 7.0, by mixing equal volumes of the precipitant solution and 13 mg/mL protein in binding buffer (500 mM NaCl, 50 mM Tris pH 8.0). The crystal was soaked for 1 hour in a solution containing 2 M NaBr., VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 1.45 Å R-free 0.215

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2QFE	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8UC6 Calpain-7:IST1 Complex Deposited 2023-09-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–165（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；294 K；Both proteins were purified and concentrated to 20 mg/ml in buffer containing 25 mM Tris, pH 7.2, 150 mM NaCl, 1 mM TCEP, 0.5 mM EDTA. The proteins were mixed in a 1:2 molar ratio (CAPN7:IST1). Crystals grew at 21 C (294 K) in Rigaku Wizard Cryo condition D5 (25% (v/v) 1,2-Porpanediol, 100 mM Sodium phosphate dibasic/Citric acid pH 4.2, 5% (w/v) PEG 3000, 10% (v/v) Glycerol. Crystals were transferred briefly to crystallization buffer supplemented with 25% added glycerol prior to plunging in liquid nitrogen	Resolution 2.70 Å R-free 0.285
8UC6 Calpain-7:IST1 Complex Deposited 2023-09-25	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–165（165 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.2；294 K；Both proteins were purified and concentrated to 20 mg/ml in buffer containing 25 mM Tris, pH 7.2, 150 mM NaCl, 1 mM TCEP, 0.5 mM EDTA. The proteins were mixed in a 1:2 molar ratio (CAPN7:IST1). Crystals grew at 21 C (294 K) in Rigaku Wizard Cryo condition D5 (25% (v/v) 1,2-Porpanediol, 100 mM Sodium phosphate dibasic/Citric acid pH 4.2, 5% (w/v) PEG 3000, 10% (v/v) Glycerol. Crystals were transferred briefly to crystallization buffer supplemented with 25% added glycerol prior to plunging in liquid nitrogen	Resolution 2.70 Å R-free 0.285

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAN7_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 19–148； UniProt 684–813

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2qfe
Deposition date deposition_date	2007-06-27
Structure title title	Distal C2-Like Domain of Human Calpain-7
Keywords keywords	C2-Like Domain, Hydrolase; Nuclear protein; Protease; Thiol Protease, Hydrolase; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.68 Å
Radius of gyration Rg (electron density) rg_electron	14.56 Å
Forward intensity I(0) i0	6549080.00
Molecular weight molecular_weight	16682.0 kDa
Excluded volume excluded_volume	19728 Å³
Envelope volume envelope_volume	22334 Å³
Hydration-shell volume shell_volume	13039 Å³
Envelope diameter envelope_diameter	50.2 Å
Shell Rg shell_rg	20.35 Å
Envelope Rg envelope_rg	14.91 Å
Shape Rg shape_rg	14.47 Å
Total Rg total_rg	15.75 Å
Total atoms total_atoms	1097
Residues n_residues	139
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	50.8 Å
Rg (real space) rg_real	15.57 Å
Rg uncertainty (real space) rg_real_error	0.26 Å
I(0) (real space) i0_real	6.5490e+06
I(0) uncertainty (real space) i0_real_error	7.4930e+04
Rg (reciprocal space) rg_reciprocal	15.58 Å
I(0) (reciprocal space) i0_reciprocal	6549000.0000
Solution quality estimate total_estimate	0.8818
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.6 Å
Skewness Skewness skewness	0.128
Kurtosis Kurtosis kurtosis	-0.325
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1021000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.822; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.996

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Calpain-7
Molecular weight formula_weight	16456.6 kDa
EC 编号 ec_number	3.4.22.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1314

MGSSHHHHHHSSGLVPRGSPYTLSKRINGKWSGQSAGGCGNFQETHKNNPIYQFHIEKTGPLLIELRGPRQYSVGFEVVTVSTLGDPGPHGFLRKSSGDYRCGFCYLELENIPSGIFNIIPSTFLPKQEGPFFLDFNSIIPIKITQLQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 non-polymer

Description description	BROMIDE ION
Molecular weight formula_weight	79.9 kDa
Source method src_method	syn
Copy count entity_count	18

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	181

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	2qfeA00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	120 — Jelly Rolls
Homologous superfamily homologous superfamily	380 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	57.513 Å
Unit-cell length b length_b	57.513 Å
Unit-cell length c length_c	88.676 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	1.450 Å
Low-resolution limit resolution_low	29.990 Å
R factor r_factor	0.1885
R_work r_work	0.1871
R_free r_free	0.2154

fit	/app/data/saxs_computation/qf/2qfe/2qfe.fit
pddf	/app/data/pr_computation/qf/2qfe/2qfe.pr.out
profile	/app/data/saxs_computation/qf/2qfe/2qfe.dat

Distal C2-Like Domain of Human Calpain-7

1. Protein Identity and Related Structures Protein Identity & Related Structures

Calpain-7

State in the Current Structure

Other States of the Same Protein in the Database

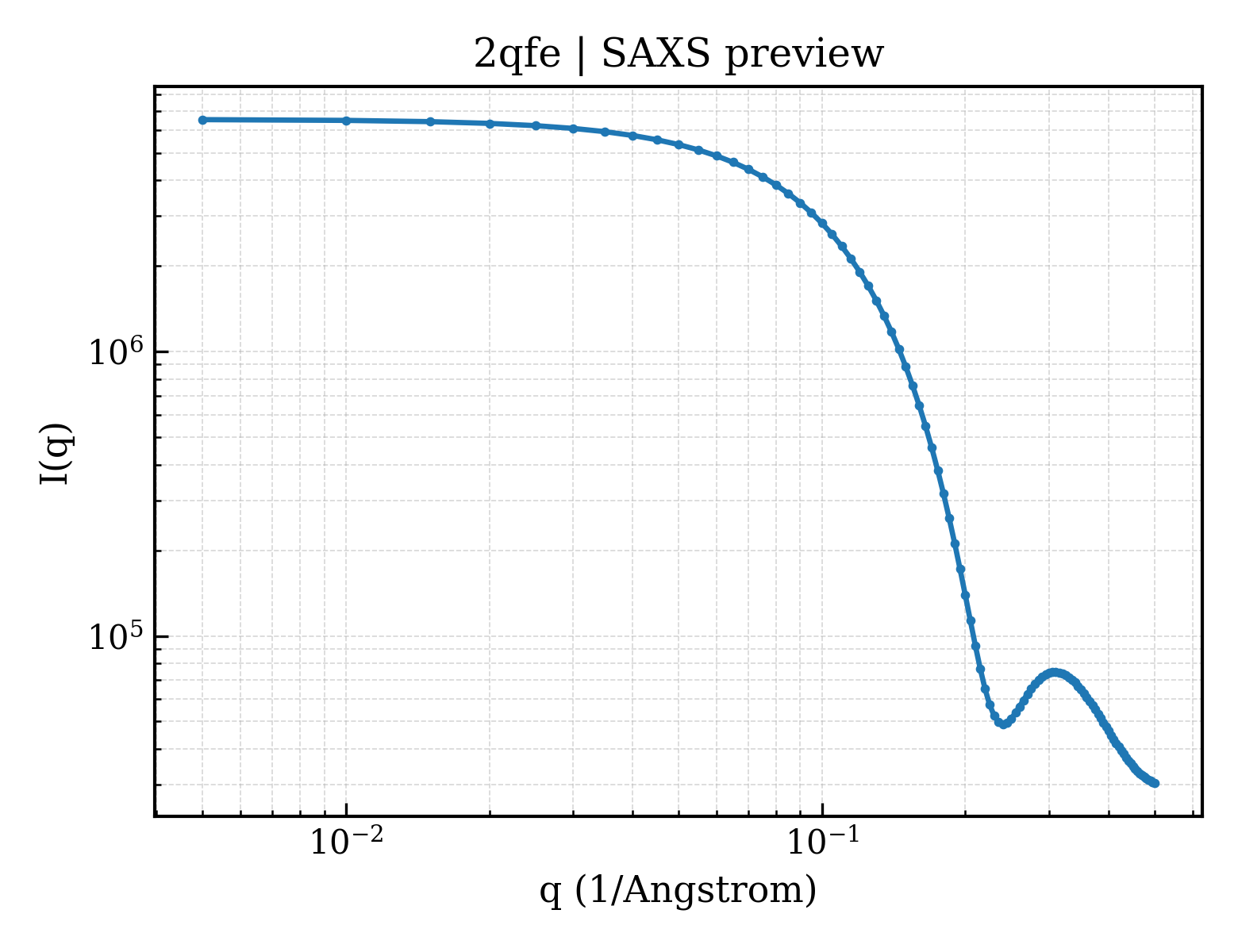

SAXS scattering curve SAXS Profile
