SAXSdb — 2v2d

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

TRIOSEPHOSPHATE ISOMERASE GLYCOSOMAL

TRYPANOSOMA BRUCEI BRUCEI

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 3	PHOSPHATE ION × 3 water × 3	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TPIS_TRYBB
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–13； UniProt 1–13 Author chain A； PDBConstruct 14–71； UniProt 15–72 Author chain A； PDBConstruct 72–242； UniProt 80–250

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2v2d
Deposition date deposition_date	2007-06-05
Structure title title	The A178L mutation in the C-terminal hinge of the flexible loop-6 of triosephosphate isomerase (TIM) induces a more closed conformation of this hinge region in dimeric and monomeric TIM
Keywords keywords	;GLUCONEOGENESIS, LIPID SYNTHESIS, ENGINEERING, PENTOSE SHUNT, POINT MUTATION, TIM, A178L, LOOP6, HINGE, LOOP-6, ENZYME, ISOMERASE, FATTY ACID BIOSYNTHESIS, TRIOSEPHOSPHATE ISOMERASE, GLYCOSOME, MONOMERIC, TIM-BARREL, GLYCOLYSIS ;; ISOMERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2v2d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2v2d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

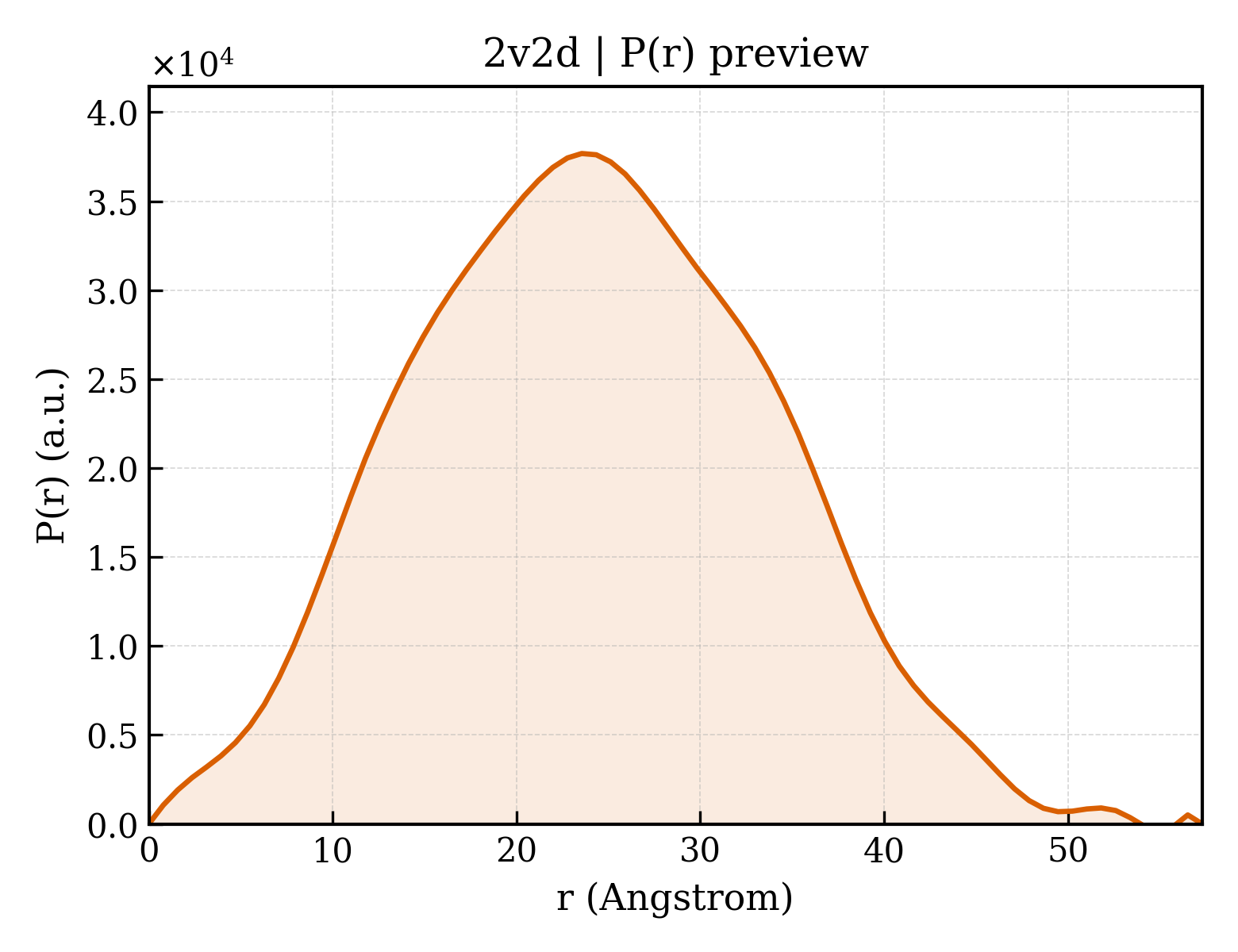

2v2d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.01 Å
Rg (electron density)	26.83 Å
Total Rg	27.73 Å
Atom count	5502
Residues	723
Excluded volume	98204 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2v2d__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	TRIOSEPHOSPHATE ISOMERASE GLYCOSOMAL
Molecular weight formula_weight	26075.8 kDa
EC 编号 ec_number	5.3.1.1
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1974

MSKPQPIAAANWKSGSPDSLSELIDLFNSTSINHDVQCVVASTFVHLAMTKERLSHPKFVIAAQNAGNADALASLKDFGVNWIVLGHSERRWYYGETNEIVADKVAAAVASGFMVIACIGETLQERESGRTAVVVLTQIAAIAKKLKKADWAKVVIAYEPVWAIGTGKVLTPQQAQEAHALIRSWVSSKIGADVAGELRILYGGSVNGKNARTLYQQRDVNGFLVGGASLKPEFVDIIKATQ

Source Source

Source organism organism	TRYPANOSOMA BRUCEI BRUCEI
NCBI taxonomy ID ncbi_taxonomy_id	5702
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	133

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2v2da_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.1 — Triosephosphate isomerase (TIM)
Family Family family	c.1.1.1 — Triosephosphate isomerase (TIM)

CATH v4.4 (1 domains)

Domain ID domain_id	2v2dA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

Unit-cell length a length_a	95.230 Å
Unit-cell length b length_b	95.230 Å
Unit-cell length c length_c	48.820 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 63
Space-group number int_tables_number	173
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	19.220 Å
R factor r_factor	0.2040
R_work r_work	0.2010
R_free r_free	0.2700

The A178L mutation in the C-terminal hinge of the flexible loop-6 of triosephosphate isomerase (TIM) induces a more closed conformation of this hinge region in dimeric and monomeric TIM
