1. Protein Identity and Related Structures Protein Identity & Related Structures

MYOSIN VI

SUS SCROFA

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–277 Chain A； UniProt 304–377 Chain A； UniProt 379–816	Fragment：MOTOR DOMAIN-INSERT2,RESIDUES 2-277,304-377,379-816	CALMODULIN × 1 （P62149） ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：10% PEG 8000, 50MM GLYCINE PH 9.5, 6% MPD	Resolution 2.30 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2VB6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2BKH Myosin VI nucleotide-free (MDInsert2) crystal structure Deposited 2005-02-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–814（814 aa） Fragment：MOTOR DOMAIN-INSERT2, RESIDUES 2-816	Not recorded	GOL GLYCEROL × 6 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 8-10% PEG 8000, 50MM MES PH 6.7, 150MM NH4.SO4, 3% ISO-PROPANOL, 3% TERT-BUTANOL	Resolution 2.40 Å R-free 0.254
2BKI Myosin VI nucleotide-free (MDinsert2-IQ) crystal structure Deposited 2005-02-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–858（858 aa） Fragment：DOMAIN LONG-S1, RESIDUES 1-858	Not recorded	SO4 SULFATE ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 8-10% PEG 8000, 50MM MES PH 6.7, 150MM NH4.SO4, 3% ISO-PROPANOL, 3% TERT-BUTANOL	Resolution 2.90 Å R-free 0.304
2V26 Myosin VI (MD) pre-powerstroke state (Mg.ADP.VO4) Deposited 2007-06-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–377（373 aa） Fragment：DOMAIN MOTOR, RESIDUES 5-377,379-789 Chain A 379–789（411 aa） Fragment：DOMAIN MOTOR, RESIDUES 5-377,379-789	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 VO4 VANADATE ION × 1 EDO 1,2-ETHANEDIOL × 7 SO4 SULFATE ION × 2 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions 3-4% PEG 8000, 50MM MES PH 6.75, 100MM SAM, 1MM TCEP	Resolution 1.75 Å R-free 0.227
2VAS Myosin VI (MD-insert2-CaM, Delta-Insert1) Post-rigor state Deposited 2007-09-04	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–277（276 aa） Fragment：MOTOR DOMAIN-INSERT2,RESIDUES 2-277,304-377,379-816 Chain A 304–377（74 aa） Fragment：MOTOR DOMAIN-INSERT2,RESIDUES 2-277,304-377,379-816 Chain A 379–816（438 aa） Fragment：MOTOR DOMAIN-INSERT2,RESIDUES 2-277,304-377,379-816	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 8% PEG 8000, 50MM GLYCINE PH 9.5, 6% MPD	Resolution 2.40 Å R-free 0.256
2X51 M6 delta Insert1 Deposited 2010-02-04	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–277（277 aa） Fragment：MYOSIN VI DELTA INSERT1,RESIDUES 1-277,303-817 Chain A 304–816（513 aa） Fragment：MYOSIN VI DELTA INSERT1,RESIDUES 1-277,303-817	Not recorded	GOL GLYCEROL × 7 SO4 SULFATE ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.75；10.8% PEG 8000, 50 MM MES PH 6.75, 175 MM AMMONIUM SULFATE, 3% ISO-PROPANOL, 3% TERT-BUTANOL, 4 MM EGTA. SOLUTION OF PROTEIN AT 18 MG/ML.	Resolution 2.20 Å R-free 0.272
3GN4 Myosin lever arm Deposited 2009-03-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 771–918（148 aa） Fragment：sequence database residues 771-918	Not recorded	CA CALCIUM ION × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；277 K；16 % PEG 2K, 100 mM MgCl2, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.264
3GN4 Myosin lever arm Deposited 2009-03-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 771–918（148 aa） Fragment：sequence database residues 771-918	Not recorded	CA CALCIUM ION × 4 MG MAGNESIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；277 K；16 % PEG 2K, 100 mM MgCl2, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.70 Å R-free 0.264
3L9I Myosin VI nucleotide-free (mdinsert2) L310G mutant crystal structure Deposited 2010-01-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–816（815 aa） Fragment：MOTOR DOMAIN-INSERT2, RESIDUES 2-816	Mutation：L310G	TBU TERTIARY-BUTYL ALCOHOL × 1 ACT ACETATE ION × 2 PO4 PHOSPHATE ION × 4 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9；277 K；4% PEG 8000, 50mM Glycine pH9, 3% iso-propanol, 3% tert-butanol, 1mM TCEP , VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.20 Å R-free 0.235
4ANJ MYOSIN VI (MDinsert2-GFP fusion) PRE-POWERSTROKE STATE (MG.ADP.AlF4) Deposited 2012-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–817（817 aa） Fragment：MYOSIN-6 RESIDUES 1-817, GFP RESIDUES 2-238	Non-standard monomer：Yes (specific site not provided by mmCIF)	ADP ADENOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 ALF TETRAFLUOROALUMINATE ION × 1 CA CALCIUM ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions 5% PEG 8000, 50 MM MES PH 5.5, 100 MM NH4SO4, 20 MM MGCL2, 20 MM NACL AND 3 % PROPAN-2-OL	Resolution 2.60 Å R-free 0.288

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MYO6_PIG
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–276； UniProt 2–277 Author chain A； PDBConstruct 277–350； UniProt 304–377 Author chain A； PDBConstruct 351–788； UniProt 379–816

CALMODULIN

GALLUS GALLUS

UniProt P62149

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–149	Not recorded	MYOSIN VI × 1 （Q29122） ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：10% PEG 8000, 50MM GLYCINE PH 9.5, 6% MPD	Resolution 2.30 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2VB6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AHR CALMODULIN MUTANT WITH A TWO RESIDUE DELETION IN THE CENTRAL HELIX Deposited 1997-04-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–148（148 aa）	Mutation：DEL(T79), DEL(D80)	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions pH 4.25；28-33% MPD, 15% ETHANOL, 5MM CACL, 20MM NA ACETATE, PH 4.25	Resolution 1.80 Å
1UP5 Chicken Calmodulin Deposited 2003-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–149（148 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；HANGING DROPS 12UL CAM 12MG/ML + 8UL PRECIPITANT, SEEDED 10MM NAOAC, PH 4.0, 30% MPD, 15% ISOPROPANOL	Resolution 1.90 Å R-free 0.259
1UP5 Chicken Calmodulin Deposited 2003-09-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–149（148 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；HANGING DROPS 12UL CAM 12MG/ML + 8UL PRECIPITANT, SEEDED 10MM NAOAC, PH 4.0, 30% MPD, 15% ISOPROPANOL	Resolution 1.90 Å R-free 0.259
2BCX Crystal structure of calmodulin in complex with a ryanodine receptor peptide Deposited 2005-10-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；23% PEG 4000, 0.1 M sodium acetate, 5 mM DTT, pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.249
2BKI Myosin VI nucleotide-free (MDinsert2-IQ) crystal structure Deposited 2005-02-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–148（148 aa） Chain D 1–148（148 aa）	Not recorded	SO4 SULFATE ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 8-10% PEG 8000, 50MM MES PH 6.7, 150MM NH4.SO4, 3% ISO-PROPANOL, 3% TERT-BUTANOL	Resolution 2.90 Å R-free 0.304
2KZ2 Calmodulin, C-terminal domain, F92E mutant Deposited 2010-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 77–149（73 aa） Fragment：UNP residues 77-149	Mutation：F92E	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 6.9；293 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.8 mM [U-100% 13C; U-100% 15N] cCaMF92E-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM [U-100% 13C; U-100% 15N] cCaMF92E-2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2M3S Calmodulin, i85l, f92e, h107i, l112r, a128t, m144r mutant Deposited 2013-01-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–149（149 aa） Fragment：UNP residues 1-149	Mutation：I85L, F92E, H107I, L107I, A128T, M144R	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 6.91；303 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.68 mM [U-100% 13C; U-100% 15N] protein_1, 0.005 % DSS, 20 mM HEPES, 100 mM sodium chloride, 10 mM calcium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-100% 15N] protein_1, 0.005 % DSS, 20 mM HEPES, 100 mM sodium chloride, 10 mM calcium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2O5G Calmodulin-smooth muscle light chain kinase peptide complex Deposited 2006-12-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；30% PEG 400, 0.2 M sodium acetate, 0.1 M Tris pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.08 Å R-free 0.165
2O60 Calmodulin bound to peptide from neuronal nitric oxide synthase Deposited 2006-12-06	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；20% PEG 4000, 0.2 M sodium acetate, 0.1 M sodium citrate pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.55 Å R-free 0.244
3GOF Calmodulin bound to peptide from macrophage nitric oxide synthase Deposited 2009-03-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 4 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.2 M ammonium sulfate, 0.1 M sodium acetate pH 4.6, 20% PEG 4000, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.45 Å R-free 0.208
3GOF Calmodulin bound to peptide from macrophage nitric oxide synthase Deposited 2009-03-19	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–149（148 aa）	Not recorded	CA CALCIUM ION × 4 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.2 M ammonium sulfate, 0.1 M sodium acetate pH 4.6, 20% PEG 4000, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.45 Å R-free 0.208
3GP2 Calmodulin bound to peptide from calmodulin kinase II (CaMKII) Deposited 2009-03-20	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–148（147 aa）	Not recorded	CA CALCIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.1 M sodium acetate pH 4.6, 0.2 M ammonium acetate, 30% PEG 4000, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.46 Å R-free 0.192
3GP2 Calmodulin bound to peptide from calmodulin kinase II (CaMKII) Deposited 2009-03-20	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–148（147 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.1 M sodium acetate pH 4.6, 0.2 M ammonium acetate, 30% PEG 4000, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.46 Å R-free 0.192
5HIT Crystal Structure Analysis of Ca2+-calmodulin and a C-terminal EAG1 channel fragment Deposited 2016-01-12	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–148（147 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；di-ammonium citrate, PEG 3350	Resolution 2.85 Å R-free 0.268
6BNV CryoEM structure of MyosinVI-actin complex in the rigor (nucleotide-free) state, backbone-averaged with side chains truncated to alanine Deposited 2017-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain O 4–148（145 aa） Chain P 4–148（145 aa） Chain Q 4–148（145 aa） Chain R 4–148（145 aa） Chain S 4–148（145 aa） Chain T 4–148（145 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Buffer was filtered through 0.44 um filter and degassed. cryo-EM vitrification conditions Cryogen ETHANE；Sample was applied to a glow-discharged holey carbon grid. 3 uL actin was incubated for 60 seconds. 3 uL of myosin VI was added and incubated for 60 seconds. 3 uL solution was removed. An additional 3 uL of myosin VI was applied. After 60 seconds, 3 uL solution was removed, and the grid was blotted for 3 seconds from the backside with filter paper.	Resolution 4.60 Å

12 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CALM_CHICK
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–149； UniProt 1–149

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2vb6
Deposition date deposition_date	2007-09-06
Structure title title	Myosin VI (MD-insert2-CaM, Delta Insert1) Post-rigor state (crystal form 2)
Keywords keywords	MYOSIN VI, POST-RIGOR STATE, MG.ADP.BEFX, CALMODULIN, CAM, MOLECULAR MOTOR, MOTOR PROTEIN; MOTOR PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	34.33 Å
Radius of gyration Rg (electron density) rg_electron	33.80 Å
Forward intensity I(0) i0	157153000.00
Molecular weight molecular_weight	100100.0 kDa
Excluded volume excluded_volume	125060 Å³
Envelope volume envelope_volume	160500 Å³
Hydration-shell volume shell_volume	41249 Å³
Envelope diameter envelope_diameter	121.6 Å
Shell Rg shell_rg	38.92 Å
Envelope Rg envelope_rg	33.84 Å
Shape Rg shape_rg	33.77 Å
Total Rg total_rg	34.26 Å
Total atoms total_atoms	7034
Residues n_residues	869
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	117.1 Å
Rg (real space) rg_real	34.50 Å
Rg uncertainty (real space) rg_real_error	0.81 Å
I(0) (real space) i0_real	1.5720e+08
I(0) uncertainty (real space) i0_real_error	2.4910e+06
Rg (reciprocal space) rg_reciprocal	34.39 Å
I(0) (reciprocal space) i0_reciprocal	157100000.0000
Solution quality estimate total_estimate	0.8618
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	35.6 Å
Skewness Skewness skewness	0.506
Kurtosis Kurtosis kurtosis	-0.249
Angular range angular_range	— – 0.2300 Å⁻¹
Current regularization parameter α current_alpha	0.0002
Highest regularization parameter α highest_alpha	28310000.0000
Real-space data points n_real_points	47
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.798; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.951; Smooth: 0.854

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	MYOSIN VI
Molecular weight formula_weight	89899.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7271

EDGKPVWAPHPTDGFQVGNIVDIGPDSLTIEPLNQKGKTFLALINQVFPAEEDSKKDVEDNCSLMYLNEATLLHNIKVRYSKDRIYTYVANILIAVNPYFDIPKIYSSETIKSYQGKSLGTMPPHVFAIADKAFRDMKVLKLSQSIIVSGESGAGKTENTKFVLRYLTESYGTGQDIDDRIVEANPLLEAFGNAKTVRNNNSSRFGKFVEIHFNEKSSVVGGFVSHYLLEKSRICVQGKEERNYHIFYRLCAGASEDIRERLHLSSPDNFRYLNRGGSLKDPLLDDHGDFIRMCTAMKKIGLDDEEKLDLFRVVAGVLHLGNIDFEEAGSTSGGCNLKNKSTQALEYCAELLGLDQDDLRVSLTTRVMLTTAGGAKGTVIKVPLKVEQANNARDALAKTVYSHLFDHVVNRVNQCFPFETSSYFIGVLDIAGFEYFEHNSFEQFCINYCNEKLQQFFNERILKEEQELYQKEGLGVNEVHYVDNQDCIDLIEARLVGILDILDEENRLPQPSDQHFTSAVHQKHKDHFRLSIPRKSKLAIHRNIRDDEGFIIRHFAGAVCYETTQFVEKNNDALHMSLESLICESRDKFIRELFESSTNNNKDTKQKAGKLSFISVGNKFKTQLNLLLDKLRSTGASFIRCIKPNLKMTSHHFEGAQILSQLQCSGMVSVLDLMQGGFPSRASFHELYNMYKKYMPDKLARLDPRLFCKALFKALGLNEIDYKFGLTKVFFRPGKFAEFDQIMKSDPDHLAELVKRVNHWLICSRWKKVQWCSLSVIKLKNKIKYRAE

来源 Source

来源生物 organism	SUS SCROFA
通用名 common_name	PIG
NCBI Class编号 ncbi_taxonomy_id	9823
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 2 Entity 2 polymer

Description description	CALMODULIN
Molecular weight formula_weight	16841.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDTDSEEEIREAFRVFDKDGNGFISAAELRHVMTNLGEKLTDEEVDEMIRESDIDGDGQVNYEEFVTMMTSK

来源 Source

来源生物 organism	GALLUS GALLUS
通用名 common_name	CHICKEN
NCBI Class编号 ncbi_taxonomy_id	9031
宿主生物 host_organism	SPODOPTERA FRUGIPERDA

Entity 3 Entity 3 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	BERYLLIUM TRIFLUORIDE ION
Molecular weight formula_weight	66.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	237

▼

7. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2vb6b_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (7 domains)

Domain ID domain_id	2vb6A01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	30 — SH3 type barrels.
Homologous superfamily homologous superfamily	360 — Myosin S1 fragment, N-terminal

Domain ID domain_id	2vb6A02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	850 — Kinesin
Homologous superfamily homologous superfamily	10 — Kinesin motor domain

Domain ID domain_id	2vb6A03
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	10 — Arc Repressor Mutant, subunit A
Homologous superfamily homologous superfamily	820 —

Domain ID domain_id	2vb6A04
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	720 — Myosin VI head, motor domain, U50 subdomain

Domain ID domain_id	2vb6A05
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	58 — Methane Monooxygenase Hydroxylase; Chain G, domain 1
Homologous superfamily homologous superfamily	530 —

Domain ID domain_id	2vb6A06
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	1590 —

Domain ID domain_id	2vb6A07
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	250 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	2980 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	73.310 Å
Unit-cell length b length_b	107.590 Å
Unit-cell length c length_c	178.300 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	46.180 Å
R factor r_factor	0.2120
R_work r_work	0.2100
R_free r_free	0.2530

fit	/app/data/saxs_computation/vb/2vb6/2vb6.fit
pddf	/app/data/pr_computation/vb/2vb6/2vb6.pr.out
profile	/app/data/saxs_computation/vb/2vb6/2vb6.dat

Myosin VI (MD-insert2-CaM, Delta Insert1) Post-rigor state (crystal form 2)

1. Protein Identity and Related Structures Protein Identity & Related Structures

MYOSIN VI

State in the Current Structure

Other States of the Same Protein in the Database

CALMODULIN

State in the Current Structure

Other States of the Same Protein in the Database

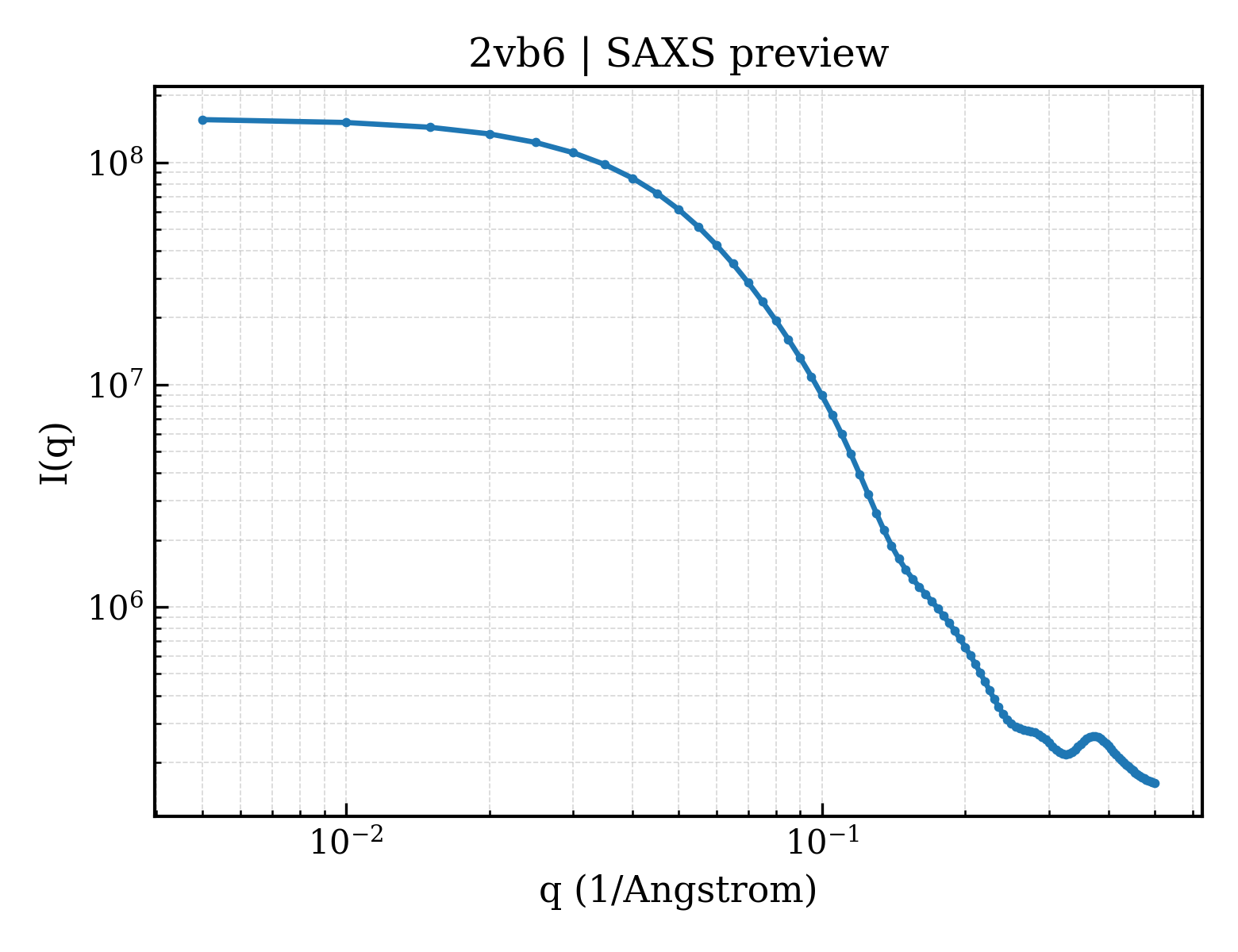

SAXS scattering curve SAXS Profile
