SAXSdb — 1ahr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

CALMODULIN

Gallus gallus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–148	Mutation：DEL(T79), DEL(D80)	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions：pH 4.25；28-33% MPD, 15% ETHANOL, 5MM CACL, 20MM NA ACETATE, PH 4.25	Resolution 1.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 1AHR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1UP5 Chicken Calmodulin Deposited 2003-09-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–149（148 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；HANGING DROPS 12UL CAM 12MG/ML + 8UL PRECIPITANT, SEEDED 10MM NAOAC, PH 4.0, 30% MPD, 15% ISOPROPANOL	Resolution 1.90 Å R-free 0.259
1UP5 Chicken Calmodulin Deposited 2003-09-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–149（148 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；HANGING DROPS 12UL CAM 12MG/ML + 8UL PRECIPITANT, SEEDED 10MM NAOAC, PH 4.0, 30% MPD, 15% ISOPROPANOL	Resolution 1.90 Å R-free 0.259
2BCX Crystal structure of calmodulin in complex with a ryanodine receptor peptide Deposited 2005-10-19	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.7；293 K；23% PEG 4000, 0.1 M sodium acetate, 5 mM DTT, pH 4.7, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.249
2BKI Myosin VI nucleotide-free (MDinsert2-IQ) crystal structure Deposited 2005-02-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 1–148（148 aa） Chain D 1–148（148 aa）	Not recorded	SO4 SULFATE ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 8-10% PEG 8000, 50MM MES PH 6.7, 150MM NH4.SO4, 3% ISO-PROPANOL, 3% TERT-BUTANOL	Resolution 2.90 Å R-free 0.304
2KZ2 Calmodulin, C-terminal domain, F92E mutant Deposited 2010-06-10	Different construct Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 77–149（73 aa） Fragment：UNP residues 77-149	Mutation：F92E	CA CALCIUM ION × 2	SOLUTION NMR NMR measurement conditions pH 6.9；293 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.8 mM [U-100% 13C; U-100% 15N] cCaMF92E-1, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.4 mM [U-100% 13C; U-100% 15N] cCaMF92E-2, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2M3S Calmodulin, i85l, f92e, h107i, l112r, a128t, m144r mutant Deposited 2013-01-25	Different construct Different mutation/modification Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–149（149 aa） Fragment：UNP residues 1-149	Mutation：I85L, F92E, H107I, L107I, A128T, M144R	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 6.91；303 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.68 mM [U-100% 13C; U-100% 15N] protein_1, 0.005 % DSS, 20 mM HEPES, 100 mM sodium chloride, 10 mM calcium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5 mM [U-100% 15N] protein_1, 0.005 % DSS, 20 mM HEPES, 100 mM sodium chloride, 10 mM calcium chloride, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
2O5G Calmodulin-smooth muscle light chain kinase peptide complex Deposited 2006-12-05	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；298 K；30% PEG 400, 0.2 M sodium acetate, 0.1 M Tris pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.08 Å R-free 0.165
2O60 Calmodulin bound to peptide from neuronal nitric oxide synthase Deposited 2006-12-06	Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–148（148 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.6；298 K；20% PEG 4000, 0.2 M sodium acetate, 0.1 M sodium citrate pH 5.6, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.55 Å R-free 0.244
2VB6 Myosin VI (MD-insert2-CaM, Delta Insert1) Post-rigor state (crystal form 2) Deposited 2007-09-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–149（149 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 1 BEF BERYLLIUM TRIFLUORIDE ION × 1 MG MAGNESIUM ION × 1 CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions 10% PEG 8000, 50MM GLYCINE PH 9.5, 6% MPD	Resolution 2.30 Å R-free 0.253
3GOF Calmodulin bound to peptide from macrophage nitric oxide synthase Deposited 2009-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–149（148 aa）	Not recorded	CA CALCIUM ION × 4 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.2 M ammonium sulfate, 0.1 M sodium acetate pH 4.6, 20% PEG 4000, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.45 Å R-free 0.208
3GOF Calmodulin bound to peptide from macrophage nitric oxide synthase Deposited 2009-03-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–149（148 aa）	Not recorded	CA CALCIUM ION × 4 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.2 M ammonium sulfate, 0.1 M sodium acetate pH 4.6, 20% PEG 4000, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.45 Å R-free 0.208
3GP2 Calmodulin bound to peptide from calmodulin kinase II (CaMKII) Deposited 2009-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–148（147 aa）	Not recorded	CA CALCIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.1 M sodium acetate pH 4.6, 0.2 M ammonium acetate, 30% PEG 4000, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.46 Å R-free 0.192
3GP2 Calmodulin bound to peptide from calmodulin kinase II (CaMKII) Deposited 2009-03-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–148（147 aa）	Not recorded	CA CALCIUM ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；298 K；0.1 M sodium acetate pH 4.6, 0.2 M ammonium acetate, 30% PEG 4000, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.46 Å R-free 0.192
5HIT Crystal Structure Analysis of Ca2+-calmodulin and a C-terminal EAG1 channel fragment Deposited 2016-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–148（147 aa）	Not recorded	CA CALCIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5；293 K；di-ammonium citrate, PEG 3350	Resolution 2.85 Å R-free 0.268
6BNV CryoEM structure of MyosinVI-actin complex in the rigor (nucleotide-free) state, backbone-averaged with side chains truncated to alanine Deposited 2017-11-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 20 PDB declaration: eicosameric	Chain O 4–148（145 aa） Chain P 4–148（145 aa） Chain Q 4–148（145 aa） Chain R 4–148（145 aa） Chain S 4–148（145 aa） Chain T 4–148（145 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5；Buffer was filtered through 0.44 um filter and degassed. cryo-EM vitrification conditions Cryogen ETHANE；Sample was applied to a glow-discharged holey carbon grid. 3 uL actin was incubated for 60 seconds. 3 uL of myosin VI was added and incubated for 60 seconds. 3 uL solution was removed. An additional 3 uL of myosin VI was applied. After 60 seconds, 3 uL solution was removed, and the grid was blotted for 3 seconds from the backside with filter paper.	Resolution 4.60 Å

12 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CALM_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–146； UniProt 1–148

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1ahr
Deposition date deposition_date	1997-04-10
Structure title title	CALMODULIN MUTANT WITH A TWO RESIDUE DELETION IN THE CENTRAL HELIX
Keywords keywords	CALMODULIN, CALCIUM-BINDING PROTEIN; CALCIUM-BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.08 Å
Radius of gyration Rg (electron density) rg_electron	20.22 Å
Forward intensity I(0) i0	5665210.00
Molecular weight molecular_weight	16600.0 kDa
Excluded volume excluded_volume	20317 Å³
Envelope volume envelope_volume	26991 Å³
Hydration-shell volume shell_volume	12326 Å³
Envelope diameter envelope_diameter	61.6 Å
Shell Rg shell_rg	24.22 Å
Envelope Rg envelope_rg	19.51 Å
Shape Rg shape_rg	20.24 Å
Total Rg total_rg	20.79 Å
Total atoms total_atoms	1153
Residues n_residues	146
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

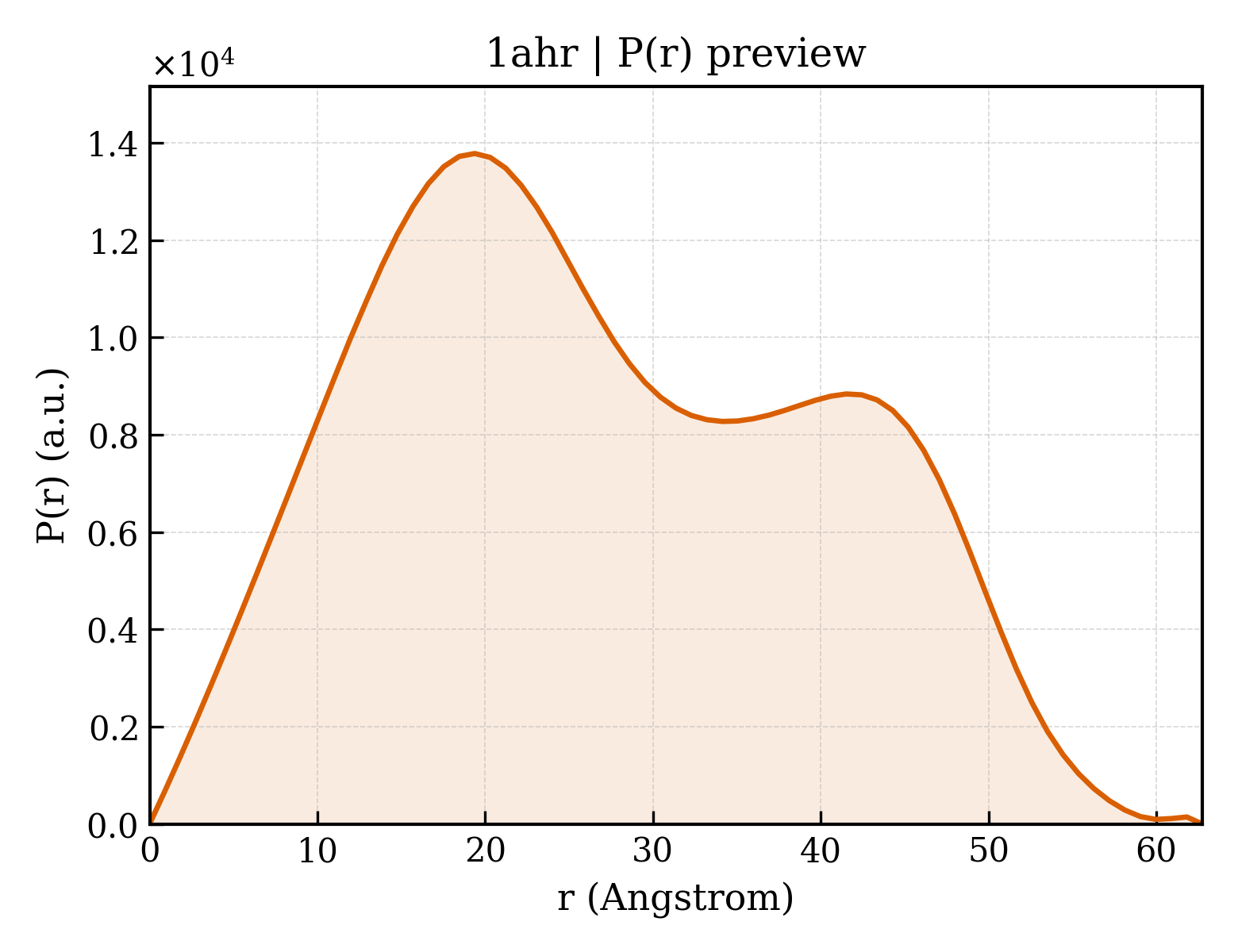

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	62.7 Å
Rg (real space) rg_real	21.16 Å
Rg uncertainty (real space) rg_real_error	0.47 Å
I(0) (real space) i0_real	5.6650e+06
I(0) uncertainty (real space) i0_real_error	7.7460e+04
Rg (reciprocal space) rg_reciprocal	21.15 Å
I(0) (reciprocal space) i0_reciprocal	5665000.0000
Solution quality estimate total_estimate	0.8755
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	19.4 Å
Skewness Skewness skewness	0.231
Kurtosis Kurtosis kurtosis	-0.917
Angular range angular_range	— – 0.3750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	366200.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.870; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.837; Smooth: 0.931

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	CALMODULIN
Molecular weight formula_weight	16478.1 kDa
Mutation mutation	DEL(T79), DEL(D80)
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1266

ADQLTEEQIAEFKEAFSLFDKDGDGTITTKELGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPEFLTMMARKMKDSEEEIREAFRVFDKDGNGFISAAELRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEEFVTMMTSK

来源 Source

来源生物 organism	Gallus gallus
通用名 common_name	chicken
NCBI Class编号 ncbi_taxonomy_id	9031
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	113

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d1ahra_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.5 — Calmodulin-like

CATH v4.4 (1 domains)

Domain ID domain_id	1ahrA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

Unit-cell length a length_a	27.090 Å
Unit-cell length b length_b	55.510 Å
Unit-cell length c length_c	100.890 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	8.000 Å
R factor r_factor	0.2110
R_work r_work	0.2110
R_free r_free	—

fit	/app/data/saxs_computation/ah/1ahr/1ahr.fit
pddf	/app/data/pr_computation/ah/1ahr/1ahr.pr.out
profile	/app/data/saxs_computation/ah/1ahr/1ahr.dat
