2vct

Glutathione transferase A2-2 in complex with delta-4-andostrene-3-17- dione

Method: X-RAY DIFFRACTION D_max: 147.6 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTATHIONE S-TRANSFERASE A2

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–222 Chain B； UniProt 1–222	Not recorded	ASD 4-ANDROSTENE-3-17-DIONE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.8；HANGING DROP VAPOUR TECHNIQUE WAS USED. 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WAS MIXED WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1UL OF 20 MM ANDROSTENE DIONE.	Resolution 2.10 Å R-free 0.288
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–222 Chain D； UniProt 1–222	Not recorded	ASD 4-ANDROSTENE-3-17-DIONE × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.8；HANGING DROP VAPOUR TECHNIQUE WAS USED. 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WAS MIXED WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1UL OF 20 MM ANDROSTENE DIONE.	Resolution 2.10 Å R-free 0.288
3	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 1–222 Chain F； UniProt 1–222	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.8；HANGING DROP VAPOUR TECHNIQUE WAS USED. 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WAS MIXED WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1UL OF 20 MM ANDROSTENE DIONE.	Resolution 2.10 Å R-free 0.288
4	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 1–222 Chain H； UniProt 1–222	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.8；HANGING DROP VAPOUR TECHNIQUE WAS USED. 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WAS MIXED WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1UL OF 20 MM ANDROSTENE DIONE.	Resolution 2.10 Å R-free 0.288

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2VCT	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AGS A SURFACE MUTANT (G82R) OF A HUMAN ALPHA-GLUTATHIONE S-TRANSFERASE SHOWS DECREASED THERMAL STABILITY AND A NEW MODE OF MOLECULAR ASSOCIATION IN THE CRYSTAL Deposited 1995-01-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–221（221 aa） Chain B 1–221（221 aa）	Not recorded	GTX S-HEXYLGLUTATHIONE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
2WJU Glutathione transferase A2-2 in complex with glutathione Deposited 2009-05-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–222（222 aa） Chain B 1–222（222 aa）	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；THE CRYSTALS WERE OBTAINED BY HANGING DROP VAPOUR TECHNIQUE BY MIXING 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1 UL OF 25 MM GLUTATHIONE	Resolution 2.30 Å R-free 0.297
2WJU Glutathione transferase A2-2 in complex with glutathione Deposited 2009-05-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–222（222 aa） Chain D 1–222（222 aa）	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；THE CRYSTALS WERE OBTAINED BY HANGING DROP VAPOUR TECHNIQUE BY MIXING 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1 UL OF 25 MM GLUTATHIONE	Resolution 2.30 Å R-free 0.297
2WJU Glutathione transferase A2-2 in complex with glutathione Deposited 2009-05-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 1–222（222 aa） Chain F 1–222（222 aa）	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；THE CRYSTALS WERE OBTAINED BY HANGING DROP VAPOUR TECHNIQUE BY MIXING 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1 UL OF 25 MM GLUTATHIONE	Resolution 2.30 Å R-free 0.297
2WJU Glutathione transferase A2-2 in complex with glutathione Deposited 2009-05-29	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 1–222（222 aa） Chain H 1–222（222 aa）	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；THE CRYSTALS WERE OBTAINED BY HANGING DROP VAPOUR TECHNIQUE BY MIXING 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1 UL OF 25 MM GLUTATHIONE	Resolution 2.30 Å R-free 0.297
4ACS Crystal structure of mutant GST A2-2 with enhanced catalytic efficiency with azathioprine Deposited 2011-12-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–221（221 aa） Chain B 1–221（221 aa）	Mutation：YES Mutation：YES	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；CRYSTALS WERE GROWN BY HANING DROP METHOD BY MIXING EQUAL VOLUMES (4 UL) OF PROTEIN (10 MG/ML)AND GLUTATHIONE S-CONJUGATE (5 MM) MIXTURE AND RESERVOIR SOLUTION CONTAINING 9-14% PEG 4000 AND 2 MM DTT IN 100 MM TRIS-HCL (PH 7.8) WITH ADDITIONAL OCTYL D-BETA- GLUCOPYRANOSIDE TO A FINAL CONCENTRATION OF 0.1% (W/V)	Resolution 2.10 Å R-free 0.321
4ACS Crystal structure of mutant GST A2-2 with enhanced catalytic efficiency with azathioprine Deposited 2011-12-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–221（221 aa） Chain D 1–221（221 aa）	Mutation：YES Mutation：YES	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；CRYSTALS WERE GROWN BY HANING DROP METHOD BY MIXING EQUAL VOLUMES (4 UL) OF PROTEIN (10 MG/ML)AND GLUTATHIONE S-CONJUGATE (5 MM) MIXTURE AND RESERVOIR SOLUTION CONTAINING 9-14% PEG 4000 AND 2 MM DTT IN 100 MM TRIS-HCL (PH 7.8) WITH ADDITIONAL OCTYL D-BETA- GLUCOPYRANOSIDE TO A FINAL CONCENTRATION OF 0.1% (W/V)	Resolution 2.10 Å R-free 0.321

3 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GSTA2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–222； UniProt 1–222 Author chain B； PDBConstruct 1–222； UniProt 1–222 Author chain C； PDBConstruct 1–222； UniProt 1–222 Author chain D； PDBConstruct 1–222； UniProt 1–222 Author chain E； PDBConstruct 1–222； UniProt 1–222 Author chain F； PDBConstruct 1–222； UniProt 1–222 Author chain G； PDBConstruct 1–222； UniProt 1–222 Author chain H； PDBConstruct 1–222； UniProt 1–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

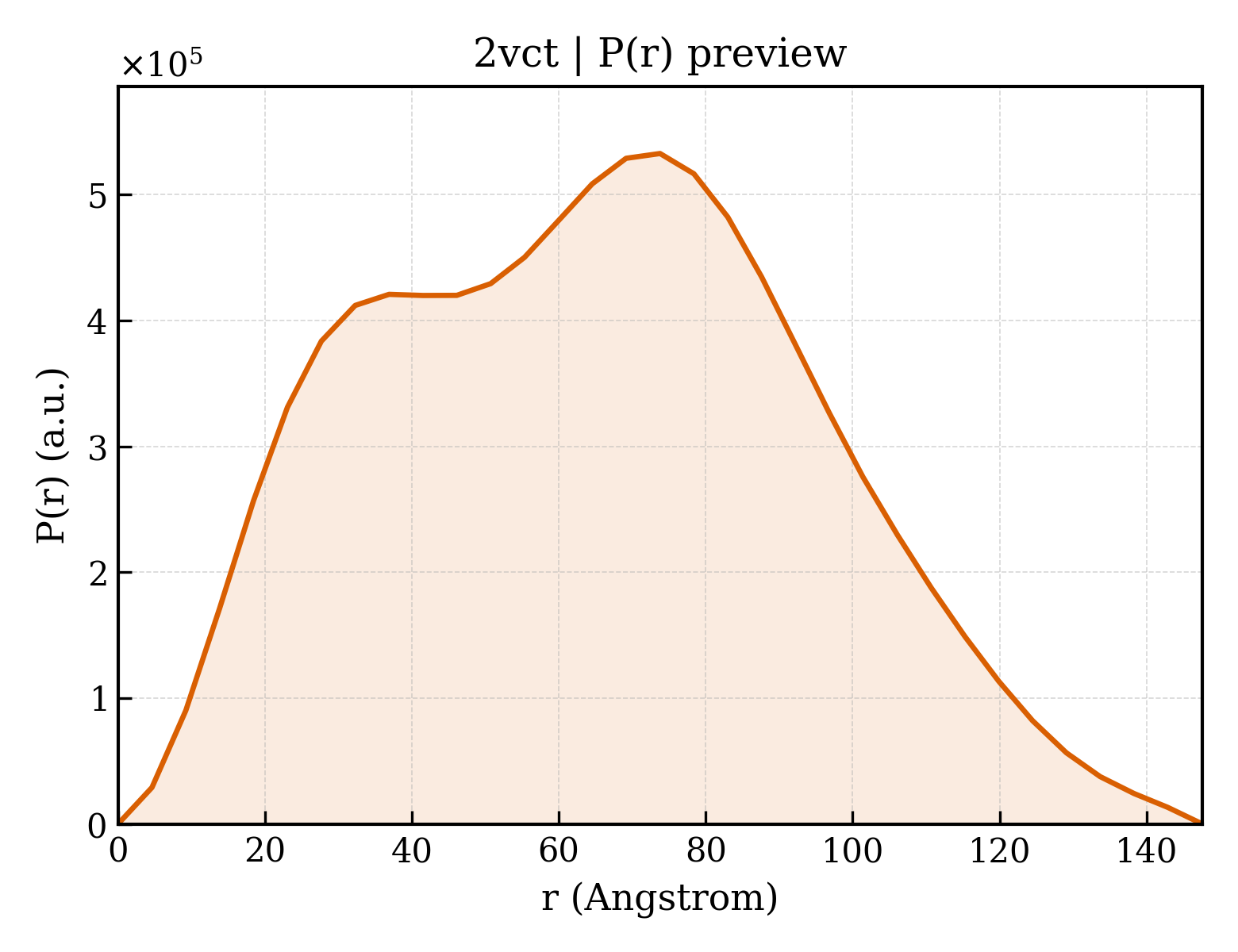

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2vct
Deposition date deposition_date	2007-09-27
Structure title title	Glutathione transferase A2-2 in complex with delta-4-andostrene-3-17- dione
Keywords keywords	ANDOSTRENE DIONE, STEROID METABOLISM, TRANSFERASE, GLUTATHIONE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	49.44 Å
Radius of gyration Rg (electron density) rg_electron	49.02 Å
Forward intensity I(0) i0	540233000.00
Molecular weight molecular_weight	205540.0 kDa
Excluded volume excluded_volume	262890 Å³
Envelope volume envelope_volume	376350 Å³
Hydration-shell volume shell_volume	64866 Å³
Envelope diameter envelope_diameter	155.7 Å
Shell Rg shell_rg	52.18 Å
Envelope Rg envelope_rg	47.47 Å
Shape Rg shape_rg	49.02 Å
Total Rg total_rg	49.14 Å
Total atoms total_atoms	14484
Residues n_residues	1768
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	147.6 Å
Rg (real space) rg_real	50.09 Å
Rg uncertainty (real space) rg_real_error	0.48 Å
I(0) (real space) i0_real	5.3150e+08
I(0) uncertainty (real space) i0_real_error	8.0530e+06
Rg (reciprocal space) rg_reciprocal	49.43 Å
I(0) (reciprocal space) i0_reciprocal	540300000.0000
Solution quality estimate total_estimate	0.6658
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	73.8 Å
Skewness Skewness skewness	0.142
Kurtosis Kurtosis kurtosis	-0.678
Angular range angular_range	— – 0.1600 Å⁻¹
Current regularization parameter α current_alpha	1.7900
Highest regularization parameter α highest_alpha	147700000.0000
Real-space data points n_real_points	33
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.967; Stabil: 0.909; Sysdev: 0.000; Positv: 1.000; Valcen: 0.989; Smooth: 0.055

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GLUTATHIONE S-TRANSFERASE A2
Molecular weight formula_weight	25715.0 kDa
EC 编号 ec_number	2.5.1.18
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	16109

MAEKPKLHYSNIRGRMESIRWLLAAAGVEFEEKFIKSAEDLDKLRNDGYLMFQQVPMVEIDGMKLVQTRAILNYIASKYNLYGKDIKEKALIDMYIEGIADLGEMILLLPFTQPEEQDAKLALIQEKTKNRYFPAFEKVLKSHGQDYLVGNKLSRADIHLVELLYYVEELDSSLISSFPLLKALKTRISNLPTVKKFLQPGSPRKPPMDEKSLEESRKIFRF

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	4-ANDROSTENE-3-17-DIONE
Molecular weight formula_weight	286.4 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	1625

▼

7. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d2vcta1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2vcta2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2vctb1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2vctb2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2vctc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2vctc2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2vctd1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2vctd2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2vcte1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2vcte2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2vctf1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2vctf2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2vctg1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2vctg2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2vcth1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2vcth2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

CATH v4.4 (16 domains)

Domain ID domain_id	2vctA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2vctA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2vctB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2vctB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2vctC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2vctC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2vctD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2vctD02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2vctE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2vctE02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2vctF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2vctF02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2vctG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2vctG02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2vctH01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2vctH02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	105.546 Å
Unit-cell length b length_b	97.343 Å
Unit-cell length c length_c	110.302 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	115.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.100 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2210
R_work r_work	0.2170
R_free r_free	0.2880

fit	/app/data/saxs_computation/vc/2vct/2vct.fit
pddf	/app/data/pr_computation/vc/2vct/2vct.pr.out
profile	/app/data/saxs_computation/vc/2vct/2vct.dat
