2wju

Glutathione transferase A2-2 in complex with glutathione

Method: X-RAY DIFFRACTION D_max: 159.1 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GLUTATHIONE-S-TRANSFERASE A2-2

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–222 Chain B； UniProt 1–222	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；THE CRYSTALS WERE OBTAINED BY HANGING DROP VAPOUR TECHNIQUE BY MIXING 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1 UL OF 25 MM GLUTATHIONE	Resolution 2.30 Å R-free 0.297
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 1–222 Chain D； UniProt 1–222	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；THE CRYSTALS WERE OBTAINED BY HANGING DROP VAPOUR TECHNIQUE BY MIXING 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1 UL OF 25 MM GLUTATHIONE	Resolution 2.30 Å R-free 0.297
3	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 1–222 Chain F； UniProt 1–222	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；THE CRYSTALS WERE OBTAINED BY HANGING DROP VAPOUR TECHNIQUE BY MIXING 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1 UL OF 25 MM GLUTATHIONE	Resolution 2.30 Å R-free 0.297
4	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain G； UniProt 1–222 Chain H； UniProt 1–222	Not recorded	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8；THE CRYSTALS WERE OBTAINED BY HANGING DROP VAPOUR TECHNIQUE BY MIXING 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1 UL OF 25 MM GLUTATHIONE	Resolution 2.30 Å R-free 0.297

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2WJU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1AGS A SURFACE MUTANT (G82R) OF A HUMAN ALPHA-GLUTATHIONE S-TRANSFERASE SHOWS DECREASED THERMAL STABILITY AND A NEW MODE OF MOLECULAR ASSOCIATION IN THE CRYSTAL Deposited 1995-01-23	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–221（221 aa） Chain B 1–221（221 aa）	Not recorded	GTX S-HEXYLGLUTATHIONE × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.50 Å
2VCT Glutathione transferase A2-2 in complex with delta-4-andostrene-3-17- dione Deposited 2007-09-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–222（222 aa） Chain B 1–222（222 aa）	Not recorded	ASD 4-ANDROSTENE-3-17-DIONE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；HANGING DROP VAPOUR TECHNIQUE WAS USED. 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WAS MIXED WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1UL OF 20 MM ANDROSTENE DIONE.	Resolution 2.10 Å R-free 0.288
2VCT Glutathione transferase A2-2 in complex with delta-4-andostrene-3-17- dione Deposited 2007-09-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–222（222 aa） Chain D 1–222（222 aa）	Not recorded	ASD 4-ANDROSTENE-3-17-DIONE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；HANGING DROP VAPOUR TECHNIQUE WAS USED. 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WAS MIXED WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1UL OF 20 MM ANDROSTENE DIONE.	Resolution 2.10 Å R-free 0.288
2VCT Glutathione transferase A2-2 in complex with delta-4-andostrene-3-17- dione Deposited 2007-09-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 1–222（222 aa） Chain F 1–222（222 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；HANGING DROP VAPOUR TECHNIQUE WAS USED. 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WAS MIXED WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1UL OF 20 MM ANDROSTENE DIONE.	Resolution 2.10 Å R-free 0.288
2VCT Glutathione transferase A2-2 in complex with delta-4-andostrene-3-17- dione Deposited 2007-09-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 1–222（222 aa） Chain H 1–222（222 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；HANGING DROP VAPOUR TECHNIQUE WAS USED. 5 UL OF RESERVOIR SOLUTION [100 MM TRIS-HCL PH 7.8, 18% (V/V) PEG 4000, AND 2 MM DITHIOTHREITOL] WAS MIXED WITH 5 UL OF PROTEIN SOLUTION (10 MG/ML IN 10 MM TRIS-HCL PH 7.8), 1UL OF 200 MM SPERMINE AND 1UL OF 20 MM ANDROSTENE DIONE.	Resolution 2.10 Å R-free 0.288
4ACS Crystal structure of mutant GST A2-2 with enhanced catalytic efficiency with azathioprine Deposited 2011-12-19	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–221（221 aa） Chain B 1–221（221 aa）	Mutation：YES Mutation：YES	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；CRYSTALS WERE GROWN BY HANING DROP METHOD BY MIXING EQUAL VOLUMES (4 UL) OF PROTEIN (10 MG/ML)AND GLUTATHIONE S-CONJUGATE (5 MM) MIXTURE AND RESERVOIR SOLUTION CONTAINING 9-14% PEG 4000 AND 2 MM DTT IN 100 MM TRIS-HCL (PH 7.8) WITH ADDITIONAL OCTYL D-BETA- GLUCOPYRANOSIDE TO A FINAL CONCENTRATION OF 0.1% (W/V)	Resolution 2.10 Å R-free 0.321
4ACS Crystal structure of mutant GST A2-2 with enhanced catalytic efficiency with azathioprine Deposited 2011-12-19	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–221（221 aa） Chain D 1–221（221 aa）	Mutation：YES Mutation：YES	GSH Glutathione × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；CRYSTALS WERE GROWN BY HANING DROP METHOD BY MIXING EQUAL VOLUMES (4 UL) OF PROTEIN (10 MG/ML)AND GLUTATHIONE S-CONJUGATE (5 MM) MIXTURE AND RESERVOIR SOLUTION CONTAINING 9-14% PEG 4000 AND 2 MM DTT IN 100 MM TRIS-HCL (PH 7.8) WITH ADDITIONAL OCTYL D-BETA- GLUCOPYRANOSIDE TO A FINAL CONCENTRATION OF 0.1% (W/V)	Resolution 2.10 Å R-free 0.321

3 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GSTA2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–222； UniProt 1–222 Author chain B； PDBConstruct 1–222； UniProt 1–222 Author chain C； PDBConstruct 1–222； UniProt 1–222 Author chain D； PDBConstruct 1–222； UniProt 1–222 Author chain E； PDBConstruct 1–222； UniProt 1–222 Author chain F； PDBConstruct 1–222； UniProt 1–222 Author chain G； PDBConstruct 1–222； UniProt 1–222 Author chain H； PDBConstruct 1–222； UniProt 1–222

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2wju
Deposition date deposition_date	2009-05-29
Structure title title	Glutathione transferase A2-2 in complex with glutathione
Keywords keywords	TRANSFERASE, GLUTATHIONE; TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	51.79 Å
Radius of gyration Rg (electron density) rg_electron	51.85 Å
Forward intensity I(0) i0	557749000.00
Molecular weight molecular_weight	206850.0 kDa
Excluded volume excluded_volume	263700 Å³
Envelope volume envelope_volume	371850 Å³
Hydration-shell volume shell_volume	63200 Å³
Envelope diameter envelope_diameter	170.5 Å
Shell Rg shell_rg	50.86 Å
Envelope Rg envelope_rg	50.73 Å
Shape Rg shape_rg	51.85 Å
Total Rg total_rg	51.80 Å
Total atoms total_atoms	14560
Residues n_residues	1768
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

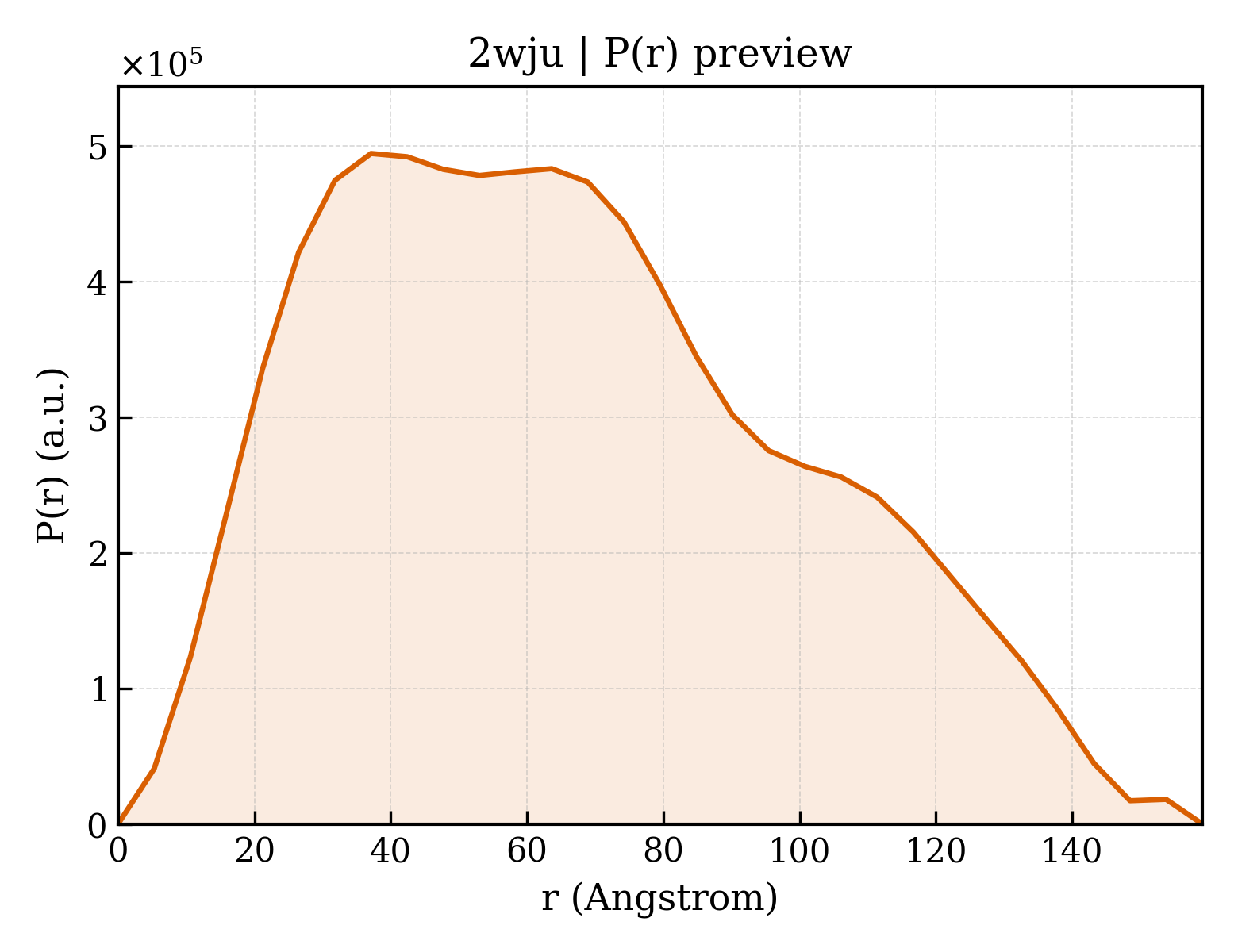

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	159.1 Å
Rg (real space) rg_real	52.05 Å
Rg uncertainty (real space) rg_real_error	1.60 Å
I(0) (real space) i0_real	5.5770e+08
I(0) uncertainty (real space) i0_real_error	1.1110e+07
Rg (reciprocal space) rg_reciprocal	51.55 Å
I(0) (reciprocal space) i0_reciprocal	557400000.0000
Solution quality estimate total_estimate	0.8161
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	37.1 Å
Skewness Skewness skewness	0.390
Kurtosis Kurtosis kurtosis	-0.663
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	80840000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.903; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.897; Smooth: 0.001

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	GLUTATHIONE-S-TRANSFERASE A2-2
Molecular weight formula_weight	25715.0 kDa
EC 编号 ec_number	2.5.1.18
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D,E,F,G,H
Atom count atom_count	15117

MAEKPKLHYSNIRGRMESIRWLLAAAGVEFEEKFIKSAEDLDKLRNDGYLMFQQVPMVEIDGMKLVQTRAILNYIASKYNLYGKDIKEKALIDMYIEGIADLGEMILLLPFTQPEEQDAKLALIQEKTKNRYFPAFEKVLKSHGQDYLVGNKLSRADIHLVELLYYVEELDSSLISSFPLLKALKTRISNLPTVKKFLQPGSPRKPPMDEKSLEESRKIFRF

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	GLUTATHIONE
Molecular weight formula_weight	307.3 kDa
Source method src_method	syn
Copy count entity_count	8

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	557

▼

7. Fold Classification (SCOP + CATH) 32 domains

SCOP 2.08 (16 domains)

Domain ID domain_id	d2wjua1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2wjua2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2wjub1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2wjub2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2wjuc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2wjuc2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2wjud1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2wjud2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2wjue1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2wjue2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2wjuf1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2wjuf2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2wjug1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2wjug2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

Domain ID domain_id	d2wjuh1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.47 — Thioredoxin fold
Superfamily Superfamily superfamily	c.47.1 — Thioredoxin-like
Family Family family	c.47.1.0 — automated matches

Domain ID domain_id	d2wjuh2
Class class	a — All alpha proteins
Fold Fold fold	a.45 — GST C-terminal domain-like
Superfamily Superfamily superfamily	a.45.1 — GST C-terminal domain-like
Family Family family	a.45.1.1 — Glutathione S-transferase (GST), C-terminal domain

CATH v4.4 (16 domains)

Domain ID domain_id	2wjuA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2wjuA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2wjuB01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2wjuB02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2wjuC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2wjuC02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2wjuD01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2wjuD02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2wjuE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2wjuE02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2wjuF01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2wjuF02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2wjuG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2wjuG02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

Domain ID domain_id	2wjuH01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

Domain ID domain_id	2wjuH02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1050 — Glutathione S-transferase Yfyf (Class Pi); Chain A, domain 2
Homologous superfamily homologous superfamily	10 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	54.160 Å
Unit-cell length b length_b	85.500 Å
Unit-cell length c length_c	113.420 Å
Unit-cell angle α angle_alpha	96.00 °
Unit-cell angle β angle_beta	101.78 °
Unit-cell angle γ angle_gamma	97.46 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.300 Å
Low-resolution limit resolution_low	42.000 Å
R factor r_factor	0.2481
R_work r_work	0.2456
R_free r_free	0.2974

fit	/app/data/saxs_computation/wj/2wju/2wju.fit
pddf	/app/data/pr_computation/wj/2wju/2wju.pr.out
profile	/app/data/saxs_computation/wj/2wju/2wju.dat
