SAXSdb — 2woq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DELTA-AMINOLEVULINIC ACID DEHYDRATASE

PSEUDOMONAS AERUGINOSA

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 1–337	Not recorded	AYC ALAREMYCIN 2 × 8 MG MAGNESIUM ION × 32 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 16 PE5 3,6,9,12,15,18,21,24-OCTAOXAHEXACOSAN-1-OL × 32	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；290 K；100 MM HEPES PH 7.5, 200 MM MGCL2, 30 % PEG400 TEMPERATURE = 17 C PROTEIN CONCENTRATION = 20 MG/ML	Resolution 1.75 Å R-free 0.180

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2WOQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1B4K High resolution crystal structure of a MG2-dependent 5-aminolevulinic acid dehydratase Deposited 1998-12-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Not recorded	SO4 SULFATE ION × 8 MG MAGNESIUM ION × 4 SHF LAEVULINIC ACID × 8	X-RAY DIFFRACTION X-ray crystallization conditions pH 8；pH 8.0	Resolution 1.67 Å R-free 0.208
1GZG Complex of a Mg2-dependent porphobilinogen synthase from Pseudomonas aeruginosa (mutant D139N) with 5-fluorolevulinic acid Deposited 2002-05-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Mutation：YES	LAF 5-FLUOROLEVULINIC ACID × 16 MG MAGNESIUM ION × 8 NA SODIUM ION × 8 SO4 SULFATE ION × 8 K POTASSIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；PROTEIN SOLUTION: 12 MG/ML PBGS MUTANT D139N IN 50 MM K-HEPES, 10 MM MGCL2. CRYSTALLIZATION SOLUTION: 0.99 ML PROTEIN SOLUTION = 0.01 ML 2MM 5F-LA IN 50 MM K-HEPES, 10 MM MGCL2. RESERVOIR SOLUTION: 1 M NA/K-TARTRATE, 0.2M LI2SO4, 0.1 M CHES PH = 9,5. SITTING DROP: 0.003 ML CRYSTALLISATION SOLUTION + 0.003 ML RESERVOIR SOLUTION	Resolution 1.66 Å R-free 0.198
1W54 Stepwise introduction of a zinc binding site into Porphobilinogen synthase from Pseudomonas aeruginosa (mutation D139C) Deposited 2004-08-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Mutation：YES	FMT FORMIC ACID × 8 K POTASSIUM ION × 8 MG MAGNESIUM ION × 8 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP IN 24-WELL LIMBRO PLATES. DROPS MADE OF 5 MICROL PROTEIN SOLUTION (8,7 MG/ML PROTEIN, 50 MM NA-HEPES PH 7.5, 10 MM MGCL2, 10 ZNCL2, 10 MM DTT) PLUS 5 MICROL RESERVOIR SOLUTION (28,5 % (W/V) PEG-400, 100 MM NA-HEPES PH 7.5, 80MM MGCL2, 20MM DTT) ABOVE 500 MICROL OF RESERVOIR SOLUTION.	Resolution 2.20 Å R-free 0.217
1W56 Stepwise introduction of zinc binding site into porphobilinogen synthase of Pseudomonas aeruginosa (mutations A129C and D131C) Deposited 2004-08-05	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Mutation：YES	FMT FORMIC ACID × 8 MG MAGNESIUM ION × 12 ZN ZINC ION × 8 K POTASSIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP. DROPS WERE MIXED OF 5 MICROLITER OF PROTEIN SOLUTION (9 MG/ML PROTEIN, 50 MM NA-HEPES PH 7.5, 10MM MGCL2, 10MM ZNCL2, 10 MM DTT) PLUS 5 MICROLITER OF RESERVOIR SOLUTION (31.5 % (W/V) PEG 400, 100MM NA-HEPES PH 7.5, 20 MM MGCL2, 20MM BETA-MERCAPTOETHANOLE) ON GLASS COVER SLIDES,HANGING ABOVE 500 MICROLITER OF RESERVOIR SOLUTION.	Resolution 1.70 Å R-free 0.182
1W5M Stepwise introduction of zinc binding site into porphobilinogen synthase of Pseudomonas aeruginosa (mutations A129C and D139C) Deposited 2004-08-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Mutation：YES	CL CHLORIDE ION × 8 FMT FORMIC ACID × 8 MG MAGNESIUM ION × 28 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；HANGING DROP. DROPS WERE MIXED OF 5 MICROLITER OF PROTEIN SOLUTION (7.5 MG/ML PROTEIN, 50 MM NA-HEPES PH 7.5, 10MM MGCL2, 10MM ZNCL2, 10 MM BETA-MERCAPTOETHANOLE) PLUS 5 MICROLITER OF RESERVOIR SOLUTION (30.0 % (W/V) PEG 400, 100MM NA-HEPES PH 8.5, 200 MM MGCL2, 20MM BETA-MERCAPTOETHANOLE) ON GLASS COVER SLIDES, HANGING ABOVE 500 MICROLITER OF RESERVOIR SOLUTION.	Resolution 1.60 Å R-free 0.165
1W5N Stepwise introduction of zinc binding site into porphobilinogen synthase of Pseudomonas aeruginosa (mutations D131C and D139C) Deposited 2004-08-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Mutation：YES	FMT FORMIC ACID × 8 CL CHLORIDE ION × 4 MG MAGNESIUM ION × 12 ZN ZINC ION × 8 NA SODIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP. DROPS WERE MIXED OF 5 MICROLITER OF PROTEIN SOLUTION (9 MG/ML PROTEIN, 50 MM NA-HEPES PH 7.5, 10MM MGCL2, 10MM ZNCL2, 10 MM BETA-MERCAPTOETHANOLE) PLUS 5 MICROLITER OF RESERVOIR SOLUTION (30.0 % (W/V) PEG 400, 100MM NA-HEPES PH 7.5, 40 MM MGCL2, 20MM BETA-MERCAPTOETHANOLE) ON GLASS COVER SLIDES, HANGING ABOVE 500 MICROLITER OF RESERVOIR SOLUTION.	Resolution 1.65 Å R-free 0.188
1W5O Stepwise introduction of zinc binding site into porphobilinogen synthase of Pseudomonas aeruginosa (mutations A129C, D131C and D139C) Deposited 2004-08-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Mutation：YES	GOL GLYCEROL × 8 K POTASSIUM ION × 8 MG MAGNESIUM ION × 8 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；SITTING DROP. DROPS WERE MIXED OF 3 MICROLITER OF PROTEIN SOLUTION (7 MG/ML PROTEIN, 50 MM NA-HEPES PH 7.5, 10MM MGCL2, 10MM ZNCL2, 10 MM DTT) PLUS 3 MICROLITER OF RESERVOIR SOLUTION (1M K/NA-TARTRATE, 100MM MES PH 6.0, 20MM BETA-MERCAPTOETHANOLE), 100 MICROLITER OF RESERVOIR SOLUTION, 96 WELL PLATES (NUNC)	Resolution 1.85 Å R-free 0.176
1W5P Stepwise introduction of zinc binding site into porphobilinogen synthase of Pseudomonas aeruginosa (mutations A129C, D131C, D139C, P132E) Deposited 2004-08-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Mutation：YES	EDO 1,2-ETHANEDIOL × 20 FMT FORMIC ACID × 8 K POTASSIUM ION × 8 MG MAGNESIUM ION × 8 SO4 SULFATE ION × 8 GOL GLYCEROL × 24 ZN ZINC ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；SITTING DROP. DROPS WERE MIXED OF 3 MICROLITER OF PROTEIN SOLUTION (12 MG/ML PROTEIN, 50 MM NA-HEPES PH 7.5, 10MM MGCL2, 1MM ZNCL2, 10 MM DTT) PLUS 3 MICROLITER OF RESERVOIR SOLUTION (1M LITHIUM SULFATE, 100MM TRIS-HCL PH 8.5, 10MM NICKEL CHLORIDE), 100 MICROLITER OF RESERVOIR SOLUTION, 96 WELL PLATES (NUNC) IN AN ANAEROBIC BOX	Resolution 1.55 Å R-free 0.185
1W5Q Stepwise introduction of zinc binding site into porphobilinogen synthase of Pseudomonas aeruginosa (mutations A129C, D131C, D139C, P132E, K229R) Deposited 2004-08-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Mutation：YES	FMT FORMIC ACID × 8 MG MAGNESIUM ION × 20 ZN ZINC ION × 8 NA SODIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP. DROPS WERE MIXED OF 5 MICROLITER OF PROTEIN SOLUTION (10 MG/ML PROTEIN, 50 MM NA-HEPES PH 7.5, 10 MM MGCL2, 10 MICROM ZNCL2, 10 MM DTT) PLUS 5 MICROLITER OF RESERVOIR SOLUTION (30.0 % (W/V) PEG 400, 100MM NA-HEPES PH 7.5, 80 MM MGCL2, 20MM DTT) ON GLASS COVER SLIDES, HANGING ABOVE 500 MICROLITER OF RESERVOIR SOLUTION, IN AN ANAEROBIC BOX.	Resolution 1.40 Å R-free 0.173
2C13 5-hydroxy-levulinic acid bound to Porphobilinogen synthase from Pseudomonas aeruginosa Deposited 2005-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 CL CHLORIDE ION × 8 PEG DI(HYDROXYETHYL)ETHER × 4 K POTASSIUM ION × 8 PGE TRIETHYLENE GLYCOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；HANGING DROP IN 24-WELL LIMBRO PLATES.DROPS MADE OF 5 MICROL PROTEIN SOLUTION (10 MG/ML PROTEIN, 0.05 M TRIS-HCL, PH 7.5, 0.005 M MGCL2, 0.01 M 5-OH-4-OXO-PENTANOIC ACID SODIUM SALT PLUS 5 MICROL RESERVOIR SOLUTION 9.0 % (W/V) PEG-4000, 0.180 M KCL, 0.009 M CACL2, 0.05 M NA-CACODYLATE PH 6.0	Resolution 2.15 Å R-free 0.204
2C14 5-(4-Carboxy-2-oxo-butylamino)-4-oxo-pentanoic acid acid bound to Porphobilinogen synthase from Pseudomonas aeruginosa Deposited 2005-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF) Mutation：YES Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP IN 24-WELL LIMBRO PLATES. DROPS MADE OF 5 MICROL PROTEIN SOLUTION (10 MG/ML PROTEIN, 50 MM TRIS-HCL, PH 7.5, 5 MM MGCL2, 1MM NACL, 1 MM 5-(4-CARBOXY-2-OXO-BUTYLAMINO)-4-OXO-PENTANOIC ACID MONOSODIUM SALT)) PLUS 5 MICROL RESERVOIR SOLUTION (18.0 % (W/V) PEG-3350, 200 MM LINO3)	Resolution 1.90 Å R-free 0.201
2C15 5-(4-Carboxy-2-oxo-butoxy)-4-oxo-pentanoic acid acid bound to Porphobilinogen synthase from Pseudomonas aeruginosa Deposited 2005-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP IN 24-WELL LIMBRO PLATES. DROPS MADE OF 5 MICROL PROTEIN SOLUTION (10 MG/ML PROTEIN, 100 MM TRIS-HCL, PH 7.5, 5 MM MGCL2, 5 MM 5-(4-CARBOXY-2-OXO-BUTOXY)-4-OXO-PENTANOIC ACID SODIUM SALT) PLUS 5 MICROL RESERVOIR SOLUTION (12.0 % (W/V) PEG-8000, 340 MM LI2SO4, 20% (V/V) GLYCEROL,)ABOVE 500 MICROL OF RESERVOIR SOLUTION.	Resolution 1.48 Å R-free 0.171
2C16 5-(4-Carboxy-2-oxo-butane-1-sulfinyl)-4-oxo-pentanoic acid acid bound to Porphobilinogen synthase from Pseudomonas aeruginosa Deposited 2005-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 PGE TRIETHYLENE GLYCOL × 8 PEG DI(HYDROXYETHYL)ETHER × 12 CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP IN 24-WELL LIMBRO PLATES. DROPS MADE OF 5 MICROL PROTEIN SOLUTION (10 MG/ML PROTEIN, 50 MM TRIS-HCL, PH 7.5, 5 MM MGCL2, 10 MM 5-(4-CARBOXY-2-OXO-BUTANE-1-SULFINYL)-4-OXO-PENTANOIC ACID DISODIUM SALT) PLUS 5 MICROL RESERVOIR SOLUTION (18.0 % (W/V) PEG-3350, 220 MM LICL) ABOVE 500 MICROL OF RESERVOIR SOLUTION.	Resolution 2.02 Å R-free 0.183
2C18 5-(4-Carboxy-2-oxo-butane-1-sulfonyl)-4-oxo-pentanoic acid bound to Porphobilinogen synthase from Pseudomonas aeruginosa Deposited 2005-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 28 NA SODIUM ION × 8 CL CHLORIDE ION × 8 PGE TRIETHYLENE GLYCOL × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP IN 24-WELL LIMBRO PLATES. DROPS MADE OF 5 MICROLITRES PROTEIN SOLUTION, 10 MG/ML PROTEIN, 50 MM TRIS-HCL, PH 7.5, 5 MM MGCL2, 10 MM 5-(4-CARBOXY-2-OXO-BUTANE-1-SULFONYL)-4-OXO-PENTANOIC ACID DISODIUM SALT) PLUS 5 MICROL RESERVOIR SOLUTION (31.0 % (V/V) PEG-400, 100 MM NA-HEPES PH 7.5, 180 MM MGCL2) ABOVE 500 MICROL OF RESERVOIR SOLUTION.	Resolution 1.93 Å R-free 0.186
2C19 5-(4-Carboxy-2-oxo-butylsulfanyl)-4-oxo-pentanoic acid acid bound to Porphobilinogen synthase from Pseudomonas aeruginosa Deposited 2005-09-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 8 PDB declaration: octameric	Chain A 1–337（337 aa） Chain B 1–337（337 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 8 NA SODIUM ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；HANGING DROP IN 24-WELL LIMBRO PLATES. DROPS MADE OF 5 MICROL PROTEIN SOLUTION (10 MG/ML PROTEIN, 50 MM TRIS-HCL, PH 7.5, 5 MM MGCL2, 10 MM 5-(4-CARBOXY-2-OXO-BUTYLSULFANYL)-4-OXO-PENTANOIC ACID DISODIUM SALT) PLUS 5 MICROL RESERVOIR SOLUTION (17.0 % (W/V) PEG-3350, 120 MM NA-TARTRATE) ABOVE 500 MICROL OF RESERVOIR SOLUTION.	Resolution 2.05 Å R-free 0.201

15 other PDB entries and 15 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HEM2_PSEAE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–337； UniProt 1–337

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2woq
Deposition date deposition_date	2009-07-27
Structure title title	Porphobilinogen Synthase (HemB) in Complex with 5-acetamido-4- oxohexanoic acid (Alaremycin 2)
Keywords keywords	;LYASE-ANTIBIOTIC COMPLEX, LYASE ANTIBIOTIC COMPLEX, METAL-BINDING, HEME BIOSYNTHESIS, PORPHYRIN BIOSYNTHESIS, PORPOBILINOGEN SYNTHASE, HEMB, LYASE, INHIBITOR ;; LYASE/ANTIBIOTIC
Experimental Method method	X-RAY DIFFRACTION

▼

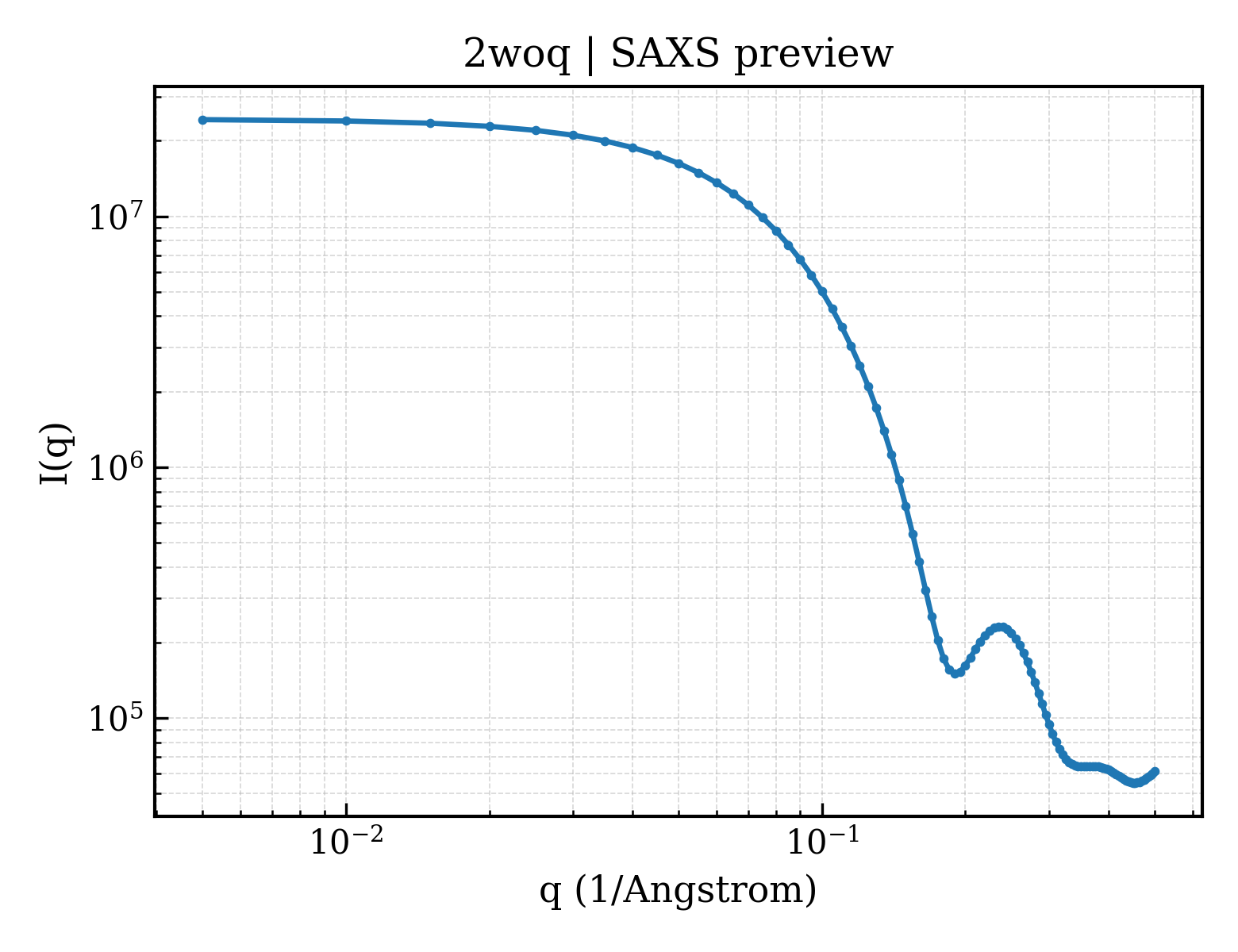

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.08 Å
Radius of gyration Rg (electron density) rg_electron	21.03 Å
Forward intensity I(0) i0	24379100.00
Molecular weight molecular_weight	37438.0 kDa
Excluded volume excluded_volume	46773 Å³
Envelope volume envelope_volume	57126 Å³
Hydration-shell volume shell_volume	22796 Å³
Envelope diameter envelope_diameter	83.4 Å
Shell Rg shell_rg	27.78 Å
Envelope Rg envelope_rg	22.32 Å
Shape Rg shape_rg	21.04 Å
Total Rg total_rg	21.86 Å
Total atoms total_atoms	2628
Residues n_residues	329
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

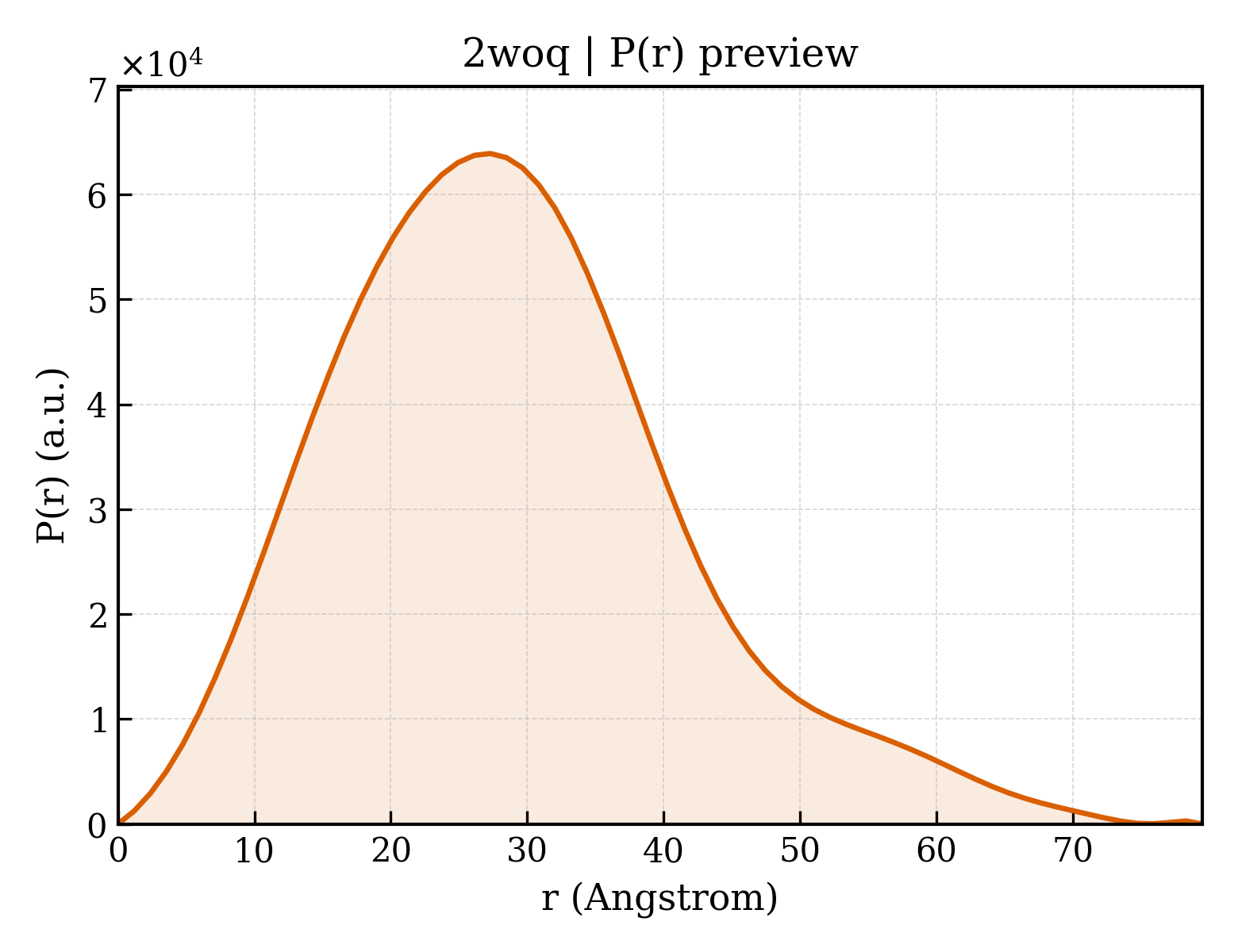

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	79.5 Å
Rg (real space) rg_real	22.15 Å
Rg uncertainty (real space) rg_real_error	0.49 Å
I(0) (real space) i0_real	2.4380e+07
I(0) uncertainty (real space) i0_real_error	2.8310e+05
Rg (reciprocal space) rg_reciprocal	22.14 Å
I(0) (reciprocal space) i0_reciprocal	24380000.0000
Solution quality estimate total_estimate	0.8144
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.3 Å
Skewness Skewness skewness	0.572
Kurtosis Kurtosis kurtosis	0.293
Angular range angular_range	— – 0.3600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	6686000.0000
Real-space data points n_real_points	68
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.574; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.917; Smooth: 0.942

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	DELTA-AMINOLEVULINIC ACID DEHYDRATASE
Molecular weight formula_weight	37077.9 kDa
EC 编号 ec_number	4.2.1.24
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2963

MSFTPANRAYPYTRLRRNRRDDFSRRLVRENVLTVDDLILPVFVLDGVNQRESIPSMPGVERLSIDQLLIEAEEWVALGIPALALFPVTPVEKKSLDAAEAYNPEGIAQRATRALRERFPELGIITDVALDPFTTHGQDGILDDDGYVLNDVSIDVLVRQALSHAEAGAQVVAPSDMMDGRIGAIREALESAGHTNVRIMAYSAKYASAYYGPFRDAVGSASNLGKGNKATYQMDPANSDEALHEVAADLAEGADMVMVKPGMPYLDIVRRVKDEFRAPTFVYQVSGEYAMHMGAIQNGWLAESVILESLTAFKRAGADGILTYFAKQAAEQLRRGR

来源 Source

来源生物 organism	PSEUDOMONAS AERUGINOSA
NCBI Class编号 ncbi_taxonomy_id	287
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	ALAREMYCIN 2
Molecular weight formula_weight	187.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	3,6,9,12,15,18,21,24-OCTAOXAHEXACOSAN-1-OL
Molecular weight formula_weight	398.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	176

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2woqa_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.1 — TIM beta/alpha-barrel
Superfamily Superfamily superfamily	c.1.10 — Aldolase
Family Family family	c.1.10.3 — 5-aminolaevulinate dehydratase, ALAD (porphobilinogen synthase)

CATH v4.4 (1 domains)

Domain ID domain_id	2woqA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	20 — TIM Barrel
Homologous superfamily homologous superfamily	70 — Aldolase class I

▶

8. Citations (1)

▶

Unit-cell length a length_a	84.444 Å
Unit-cell length b length_b	84.444 Å
Unit-cell length c length_c	158.528 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	I 4 2 2
Space-group number int_tables_number	97
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	25.310 Å
R factor r_factor	0.1474
R_work r_work	0.1456
R_free r_free	0.1797

fit	/app/data/saxs_computation/wo/2woq/2woq.fit
pddf	/app/data/pr_computation/wo/2woq/2woq.pr.out
profile	/app/data/saxs_computation/wo/2woq/2woq.dat

Porphobilinogen Synthase (HemB) in Complex with 5-acetamido-4- oxohexanoic acid (Alaremycin 2)
