SAXSdb — 2xqb

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

INTERLEUKIN 15

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 3 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 49–162	Not recorded	ANTI-IL-15 ANTIBODY × 1 ANTI-IL-15 ANTIBODY × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：pH 9.5；PCTP 100MM, PH 9.5, 25 %W/V PEG-3350, 200MM AMMONIUM SULPHATE	Resolution 2.60 Å R-free 0.318

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2XQB	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2Z3Q Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 49–162（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.85 Å R-free 0.252
2Z3Q Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 49–162（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.85 Å R-free 0.252
2Z3R Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 49–162（114 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.250
2Z3R Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 49–162（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.250
2Z3R Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 49–162（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.250
2Z3R Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 49–162（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.250
2Z3R Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 49–162（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.250
2Z3R Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 49–162（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.250
2Z3R Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 49–162（114 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.250
2Z3R Crystal structure of the IL-15/IL-15Ra complex Deposited 2007-06-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 49–162（114 aa）	Not recorded	GOL GLYCEROL × 2	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å R-free 0.250
4GS7 Structure of the Interleukin-15 quaternary complex Deposited 2012-08-27	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 49–162（114 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.75；298 K；22.5% PEG3350, 0.1M BIS-TRIS propane, 0.2M sodium acetate, pH 8.75, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.35 Å R-free 0.227

3 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IL15_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–114； UniProt 49–162

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2xqb
Deposition date deposition_date	2010-09-01
Structure title title	Crystal Structure of anti-IL-15 Antibody in Complex with human IL-15
Keywords keywords	IMMUNE SYSTEM, AFFINITY MATURATION; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	28.27 Å
Radius of gyration Rg (electron density) rg_electron	27.85 Å
Forward intensity I(0) i0	54252900.00
Molecular weight molecular_weight	56828.0 kDa
Excluded volume excluded_volume	70650 Å³
Envelope volume envelope_volume	88345 Å³
Hydration-shell volume shell_volume	27852 Å³
Envelope diameter envelope_diameter	98.7 Å
Shell Rg shell_rg	33.70 Å
Envelope Rg envelope_rg	27.65 Å
Shape Rg shape_rg	27.82 Å
Total Rg total_rg	28.53 Å
Total atoms total_atoms	3997
Residues n_residues	520
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

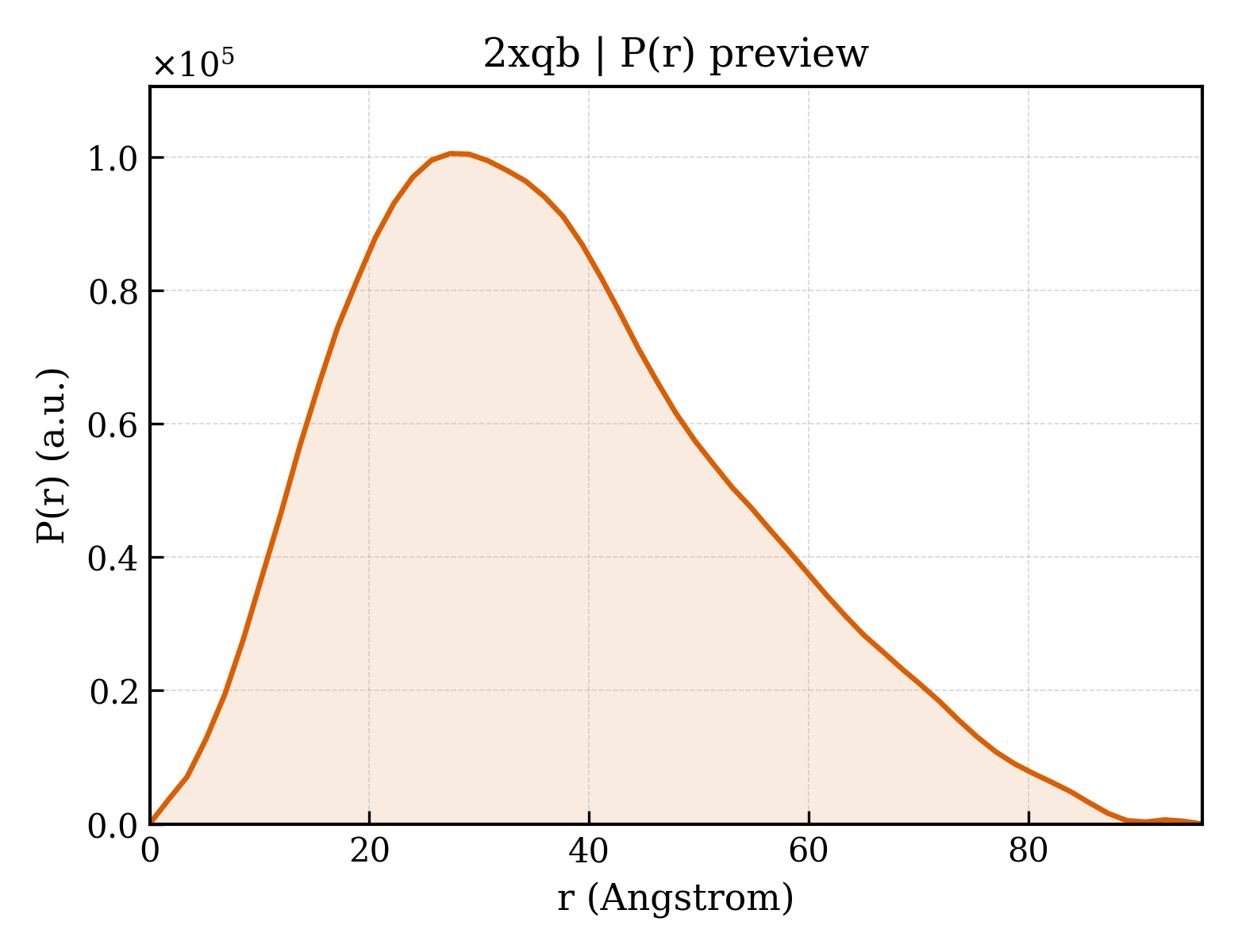

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	95.8 Å
Rg (real space) rg_real	28.47 Å
Rg uncertainty (real space) rg_real_error	1.03 Å
I(0) (real space) i0_real	5.4250e+07
I(0) uncertainty (real space) i0_real_error	9.8180e+05
Rg (reciprocal space) rg_reciprocal	28.41 Å
I(0) (reciprocal space) i0_reciprocal	54250000.0000
Solution quality estimate total_estimate	0.8643
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	27.4 Å
Skewness Skewness skewness	0.496
Kurtosis Kurtosis kurtosis	-0.291
Angular range angular_range	— – 0.2800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10740000.0000
Real-space data points n_real_points	57
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.807; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.859; Smooth: 0.958

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	INTERLEUKIN 15
Molecular weight formula_weight	12784.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4063

NWVNVISDLKKIEDLIQSMHIDATLYTESDVHPSCKVTAMKCFLLELQVISLESGDASIHDTVENLIILANNSLSSNGNVTESGCKECEELEEKNIKEFLQSFVHIVQMFINTS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	ANTI-IL-15 ANTIBODY
Molecular weight formula_weight	25390.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLVQSGAEVKKPGASVKVSCKASGYSFSSFGISWVRQAPGQGLEWLGWISAFNGYTKYAQKFQDRVTMTTDTSTSTAYMELRSLRSDDTAVYYCARDPAAWPLQQSLAWFDPWGQGTMVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHQYVL

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	ANTI-IL-15 ANTIBODY
Molecular weight formula_weight	22915.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

TQPPSASGTPGQRVTISCSGSTSNLKRNYVYWYQQLPGTAPKLLIYRDRRRPSGVPDRFSGSKSGTSASLAISGLRSEDEADYYCAWYDRELSEWVFGGGTKLTVLQPKAAPSVTLFPPSSEELQANKATLVCLISDFYPGAVTVAWKADSSPVKAGVETTTPSKQSNNKYAASSYLSLTPEQWKSHRSYSCQVTHEGSTVEKTVAPTECS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	66

▼

7. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d2xqba_
Class class	a — All alpha proteins
Fold Fold fold	a.26 — 4-helical cytokines
Superfamily Superfamily superfamily	a.26.1 — 4-helical cytokines
Family Family family	a.26.1.2 — Short-chain cytokines

Domain ID domain_id	d2xqbh_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d2xqbl1
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.0 — automated matches

Domain ID domain_id	d2xqbl2
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.1 — Immunoglobulin
Family Family family	b.1.1.2 — C1 set domains (antibody constant domain-like)

CATH v4.4 (5 domains)

Domain ID domain_id	2xqbA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	1250 — Growth Hormone; Chain: A;
Homologous superfamily homologous superfamily	70 — Interleukin-15/Interleukin-21

Domain ID domain_id	2xqbH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2xqbH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2xqbL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2xqbL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	185.186 Å
Unit-cell length b length_b	43.754 Å
Unit-cell length c length_c	70.087 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.95 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	69.710 Å
R factor r_factor	0.2481
R_work r_work	0.2444
R_free r_free	0.3181

fit	/app/data/saxs_computation/xq/2xqb/2xqb.fit
pddf	/app/data/pr_computation/xq/2xqb/2xqb.pr.out
profile	/app/data/saxs_computation/xq/2xqb/2xqb.dat
