SAXSdb — 2xs8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

PROGRAMMED CELL DEATH 6-INTERACTING PROTEIN

HOMO SAPIENS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–698	Fragment：BRO1-V DOMAINS, RESIDUES 1-698 Mutation：YES	SIVAGMTAN-1 GAG P6 × 1	X-RAY DIFFRACTION X-ray crystallization conditions：pH 6.1；6.1% PEG4000, 0.2M MGCL2, 0.1M MES PH 6.1	Resolution 2.50 Å R-free 0.261

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2XS8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2OEV Crystal structure of ALIX/AIP1 Deposited 2007-01-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–698（698 aa） Fragment：Bro1-V Domains, residues 1-698	Mutation：K268Y, K269Y	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；286 K；8% PEG 4000, 0.1M ammonium acetate, 0.1M magnesium acetate, 0.05M hepes, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 286K	Resolution 3.30 Å R-free 0.317
2OEW Structure of ALIX/AIP1 Bro1 Domain Deposited 2007-01-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–359（359 aa） Fragment：Bro1 Domain, residues 1-359	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；286 K；10% PEG 20000, 0.1M NaMES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 286K	Resolution 2.55 Å R-free 0.274
2OEX Structure of ALIX/AIP1 V Domain Deposited 2007-01-01	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 360–702（343 aa） Fragment：V Domain, residues 359-702 Chain B 360–702（343 aa） Fragment：V Domain, residues 359-702	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；277 K；14% PEG 3350, 0.16M magnesium formate, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.58 Å R-free 0.302
2OJQ Crystal structure of Alix V domain Deposited 2007-01-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 360–702（343 aa） Fragment：V domain, residues 360-702	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；13-15% PEG 6000, 6-10% ethylene glycol, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 100K	Resolution 2.87 Å R-free 0.318
2R02 Crystal Structure of ALIX/AIP1 in complex with the HIV-1 YPLTSL Late Domain Deposited 2007-08-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–698（697 aa） Fragment：ALIX Bro1-V domains	Mutation：K268Y,K269Y	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions sitting drop vapor diffusion；pH 5.9；286 K；0.20-0.25 M MgCl2, 7-10% PEG 4000, 0.1 M NaMES, pH 5.9, sitting drop vapor diffusion, temperature 286K	Resolution 2.60 Å R-free 0.285
2R03 Crystal Structure of ALIX/AIP1 in complex with the YPDL Late Domain Deposited 2007-08-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–698（697 aa） Fragment：ALIX Bro1-V domains	Mutation：K268Y,K269Y	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；286 K；0.20-0.25 M MgCl2, 7-10% PEG 4000, 0.1 M NaMES, pH 5.9, VAPOR DIFFUSION, SITTING DROP, temperature 286K	Resolution 2.59 Å R-free 0.286
2R05 Crystal Structure of ALIX/AIP1 in complex with the HIV-1 YPLASL Late Domain Deposited 2007-08-17	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–698（697 aa） Fragment：ALIX Bro1-V domains	Mutation：K268Y,K269Y	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.9；286 K；0.20-0.25 M MgCl2, 7-10% PEG 4000, 0.1 M NaMES, pH 5.9, VAPOR DIFFUSION, SITTING DROP, temperature 286K	Resolution 2.55 Å R-free 0.280
2XS1 Crystal Structure of ALIX in complex with the SIVmac239 PYKEVTEDL Late Domain Deposited 2010-09-24	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–698（698 aa） Fragment：BRO1-V DOMAINS, RESIDUES 1-698	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；6.5% PEG4000, 0.2 MGCL2, 0.1M MES PH 6.2	Resolution 2.30 Å R-free 0.252
2ZNE Crystal structure of Zn2+-bound form of des3-23ALG-2 complexed with Alix ABS peptide Deposited 2008-04-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 799–814（16 aa） Fragment：ALG-2 binding site, residues 799-814	Mutation：C15S	ZN ZINC ION × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% 2-propanol, 0.1M Cacodylate, 0.2M zinc acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.274
2ZNE Crystal structure of Zn2+-bound form of des3-23ALG-2 complexed with Alix ABS peptide Deposited 2008-04-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 799–814（16 aa） Fragment：ALG-2 binding site, residues 799-814	Mutation：C15S	ZN ZINC ION × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% 2-propanol, 0.1M Cacodylate, 0.2M zinc acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.274
2ZNE Crystal structure of Zn2+-bound form of des3-23ALG-2 complexed with Alix ABS peptide Deposited 2008-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 799–814（16 aa） Fragment：ALG-2 binding site, residues 799-814 Chain D 799–814（16 aa） Fragment：ALG-2 binding site, residues 799-814	Mutation：C15S Mutation：C15S	ZN ZINC ION × 8 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% 2-propanol, 0.1M Cacodylate, 0.2M zinc acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.274
3C3O ALIX Bro1-domain:CHMIP4A co-crystal structure Deposited 2008-01-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–359（359 aa） Fragment：BRO1 domain (UNP residues 1-358)	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；15% PEG 8,000, 100mM Na MES pH 6.5, 200mM Na Acetate, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.15 Å R-free 0.284
3C3Q ALIX Bro1-domain:CHMIP4B co-crystal structure Deposited 2008-01-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–359（359 aa） Fragment：BRO1 domain (UNP residues 1-359)	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；15% PEG 8,000, 100mM Na MES pH 6.5, 200mM Na Acetate, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.10 Å R-free 0.290
3C3R ALIX BRO1 CHMP4C complex Deposited 2008-01-28	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–359（359 aa） Fragment：BRO1 domain (UNP residues 1-359)	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；277 K；10% PEG 2,000, 100mM Na MES pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.02 Å R-free 0.288
3E1R Midbody targeting of the ESCRT machinery by a non-canonical coiled-coil in CEP55 Deposited 2008-08-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 797–809（13 aa） Fragment：UNP residues 797-809	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；294 K；100 mM MES, 22% PEG 6000, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.00 Å R-free 0.248
3WUV Structure basis of inactivating cell abscission with chimera peptide 2 Deposited 2014-05-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 796–809（14 aa）	Mutation：P796D/P807I/G808P/Y809P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；0.8M ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.79 Å R-free 0.227
3WUV Structure basis of inactivating cell abscission with chimera peptide 2 Deposited 2014-05-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain F 796–809（14 aa）	Mutation：P796D/P807I/G808P/Y809P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；0.8M ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.79 Å R-free 0.227
3WUV Structure basis of inactivating cell abscission with chimera peptide 2 Deposited 2014-05-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain I 796–809（14 aa）	Mutation：P796D/P807I/G808P/Y809P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；0.8M ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.79 Å R-free 0.227
3WUV Structure basis of inactivating cell abscission with chimera peptide 2 Deposited 2014-05-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain L 796–809（14 aa）	Mutation：P796D/P807I/G808P/Y809P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；0.8M ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.79 Å R-free 0.227
3WUV Structure basis of inactivating cell abscission with chimera peptide 2 Deposited 2014-05-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain O 796–809（14 aa）	Mutation：P796D/P807I/G808P/Y809P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；0.8M ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.79 Å R-free 0.227
3WUV Structure basis of inactivating cell abscission with chimera peptide 2 Deposited 2014-05-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain R 796–809（14 aa）	Mutation：P796D/P807I/G808P/Y809P	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；295 K；0.8M ammonium sulfate, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 295K	Resolution 2.79 Å R-free 0.227
4JJY Alix V domain Deposited 2013-03-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 355–708（354 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate pH 5, 6-8% PEG 8000, 5-10% ethylene glycol, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 6.50 Å R-free 0.283
4JJY Alix V domain Deposited 2013-03-08	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 355–708（354 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.1 M sodium citrate pH 5, 6-8% PEG 8000, 5-10% ethylene glycol, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 6.50 Å R-free 0.283
5V3R CHMP4C in complex with ALIX BRO1 Deposited 2017-03-08	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–359（359 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293.15 K；10% PEG20000, 100 mM MES, pH 6.5	Resolution 1.91 Å R-free 0.213
5WA1 CHMP4C A232T in complex with ALIX BRO1 Deposited 2017-06-24	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–358（358 aa） Fragment：Bro1 domain (UNP residues 1-358)	Mutation：A232T	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293.15 K；15% PEG8000, 100 mM MES, pH 6.5, 200 mM sodium acetate	Resolution 1.87 Å R-free 0.215
6KP3 STRUCTURE OF SENDAI VIRUS Y3/ALIX-BRO1 DOMAIN COMPLEX Deposited 2019-08-14	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–359（359 aa） Fragment：bro1 domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.45；297 K；15% PEG 3350, 0.2M Sodium Malonate-NaOH	Resolution 2.20 Å R-free 0.262

18 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PDC6I_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 7–704； UniProt 1–698

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2xs8
Deposition date deposition_date	2010-09-24
Structure title title	Crystal Structure of ALIX in complex with the SIVagmTan-1 AYDPARKLL Late Domain
Keywords keywords	PROTEIN TRANSPORT-VIRAL PROTEIN COMPLEX, CELL CYCLE; PROTEIN TRANSPORT/VIRAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	43.92 Å
Radius of gyration Rg (electron density) rg_electron	44.60 Å
Forward intensity I(0) i0	94491800.00
Molecular weight molecular_weight	78998.0 kDa
Excluded volume excluded_volume	99261 Å³
Envelope volume envelope_volume	145400 Å³
Hydration-shell volume shell_volume	31578 Å³
Envelope diameter envelope_diameter	160.4 Å
Shell Rg shell_rg	40.78 Å
Envelope Rg envelope_rg	44.14 Å
Shape Rg shape_rg	44.61 Å
Total Rg total_rg	44.34 Å
Total atoms total_atoms	5559
Residues n_residues	706
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

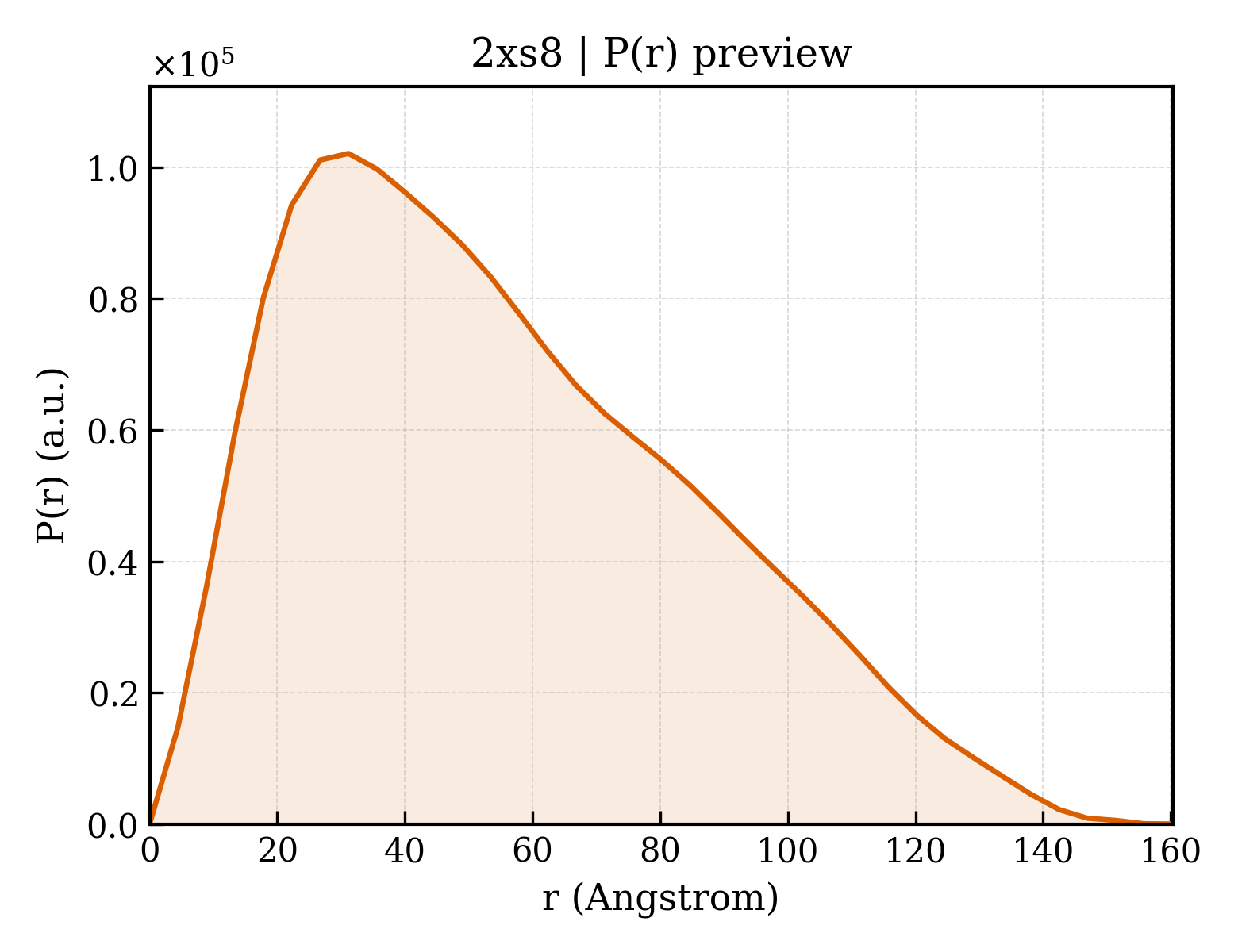

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	160.3 Å
Rg (real space) rg_real	44.62 Å
Rg uncertainty (real space) rg_real_error	2.52 Å
I(0) (real space) i0_real	9.4490e+07
I(0) uncertainty (real space) i0_real_error	1.8510e+06
Rg (reciprocal space) rg_reciprocal	43.93 Å
I(0) (reciprocal space) i0_reciprocal	94420000.0000
Solution quality estimate total_estimate	0.7324
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	31.2 Å
Skewness Skewness skewness	0.553
Kurtosis Kurtosis kurtosis	-0.463
Angular range angular_range	— – 0.1800 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4669000.0000
Real-space data points n_real_points	37
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.527; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.262; Smooth: 0.673

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	PROGRAMMED CELL DEATH 6-INTERACTING PROTEIN
Molecular weight formula_weight	78836.5 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	5581

GIDPFTMATFISVQLKKTSEVDLAKPLVKFIQQTYPSGGEEQAQYCRAAEELSKLRRAAVGRPLDKHEGALETLLRYYDQICSIEPKFPFSENQICLTFTWKDAFDKGSLFGGSVKLALASLGYEKSCVLFNCAALASQIAAEQNLDNDEGLKIAAKHYQFASGAFLHIKETVLSALSREPTVDISPDTVGTLSLIMLAQAQEVFFLKATRDKMKDAIIAKLANQAADYFGDAFKQCQYKDTLPKEVFPVLAAKHCIMQANAEYHQSILAKQQYYFGEEIARLQHAAELIKTVASRYDEYVNVKDFSDKINRALAAAKKDNDFIYHDRVPDLKDLDPIGKATLVKSTPVNVPISQKFTDLFEKMVPVSVQQSLAAYNQRKADLVNRSIAQMREATTLANGVLASLNLPAAIEDVSGDTVPQSILTKSRSVIEQGGIQTVDQLIKELPELLQRNREILDESLRLLDEEEATDNDLRAKFKERWQRTPSNELYKPLRAEGTNFRTVLDKAVQADGQVKECYQSHRDTIVLLCKPEPELNAAIPSANPAKTMQGSEVVNVLKSLLSNLDEVKKEREGLENDLKSVNFDMTSKFLTALAQDGVINEEALSVTELDRVYGGLTTKVQESLKKQEGLLKNIQVSHQEFSKMKQSNNEANLREEVLKNLATAYDNFVELVANLKEGTKFYNELTEILVRFQNKCSDIVFAR

来源 Source

来源生物 organism	HOMO SAPIENS
通用名 common_name	HUMAN
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 polymer

Description description	SIVAGMTAN-1 GAG P6
Molecular weight formula_weight	1997.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

AAGAYDPARKLLEQYAKK

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	22

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	2xs8A01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	280 — alix/aip1 like domains

Domain ID domain_id	2xs8A02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	560 — alix/aip1 in complex with the ypdl late domain

Domain ID domain_id	2xs8A03
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	140 — Butyryl-CoA Dehydrogenase, subunit A; domain 3
Homologous superfamily homologous superfamily	50 — alix/aip1 like domains

▶

8. Citations (1)

▶

Unit-cell length a length_a	145.542 Å
Unit-cell length b length_b	99.076 Å
Unit-cell length c length_c	72.594 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	106.87 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	2.498 Å
Low-resolution limit resolution_low	41.063 Å
R factor r_factor	0.2068
R_work r_work	0.2038
R_free r_free	0.2610

fit	/app/data/saxs_computation/xs/2xs8/2xs8.fit
pddf	/app/data/pr_computation/xs/2xs8/2xs8.pr.out
profile	/app/data/saxs_computation/xs/2xs8/2xs8.dat
