SAXSdb — 2zck

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Prostate-specific antigen

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 4 其他Polymer 1 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain P； UniProt 25–261	Fragment：UNP residues 25-261	KGISSQY × 1 monoclonal antibody 8G8F5 Fab × 1 monoclonal antibody 8G8F5 Fab × 1 alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；crystal grown in 14% MPEG550, 100mM HEPES (pH7.2), then soaked in PEG400, 100mM Tris-HCl (pH7.3), 10mM ZnCl2, 0.28 mg/ml Mu-KGISSQY-AFC, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.10 Å R-free 0.275

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ZCK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2ZCH Crystal structure of human prostate specific antigen complexed with an activating antibody Deposited 2007-11-08	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 25–261（237 aa） Fragment：UNP residues 25-261	Not recorded	NDG 2-acetamido-2-deoxy-alpha-D-glucopyranose × 2 CL CHLORIDE ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；14% MPEG 550, 100mM HEPES, pH7.2, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.83 Å R-free 0.270
2ZCL Crystal structure of human prostate specific antigen complexed with an activating antibody Deposited 2007-11-09	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 25–261（237 aa） Fragment：UNP residues 25-261	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；crystals grown in 14% MPEG550, 100mM HEPES (pH7.2), then soaked in 33% PEG400, 100mM MES (pH5.5), 10mM ZnCl2, 0.28mg/ml Mu-KGISSQY-AFC, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.25 Å R-free 0.251
3QUM Crystal structure of human prostate specific antigen (PSA) in Fab sandwich with a high affinity and a PCa selective antibody Deposited 2011-02-24	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain P 25–261（237 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；Protein solution: 20 ul 5D3D11 at 10.7 mg/ml and 10 ul PSA at 5 mg/ml + 31 ul 5D5A5 at 6.7mg/ml in PBS. against a precipitant of 10% PEG 4,000, 20% ethylene glycol, 100 mM Na,K phosphate. Drops consisted of 1 ul protein + precipitant equilibrated by vapor diffusion. Streak seeding and macro seeding were used, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.20 Å R-free 0.294
3QUM Crystal structure of human prostate specific antigen (PSA) in Fab sandwich with a high affinity and a PCa selective antibody Deposited 2011-02-24	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Other combination Heteromer；Protein × 5 PDB declaration: pentameric	Chain Q 25–261（237 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；Protein solution: 20 ul 5D3D11 at 10.7 mg/ml and 10 ul PSA at 5 mg/ml + 31 ul 5D5A5 at 6.7mg/ml in PBS. against a precipitant of 10% PEG 4,000, 20% ethylene glycol, 100 mM Na,K phosphate. Drops consisted of 1 ul protein + precipitant equilibrated by vapor diffusion. Streak seeding and macro seeding were used, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.20 Å R-free 0.294
9ZJQ Human KLK3 following acylation by CDD-3290 Deposited 2025-12-05	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–261（237 aa）	Not recorded	A1C2U 1H-1,3-benzimidazole-5-carbaldehyde × 1 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；1.4 M sodium malonate pH 7.0. Protein (30 mg/mL) was co-crystallized as 1 uL sitting drop (1:1 protein:precipitant)	Resolution 2.20 Å R-free 0.232

4 other PDB entries and 5 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KLK3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain P； PDBConstruct 1–237； UniProt 25–261

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2zck
Deposition date deposition_date	2007-11-09
Structure title title	Crystal structure of a ternary complex between PSA, a substrat-acyl intermediate and an activating antibody
Keywords keywords	;human PSA, antibodies, kallikrein related peptidases, prostate cancer, Glycoprotein, Hydrolase, Protease, Secreted, Serine protease, Zymogen, IMMUNE SYSTEM ;; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	33.25 Å
Radius of gyration Rg (electron density) rg_electron	33.36 Å
Forward intensity I(0) i0	93542000.00
Molecular weight molecular_weight	75448.0 kDa
Excluded volume excluded_volume	93711 Å³
Envelope volume envelope_volume	121180 Å³
Hydration-shell volume shell_volume	32886 Å³
Envelope diameter envelope_diameter	130.0 Å
Shell Rg shell_rg	36.89 Å
Envelope Rg envelope_rg	33.58 Å
Shape Rg shape_rg	33.30 Å
Total Rg total_rg	33.81 Å
Total atoms total_atoms	5298
Residues n_residues	666
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

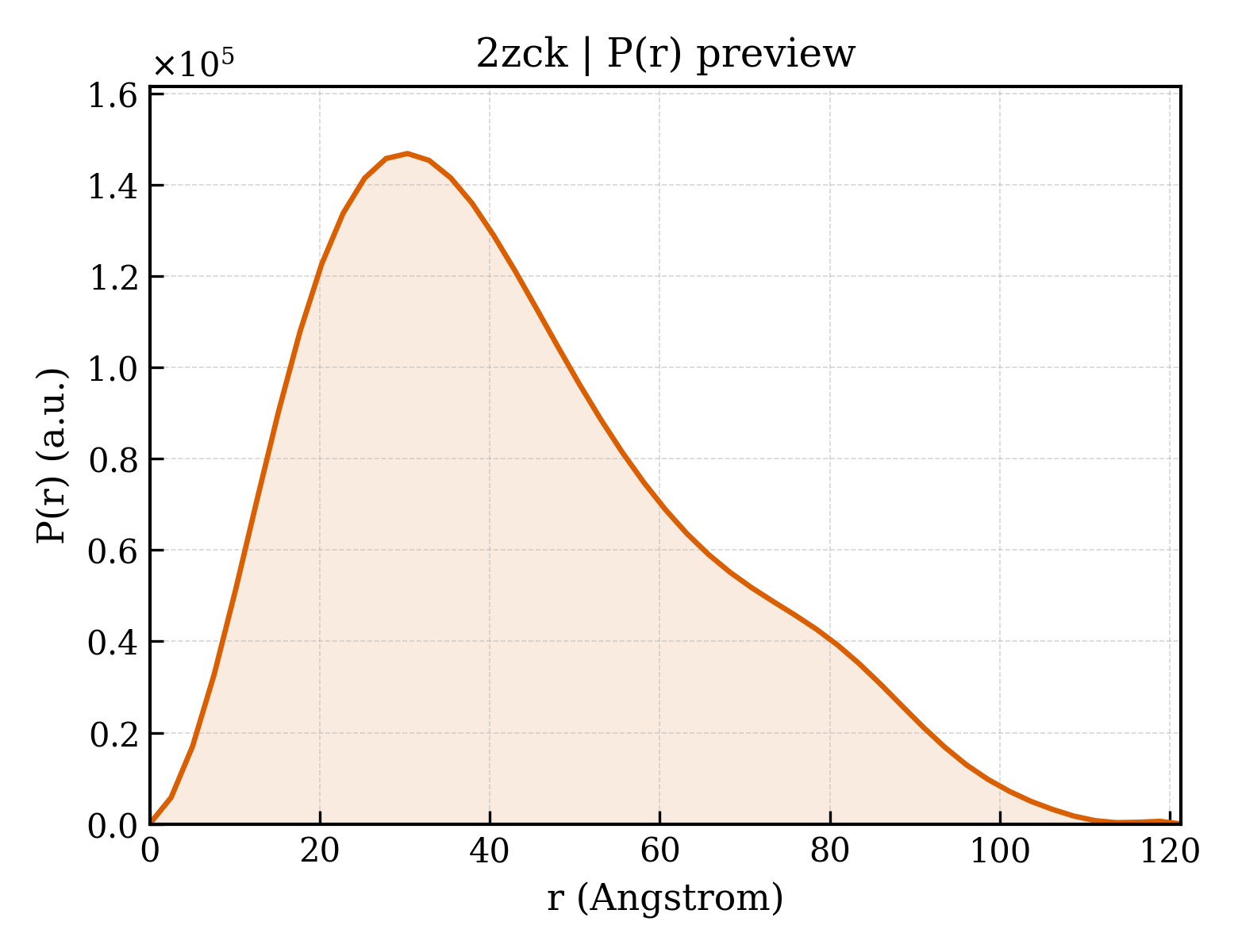

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	121.3 Å
Rg (real space) rg_real	33.76 Å
Rg uncertainty (real space) rg_real_error	1.34 Å
I(0) (real space) i0_real	9.3540e+07
I(0) uncertainty (real space) i0_real_error	1.6030e+06
Rg (reciprocal space) rg_reciprocal	33.55 Å
I(0) (reciprocal space) i0_reciprocal	93520000.0000
Solution quality estimate total_estimate	0.7852
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.3 Å
Skewness Skewness skewness	0.608
Kurtosis Kurtosis kurtosis	-0.265
Angular range angular_range	— – 0.2400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	17000000.0000
Real-space data points n_real_points	49
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.575; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.498; Smooth: 0.980

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Prostate-specific antigen
Molecular weight formula_weight	26122.0 kDa
EC 编号 ec_number	3.4.21.77
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P
Atom count atom_count	5329

IVGGWECEKHSQPWQVLVASRGRAVCGGVLVHPQWVLTAAHCIRNKSVILLGRHSLFHPEDTGQVFQVSHSFPHPLYDMSLLKNRFLRPGDDSSHDLMLLRLSEPAELTDAVKVMDLPTQEPALGTTCYASGWGSIEPEEFLTPKKLQCVDLHVISNDVCAQVHPQKVTKFMLCAGRWTGGKSTCSGDSGGPLVCNGVLQGITSWGSEPCALPERPSLYTKVVHYRKWIKDTIVANP

Entity 2 Entity 2 polymer

Description description	KGISSQY
Molecular weight formula_weight	782.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

KGISSQY

Entity 3 Entity 3 polymer

Description description	monoclonal antibody 8G8F5 Fab
Molecular weight formula_weight	23791.1 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

DIVLTQSPASLAVSLGQRATISCKASQSVDFDGDSYMNWYQQKPGQPPKLLIFAASNLASGIPARLSGSGSGTDFTLNIQPVEEEDAATYYCQQSNEDPYTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 4 Entity 4 polymer

Description description	monoclonal antibody 8G8F5 Fab
Molecular weight formula_weight	24479.4 kDa
Source method src_method	nat
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

QVQLQQSGDDLVKPGASVKLSCKASGYTFTTYYINWMRQRPGQGLEWIGRIAPASGTTYSSEMFKDKATLTVDTSSNTAYIQLSSLSSEDSAVYFCARADYGFNSGEAMDYWGQGTSVTVSSAKTTAPPVYPLAPVCGDTTGSSVTLGCLVKGYFPESVTLLWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIVPRDCGCKPCI

Entity 5 Entity 5 branched

Description description	alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	383.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	31

▼

7. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	2zckH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2zckH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2zckL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2zckL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	2zckP01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	2zckP02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

8. Citations (1)

▶

Unit-cell length a length_a	86.765 Å
Unit-cell length b length_b	86.765 Å
Unit-cell length c length_c	238.180 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	70.190 Å
R factor r_factor	0.2234
R_work r_work	0.2206
R_free r_free	0.2752

fit	/app/data/saxs_computation/zc/2zck/2zck.fit
pddf	/app/data/pr_computation/zc/2zck/2zck.pr.out
profile	/app/data/saxs_computation/zc/2zck/2zck.dat
