3qum

Crystal structure of human prostate specific antigen (PSA) in Fab sandwich with a high affinity and a PCa selective antibody

Method: X-RAY DIFFRACTION D_max: 195.6 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Prostate-specific antigen

OrganismNot specified

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 5 其他Polymer 2 PDB declaration: pentameric（5） Consistent with protein copy count	Chain P； UniProt 25–261	Not recorded	Fab 5D3D11 Light Chain × 1 Fab 5D3D11 Heavy Chain × 1 Fab 5D5A5 Light Chain × 1 Fab 5D5A5 Heavy Chain × 1 ;N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-alpha-D-mannopyranose-(1-3)-[N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 beta-D-galactopyranose-(1-3)-2-acetamido-2-deoxy-alpha-D-galactopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；Protein solution: 20 ul 5D3D11 at 10.7 mg/ml and 10 ul PSA at 5 mg/ml + 31 ul 5D5A5 at 6.7mg/ml in PBS. against a precipitant of 10% PEG 4,000, 20% ethylene glycol, 100 mM Na,K phosphate. Drops consisted of 1 ul protein + precipitant equilibrated by vapor diffusion. Streak seeding and macro seeding were used, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.20 Å R-free 0.294
2	Other combination Heteromer Protein × 5 其他Polymer 1 PDB declaration: pentameric（5） Consistent with protein copy count	Chain Q； UniProt 25–261	Not recorded	Fab 5D3D11 Light Chain × 1 Fab 5D3D11 Heavy Chain × 1 Fab 5D5A5 Light Chain × 1 Fab 5D5A5 Heavy Chain × 1 ;N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)-alpha-D-mannopyranose-(1-3)-[N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；295 K；Protein solution: 20 ul 5D3D11 at 10.7 mg/ml and 10 ul PSA at 5 mg/ml + 31 ul 5D5A5 at 6.7mg/ml in PBS. against a precipitant of 10% PEG 4,000, 20% ethylene glycol, 100 mM Na,K phosphate. Drops consisted of 1 ul protein + precipitant equilibrated by vapor diffusion. Streak seeding and macro seeding were used, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 295K	Resolution 3.20 Å R-free 0.294

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3QUM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2ZCH Crystal structure of human prostate specific antigen complexed with an activating antibody Deposited 2007-11-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 25–261（237 aa） Fragment：UNP residues 25-261	Not recorded	NDG 2-acetamido-2-deoxy-alpha-D-glucopyranose × 2 CL CHLORIDE ION × 1 PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；14% MPEG 550, 100mM HEPES, pH7.2, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.83 Å R-free 0.270
2ZCK Crystal structure of a ternary complex between PSA, a substrat-acyl intermediate and an activating antibody Deposited 2007-11-09	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain P 25–261（237 aa） Fragment：UNP residues 25-261	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；crystal grown in 14% MPEG550, 100mM HEPES (pH7.2), then soaked in PEG400, 100mM Tris-HCl (pH7.3), 10mM ZnCl2, 0.28 mg/ml Mu-KGISSQY-AFC, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.10 Å R-free 0.275
2ZCL Crystal structure of human prostate specific antigen complexed with an activating antibody Deposited 2007-11-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain P 25–261（237 aa） Fragment：UNP residues 25-261	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；293 K；crystals grown in 14% MPEG550, 100mM HEPES (pH7.2), then soaked in 33% PEG400, 100mM MES (pH5.5), 10mM ZnCl2, 0.28mg/ml Mu-KGISSQY-AFC, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 3.25 Å R-free 0.251
9ZJQ Human KLK3 following acylation by CDD-3290 Deposited 2025-12-05	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 25–261（237 aa）	Not recorded	A1C2U 1H-1,3-benzimidazole-5-carbaldehyde × 1 EDO 1,2-ETHANEDIOL × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；1.4 M sodium malonate pH 7.0. Protein (30 mg/mL) was co-crystallized as 1 uL sitting drop (1:1 protein:precipitant)	Resolution 2.20 Å R-free 0.232

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	KLK3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain P； PDBConstruct 1–237； UniProt 25–261 Author chain Q； PDBConstruct 1–237； UniProt 25–261

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

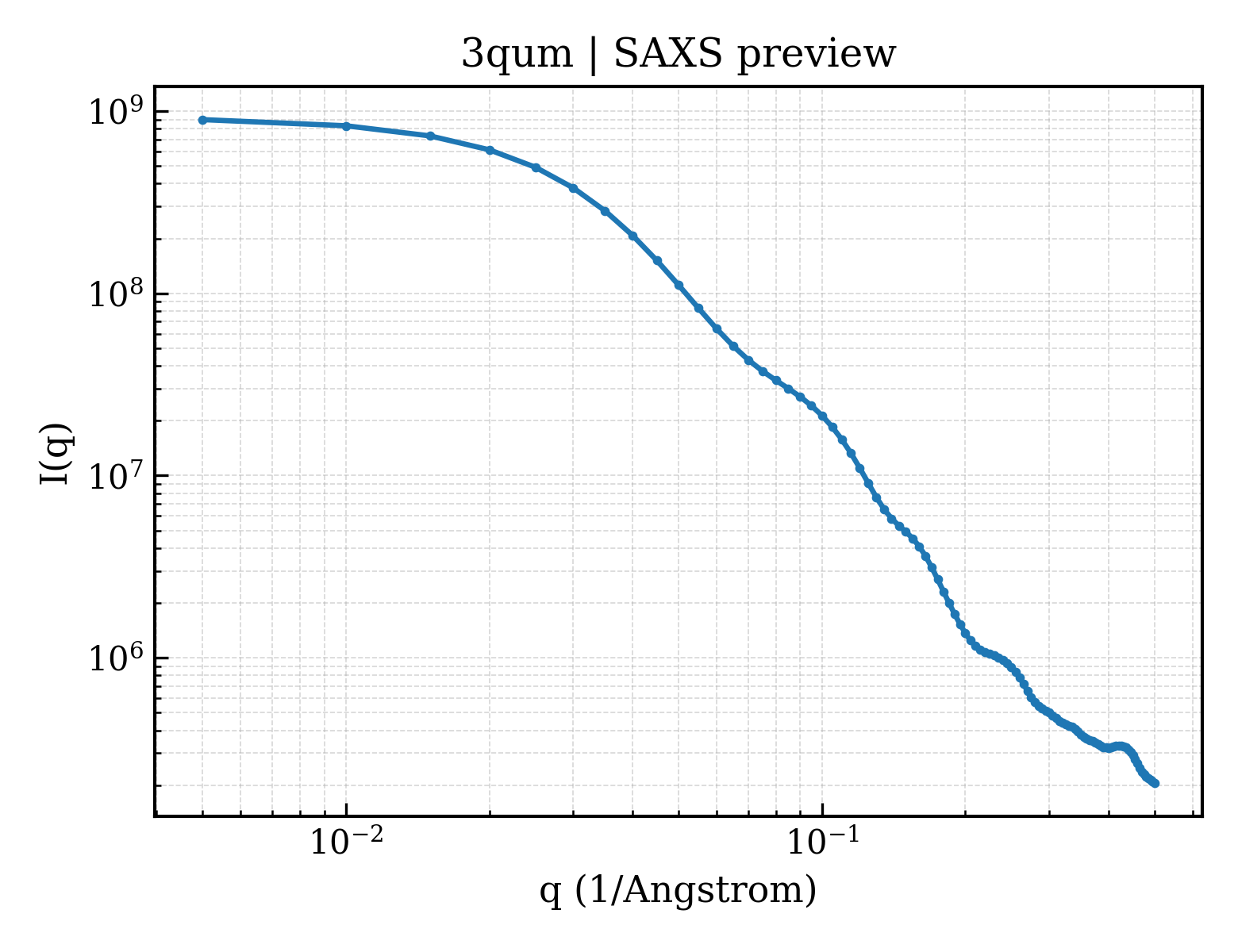

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3qum
Deposition date deposition_date	2011-02-24
Structure title title	Crystal structure of human prostate specific antigen (PSA) in Fab sandwich with a high affinity and a PCa selective antibody
Keywords keywords	;kallikrein fold, Prostate-specific antigen, serine protease, negative regulation of angiogenesis, natural post-transductional modification, N-linked and O-linked glycosylation, IMMUNE SYSTEM ;; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	55.50 Å
Radius of gyration Rg (electron density) rg_electron	55.62 Å
Forward intensity I(0) i0	921367000.00
Molecular weight molecular_weight	249290.0 kDa
Excluded volume excluded_volume	310140 Å³
Envelope volume envelope_volume	486040 Å³
Hydration-shell volume shell_volume	74999 Å³
Envelope diameter envelope_diameter	209.9 Å
Shell Rg shell_rg	56.42 Å
Envelope Rg envelope_rg	54.46 Å
Shape Rg shape_rg	55.58 Å
Total Rg total_rg	55.79 Å
Total atoms total_atoms	17515
Residues n_residues	2158
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	195.6 Å
Rg (real space) rg_real	55.79 Å
Rg uncertainty (real space) rg_real_error	3.06 Å
I(0) (real space) i0_real	9.2140e+08
I(0) uncertainty (real space) i0_real_error	2.1240e+07
Rg (reciprocal space) rg_reciprocal	55.25 Å
I(0) (reciprocal space) i0_reciprocal	920600000.0000
Solution quality estimate total_estimate	0.8513
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	69.9 Å
Skewness Skewness skewness	0.477
Kurtosis Kurtosis kurtosis	-0.083
Angular range angular_range	— – 0.1400 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	44350000.0000
Real-space data points n_real_points	29
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.809; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.681

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Prostate-specific antigen
Molecular weight formula_weight	26122.0 kDa
EC 编号 ec_number	3.4.21.77
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	P,Q
Atom count atom_count	17606

IVGGWECEKHSQPWQVLVASRGRAVCGGVLVHPQWVLTAAHCIRNKSVILLGRHSLFHPEDTGQVFQVSHSFPHPLYDMSLLKNRFLRPGDDSSHDLMLLRLSEPAELTDAVKVMDLPTQEPALGTTCYASGWGSIEPEEFLTPKKLQCVDLHVISNDVCAQVHPQKVTKFMLCAGRWTGGKSTCSGDSGGPLVCNGVLQGITSWGSEPCALPERPSLYTKVVHYRKWIKDTIVANP

Entity 2 Entity 2 polymer

Description description	Fab 5D3D11 Light Chain
Molecular weight formula_weight	24272.0 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L,M

DIVMTQTAPSVFVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTDFTLRISRVEAEDVGVYYCMQHLEYPVTFGAGTKVEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 3 Entity 3 polymer

Description description	Fab 5D3D11 Heavy Chain
Molecular weight formula_weight	23551.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H,K

QVQLQQSGPELVKPGASVKISCKVSGYAISSSWMNWVKQRPGQGLEWIGRIYPGDGDTKYNGKFKDKATLTVDKSSSTAYMQLSSLTSVDSAVYFCARDGYRYYFDYWGQGTSVTVSSAKTTAPPVYPLAPVCGDTTGSSVTLGCLVKGYFPESVTLLWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIVPRD

Entity 4 Entity 4 polymer

Description description	Fab 5D5A5 Light Chain
Molecular weight formula_weight	24189.7 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C

DIVLTQSPPSLAVSLGQRATISCRASESIDLYGFTFMHWYQQKPGQPPKILIYRASNLESGIPARFSGSGSRTDFTLTINPVEADDVATYYCQQTHEDPYTFGGGTKLEIKRADAAPTVSIFPPSSEQLTSGGASVVCFLNNFYPKDINVKWKIDGSERQNGVLNSWTDQDSKDSTYSMSSTLTLTKDEYERHNSYTCEATHKTSTSPIVKSFNRNEC

Entity 5 Entity 5 polymer

Description description	Fab 5D5A5 Heavy Chain
Molecular weight formula_weight	23565.4 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

QVQLQQSGAELAKPGASVKMSCKTSGYSFSSYWMHWVKQRPGQGLEWIGYINPSTGYTENNQKFKDKVTLTADKSSNTAYMQLNSLTSEDSAVYYCARSGRLYFDVWGAGTTVTVSSAKTTAPPVYPLAPVCGDTTGSSVTLGCLVKGYFPESVTLLWNSGSLSSGVHTFPAVLQSDLYTLSSSVTVTSSTWPSQSITCNVAHPASSTKVDKKIVPRDC

Entity 6 Entity 6 branched

Description description	;N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-alpha-D-mannopyranose-(1-3)-[N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	3026.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 7 Entity 7 branched

Description description	beta-D-galactopyranose-(1-3)-2-acetamido-2-deoxy-alpha-D-galactopyranose
Molecular weight formula_weight	383.3 kDa
Source method src_method	man
Copy count entity_count	1

Entity 8 Entity 8 branched

Description description	;N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)-alpha-D-mannopyranose-(1-3)-[N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[N-acetyl-alpha-neuraminic acid-(2-3)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	3026.7 kDa
Source method src_method	man
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	91

▼

7. Fold Classification (SCOP + CATH) 20 domains

CATH v4.4 (20 domains)

Domain ID domain_id	3qumA01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumA02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumB01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumB02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumC01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumC02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumD01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumD02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumH01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumH02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumK01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumK02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumL01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumL02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumM01
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumM02
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3qumP01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	3qumP02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	3qumQ01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

Domain ID domain_id	3qumQ02
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	10 — Thrombin, subunit H
Homologous superfamily homologous superfamily	10 — Trypsin-like serine proteases

▶

8. Citations (2)

▶

Unit-cell length a length_a	55.308 Å
Unit-cell length b length_b	226.883 Å
Unit-cell length c length_c	118.694 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	96.51 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.200 Å
Low-resolution limit resolution_low	58.965 Å
R factor r_factor	0.2032
R_work r_work	0.1984
R_free r_free	0.2937

fit	/app/data/saxs_computation/qu/3qum/3qum.fit
pddf	/app/data/pr_computation/qu/3qum/3qum.pr.out
profile	/app/data/saxs_computation/qu/3qum/3qum.dat

Crystal structure of human prostate specific antigen (PSA) in Fab sandwich with a high affinity and a PCa selective antibody

1. Protein Identity and Related Structures Protein Identity & Related Structures

Prostate-specific antigen

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Polymer Polymer

Entity 2 Entity 2 polymer

Polymer Polymer

Entity 3 Entity 3 polymer

Polymer Polymer

Entity 4 Entity 4 polymer

Polymer Polymer

Entity 5 Entity 5 polymer

Polymer Polymer

Entity 6 Entity 6 branched

Entity 7 Entity 7 branched

Entity 8 Entity 8 branched

Entity 9 Entity 9 water

7. Fold Classification (SCOP + CATH) 20 domains

CATH v4.4 (20 domains)

8. Citations (2)

9. Files and Curves (10)

Files (7)

Curves (3)
