SAXSdb — 2zl1

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mitogen-activated protein kinase kinase 1-interacting protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Mitogen-activated protein-binding protein-interacting protein × 1 （Q9JHS3） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MK1I1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–143； UniProt 2–124

Mitogen-activated protein-binding protein-interacting protein

Mus musculus

UniProt Q9JHS3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Mitogen-activated protein kinase kinase 1-interacting protein 1 × 1 （Q9UHA4） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MAPIP_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 8–131； UniProt 2–125

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2zl1
Deposition date deposition_date	2008-04-02
Structure title title	MP1-p14 Scaffolding complex
Keywords keywords	scaffold, complex, alpha/beta, Endosome, Membrane, Lysosome, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2zl1__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

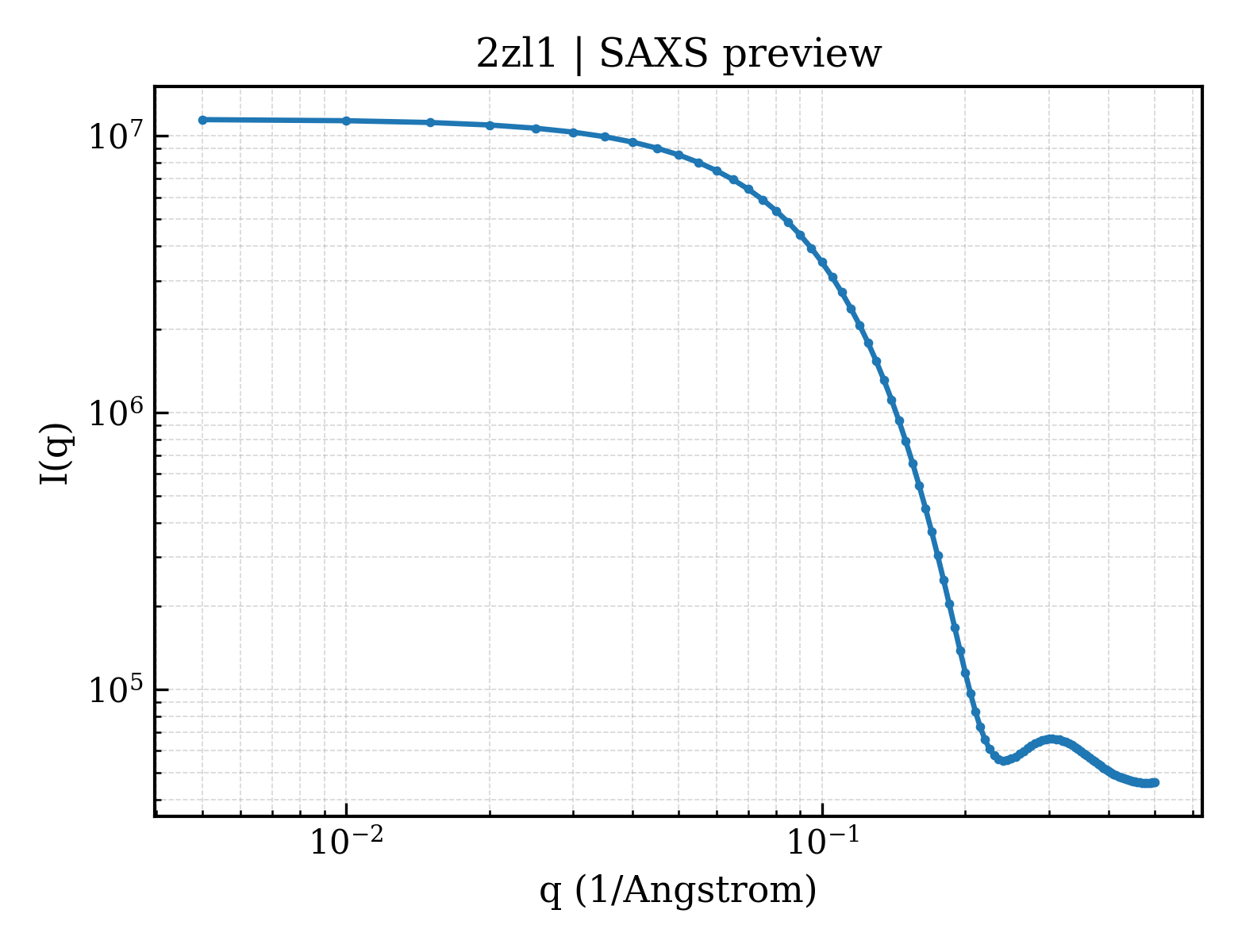

2zl1__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

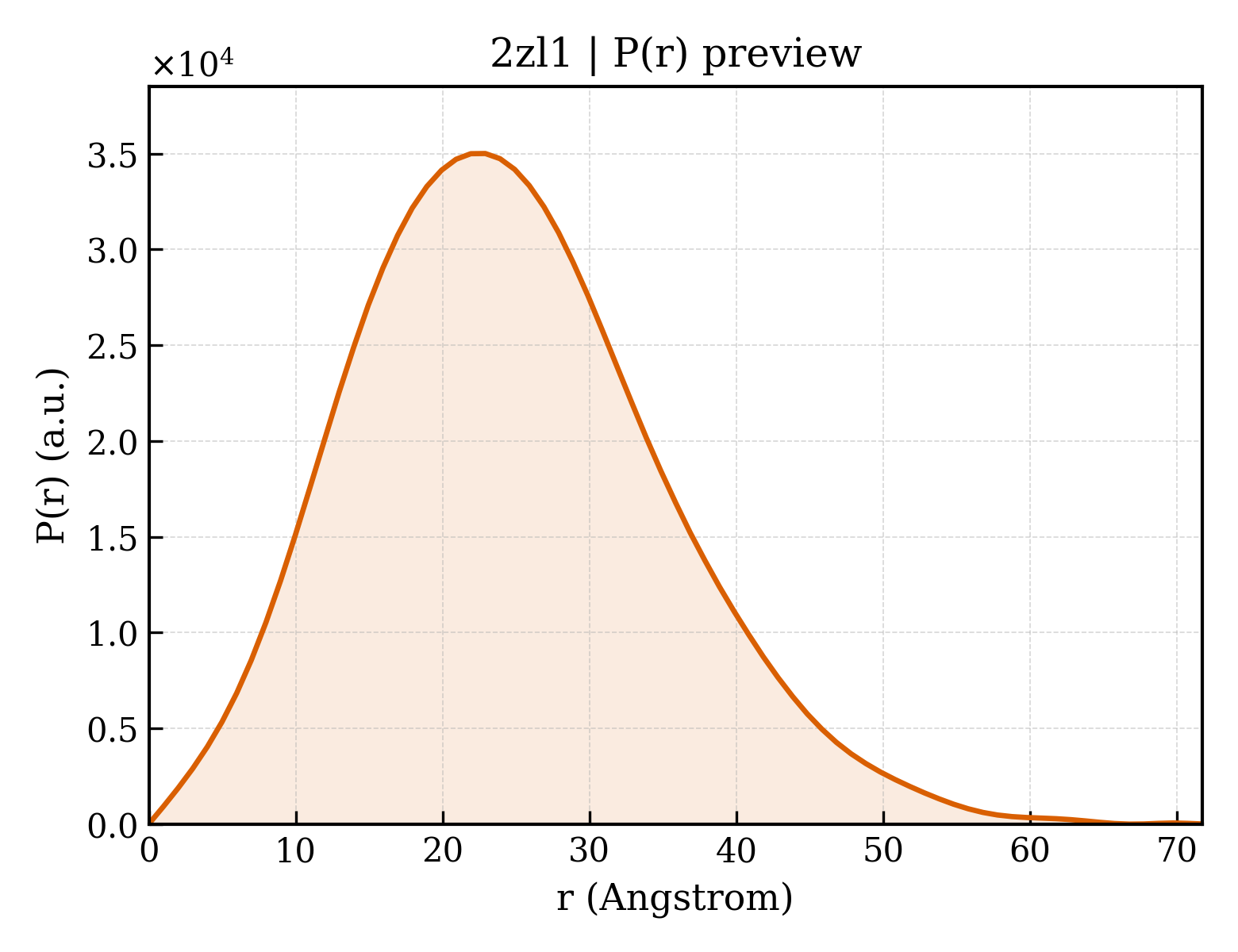

2zl1__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.86 Å
Rg (electron density)	17.99 Å
Total Rg	18.99 Å
Atom count	1797
Residues	235
Excluded volume	32214 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2zl1__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Mitogen-activated protein kinase kinase 1-interacting protein 1
Molecular weight formula_weight	15828.9 kDa
Mutation mutation	L63A, L65A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1907

MGSSHHHHHHHHENLYFQGSADDLKRFLYKKLPSVEGLHAIVVSDRDGVPVIKVANDNAPEHALRPGFLSTFALATDQGSKAGASKNKSIICYYNTYQVVQFNRLPLVVSFIASSSANTGLIVSLEKELAPLFEELRQVVEVS

Source Source

Source organism organism	Homo sapiens
Common name common_name	Human
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Mitogen-activated protein-binding protein-interacting protein
Molecular weight formula_weight	14319.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MHHHHHHLRPKALTQVLSQANTGGVQSTLLLNNEGSLLAYSGYGDTDARVTAAIASNIWAAYDRNGNQAFNEDSLKFILMDCMEGRVAITRVANLLLCMYAKETVGFGMLKAKAQALVQYLEEPLTQVAAS

Source Source

Source organism organism	Mus musculus
Common name common_name	Mouse
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	110

▼

6. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2zl1a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.7 — Roadblock/LC7 domain
Family Family family	d.110.7.1 — Roadblock/LC7 domain

Domain ID domain_id	d2zl1b_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.110 — Profilin-like
Superfamily Superfamily superfamily	d.110.7 — Roadblock/LC7 domain
Family Family family	d.110.7.1 — Roadblock/LC7 domain

CATH v4.4 (2 domains)

Domain ID domain_id	2zl1A00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	30 — Dynein light chain 2a, cytoplasmic

Domain ID domain_id	2zl1B00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	30 — Dynein light chain 2a, cytoplasmic

▶

Unit-cell length a length_a	44.290 Å
Unit-cell length b length_b	62.440 Å
Unit-cell length c length_c	74.980 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	48.000 Å
R factor r_factor	0.2051
R_work r_work	0.2026
R_free r_free	0.2560
