SAXSdb — 2znd

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Programmed cell death protein 6

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 20–191	Fragment：residues 20-191	MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 10 PO4 PHOSPHATE ION × 4 NA SODIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；40% 2-methyl-2,4-pentanediol, 0.1M Na2HPO4-KH2PO4, 2mM EDTA, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.222

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ZND	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2ZN8 Crystal structure of Zn2+-bound form of ALG-2 Deposited 2008-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–191（190 aa）	Not recorded	ZN ZINC ION × 8 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；25% 2-methyl-2,4-pentanediol, 100mM Cacodylate, 75mM Zinc acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.260
2ZN9 Crystal structure of Ca2+-bound form of des3-20ALG-2 Deposited 2008-04-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 20–191（172 aa） Fragment：residues 20-191 Chain B 20–191（172 aa） Fragment：residues 20-191	Not recorded	CA CALCIUM ION × 7 2PE NONAETHYLENE GLYCOL × 1 12P DODECAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；18% PEG 8000, 0.1M Sodium Cacodylate, 0.2M Calcium Acetate hydrate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.298
2ZN9 Crystal structure of Ca2+-bound form of des3-20ALG-2 Deposited 2008-04-22	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 20–191（172 aa） Fragment：residues 20-191 Chain B 20–191（172 aa） Fragment：residues 20-191	Not recorded	CA CALCIUM ION × 7 2PE NONAETHYLENE GLYCOL × 1 12P DODECAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；18% PEG 8000, 0.1M Sodium Cacodylate, 0.2M Calcium Acetate hydrate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.298
2ZNE Crystal structure of Zn2+-bound form of des3-23ALG-2 complexed with Alix ABS peptide Deposited 2008-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–191（190 aa） Fragment：residues 2-191	Not recorded	ZN ZINC ION × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% 2-propanol, 0.1M Cacodylate, 0.2M zinc acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.274
2ZNE Crystal structure of Zn2+-bound form of des3-23ALG-2 complexed with Alix ABS peptide Deposited 2008-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–191（190 aa） Fragment：residues 2-191	Not recorded	ZN ZINC ION × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% 2-propanol, 0.1M Cacodylate, 0.2M zinc acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.274
2ZNE Crystal structure of Zn2+-bound form of des3-23ALG-2 complexed with Alix ABS peptide Deposited 2008-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–191（190 aa） Fragment：residues 2-191 Chain B 2–191（190 aa） Fragment：residues 2-191	Not recorded	ZN ZINC ION × 8 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% 2-propanol, 0.1M Cacodylate, 0.2M zinc acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.274
2ZRS Crystal structure of Ca2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–191（168 aa） Fragment：UNP residues 24-191 Chain B 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；50mM MES, 12.5% 2-propanol, 150mM calcium acetate, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.280
2ZRS Crystal structure of Ca2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 24–191（168 aa） Fragment：UNP residues 24-191 Chain D 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；50mM MES, 12.5% 2-propanol, 150mM calcium acetate, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.280
2ZRS Crystal structure of Ca2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 24–191（168 aa） Fragment：UNP residues 24-191 Chain F 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；50mM MES, 12.5% 2-propanol, 150mM calcium acetate, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.280
2ZRS Crystal structure of Ca2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 24–191（168 aa） Fragment：UNP residues 24-191 Chain H 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	CA CALCIUM ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；50mM MES, 12.5% 2-propanol, 150mM calcium acetate, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.280
2ZRT Crystal structure of Zn2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–191（168 aa） Fragment：UNP residues 24-191 Chain B 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	ZN ZINC ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100mM MES, 15% ethanol, 200mM zinc acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.221
2ZRT Crystal structure of Zn2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 24–191（168 aa） Fragment：UNP residues 24-191 Chain D 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	ZN ZINC ION × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100mM MES, 15% ethanol, 200mM zinc acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.221
2ZRT Crystal structure of Zn2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 24–191（168 aa） Fragment：UNP residues 24-191 Chain F 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	ZN ZINC ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100mM MES, 15% ethanol, 200mM zinc acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.221
2ZRT Crystal structure of Zn2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 24–191（168 aa） Fragment：UNP residues 24-191 Chain H 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100mM MES, 15% ethanol, 200mM zinc acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.221
3AAJ Crystal structure of Ca2+-bound form of des3-23ALG-2deltaGF122 Deposited 2009-11-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–191（190 aa） Fragment：residues 2-191 Chain B 2–191（190 aa） Fragment：residues 2-191	Mutation：deletions of residues 3-23, G121, F122 Mutation：deletions of residues 3-23, G121, F122	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.05M Cacodylate, 2.5% PEG 4000, 0.3M Ammonium acetate, 0.01M CaCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.266
3AAK Crystal structure of Zn2+-bound form of des3-20ALG-2F122A Deposited 2009-11-19	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–191（190 aa） Fragment：residues 2-191	Mutation：deletions of residues 3-20, F122A	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；25% 2-methyl-2,4-pentanediol, 100mM Cacodylate, 50mM Zinc acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.298
3WXA X-ray crystal structural analysis of the complex between ALG-2 and Sec31A peptide Deposited 2014-07-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–191（172 aa） Fragment：UNP residues 20-191	Not recorded	ZN ZINC ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M Cacodylate, 20% MPD, 0.05M Zinc Acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.36 Å R-free 0.263
3WXA X-ray crystal structural analysis of the complex between ALG-2 and Sec31A peptide Deposited 2014-07-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–191（172 aa） Fragment：UNP residues 20-191	Not recorded	ZN ZINC ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M Cacodylate, 20% MPD, 0.05M Zinc Acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.36 Å R-free 0.263
5GQQ Structure of ALG-2/HEBP2 Complex Deposited 2016-08-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 24–191（168 aa） Fragment：UNP RESIDUES 24-191 Chain D 24–191（168 aa） Fragment：UNP RESIDUES 24-191	Not recorded	CA CALCIUM ION × 6 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0.1 M Bis-Tris, 2 M NaCl, pH 5.5	Resolution 2.20 Å R-free 0.225

9 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PDCD6_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–172； UniProt 20–191

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2znd
Deposition date deposition_date	2008-04-22
Structure title title	Crystal structure of Ca2+-free form of des3-20ALG-2
Keywords keywords	PENTA-EF-HAND PROTEIN, CALCIUM BINDING PROTEIN, Apoptosis, Calcium, Endoplasmic reticulum, Membrane, Nucleus, Polymorphism; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.03 Å
Radius of gyration Rg (electron density) rg_electron	17.92 Å
Forward intensity I(0) i0	7703720.00
Molecular weight molecular_weight	20501.0 kDa
Excluded volume excluded_volume	25668 Å³
Envelope volume envelope_volume	30781 Å³
Hydration-shell volume shell_volume	15040 Å³
Envelope diameter envelope_diameter	64.0 Å
Shell Rg shell_rg	23.15 Å
Envelope Rg envelope_rg	18.28 Å
Shape Rg shape_rg	17.94 Å
Total Rg total_rg	18.73 Å
Total atoms total_atoms	1444
Residues n_residues	167
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

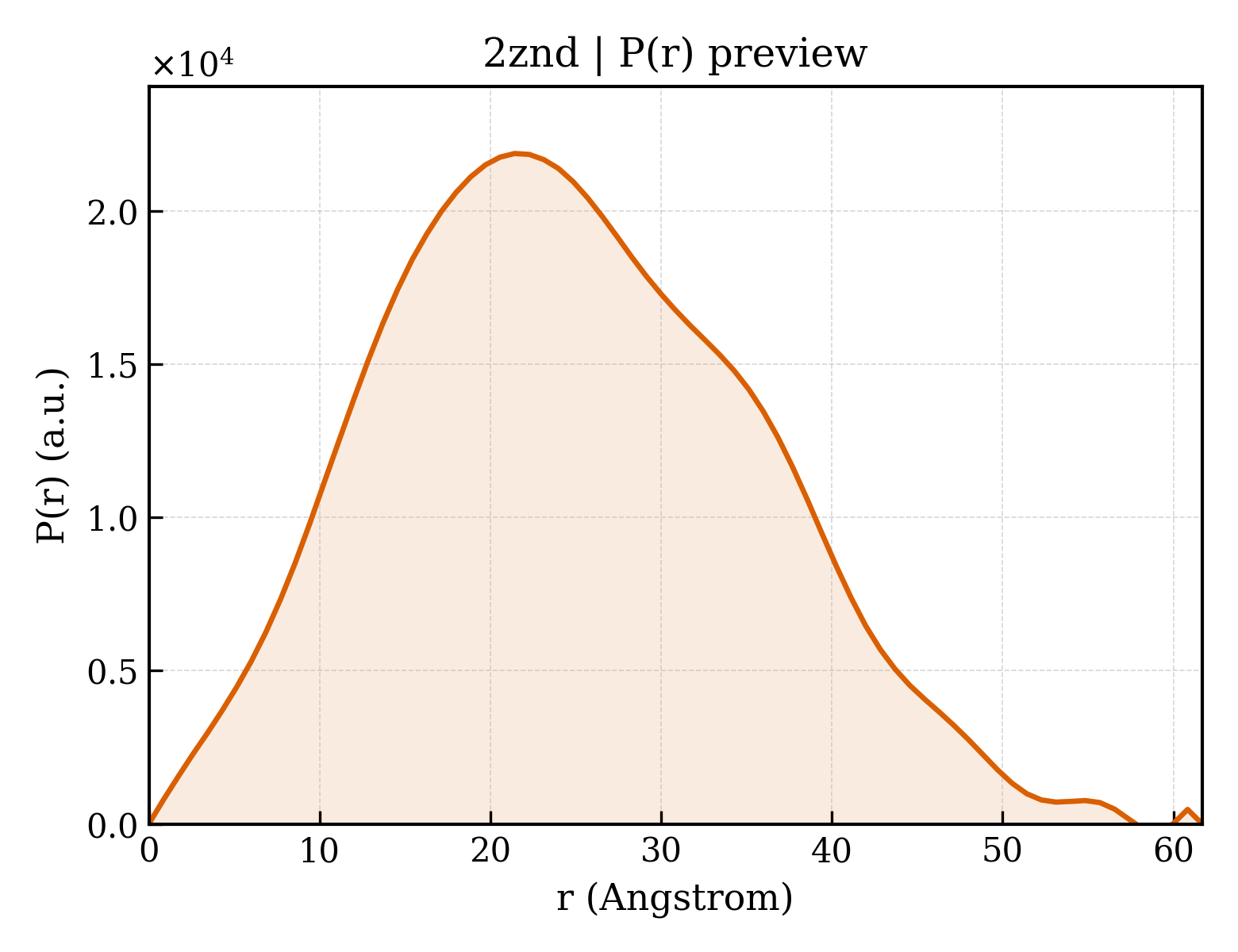

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.7 Å
Rg (real space) rg_real	19.00 Å
Rg uncertainty (real space) rg_real_error	0.53 Å
I(0) (real space) i0_real	7.7040e+06
I(0) uncertainty (real space) i0_real_error	9.7750e+04
Rg (reciprocal space) rg_reciprocal	19.00 Å
I(0) (reciprocal space) i0_reciprocal	7704000.0000
Solution quality estimate total_estimate	0.8186
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	21.4 Å
Skewness Skewness skewness	0.263
Kurtosis Kurtosis kurtosis	-0.397
Angular range angular_range	— – 0.4200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	863400.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.883; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.991; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Programmed cell death protein 6
Molecular weight formula_weight	20158.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1575

AALPDQSFLWNVFQRVDKDRSGVISDTELQQALSNGTWTPFNPVTVRSIISMFDRENKAGVNFSEFTGVWKYITDWQNVFRTYDRDNSGMIDKNELKQALSGFGYRLSDQFHDILIRKFDRQGRGQIAFDDFIQGCIVLQRLTDIFRRYDTDQDGWIQVSYEQYLSMVFSIV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	(4R)-2-METHYLPENTANE-2,4-DIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	PHOSPHATE ION
Molecular weight formula_weight	95.0 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	131

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d2znda_
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	2zndA00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (2)

▶

Unit-cell length a length_a	71.148 Å
Unit-cell length b length_b	48.833 Å
Unit-cell length c length_c	54.183 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 2
Space-group number int_tables_number	18
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	43.110 Å
R factor r_factor	0.1948
R_work r_work	0.1934
R_free r_free	0.2224

fit	/app/data/saxs_computation/zn/2znd/2znd.fit
pddf	/app/data/pr_computation/zn/2znd/2znd.pr.out
profile	/app/data/saxs_computation/zn/2znd/2znd.dat
