SAXSdb — 5gqq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Heme-binding protein 2

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 20–197 Chain B； UniProt 20–197	Fragment：UNP RESIDUES 20-197	Programmed cell death protein 6 × 2 （O75340） CA CALCIUM ION × 6 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0.1 M Bis-Tris, 2 M NaCl, pH 5.5	Resolution 2.20 Å R-free 0.225

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5GQQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3R85 Crystal structure of human SOUL BH3 domain in complex with Bcl-xL Deposited 2011-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 147–172（26 aa） Fragment：residues 147 to 172	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.2M sodium sulphate, 15% PEG 6000, 0.3M 1-butyl-3-methylimidazolium 2-(2-methoxyethoxy)ethyl sulphate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.263
3R85 Crystal structure of human SOUL BH3 domain in complex with Bcl-xL Deposited 2011-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 147–172（26 aa） Fragment：residues 147 to 172	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.2M sodium sulphate, 15% PEG 6000, 0.3M 1-butyl-3-methylimidazolium 2-(2-methoxyethoxy)ethyl sulphate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.263
3R85 Crystal structure of human SOUL BH3 domain in complex with Bcl-xL Deposited 2011-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 147–172（26 aa） Fragment：residues 147 to 172	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.2M sodium sulphate, 15% PEG 6000, 0.3M 1-butyl-3-methylimidazolium 2-(2-methoxyethoxy)ethyl sulphate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.263
3R85 Crystal structure of human SOUL BH3 domain in complex with Bcl-xL Deposited 2011-03-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 147–172（26 aa） Fragment：residues 147 to 172	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.2M sodium sulphate, 15% PEG 6000, 0.3M 1-butyl-3-methylimidazolium 2-(2-methoxyethoxy)ethyl sulphate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.95 Å R-free 0.263
3R8J Crystal structure of human SOUL protein (orthorhombic form) Deposited 2011-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–205（204 aa）	Not recorded	PO4 PHOSPHATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；KH2PO4 0.8M, NaH2PO4 0.8M, HEPES 0.08M, 1-butyl-3-methylimidazolium chloride 0.2M, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.197
3R8J Crystal structure of human SOUL protein (orthorhombic form) Deposited 2011-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–205（204 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；KH2PO4 0.8M, NaH2PO4 0.8M, HEPES 0.08M, 1-butyl-3-methylimidazolium chloride 0.2M, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.60 Å R-free 0.197
3R8K Crystal structure of human SOUL protein (hexagonal form) Deposited 2011-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–205（204 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；2.0M ammonium sulphate, 0.1M Tris-HCl, 0.2M 1-butyl-3-methylimidazolium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.85 Å R-free 0.268
3R8K Crystal structure of human SOUL protein (hexagonal form) Deposited 2011-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–205（204 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；2.0M ammonium sulphate, 0.1M Tris-HCl, 0.2M 1-butyl-3-methylimidazolium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.85 Å R-free 0.268
3R8K Crystal structure of human SOUL protein (hexagonal form) Deposited 2011-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2–205（204 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；2.0M ammonium sulphate, 0.1M Tris-HCl, 0.2M 1-butyl-3-methylimidazolium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.85 Å R-free 0.268
3R8K Crystal structure of human SOUL protein (hexagonal form) Deposited 2011-03-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 2–205（204 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；2.0M ammonium sulphate, 0.1M Tris-HCl, 0.2M 1-butyl-3-methylimidazolium chloride, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.85 Å R-free 0.268
4AYZ X-ray Structure of human SOUL Deposited 2012-06-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–205（205 aa） Chain B 1–205（205 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.6；1.8 M NA/K PHOSPHATE BUFFER 5.6	Resolution 3.50 Å R-free 0.270
4B0Y Determination of X-ray Structure of human SOUL by Molecular Replacement Deposited 2012-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–205（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；2 M AMMONIUM SULPHATE, 0.1 M MES 6.5	Resolution 3.50 Å R-free 0.306

5 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	HEBP2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–178； UniProt 20–197 Author chain B； PDBConstruct 1–178； UniProt 20–197

Programmed cell death protein 6

Homo sapiens

UniProt O75340

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 24–191 Chain D； UniProt 24–191	Fragment：UNP RESIDUES 24-191	Heme-binding protein 2 × 2 （Q9Y5Z4） CA CALCIUM ION × 6 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 5.5；293.15 K；0.1 M Bis-Tris, 2 M NaCl, pH 5.5	Resolution 2.20 Å R-free 0.225

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 5GQQ	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2ZN8 Crystal structure of Zn2+-bound form of ALG-2 Deposited 2008-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–191（190 aa）	Not recorded	ZN ZINC ION × 8 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；25% 2-methyl-2,4-pentanediol, 100mM Cacodylate, 75mM Zinc acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.260
2ZN9 Crystal structure of Ca2+-bound form of des3-20ALG-2 Deposited 2008-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 20–191（172 aa） Fragment：residues 20-191 Chain B 20–191（172 aa） Fragment：residues 20-191	Not recorded	CA CALCIUM ION × 7 2PE NONAETHYLENE GLYCOL × 1 12P DODECAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；18% PEG 8000, 0.1M Sodium Cacodylate, 0.2M Calcium Acetate hydrate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.298
2ZN9 Crystal structure of Ca2+-bound form of des3-20ALG-2 Deposited 2008-04-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 20–191（172 aa） Fragment：residues 20-191 Chain B 20–191（172 aa） Fragment：residues 20-191	Not recorded	CA CALCIUM ION × 7 2PE NONAETHYLENE GLYCOL × 1 12P DODECAETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；18% PEG 8000, 0.1M Sodium Cacodylate, 0.2M Calcium Acetate hydrate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.298
2ZND Crystal structure of Ca2+-free form of des3-20ALG-2 Deposited 2008-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 20–191（172 aa） Fragment：residues 20-191	Not recorded	MRD (4R)-2-METHYLPENTANE-2,4-DIOL × 10 PO4 PHOSPHATE ION × 4 NA SODIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；277 K；40% 2-methyl-2,4-pentanediol, 0.1M Na2HPO4-KH2PO4, 2mM EDTA, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.70 Å R-free 0.222
2ZNE Crystal structure of Zn2+-bound form of des3-23ALG-2 complexed with Alix ABS peptide Deposited 2008-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–191（190 aa） Fragment：residues 2-191	Not recorded	ZN ZINC ION × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% 2-propanol, 0.1M Cacodylate, 0.2M zinc acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.274
2ZNE Crystal structure of Zn2+-bound form of des3-23ALG-2 complexed with Alix ABS peptide Deposited 2008-04-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–191（190 aa） Fragment：residues 2-191	Not recorded	ZN ZINC ION × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% 2-propanol, 0.1M Cacodylate, 0.2M zinc acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.274
2ZNE Crystal structure of Zn2+-bound form of des3-23ALG-2 complexed with Alix ABS peptide Deposited 2008-04-22	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–191（190 aa） Fragment：residues 2-191 Chain B 2–191（190 aa） Fragment：residues 2-191	Not recorded	ZN ZINC ION × 8 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% 2-propanol, 0.1M Cacodylate, 0.2M zinc acetate, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.274
2ZRS Crystal structure of Ca2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–191（168 aa） Fragment：UNP residues 24-191 Chain B 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；50mM MES, 12.5% 2-propanol, 150mM calcium acetate, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.280
2ZRS Crystal structure of Ca2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 24–191（168 aa） Fragment：UNP residues 24-191 Chain D 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；50mM MES, 12.5% 2-propanol, 150mM calcium acetate, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.280
2ZRS Crystal structure of Ca2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 24–191（168 aa） Fragment：UNP residues 24-191 Chain F 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；50mM MES, 12.5% 2-propanol, 150mM calcium acetate, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.280
2ZRS Crystal structure of Ca2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 24–191（168 aa） Fragment：UNP residues 24-191 Chain H 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	CA CALCIUM ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；50mM MES, 12.5% 2-propanol, 150mM calcium acetate, pH6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.10 Å R-free 0.280
2ZRT Crystal structure of Zn2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 24–191（168 aa） Fragment：UNP residues 24-191 Chain B 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	ZN ZINC ION × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100mM MES, 15% ethanol, 200mM zinc acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.221
2ZRT Crystal structure of Zn2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 24–191（168 aa） Fragment：UNP residues 24-191 Chain D 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	ZN ZINC ION × 11	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100mM MES, 15% ethanol, 200mM zinc acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.221
2ZRT Crystal structure of Zn2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain E 24–191（168 aa） Fragment：UNP residues 24-191 Chain F 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	ZN ZINC ION × 10	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100mM MES, 15% ethanol, 200mM zinc acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.221
2ZRT Crystal structure of Zn2+-bound form of des3-23ALG-2 Deposited 2008-09-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain G 24–191（168 aa） Fragment：UNP residues 24-191 Chain H 24–191（168 aa） Fragment：UNP residues 24-191	Not recorded	ZN ZINC ION × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；100mM MES, 15% ethanol, 200mM zinc acetate, pH6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.30 Å R-free 0.221
3AAJ Crystal structure of Ca2+-bound form of des3-23ALG-2deltaGF122 Deposited 2009-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–191（190 aa） Fragment：residues 2-191 Chain B 2–191（190 aa） Fragment：residues 2-191	Mutation：deletions of residues 3-23, G121, F122 Mutation：deletions of residues 3-23, G121, F122	CA CALCIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.05M Cacodylate, 2.5% PEG 4000, 0.3M Ammonium acetate, 0.01M CaCl2, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.40 Å R-free 0.266
3AAK Crystal structure of Zn2+-bound form of des3-20ALG-2F122A Deposited 2009-11-19	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–191（190 aa） Fragment：residues 2-191	Mutation：deletions of residues 3-20, F122A	ZN ZINC ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；25% 2-methyl-2,4-pentanediol, 100mM Cacodylate, 50mM Zinc acetate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.298
3WXA X-ray crystal structural analysis of the complex between ALG-2 and Sec31A peptide Deposited 2014-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 20–191（172 aa） Fragment：UNP residues 20-191	Not recorded	ZN ZINC ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M Cacodylate, 20% MPD, 0.05M Zinc Acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.36 Å R-free 0.263
3WXA X-ray crystal structural analysis of the complex between ALG-2 and Sec31A peptide Deposited 2014-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 20–191（172 aa） Fragment：UNP residues 20-191	Not recorded	ZN ZINC ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；0.1M Cacodylate, 20% MPD, 0.05M Zinc Acetate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.36 Å R-free 0.263

9 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PDCD6_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 3–170； UniProt 24–191 Author chain D； PDBConstruct 3–170； UniProt 24–191

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	5gqq
Deposition date deposition_date	2016-08-08
Structure title title	Structure of ALG-2/HEBP2 Complex
Keywords keywords	EF Hands, complex, Calcium ions, APOPTOSIS; APOPTOSIS
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.00 Å
Radius of gyration Rg (electron density) rg_electron	29.28 Å
Forward intensity I(0) i0	103239000.00
Molecular weight molecular_weight	79979.0 kDa
Excluded volume excluded_volume	99759 Å³
Envelope volume envelope_volume	125370 Å³
Hydration-shell volume shell_volume	36112 Å³
Envelope diameter envelope_diameter	98.2 Å
Shell Rg shell_rg	36.16 Å
Envelope Rg envelope_rg	29.33 Å
Shape Rg shape_rg	29.28 Å
Total Rg total_rg	29.94 Å
Total atoms total_atoms	5641
Residues n_residues	693
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	95.7 Å
Rg (real space) rg_real	29.92 Å
Rg uncertainty (real space) rg_real_error	0.45 Å
I(0) (real space) i0_real	1.0320e+08
I(0) uncertainty (real space) i0_real_error	1.5300e+06
Rg (reciprocal space) rg_reciprocal	29.96 Å
I(0) (reciprocal space) i0_reciprocal	103200000.0000
Solution quality estimate total_estimate	0.9050
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	37.9 Å
Skewness Skewness skewness	0.245
Kurtosis Kurtosis kurtosis	-0.478
Angular range angular_range	— – 0.2650 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	26240000.0000
Real-space data points n_real_points	54
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.927; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.978

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Heme-binding protein 2
Molecular weight formula_weight	20117.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5948

VETPGWKAPEDAGPQPGSYEIRHYGPAKWVSTSVESMDWDSAIQTGFTKLNSYIQGKNEKEMKIKMTAPVTSYVEPGSGPFSESTITISLYIPSEQQFDPPRPLESDVFIEDRAEMTVFVRSFDGFSSAQKNQEQLLTLASILREDGKVFDEKVYYTAGYNSPVKLLNRNNEVWLIQK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 polymer

Description description	Programmed cell death protein 6
Molecular weight formula_weight	19950.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

GSDQSFLWNVFQRVDKDRSGVISDTELQQALSNGTWTPFNPVTVRSIISMFDRENKAGVNFSEFTGVWKYITDWQNVFRTYDRDNSGMIDKNELKQALSGFGYRLSDQFHDILIRKFDRQGRGQIAFDDFIQGCIVLQRLTDIFRRYDTDQDGWIQVSYEQYLSMVFSIV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 3 Entity 3 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	307

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d5gqqa_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.60 — Probable bacterial effector-binding domain
Superfamily Superfamily superfamily	d.60.1 — Probable bacterial effector-binding domain
Family Family family	d.60.1.0 — automated matches

Domain ID domain_id	d5gqqb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.60 — Probable bacterial effector-binding domain
Superfamily Superfamily superfamily	d.60.1 — Probable bacterial effector-binding domain
Family Family family	d.60.1.0 — automated matches

Domain ID domain_id	d5gqqc1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.0 — automated matches

Domain ID domain_id	d5gqqc2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d5gqqd1
Class class	a — All alpha proteins
Fold Fold fold	a.39 — EF Hand-like
Superfamily Superfamily superfamily	a.39.1 — EF-hand
Family Family family	a.39.1.0 — automated matches

Domain ID domain_id	d5gqqd2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	5gqqA00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	80 — Multidrug-efflux Transporter 1 Regulator Bmrr; Chain A
Homologous superfamily homologous superfamily	10 — Regulatory factor, effector binding domain

Domain ID domain_id	5gqqB00
Class class	3 — Alpha Beta
Architecture architecture	20 — Alpha-Beta Barrel
Topology topology	80 — Multidrug-efflux Transporter 1 Regulator Bmrr; Chain A
Homologous superfamily homologous superfamily	10 — Regulatory factor, effector binding domain

Domain ID domain_id	5gqqC00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

Domain ID domain_id	5gqqD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	238 — Recoverin; domain 1
Homologous superfamily homologous superfamily	10 — EF-hand

▶

8. Citations (1)

▶

Unit-cell length a length_a	47.279 Å
Unit-cell length b length_b	78.124 Å
Unit-cell length c length_c	87.171 Å
Unit-cell angle α angle_alpha	113.71 °
Unit-cell angle β angle_beta	105.64 °
Unit-cell angle γ angle_gamma	93.95 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	25.935 Å
R factor r_factor	0.1958
R_work r_work	0.1942
R_free r_free	0.2251

fit	/app/data/saxs_computation/gq/5gqq/5gqq.fit
pddf	/app/data/pr_computation/gq/5gqq/5gqq.pr.out
profile	/app/data/saxs_computation/gq/5gqq/5gqq.dat

Structure of ALG-2/HEBP2 Complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Heme-binding protein 2

State in the Current Structure

Other States of the Same Protein in the Database

Programmed cell death protein 6

State in the Current Structure

Other States of the Same Protein in the Database

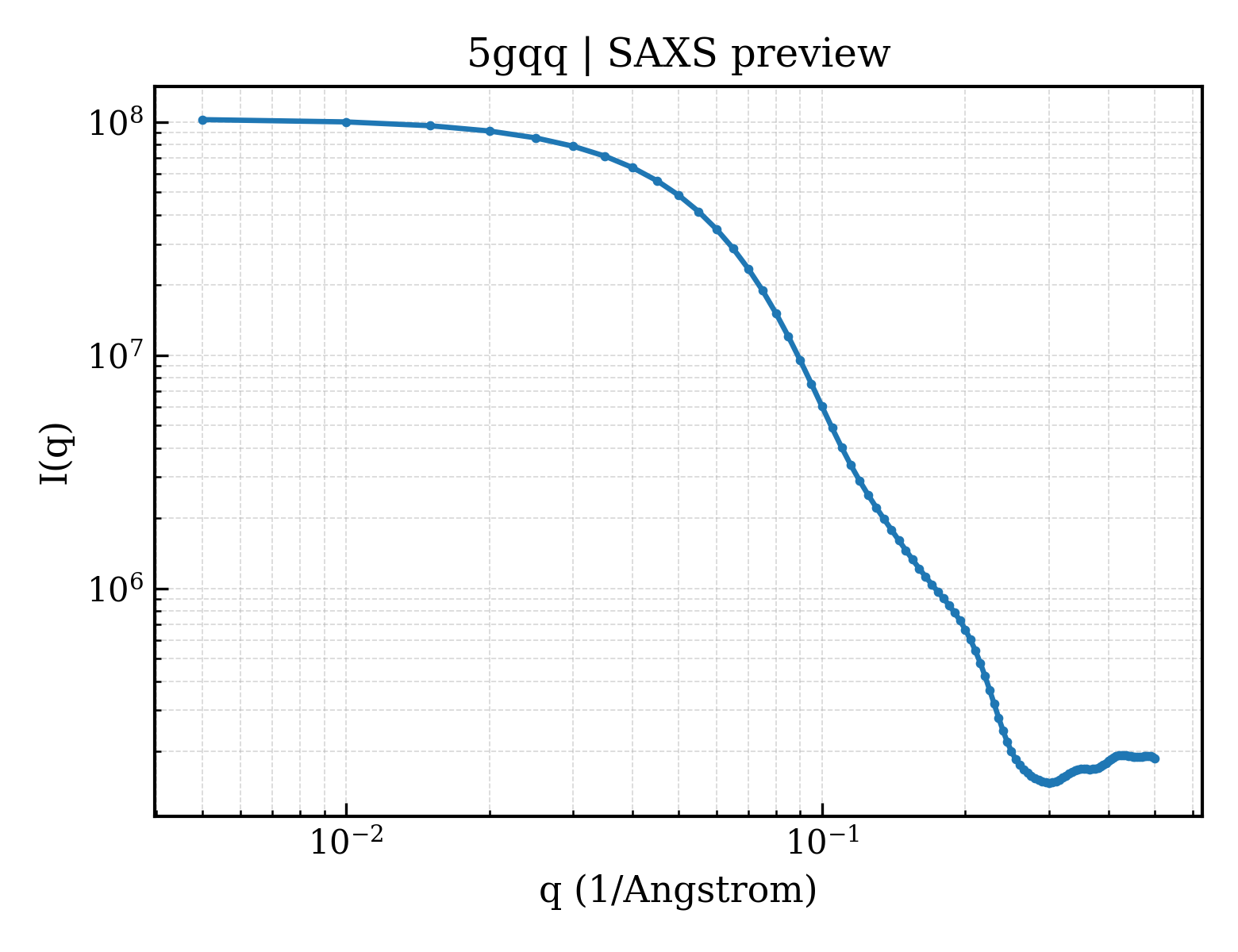

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (6 domains)

CATH v4.4 (4 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
