SAXSdb — 2znr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AMSH-like protease

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 264–436	Fragment：MPN domain, DUB domain, Unp residues 264-436	ZN ZINC ION × 2 PR PRASEODYMIUM ION × 1 EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；45mM sodium acetate buffer (pH 4.6), 22% PEG 4000, 90mM ammonium acetate, 10mM praseodymium (III) acetate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.20 Å R-free 0.165

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ZNR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2ZNV Crystal structure of human AMSH-LP DUB domain in complex with Lys63-linked ubiquitin dimer Deposited 2008-05-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 264–436（173 aa） Fragment：MPN domain, DUB domain, UNP residues 264-436	Mutation：E292A	ZN ZINC ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；180mM tri-ammonium citrate (pH 7.0), 24% PEG 3350, 3% 1,6-Hexanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215
2ZNV Crystal structure of human AMSH-LP DUB domain in complex with Lys63-linked ubiquitin dimer Deposited 2008-05-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 264–436（173 aa） Fragment：MPN domain, DUB domain, UNP residues 264-436	Mutation：E292A	ZN ZINC ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；180mM tri-ammonium citrate (pH 7.0), 24% PEG 3350, 3% 1,6-Hexanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215
7L97 Crystal structure of STAMBPL1 in complex with an engineered binder Deposited 2021-01-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 263–436（174 aa）	Not recorded	ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 2 SO4 SULFATE ION × 2 UNX UNKNOWN LIGAND × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；20% PEG 1500, 0.2M NaCl, 0.1M HEPES pH7.5	Resolution 2.01 Å R-free 0.214

2 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	STALP_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–178； UniProt 264–436

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2znr
Deposition date deposition_date	2008-05-01
Structure title title	Crystal structure of the DUB domain of human AMSH-LP
Keywords keywords	metal binding protein, Alternative splicing, Hydrolase, Metal-binding, Metalloprotease, Protease, Ubl conjugation pathway, Zinc; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.39 Å
Radius of gyration Rg (electron density) rg_electron	16.14 Å
Forward intensity I(0) i0	8179710.00
Molecular weight molecular_weight	20647.0 kDa
Excluded volume excluded_volume	25720 Å³
Envelope volume envelope_volume	30054 Å³
Hydration-shell volume shell_volume	15544 Å³
Envelope diameter envelope_diameter	60.6 Å
Shell Rg shell_rg	22.39 Å
Envelope Rg envelope_rg	16.66 Å
Shape Rg shape_rg	16.11 Å
Total Rg total_rg	17.31 Å
Total atoms total_atoms	1427
Residues n_residues	178
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

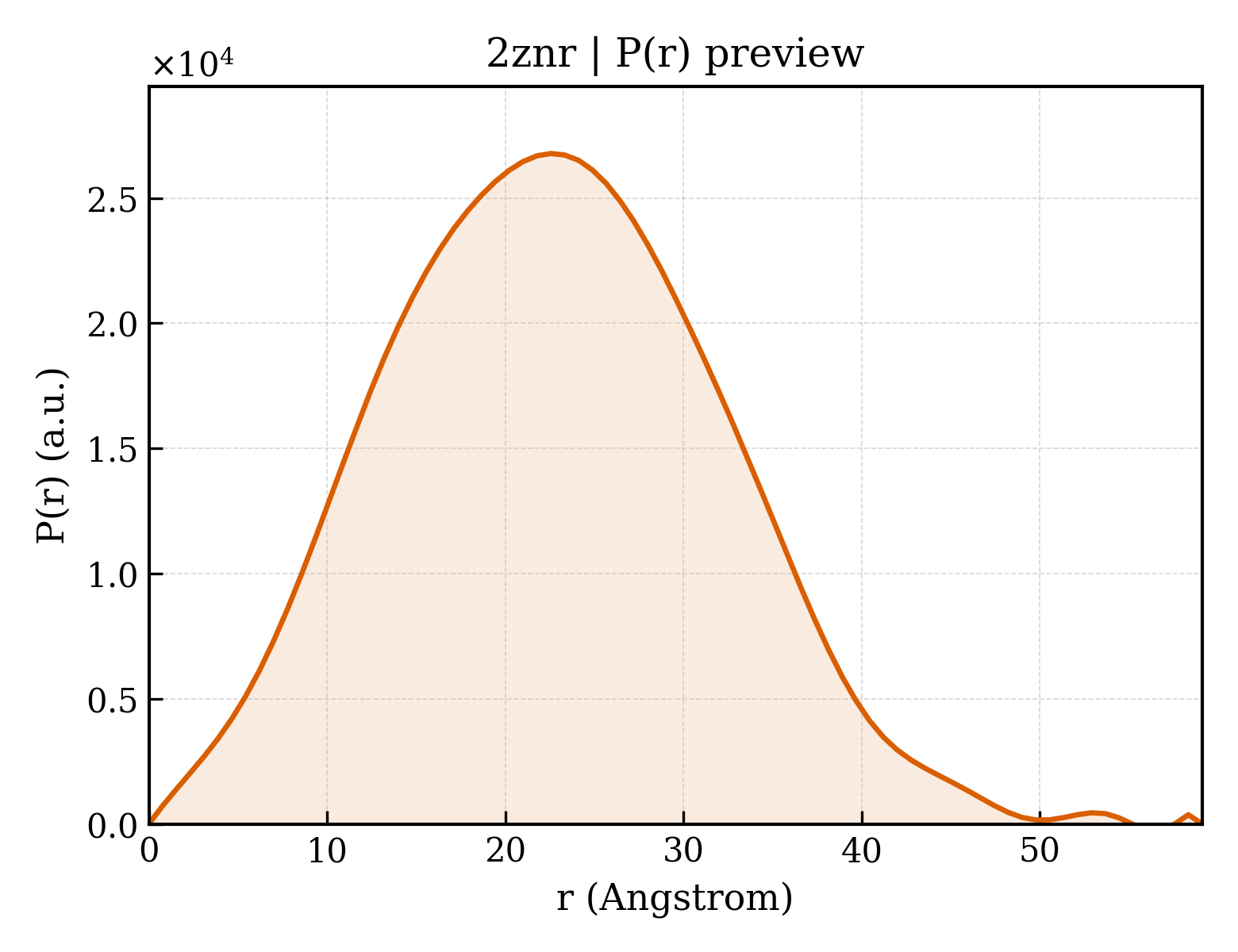

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	59.1 Å
Rg (real space) rg_real	17.29 Å
Rg uncertainty (real space) rg_real_error	0.42 Å
I(0) (real space) i0_real	8.1800e+06
I(0) uncertainty (real space) i0_real_error	9.3220e+04
Rg (reciprocal space) rg_reciprocal	17.30 Å
I(0) (reciprocal space) i0_reciprocal	8180000.0000
Solution quality estimate total_estimate	0.7903
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	22.6 Å
Skewness Skewness skewness	0.170
Kurtosis Kurtosis kurtosis	-0.283
Angular range angular_range	— – 0.4600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1300000.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.758; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	AMSH-like protease
Molecular weight formula_weight	19974.3 kDa
EC 编号 ec_number	3.1.2.15
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1732

GPGHMEGLRCVVLPEDLCHKFLQLAESNTVRGIETCGILCGKLTHNEFTITHVIVPKQSAGPDYCDMENVEELFNVQDQHDLLTLGWIHTHPTQTAFLSSVDLHTHCSYQLMLPEAIAIVCSPKHKDTGIFRLTNAGMLEVSACKKKGFHPHTKEPRLFSICKHVLVKDIKIIVLDLR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	PRASEODYMIUM ION
Molecular weight formula_weight	140.9 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	269

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d2znra1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.3 — JAB1/MPN domain
Family Family family	c.97.3.1 — JAB1/MPN domain

Domain ID domain_id	d2znra2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (1 domains)

Domain ID domain_id	2znrA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	81.865 Å
Unit-cell length b length_b	81.865 Å
Unit-cell length c length_c	64.693 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	1.200 Å
Low-resolution limit resolution_low	31.090 Å
R factor r_factor	0.1496
R_work r_work	0.1488
R_free r_free	0.1655

fit	/app/data/saxs_computation/zn/2znr/2znr.fit
pddf	/app/data/pr_computation/zn/2znr/2znr.pr.out
profile	/app/data/saxs_computation/zn/2znr/2znr.dat
