SAXSdb — 2znv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

AMSH-like protease

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 264–436	Fragment：MPN domain, DUB domain, UNP residues 264-436 Mutation：E292A	ZN ZINC ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；180mM tri-ammonium citrate (pH 7.0), 24% PEG 3350, 3% 1,6-Hexanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215
4	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 264–436	Fragment：MPN domain, DUB domain, UNP residues 264-436 Mutation：E292A	ZN ZINC ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；180mM tri-ammonium citrate (pH 7.0), 24% PEG 3350, 3% 1,6-Hexanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ZNV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2ZNR Crystal structure of the DUB domain of human AMSH-LP Deposited 2008-05-01	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 264–436（173 aa） Fragment：MPN domain, DUB domain, Unp residues 264-436	Not recorded	ZN ZINC ION × 2 PR PRASEODYMIUM ION × 1 EDO 1,2-ETHANEDIOL × 7	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；293 K；45mM sodium acetate buffer (pH 4.6), 22% PEG 4000, 90mM ammonium acetate, 10mM praseodymium (III) acetate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.20 Å R-free 0.165
7L97 Crystal structure of STAMBPL1 in complex with an engineered binder Deposited 2021-01-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 263–436（174 aa）	Not recorded	ZN ZINC ION × 2 EDO 1,2-ETHANEDIOL × 2 SO4 SULFATE ION × 2 UNX UNKNOWN LIGAND × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；20% PEG 1500, 0.2M NaCl, 0.1M HEPES pH7.5	Resolution 2.01 Å R-free 0.214

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	STALP_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–178； UniProt 264–436 Author chain D； PDBConstruct 6–178； UniProt 264–436

Ubiquitin

Mus musculus

UniProt P62991

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–76	Mutation：K63R Mutation：M77D	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；180mM tri-ammonium citrate (pH 7.0), 24% PEG 3350, 3% 1,6-Hexanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 1–76	Mutation：K63R Mutation：M77D	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；180mM tri-ammonium citrate (pH 7.0), 24% PEG 3350, 3% 1,6-Hexanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215
5	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain E； UniProt 1–76	Mutation：K63R Mutation：M77D	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；180mM tri-ammonium citrate (pH 7.0), 24% PEG 3350, 3% 1,6-Hexanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215
6	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain F； UniProt 1–76	Mutation：K63R Mutation：M77D	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；180mM tri-ammonium citrate (pH 7.0), 24% PEG 3350, 3% 1,6-Hexanediol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.215

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 2ZNV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3A1Q Crystal structure of the mouse RAP80 UIMs in complex with Lys63-linked di-ubiquitin Deposited 2009-04-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–76（76 aa） Chain B 1–76（76 aa）	Mutation：77D Mutation：K63R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；100mM Tris-HCl(pH8.5), 32% PEG4000, 200mM sodium acetate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.268
3A1Q Crystal structure of the mouse RAP80 UIMs in complex with Lys63-linked di-ubiquitin Deposited 2009-04-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain D 1–76（76 aa） Chain E 1–76（76 aa）	Mutation：77D Mutation：K63R	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；100mM Tris-HCl(pH8.5), 32% PEG4000, 200mM sodium acetate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.20 Å R-free 0.268
3A9J Crystal structure of the mouse TAB2-NZF in complex with Lys63-linked di-ubiquitin Deposited 2009-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–76（76 aa） Chain B 1–76（76 aa）	Mutation：K63R Mutation：77D	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；90mM Bis-Tris-HCl (pH 6.5), 180mM ammonium acetate, 21% PE3350, 4% pentaerythritol ethoxylate, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.18 Å R-free 0.191
3A9K Crystal structure of the mouse TAB3-NZF in complex with Lys63-linked di-ubiquitin Deposited 2009-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 1–76（76 aa） Chain B 1–76（76 aa）	Mutation：K63R Mutation：77D	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；100mM Bis-Tris-HCl (pH 6.5), 21% PEG 3350, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.40 Å R-free 0.218

3 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	UBIQ_MOUSE
Isoform	—
PDB entities	2, 3
Chains and sequence ranges	Author chain B； PDBConstruct 1–76； UniProt 1–76 Author chain E； PDBConstruct 1–76； UniProt 1–76 Author chain C； PDBConstruct 1–76； UniProt 1–76 Author chain F； PDBConstruct 1–76； UniProt 1–76

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2znv
Deposition date deposition_date	2008-05-01
Structure title title	Crystal structure of human AMSH-LP DUB domain in complex with Lys63-linked ubiquitin dimer
Keywords keywords	;protein complex, metal binding protein, Alternative splicing, Hydrolase, Metal-binding, Metalloprotease, Protease, Ubl conjugation pathway, Zinc, Cytoplasm, Nucleus, Phosphoprotein, HYDROLASE-Signaling Protein COMPLEX ;; HYDROLASE/Signaling Protein
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.21 Å
Radius of gyration Rg (electron density) rg_electron	29.84 Å
Forward intensity I(0) i0	82237600.00
Molecular weight molecular_weight	72305.0 kDa
Excluded volume excluded_volume	91006 Å³
Envelope volume envelope_volume	114170 Å³
Hydration-shell volume shell_volume	32481 Å³
Envelope diameter envelope_diameter	103.4 Å
Shell Rg shell_rg	36.41 Å
Envelope Rg envelope_rg	29.52 Å
Shape Rg shape_rg	29.84 Å
Total Rg total_rg	30.45 Å
Total atoms total_atoms	5065
Residues n_residues	640
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	98.0 Å
Rg (real space) rg_real	30.26 Å
Rg uncertainty (real space) rg_real_error	0.73 Å
I(0) (real space) i0_real	8.2240e+07
I(0) uncertainty (real space) i0_real_error	1.3020e+06
Rg (reciprocal space) rg_reciprocal	30.24 Å
I(0) (reciprocal space) i0_reciprocal	82240000.0000
Solution quality estimate total_estimate	0.8924
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	30.2 Å
Skewness Skewness skewness	0.345
Kurtosis Kurtosis kurtosis	-0.512
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	18800000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.912; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.957; Smooth: 0.903

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	AMSH-like protease
Molecular weight formula_weight	19916.2 kDa
EC 编号 ec_number	3.1.2.15
Mutation mutation	E292A
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	5691

GPGHMEGLRCVVLPEDLCHKFLQLAESNTVRGIATCGILCGKLTHNEFTITHVIVPKQSAGPDYCDMENVEELFNVQDQHDLLTLGWIHTHPTQTAFLSSVDLHTHCSYQLMLPEAIAIVCSPKHKDTGIFRLTNAGMLEVSACKKKGFHPHTKEPRLFSICKHVLVKDIKIIVLDLR

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Ubiquitin
Molecular weight formula_weight	8604.8 kDa
Mutation mutation	K63R
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,E

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQRESTLHLVLRLRGG

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Ubiquitin
Molecular weight formula_weight	8691.9 kDa
Mutation mutation	M77D
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,F

MQIFVKTLTGKTITLEVEPSDTIENVKAKIQDKEGIPPDQQRLIFAGKQLEDGRTLSDYNIQKESTLHLVLRLRGGD

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	605

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d2znva_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.3 — JAB1/MPN domain
Family Family family	c.97.3.1 — JAB1/MPN domain

Domain ID domain_id	d2znvb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d2znvc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d2znvd_
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.97 — Cytidine deaminase-like
Superfamily Superfamily superfamily	c.97.3 — JAB1/MPN domain
Family Family family	c.97.3.1 — JAB1/MPN domain

Domain ID domain_id	d2znve_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

Domain ID domain_id	d2znvf_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.1 — Ubiquitin-related

CATH v4.4 (6 domains)

Domain ID domain_id	2znvA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	2znvB00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	2znvC00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	2znvD00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	140 — Cytidine Deaminase; domain 2
Homologous superfamily homologous superfamily	10 — Cytidine Deaminase, domain 2

Domain ID domain_id	2znvE00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

Domain ID domain_id	2znvF00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	38.089 Å
Unit-cell length b length_b	97.363 Å
Unit-cell length c length_c	87.894 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	97.49 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	32.470 Å
R factor r_factor	0.1851
R_work r_work	0.1835
R_free r_free	0.2152

fit	/app/data/saxs_computation/zn/2znv/2znv.fit
pddf	/app/data/pr_computation/zn/2znv/2znv.pr.out
profile	/app/data/saxs_computation/zn/2znv/2znv.dat

Crystal structure of human AMSH-LP DUB domain in complex with Lys63-linked ubiquitin dimer

1. Protein Identity and Related Structures Protein Identity & Related Structures

AMSH-like protease

State in the Current Structure

Other States of the Same Protein in the Database

Ubiquitin

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

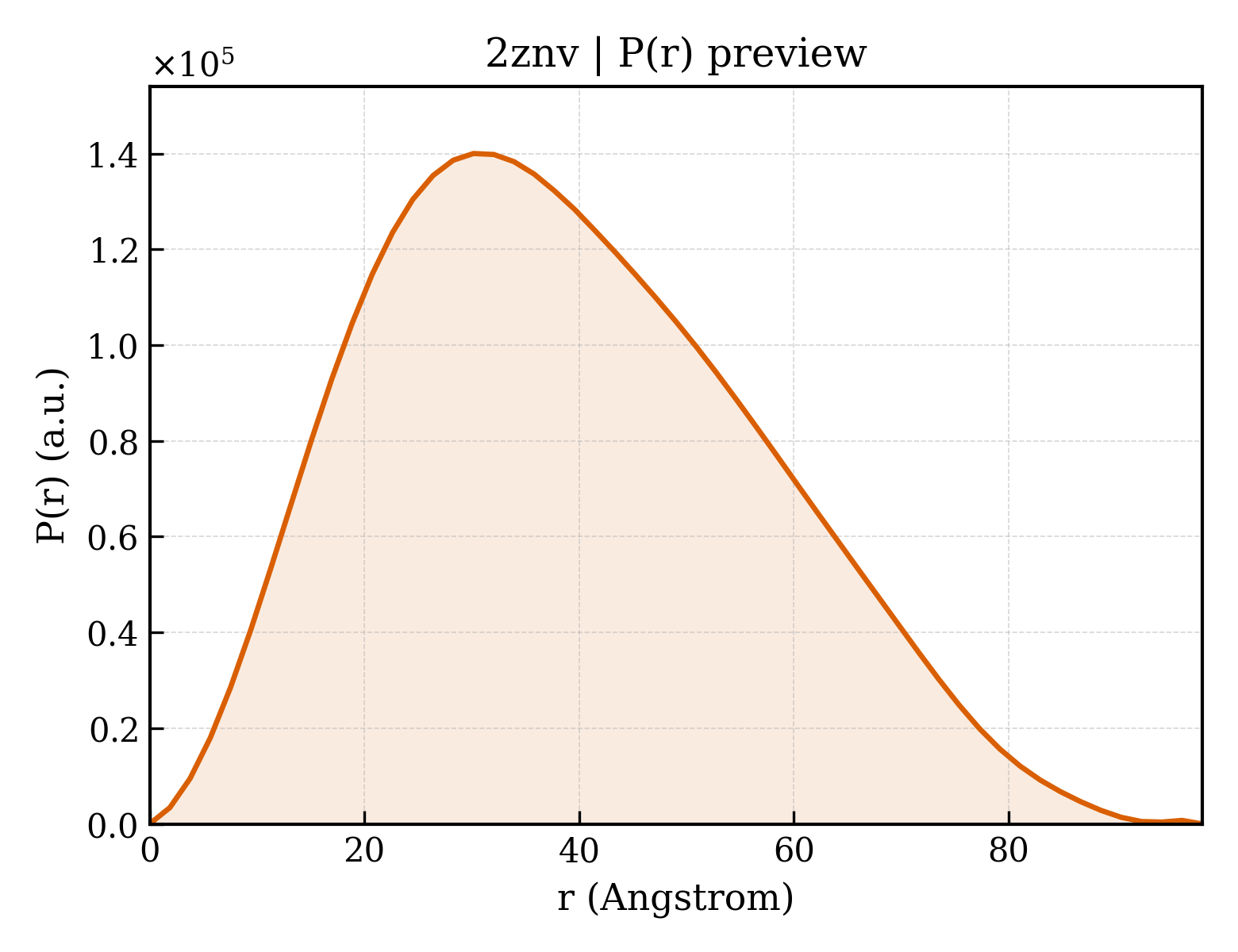

P(r) Distance Distribution P(r) Distribution
