SAXSdb — 3b6e

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon-induced helicase C domain-containing protein 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 277–490	Fragment：DECH domain: Residues 277-490	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；1.2M Sodium citrate, 0.1M Tris-HCl, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.60 Å R-free 0.204

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3B6E	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2RQB Solution structure of MDA5 CTD Deposited 2009-03-17	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 896–1025（130 aa） Fragment：UNP residues 896-1025	Not recorded	ZN ZINC ION × 1	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.25；Pressure ambient NMR sample composition 1mM [U-100% 13C; U-100% 15N] MDA5, 20mM Bis-Tris-2, 250mM sodium chloride-3, 10mM DTT-4, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
3GA3 Crystal structure of the C-terminal domain of human MDA5 Deposited 2009-02-16	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 893–1017（125 aa） Fragment：C-terminal domain, residues 893-1017	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；277 K；0.1 M Tris, 14 to 18% ethanol, pH 8.5, EVAPORATION, temperature 277K	Resolution 1.45 Å R-free 0.204
4GL2 Structural Basis for dsRNA duplex backbone recognition by MDA5 Deposited 2012-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain A 306–1017（712 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.56 Å R-free 0.320
4GL2 Structural Basis for dsRNA duplex backbone recognition by MDA5 Deposited 2012-08-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein–RNA Monomer；Protein × 1 PDB declaration: trimeric	Chain B 306–1017（712 aa）	Not recorded	ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.56 Å R-free 0.320
7DNI MDA5 CARDs-MAVS CARD polyUb complex Deposited 2020-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 16 PDB declaration: hexadecameric	Chain A 1–208（208 aa） Chain B 1–208（208 aa） Chain C 1–208（208 aa） Chain D 1–208（208 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5	Resolution 3.20 Å
7DNJ K63-polyUb MDA5CARDs complex Deposited 2020-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain A 1–208（208 aa） Chain B 1–208（208 aa） Chain C 1–208（208 aa） Chain D 1–208（208 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen OTHER	Resolution 3.30 Å
7JL0 Cryo-EM structure of MDA5-dsRNA in complex with TRIM65 PSpry domain (Monomer) Deposited 2020-07-29	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 287–1025（739 aa） Fragment：UNP residues 287-1025	Not recorded	ZN ZINC ION × 1 ADP ADENOSINE-5'-DIPHOSPHATE × 1 ALF TETRAFLUOROALUMINATE ION × 1 MG MAGNESIUM ION × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
7JL2 Cryo-EM structure of MDA5-dsRNA filament in complex with TRIM65 PSpry domain (Trimer) Deposited 2020-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 6 PDB declaration: octameric	Chain A 287–1025（739 aa） Fragment：UNP residues 287-1025 Chain C 287–1025（739 aa） Fragment：UNP residues 287-1025 Chain E 287–1025（739 aa） Fragment：UNP residues 287-1025	Not recorded	ZN ZINC ION × 3 ADP ADENOSINE-5'-DIPHOSPHATE × 3 ALF TETRAFLUOROALUMINATE ION × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.30 Å
9LOV LGP2:MDA5:dsRNA filament Deposited 2025-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–RNA Heteromer；Protein × 3 PDB declaration: pentameric	Chain B 287–1025（739 aa） Chain C 287–1025（739 aa）	Not recorded	ADP ADENOSINE-5'-DIPHOSPHATE × 3 ZN ZINC ION × 3 MG MAGNESIUM ION × 3	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å

8 other PDB entries and 9 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	IFIH1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–216； UniProt 277–490

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3b6e
Deposition date deposition_date	2007-10-29
Structure title title	Crystal structure of human DECH-box RNA Helicase MDA5 (Melanoma differentiation-associated protein 5), DECH-domain
Keywords keywords	;DECH, DExD/H RNA-binding helicase, innate immunity, IFIH1, Structural Genomics, Structural Genomics Consortium, SGC, Antiviral defense, ATP-binding, Diabetes mellitus, Host-virus interaction, Hydrolase, Immune response, Nucleotide-binding, Nucleus, Phosphorylation ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.06 Å
Radius of gyration Rg (electron density) rg_electron	17.69 Å
Forward intensity I(0) i0	7041880.00
Molecular weight molecular_weight	20522.0 kDa
Excluded volume excluded_volume	26375 Å³
Envelope volume envelope_volume	31898 Å³
Hydration-shell volume shell_volume	15782 Å³
Envelope diameter envelope_diameter	72.9 Å
Shell Rg shell_rg	23.25 Å
Envelope Rg envelope_rg	18.58 Å
Shape Rg shape_rg	17.66 Å
Total Rg total_rg	18.84 Å
Total atoms total_atoms	1442
Residues n_residues	182
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	72.8 Å
Rg (real space) rg_real	19.13 Å
Rg uncertainty (real space) rg_real_error	0.74 Å
I(0) (real space) i0_real	7.0420e+06
I(0) uncertainty (real space) i0_real_error	1.0810e+05
Rg (reciprocal space) rg_reciprocal	19.12 Å
I(0) (reciprocal space) i0_reciprocal	7042000.0000
Solution quality estimate total_estimate	0.7877
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	23.3 Å
Skewness Skewness skewness	0.583
Kurtosis Kurtosis kurtosis	0.499
Angular range angular_range	— – 0.4150 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1259000.0000
Real-space data points n_real_points	73
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.468; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.850; Smooth: 0.983

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Interferon-induced helicase C domain-containing protein 1
Molecular weight formula_weight	24104.9 kDa
EC 编号 ec_number	3.6.1.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1664

SMNSNMGSDSGTMGSDSDEENVAARASPEPELQLRPYQMEVAQPALEGKNIIICLPTGSGKTRVAVYIAKDHLDKKKKASEPGKVIVLVNKVLLVEQLFRKEFQPFLKKWYRVIGLSGDTQLKISFPEVVKSCDIIISTAQILENSLLNLENGEDAGVQLSDFSLIIIDECHHTNKEAVYNNIMRHYLMQKLKNNRLKKENKPVIPLPQILGLTAS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	174

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3b6eA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

▶

8. Citations (1)

▶

Unit-cell length a length_a	72.830 Å
Unit-cell length b length_b	72.830 Å
Unit-cell length c length_c	182.780 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	19.970 Å
R factor r_factor	0.1806
R_work r_work	0.1794
R_free r_free	0.2037

fit	/app/data/saxs_computation/b6/3b6e/3b6e.fit
pddf	/app/data/pr_computation/b6/3b6e/3b6e.pr.out
profile	/app/data/saxs_computation/b6/3b6e/3b6e.dat

Crystal structure of human DECH-box RNA Helicase MDA5 (Melanoma differentiation-associated protein 5), DECH-domain

1. Protein Identity and Related Structures Protein Identity & Related Structures

Interferon-induced helicase C domain-containing protein 1

State in the Current Structure

Other States of the Same Protein in the Database

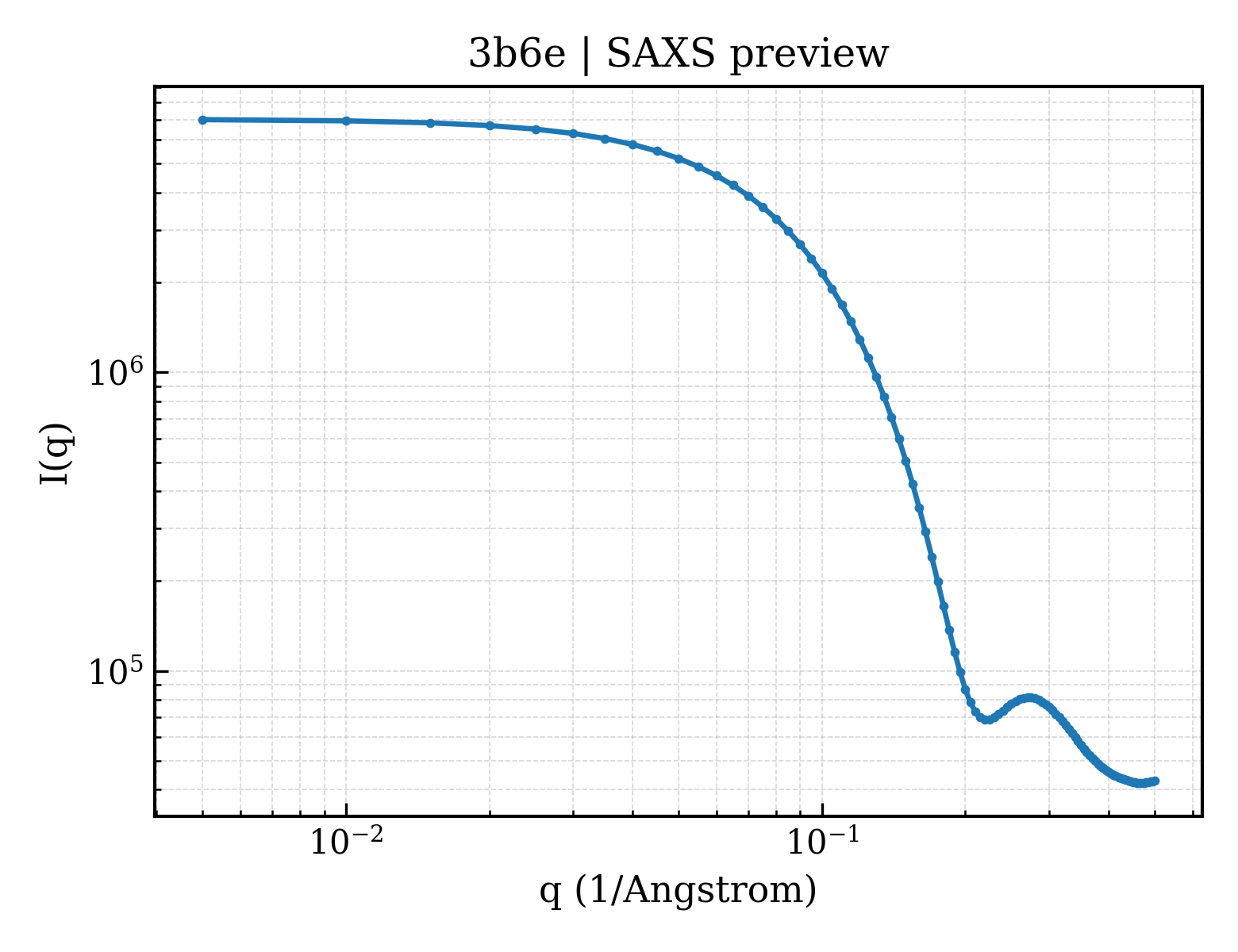

SAXS scattering curve SAXS Profile

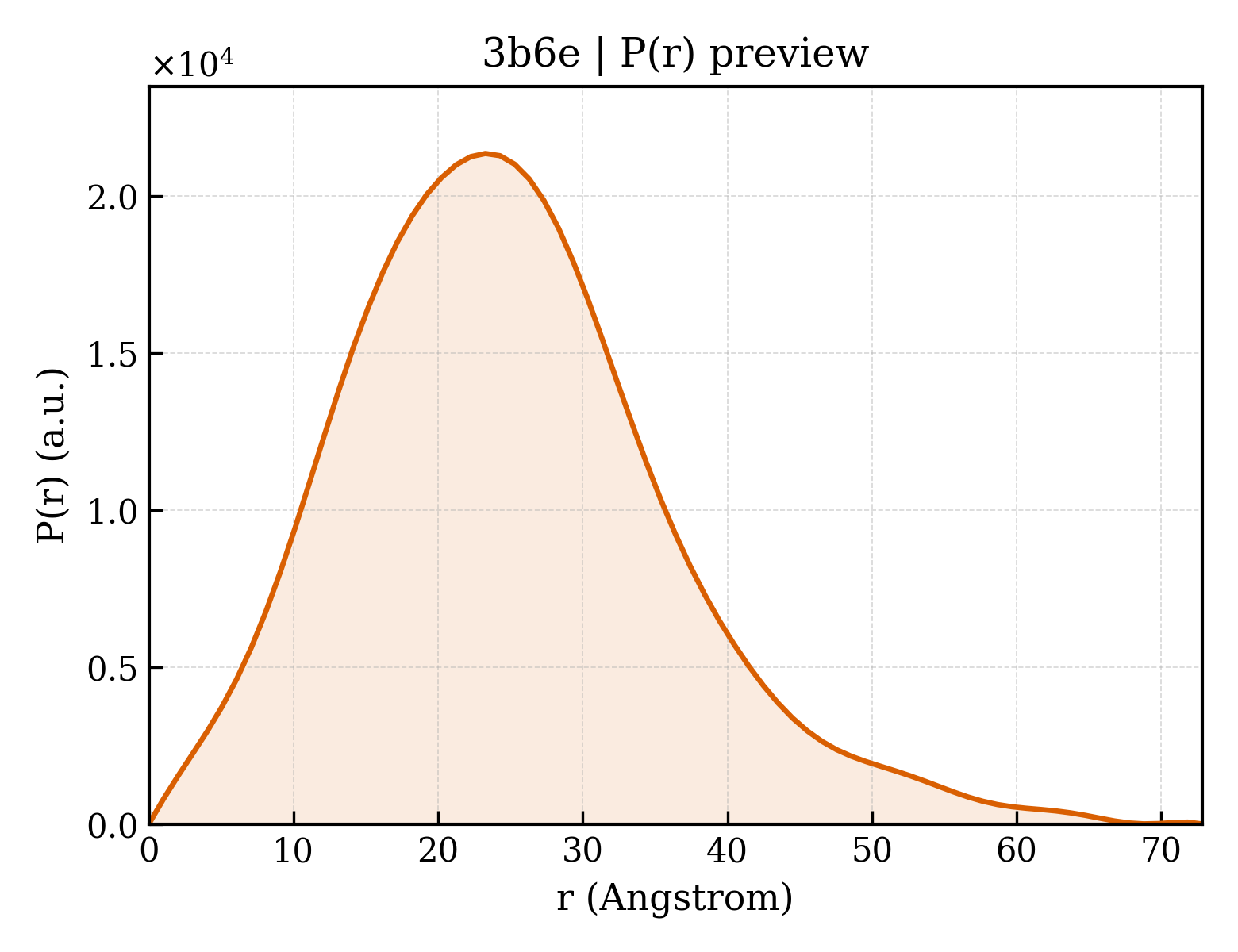

P(r) Distance Distribution P(r) Distribution
