SAXSdb — 3bqo

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Telomeric repeat-binding factor 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	TERF1-interacting nuclear factor 2 × 2 （Q9BSI4） water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	TERF1-interacting nuclear factor 2 × 1 （Q9BSI4） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TERF1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–211； UniProt 58–268

TERF1-interacting nuclear factor 2

Homo sapiens

UniProt Q9BSI4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Telomeric repeat-binding factor 1 × 2 （P54274） water × 4	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Telomeric repeat-binding factor 1 × 1 （P54274） water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	TINF2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–21； UniProt 257–276

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3bqo
Deposition date deposition_date	2007-12-20
Structure title title	Crystal Structure of TRF1 TRFH domain and TIN2 peptide complex
Keywords keywords	;TRF1 TRFH domain Dimerization domain TIN2, ADP-ribosylation, Alternative splicing, Cell cycle, Cell division, Chromosomal protein, DNA-binding, Mitosis, Nucleus, Phosphoprotein, Telomere, DNA BINDING PROTEIN ;; DNA BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3bqo__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3bqo__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

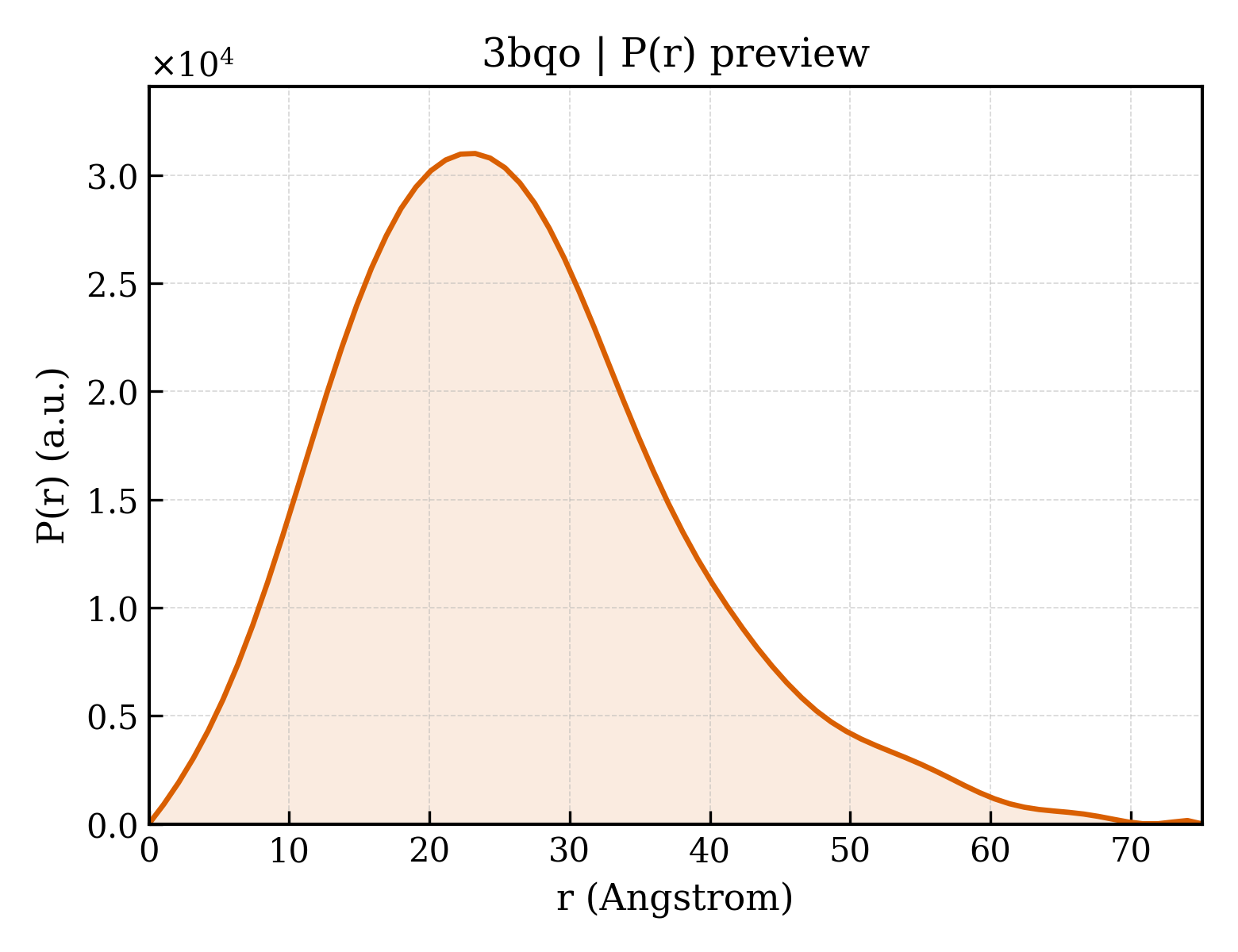

3bqo__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	26.90 Å
Rg (electron density)	26.67 Å
Total Rg	27.22 Å
Atom count	3466
Residues	430
Excluded volume	61887 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3bqo__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3bqo__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Telomeric repeat-binding factor 1
Molecular weight formula_weight	24216.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1874

EEEEEDAGLVAEAEAVAAGWMLDFLCLSLCRAFRDGRSEDFRRTRNSAEAIIHGLSSLTACQLRTIYICQFLTRIAAGKTLDAQFENDERITPLESALMIWGSIEKEHDKLHEEIQNLIKIQAIAVCMENGNFKEAEEVFERIFGDPNSHMPFKSKLLMIISQKDTFHSFFQHFSYNHMMEKIKSYVNYVLSEKSSTFLMKAAAKVVESKR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	TERF1-interacting nuclear factor 2
Molecular weight formula_weight	2472.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SHFNLAPLGRRRVQSQWASTR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	141

▼

6. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3bqoa_
Class class	a — All alpha proteins
Fold Fold fold	a.146 — Telomeric repeat binding factor (TRF) dimerisation domain
Superfamily Superfamily superfamily	a.146.1 — Telomeric repeat binding factor (TRF) dimerisation domain
Family Family family	a.146.1.1 — Telomeric repeat binding factor (TRF) dimerisation domain

CATH v4.4 (1 domains)

Domain ID domain_id	3bqoA00
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat
Homologous superfamily homologous superfamily	210 — Telomere repeat-binding factor, dimerisation domain

▶

Unit-cell length a length_a	117.105 Å
Unit-cell length b length_b	117.105 Å
Unit-cell length c length_c	88.018 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 61 2 2
Space-group number int_tables_number	178
Crystal system crystal_system	—

Resolution resolution	2.000 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	—
R_work r_work	0.2199
R_free r_free	0.2369
