SAXSdb — 3cbk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Cathepsin B

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 74–339	Mutation：C29A, H110A, S115A	Chagasin × 1 （Q966X9）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；0.14M ammonium fluoride, 14% PEG 3350, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.67 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3CBK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CSB Crystal structure of cathepsin b inhibited with CA030 at 2.1 angstroms resolution: A basis for the design of specific epoxysuccinyl inhibitors Deposited 1994-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 80–126（47 aa） Chain B 129–333（205 aa）	Not recorded	EP0 N-[(3R)-4-ethoxy-3-hydroxy-4-oxobutanoyl]-L-isoleucyl-L-proline × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1CSB Crystal structure of cathepsin b inhibited with CA030 at 2.1 angstroms resolution: A basis for the design of specific epoxysuccinyl inhibitors Deposited 1994-12-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain D 80–126（47 aa） Chain E 129–333（205 aa）	Not recorded	EP0 N-[(3R)-4-ethoxy-3-hydroxy-4-oxobutanoyl]-L-isoleucyl-L-proline × 1	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.00 Å
1GMY Cathepsin B complexed with dipeptidyl nitrile inhibitor Deposited 2001-09-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–339（261 aa） Fragment：PROTEASE DOMAIN, RESIDUES 80-333	Not recorded	AEM 2-AMINOETHANIMIDIC ACID × 1 APD 3-METHYLPHENYLALANINE × 1 DFA DIPHENYLACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 1.90 Å R-free 0.199
1GMY Cathepsin B complexed with dipeptidyl nitrile inhibitor Deposited 2001-09-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 79–339（261 aa） Fragment：PROTEASE DOMAIN, RESIDUES 80-333	Not recorded	AEM 2-AMINOETHANIMIDIC ACID × 1 APD 3-METHYLPHENYLALANINE × 1 DFA DIPHENYLACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 1.90 Å R-free 0.199
1GMY Cathepsin B complexed with dipeptidyl nitrile inhibitor Deposited 2001-09-25	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 79–339（261 aa） Fragment：PROTEASE DOMAIN, RESIDUES 80-333	Not recorded	AEM 2-AMINOETHANIMIDIC ACID × 1 APD 3-METHYLPHENYLALANINE × 1 DFA DIPHENYLACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.5；pH 5.50	Resolution 1.90 Å R-free 0.199
1HUC THE REFINED 2.15 ANGSTROMS X-RAY CRYSTAL STRUCTURE OF HUMAN LIVER CATHEPSIN B: THE STRUCTURAL BASIS FOR ITS SPECIFICITY Deposited 1993-04-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 80–126（47 aa） Chain B 129–333（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
1HUC THE REFINED 2.15 ANGSTROMS X-RAY CRYSTAL STRUCTURE OF HUMAN LIVER CATHEPSIN B: THE STRUCTURAL BASIS FOR ITS SPECIFICITY Deposited 1993-04-21	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 80–126（47 aa） Chain D 129–333（205 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 2.10 Å
1PBH CRYSTAL STRUCTURE OF HUMAN RECOMBINANT PROCATHEPSIN B AT 3.2 ANGSTROM RESOLUTION Deposited 1997-02-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–333（316 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.3；PROTEIN WAS CRYSTALLIZED FROM 30% PEG 6000, 0.2 M AMMONIUM SULFATE, 0.1 M HEPES, PH 7.3	Resolution 3.20 Å R-free 0.252
2IPP Crystal Structure of the tetragonal form of human liver cathepsin B Deposited 2006-10-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 80–126（47 aa） Fragment：light chain, residues 80-126 Chain B 129–333（205 aa） Fragment：heavy chain, residues 129-333	Not recorded	PYS 2-PYRIDINETHIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；293 K；pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.15 Å
2PBH CRYSTAL STRUCTURE OF HUMAN PROCATHEPSIN B AT 3.3 ANGSTROM RESOLUTION Deposited 1997-02-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–333（316 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.2；PROTEIN WAS CRYSTALLIZED FROM 2 M AMMONIUM SULFATE, 700 MM TRIS, PH 7.2	Resolution 3.30 Å R-free 0.269
3AI8 Cathepsin B in complex with the nitroxoline Deposited 2010-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 78–333（256 aa）	Not recorded	HNQ 5-nitroquinolin-8-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3；293 K；0.1M citric acid, 21% PEG6000, pH 3.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.11 Å R-free 0.244
3AI8 Cathepsin B in complex with the nitroxoline Deposited 2010-05-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 78–333（256 aa）	Not recorded	HNQ 5-nitroquinolin-8-ol × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 3；293 K；0.1M citric acid, 21% PEG6000, pH 3.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.11 Å R-free 0.244
3CBJ Chagasin-Cathepsin B complex Deposited 2008-02-22	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 74–339（266 aa）	Mutation：C29A, H110A, S115A	PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.2 M ammonium dihydrogen phosphate, 20% PEG 3350, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.210
3CBJ Chagasin-Cathepsin B complex Deposited 2008-02-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 74–339（266 aa）	Mutation：C29A, H110A, S115A	PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.2 M ammonium dihydrogen phosphate, 20% PEG 3350, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.210
3K9M Cathepsin B in complex with stefin A Deposited 2009-10-16	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 80–333（254 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2M ammonium suphate, 24% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.61 Å R-free 0.250
3K9M Cathepsin B in complex with stefin A Deposited 2009-10-16	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 80–333（254 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2M ammonium suphate, 24% PEG3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.61 Å R-free 0.250
3PBH REFINED CRYSTAL STRUCTURE OF HUMAN PROCATHEPSIN B AT 2.5 ANGSTROM RESOLUTION Deposited 1997-02-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 18–333（316 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 5.72；PROTEIN WAS CRYSTALLIZED FROM 2 M AMMONIUM SULFATE, PH 5.72	Resolution 2.50 Å R-free 0.234
5MBL Cathepsin B in complex with DARPin 81 Deposited 2016-11-08	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 78–333（256 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.4；292 K；buffer: 50mM Tris/HCl, 300mM NaCl, 0.05% Tween-20 precipitant: 0.1M MES, 1.8M NH4SO4	Resolution 1.81 Å R-free 0.193
5MBM Cathepsin B in complex with DARPin 8h6 Deposited 2016-11-08	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 78–333（256 aa） Fragment：UNP residues 78-333	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；293 K；0,1 M Na-citrate 15% PEG6000	Resolution 2.76 Å R-free 0.281
5MBM Cathepsin B in complex with DARPin 8h6 Deposited 2016-11-08	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 78–333（256 aa） Fragment：UNP residues 78-333	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4；293 K；0,1 M Na-citrate 15% PEG6000	Resolution 2.76 Å R-free 0.281
6AY2 Structure of CathB with covalently linked Compound 28 Deposited 2017-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–333（255 aa）	Not recorded	C1G N~1~-[(2S)-1-amino-5-(carbamoylamino)pentan-2-yl]-N'~1~-[(1R)-1-(thiophen-3-yl)ethyl]cyclobutane-1,1-dicarboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；295 K；as published	Resolution 1.60 Å R-free 0.176
6AY2 Structure of CathB with covalently linked Compound 28 Deposited 2017-09-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 79–333（255 aa）	Not recorded	C1G N~1~-[(2S)-1-amino-5-(carbamoylamino)pentan-2-yl]-N'~1~-[(1R)-1-(thiophen-3-yl)ethyl]cyclobutane-1,1-dicarboxamide × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；295 K；as published	Resolution 1.60 Å R-free 0.176
8B4T Human cathepsin B in complex with the carbamate inhibitor 7 Deposited 2022-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–333（255 aa）	Mutation：S115A	P9F (2S)-2-[[(2S)-2-[(4-chloranylphenoxy)carbonylamino]-3-cyclohexyl-propanoyl]amino]-3-phenyl-propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1 M Sodium Acetate pH 5.5, 20% PEG 2000 MME	Resolution 1.45 Å R-free 0.208
8B5F Human cathepsin B in complex with the carbamate inhibitor 31 Deposited 2022-09-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–333（255 aa）	Mutation：S115A	P9U (2S)-2-[[(2S)-2-[[3-chloranyl-4-[[3-phenyl-2-(phenylmethyl)propanoyl]amino]phenoxy]carbonylamino]-3-cyclohexyl-propanoyl]amino]-3-phenyl-propanoic acid × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；291 K；0.1 M Sodium Acetate pH 5.5, 30% PEG 5000 MME	Resolution 1.70 Å R-free 0.205
8HE9 Crystal structure of CTSB in complex with K777 Deposited 2022-11-07	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 79–333（255 aa）	Not recorded	0IW Nalpha-[(4-methylpiperazin-1-yl)carbonyl]-N-[(3S)-1-phenyl-5-(phenylsulfonyl)pentan-3-yl]-L-phenylalaninamide × 1 GOL GLYCEROL × 2 DMS DIMETHYL SULFOXIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；17.1 % v/v Polyethylene glycol 600, 50 mM MES pH 5.6, 8.6 % w/v Polyethylene glycol 4,000	Resolution 1.55 Å R-free 0.202
8HEI Crystal structure of CTSB in complex with E64d Deposited 2022-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 77–333（257 aa）	Not recorded	E6D ethyl (3S)-3-hydroxy-4-({(2S)-4-methyl-1-[(3-methylbutyl)amino]-1-oxopentan-2-yl}amino)-4-oxobutanoate × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M Ammonium acetate, 0.1 M Sodium acetate trihydrate pH 4.6, 30% w/v Polyethylene glycol 4,000	Resolution 1.55 Å R-free 0.173
8HEN Crystal structure of CTSB in complex with 212-148 Deposited 2022-11-08	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 77–333（257 aa）	Not recorded	GOL GLYCEROL × 2 DMS DIMETHYL SULFOXIDE × 1 L4F 2-[4-[[(2~{S})-1-oxidanylidene-3-phenyl-1-[[(3~{S})-1-phenyl-5-(phenylsulfonyl)pentan-3-yl]amino]propan-2-yl]carbamoyl]piperazin-1-yl]ethyl 4-carbamimidamidobenzoate × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.2 M Magnesium chloride hexahydrate, 0.1 M NaAc pH 5.2, 28% w/v PEG 3350	Resolution 1.95 Å R-free 0.232
9VA8 Crystal Structure of Human Cathepsin B with a L-peptide substrate Deposited 2025-06-03	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 80–333（254 aa）	Mutation：S115A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；1.6 M Ammonium sulfate, 0.1 M MES monohydrate pH 6.5, 10% v/v 1,4-Dioxane	Resolution 1.50 Å R-free 0.209
9XHR Crystal Structure of Human Cathepsin B with a D-peptide substrate Deposited 2025-11-02	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 79–333（255 aa）	Mutation：S115A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；0.1 M bicine, 20% PEG 10K	Resolution 1.50 Å R-free 0.170

20 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CATB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–266； UniProt 74–339

Chagasin

Trypanosoma cruzi

UniProt Q966X9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–110	Not recorded	Cathepsin B × 1 （P07858）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.2；291 K；0.14M ammonium fluoride, 14% PEG 3350, pH 6.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.67 Å R-free 0.242

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3CBK	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2FO8 Solution structure of the Trypanosoma cruzi cysteine protease inhibitor chagasin Deposited 2006-01-13	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–110（109 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.6；298 K；Ionic strength (raw mmCIF value) 50 mM NaCl；Pressure 1 NMR sample composition 1.19 mM unlabeled chagasin \| 90% H2O / 10% D2O; 20mM phosphate buffer NMR sample composition 1.19 mM unlabeled chagasin \| 100% D2O; 20mM phosphate buffer NMR sample composition 0.52 mM U-15N chagasin \| 90% H2O / 10% D2O; 20mM phosphate buffer NMR sample composition 0.73 mM U-15N,13C chagasin \| 100% D2O; 20mM phosphate buffer NMR sample composition 0.3 mM U-15N,13C chagasin \| 90% H2O / 10% D2O; 20mM phosphate buffer	Resolution not provided
2H7W Crystal structure of Chagasin, the endogenous cysteine-protease inhibitor from Trypanosoma cruzi Deposited 2006-06-05	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–110（110 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；protein: 15 mg/ml in 10 mM tris-Hcl, pH 7.4, 0.1 M sodium chloride. reservoir: 15% PEG 8000, 0.1M ammonium sulphate, 0.1M cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291.0K	Resolution 1.70 Å R-free 0.238
2H7W Crystal structure of Chagasin, the endogenous cysteine-protease inhibitor from Trypanosoma cruzi Deposited 2006-06-05	Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–110（110 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；protein: 15 mg/ml in 10 mM tris-Hcl, pH 7.4, 0.1 M sodium chloride. reservoir: 15% PEG 8000, 0.1M ammonium sulphate, 0.1M cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291.0K	Resolution 1.70 Å R-free 0.238
2NNR Crystal structure of chagasin, cysteine protease inhibitor from Trypanosoma cruzi Deposited 2006-10-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–110（110 aa）	Not recorded	SO4 SULFATE ION × 1 GOL GLYCEROL × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；1.5M Lithium Sulfate, 0.1M Hepes pH 8.5, protein concentration 8 mg/ml, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.70 Å R-free 0.216
2NNR Crystal structure of chagasin, cysteine protease inhibitor from Trypanosoma cruzi Deposited 2006-10-24	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–110（110 aa）	Not recorded	GOL GLYCEROL × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；291 K；1.5M Lithium Sulfate, 0.1M Hepes pH 8.5, protein concentration 8 mg/ml, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.70 Å R-free 0.216
2NQD Crystal structure of cysteine protease inhibitor, chagasin, in complex with human cathepsin L Deposited 2006-10-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–110（109 aa）	Not recorded	NA SODIUM ION × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；291 K；20% iso-Propanol, 20% PEG 4000, 0.1M Na Citrate pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.75 Å R-free 0.188
2OUL The Structure of Chagasin in Complex with a Cysteine Protease Clarifies the Binding Mode and Evolution of a New Inhibitor Family Deposited 2007-02-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–110（110 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；277 K；20% (v/v) PEG-300, 0.1 M Tris pH 8.5, 5% (w/v) PEG8000, and 10-15% (v/v) glycerol, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 277K, pH 7.00	Resolution 2.20 Å R-free 0.232
3CBJ Chagasin-Cathepsin B complex Deposited 2008-02-22	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–110（110 aa）	Not recorded	PO4 PHOSPHATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.2 M ammonium dihydrogen phosphate, 20% PEG 3350, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.210
3CBJ Chagasin-Cathepsin B complex Deposited 2008-02-22	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–110（110 aa）	Not recorded	PO4 PHOSPHATE ION × 8	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；0.2 M ammonium dihydrogen phosphate, 20% PEG 3350, pH 4.6, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.80 Å R-free 0.210
3E1Z Crystal structure of the parasite protesase inhibitor chagasin in complex with papain Deposited 2008-08-05	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–110（110 aa）	Not recorded	ZN ZINC ION × 1 FMT FORMIC ACID × 10 ACY ACETIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；2.0M ammonium formate, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.86 Å R-free 0.208

7 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CHAG_TRYCR
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–110； UniProt 1–110

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3cbk
Deposition date deposition_date	2008-02-22
Structure title title	chagasin-cathepsin B
Keywords keywords	;chagasin, cathepsin B, occluding loop, Chagas disease, Glycoprotein, Hydrolase, Lysosome, Protease, Thiol protease, Zymogen, Cytoplasmic vesicle, Protease inhibitor, Thiol protease inhibitor, HYDROLASE-HYDROLASE INHIBITOR COMPLEX ;; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.46 Å
Radius of gyration Rg (electron density) rg_electron	21.94 Å
Forward intensity I(0) i0	29122900.00
Molecular weight molecular_weight	40065.0 kDa
Excluded volume excluded_volume	49468 Å³
Envelope volume envelope_volume	58099 Å³
Hydration-shell volume shell_volume	22760 Å³
Envelope diameter envelope_diameter	81.3 Å
Shell Rg shell_rg	28.20 Å
Envelope Rg envelope_rg	22.36 Å
Shape Rg shape_rg	21.89 Å
Total Rg total_rg	22.85 Å
Total atoms total_atoms	2820
Residues n_residues	367
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

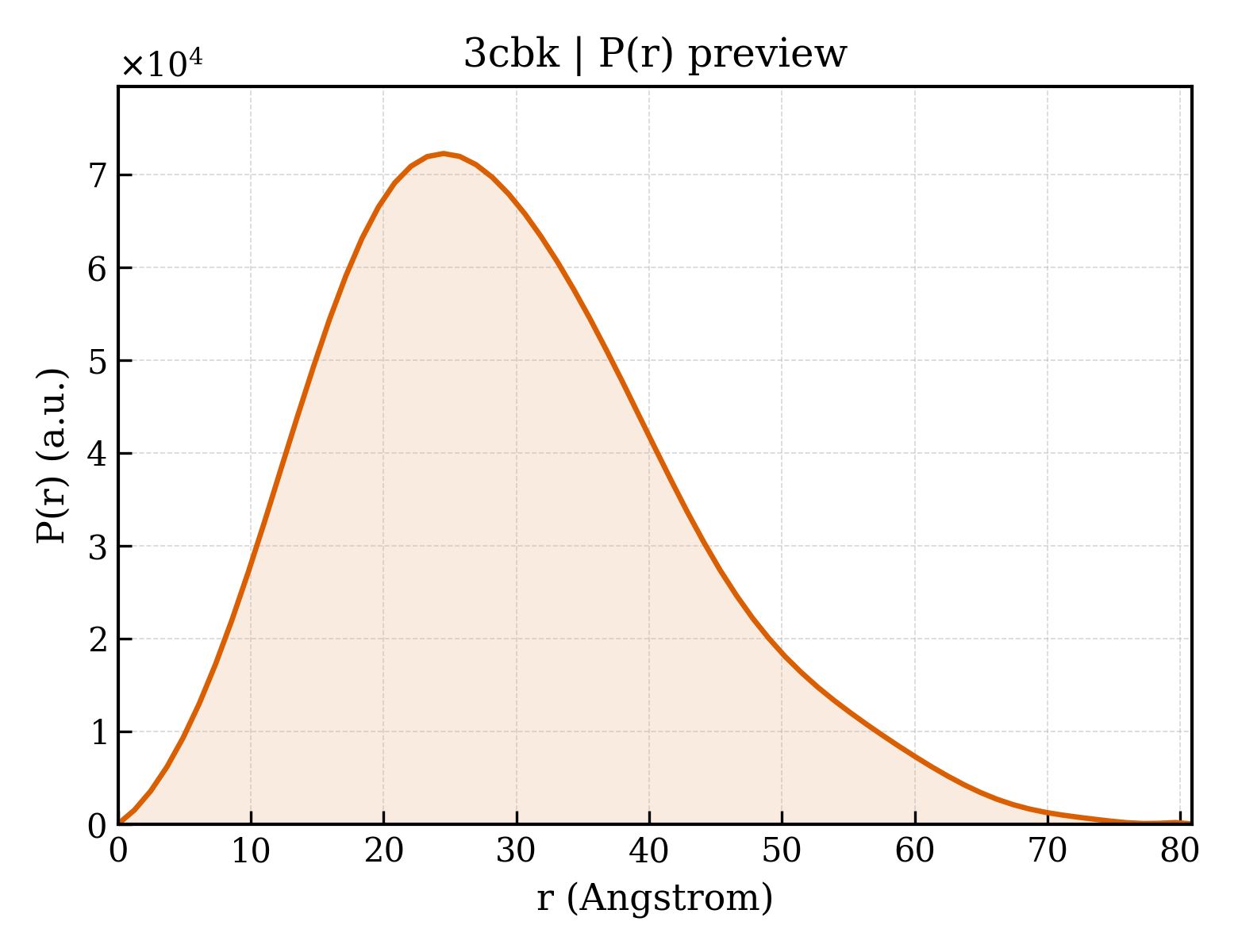

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	80.9 Å
Rg (real space) rg_real	22.52 Å
Rg uncertainty (real space) rg_real_error	0.72 Å
I(0) (real space) i0_real	2.9120e+07
I(0) uncertainty (real space) i0_real_error	4.5140e+05
Rg (reciprocal space) rg_reciprocal	22.50 Å
I(0) (reciprocal space) i0_reciprocal	29120000.0000
Solution quality estimate total_estimate	0.8372
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.5 Å
Skewness Skewness skewness	0.507
Kurtosis Kurtosis kurtosis	-0.026
Angular range angular_range	— – 0.3550 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	9742000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.655; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.930; Smooth: 0.985

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Cathepsin B
Molecular weight formula_weight	29311.6 kDa
EC 编号 ec_number	3.4.22.1
Mutation mutation	C29A, H110A, S115A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2890

FTEDLKLPASFDAREQWPQCPTIKEIRDQGSCGSAWAFGAVEAISDRICIHTNAHVSVEVSAEDLLTCCGSMCGDGCNGGYPAEAWNFWTRKGLVSGGLYESHVGCRPYSIPPCEAHVNGARPPCTGEGDTPKCSKICEPGYSPTYKQDKHYGYNSYSVSNSEKDIMAEIYKNGPVEGAFSVYSDFLLYKSGVYQHVTGEMMGGHAIRILGWGVENGTPYWLVANSWNTDWGDNGFFKILRGQDHCGIESEVVAGIPRTDQYWEKI

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Pichia pastoris

Entity 2 Entity 2 polymer

Description description	Chagasin
Molecular weight formula_weight	12054.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MSHKVTKAHNGATLTVAVGELVEIQLPSNPTTGFAWYFEGGTKESPNESMFTVENKYFPPDSKLLGAGGTEHFHVTVKAAGTHAVNLTYMRPWTGPSHDSERFTVYLKAN

来源 Source

来源生物 organism	Trypanosoma cruzi
NCBI Class编号 ncbi_taxonomy_id	5693
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	63

▼

7. Fold Classification (SCOP + CATH) 3 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3cbkb_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.26 — ICP-like
Family Family family	b.1.26.1 — ICP-like

CATH v4.4 (2 domains)

Domain ID domain_id	3cbkA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	70 — Cathepsin B; Chain A
Homologous superfamily homologous superfamily	10 — Cysteine proteinases

Domain ID domain_id	3cbkB00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	2020 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	85.066 Å
Unit-cell length b length_b	85.066 Å
Unit-cell length c length_c	115.691 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 42 21 2
Space-group number int_tables_number	94
Crystal system crystal_system	—

Resolution resolution	2.670 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.1954
R_work r_work	0.1931
R_free r_free	0.2423

fit	/app/data/saxs_computation/cb/3cbk/3cbk.fit
pddf	/app/data/pr_computation/cb/3cbk/3cbk.pr.out
profile	/app/data/saxs_computation/cb/3cbk/3cbk.dat
