SAXSdb — 3cfw

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-selectin

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Monomer Protein × 1 其他Polymer 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 39–194	Fragment：EGF domain (UNP residues 39-194)	;alpha-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ; × 1 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.17 M Sodium acetate trihydrate, 0.085 M Tris-HCl, pH 8.5, 25.5 % w/v PEG 4000,15% v/v Glycerol, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.20 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3CFW	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2LGF Solution structure of Ca2+/calmodulin complexed with a peptide representing the calmodulin-binding domain of L-selectin Deposited 2011-07-25	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 349–363（15 aa） Fragment：sequence database residues 349-363	Not recorded	CA CALCIUM ION × 4	SOLUTION NMR NMR measurement conditions pH 6.8；303 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR measurement conditions pH 6.8；303 K；Ionic strength (raw mmCIF value) 0.3；Pressure ambient NMR sample composition 0.5-0.8 mM [U-13C; U-15N] protein_1, 0.5-0.8 mM protein_2, 4 mM CALCIUM ION, 0.5 mM DSS, 100 mM potassium chloride, 0.03 % sodium azide, 20 mM Bis-Tris, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5-0.8 mM [U-2H; U-15N] protein_1, 0.5-0.8 mM protein_2, 4 mM CALCIUM ION, 0.5 mM DSS, 100 mM potassium chloride, 0.03 % sodium azide, 20 mM Bis-Tris, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5-0.8 mM [1H/13C-methyl Met; U-2H; U-15N] protein_1, 0.5-0.8 mM protein_2, 4 mM CALCIUM ION, 0.5 mM DSS, 100 mM potassium chloride, 0.03 % sodium azide, 20 mM Bis-Tris, 100% D2O \| 100% D2O NMR sample composition 0.5-0.8 mM [U-13C; U-15N] protein_1, 0.5-0.8 mM protein_2, 4 mM CALCIUM ION, 0.5 mM DSS, 300 mM potassium chloride, 0.03 % sodium azide, 20 mM Bis-Tris, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.5-0.8 mM [U-13C; U-15N] protein_1, 0.5-0.8 mM protein_2, 4 mM CALCIUM ION, 0.5 mM DSS, 300 mM potassium chloride, 0.03 % sodium azide, 20 mM Bis-Tris, 16 w/v Pf1 phage, 90% H2O/10% D2O \| 90% H2O/10% D2O	Resolution not provided
5VC1 Crystal structure of L-selectin lectin/EGF domains Deposited 2017-03-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric	Chain A 39–195（157 aa） Fragment：UNP residues 39-195	Mutation：N22Q, N139Q	PG4 TETRAETHYLENE GLYCOL × 1 PEG DI(HYDROXYETHYL)ETHER × 1 GOL GLYCEROL × 1 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；100 mM sodium cacodylate pH 7.5, 200 mM calcium acetate, 40% (v/v) PEG 600	Resolution 1.94 Å R-free 0.231

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LYAM1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–156； UniProt 39–194

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3cfw
Deposition date deposition_date	2008-03-04
Structure title title	L-selectin lectin and EGF domains
Keywords keywords	L-selectin, lectin, EGF, Cell adhesion, EGF-like domain, Glycoprotein, Membrane, Sushi, Transmembrane; CELL ADHESION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	18.22 Å
Radius of gyration Rg (electron density) rg_electron	17.34 Å
Forward intensity I(0) i0	7570900.00
Molecular weight molecular_weight	19374.0 kDa
Excluded volume excluded_volume	23879 Å³
Envelope volume envelope_volume	28351 Å³
Hydration-shell volume shell_volume	14461 Å³
Envelope diameter envelope_diameter	67.0 Å
Shell Rg shell_rg	22.73 Å
Envelope Rg envelope_rg	18.06 Å
Shape Rg shape_rg	17.30 Å
Total Rg total_rg	18.35 Å
Total atoms total_atoms	1358
Residues n_residues	156
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	70.3 Å
Rg (real space) rg_real	18.24 Å
Rg uncertainty (real space) rg_real_error	0.70 Å
I(0) (real space) i0_real	7.5710e+06
I(0) uncertainty (real space) i0_real_error	1.0520e+05
Rg (reciprocal space) rg_reciprocal	18.23 Å
I(0) (reciprocal space) i0_reciprocal	7571000.0000
Solution quality estimate total_estimate	0.8066
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.9 Å
Skewness Skewness skewness	0.399
Kurtosis Kurtosis kurtosis	-0.166
Angular range angular_range	— – 0.4350 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1125000.0000
Real-space data points n_real_points	75
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.548; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.838; Smooth: 1.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	L-selectin
Molecular weight formula_weight	19209.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1496

WTYHYSEKPMNWQRARRFCRDNYTDLVAIQNKAEIEYLEKTLPFSRSYYWIGIRKIGGIWTWVGTNKSLTEEAENWGDGEPNNKKNKEDCVEIYIKRNKDAGKWNDDACHKLKAALCYTASCQPWSCSGHGECVEIINNYTCNCDVGYYGPQCQFVQVDPRLID

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Cricetulus griseus

Entity 2 Entity 2 branched

Description description	;alpha-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
Molecular weight formula_weight	910.8 kDa
Source method src_method	man
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	138

▼

7. Fold Classification (SCOP + CATH) 4 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3cfwa1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.169 — C-type lectin-like
Superfamily Superfamily superfamily	d.169.1 — C-type lectin-like
Family Family family	d.169.1.1 — C-type lectin domain

Domain ID domain_id	d3cfwa2
Class class	g — Small proteins
Fold Fold fold	g.3 — Knottins (small inhibitors, toxins, lectins)
Superfamily Superfamily superfamily	g.3.11 — EGF/Laminin
Family Family family	g.3.11.0 — automated matches

CATH v4.4 (2 domains)

Domain ID domain_id	3cfwA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	100 — Mannose-Binding Protein A; Chain A
Homologous superfamily homologous superfamily	10 — Mannose-Binding Protein A, subunit A

Domain ID domain_id	3cfwA02
Class class	2 — Mainly Beta
Architecture architecture	10 — Ribbon
Topology topology	25 — Laminin
Homologous superfamily homologous superfamily	10 — Laminin

▶

8. Citations (1)

▶

Unit-cell length a length_a	118.477 Å
Unit-cell length b length_b	118.477 Å
Unit-cell length c length_c	118.477 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 2 3
Space-group number int_tables_number	197
Crystal system crystal_system	—

Resolution resolution	2.200 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	—
R_work r_work	0.2006
R_free r_free	0.2485

fit	/app/data/saxs_computation/cf/3cfw/3cfw.fit
pddf	/app/data/pr_computation/cf/3cfw/3cfw.pr.out
profile	/app/data/saxs_computation/cf/3cfw/3cfw.dat

L-selectin lectin and EGF domains

1. Protein Identity and Related Structures Protein Identity & Related Structures

L-selectin

State in the Current Structure

Other States of the Same Protein in the Database

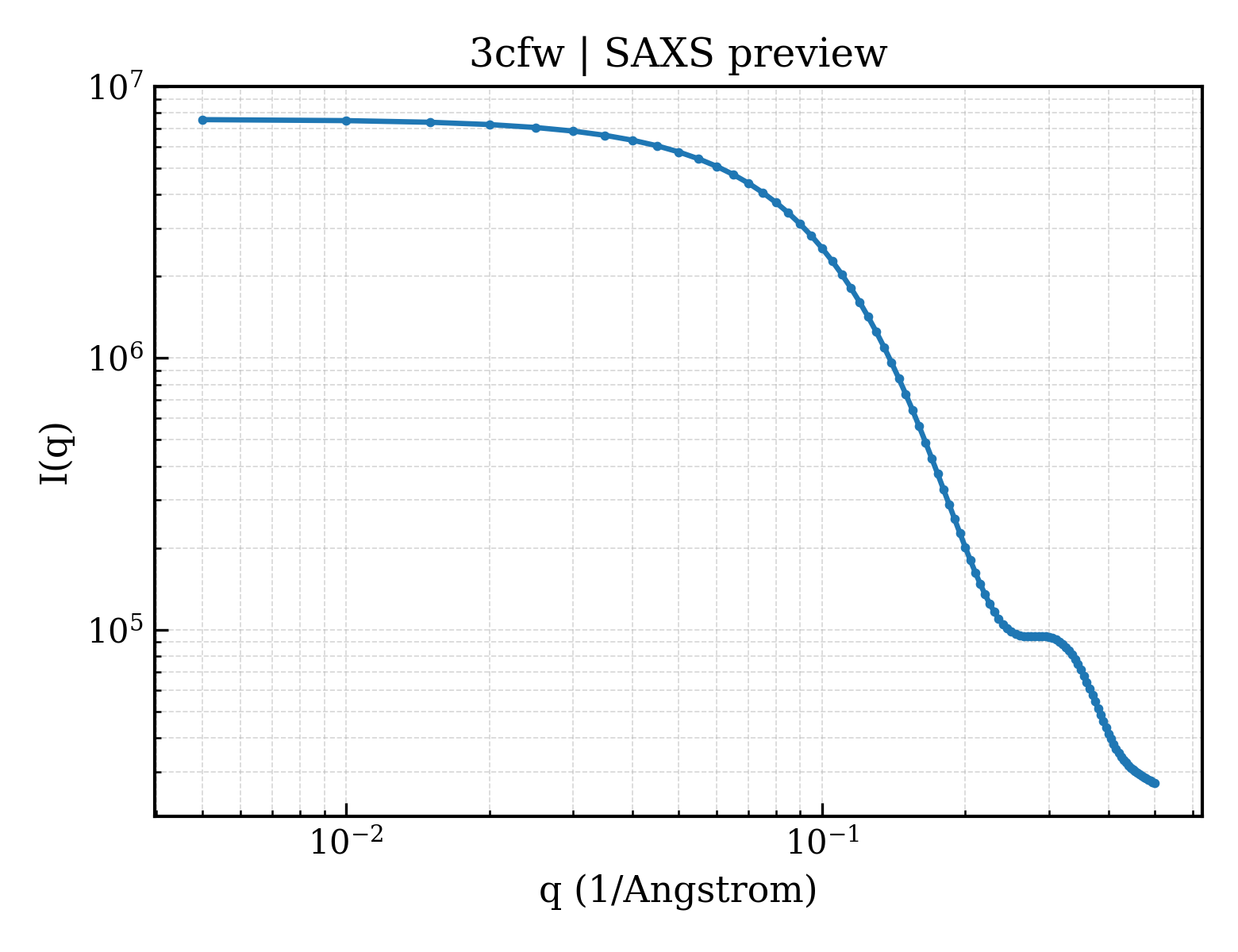

SAXS scattering curve SAXS Profile

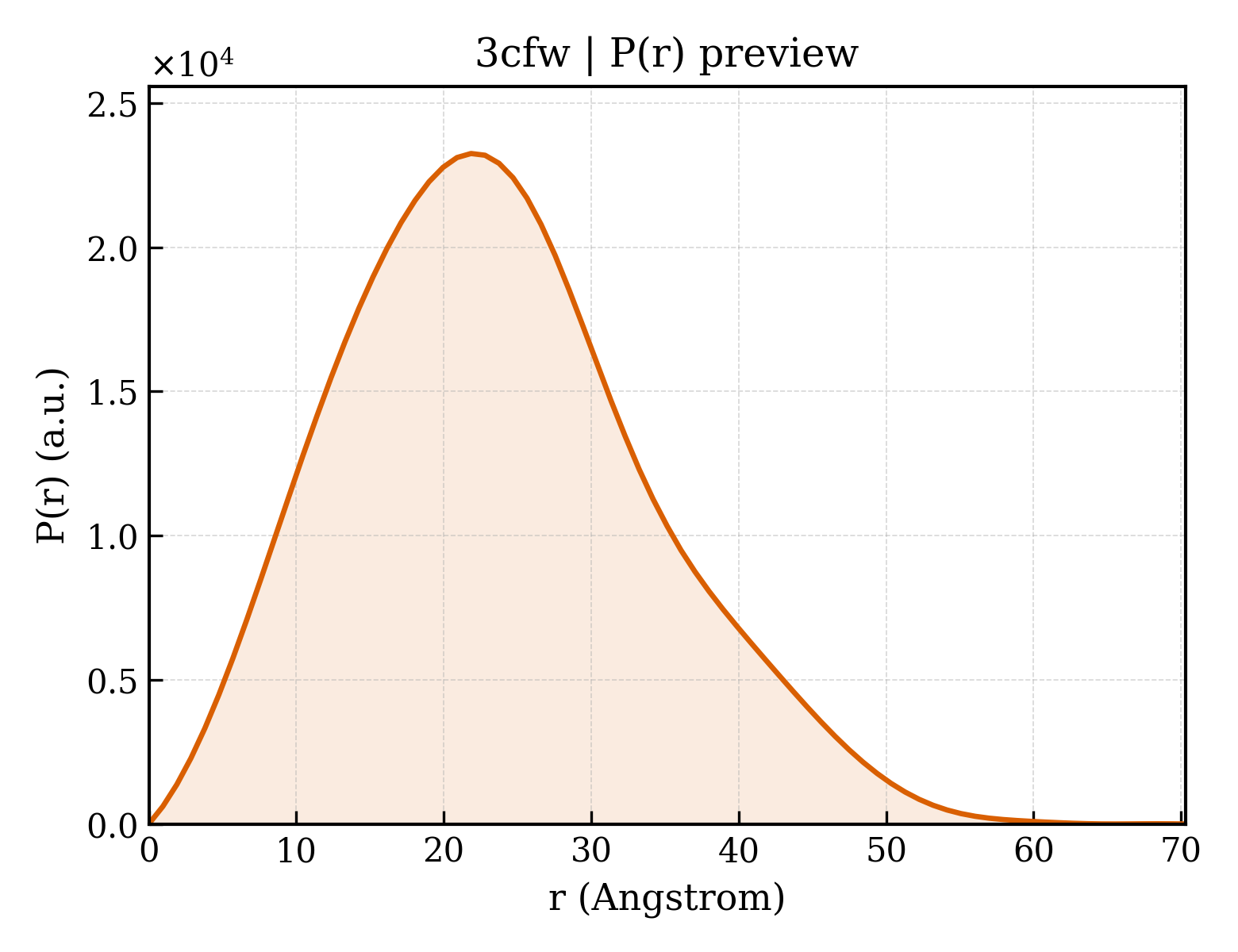

P(r) Distance Distribution P(r) Distribution
