1. Protein Identity and Related Structures Protein Identity & Related Structures

Absent in melanoma 1 protein

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1022–1117	Fragment：non-lens vertebrate beta-gamma-crystallin domain	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；1.3-1.5M NaCitrate;0.1M HepesNa 7.5; 3%isopropanol (or)0.4M NaCl, vapor diffusion, hanging drop, temperature 298K	Resolution 1.88 Å R-free 0.232

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3CW3	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2DAD Solution structure of the fifth crystall domain of the non-lens protein, Absent in melanoma 1 Deposited 2005-12-13	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1416–1495（80 aa） Fragment：The fifth crystall domain	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 120mM；Pressure ambient NMR sample composition 1.1mM protein U-15N,13C; 20mM d-Tris-HCl(pH7.0); 100mM NaCl; 1mM d-DTT; 0.02% NaN3; 90% H2O, 10% D2O \| 90% H2O/10% D2O	Resolution not provided
6VRO The structure of the PP2A B56 subunit AIM1 complex Deposited 2020-02-08	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 716–741（26 aa） Fragment：UNP residues 716-741	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1 M Tris, pH 8.0, 9% PEG8000, 0.9 M lithium chloride	Resolution 2.45 Å R-free 0.235

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	AIM1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–96； UniProt 1022–1117

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3cw3
Deposition date deposition_date	2008-04-21
Structure title title	Crystal structure of AIM1g1
Keywords keywords	beta gamma-crystallin; greek key; tryptophan corner;, Lectin, ONCOPROTEIN; ONCOPROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	14.76 Å
Radius of gyration Rg (electron density) rg_electron	13.27 Å
Forward intensity I(0) i0	2291580.00
Molecular weight molecular_weight	10587.0 kDa
Excluded volume excluded_volume	13341 Å³
Envelope volume envelope_volume	15464 Å³
Hydration-shell volume shell_volume	10263 Å³
Envelope diameter envelope_diameter	45.4 Å
Shell Rg shell_rg	18.52 Å
Envelope Rg envelope_rg	13.67 Å
Shape Rg shape_rg	13.25 Å
Total Rg total_rg	14.56 Å
Total atoms total_atoms	746
Residues n_residues	93
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	47.6 Å
Rg (real space) rg_real	14.68 Å
Rg uncertainty (real space) rg_real_error	0.28 Å
I(0) (real space) i0_real	2.2920e+06
I(0) uncertainty (real space) i0_real_error	2.4940e+04
Rg (reciprocal space) rg_reciprocal	14.69 Å
I(0) (reciprocal space) i0_reciprocal	2292000.0000
Solution quality estimate total_estimate	0.8938
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	19.3 Å
Skewness Skewness skewness	0.143
Kurtosis Kurtosis kurtosis	-0.367
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	279000.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.877; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.985

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Absent in melanoma 1 protein
Molecular weight formula_weight	10817.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	856

GKVVIYSEPDVSEKCIEVFSDIQDCSSWSLSPVILIKVVRGCWILYEQPNFEGHSIPLEEGELELSGLWGIEDILERHEEAESDKPVVIGSIRHVV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	Human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	110

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3cw3A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	20 — Gamma-B Crystallin; domain 1
Homologous superfamily homologous superfamily	10 — Crystallins

▶

8. Citations (1)

▶

Unit-cell length a length_a	54.964 Å
Unit-cell length b length_b	54.964 Å
Unit-cell length c length_c	59.574 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 65
Space-group number int_tables_number	170
Crystal system crystal_system	—

Resolution resolution	1.880 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	—
R_work r_work	0.1810
R_free r_free	0.2320

fit	/app/data/saxs_computation/cw/3cw3/3cw3.fit
pddf	/app/data/pr_computation/cw/3cw3/3cw3.pr.out
profile	/app/data/saxs_computation/cw/3cw3/3cw3.dat

Crystal structure of AIM1g1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Absent in melanoma 1 protein

State in the Current Structure

Other States of the Same Protein in the Database

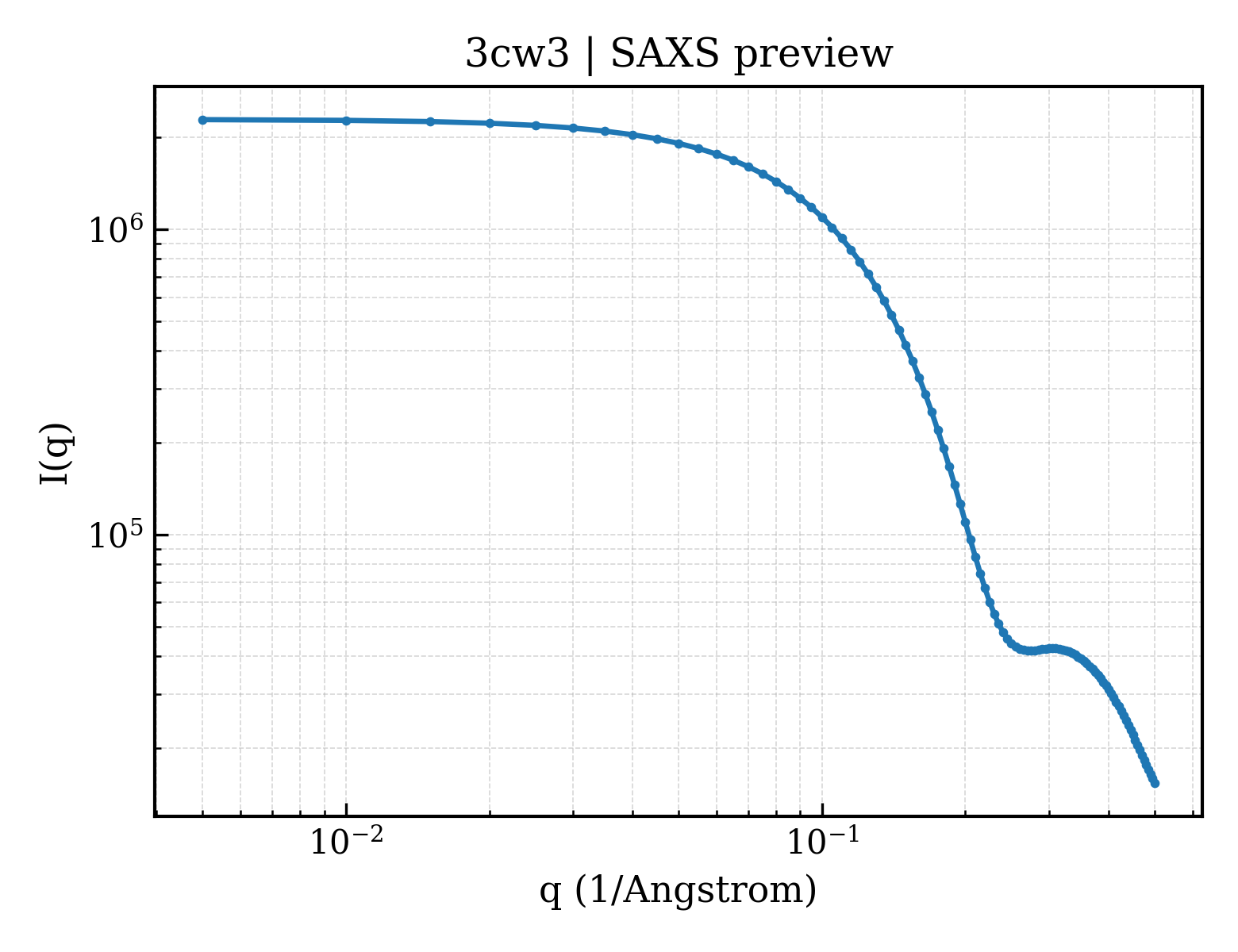

SAXS scattering curve SAXS Profile
