3e1k

Crystal structure of Kluyveromyces lactis Gal80p in complex with the acidic activation domain of Gal4p

Method: X-RAY DIFFRACTION D_max: 226.4 Å Quality: REASONABLE

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Galactose/lactose metabolism regulatory protein GAL80

Kluyveromyces lactis

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 1–457 Chain C； UniProt 1–457	Not recorded	Lactose regulatory protein LAC9 × 2 （P08657）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM MES, 20-25% (w/v) pentaerythritol propoxylate 5/4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.289
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain E； UniProt 1–457 Chain G； UniProt 1–457	Not recorded	Lactose regulatory protein LAC9 × 2 （P08657）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM MES, 20-25% (w/v) pentaerythritol propoxylate 5/4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.289
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain I； UniProt 1–457 Chain K； UniProt 1–457	Not recorded	Lactose regulatory protein LAC9 × 2 （P08657）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM MES, 20-25% (w/v) pentaerythritol propoxylate 5/4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.289
4	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain M； UniProt 1–457 Chain O； UniProt 1–457	Not recorded	Lactose regulatory protein LAC9 × 2 （P08657）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM MES, 20-25% (w/v) pentaerythritol propoxylate 5/4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.289

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3E1K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2NVW Crystal sctucture of transcriptional regulator Gal80p from kluyveromymes lactis Deposited 2006-11-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 2–457（456 aa） Chain B 2–457（456 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.25；277 K；20% 2,4-MPD, 0.2M NaCl, 0.1M MES, pH 6.25, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.245
2NVW Crystal sctucture of transcriptional regulator Gal80p from kluyveromymes lactis Deposited 2006-11-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–457（456 aa） Chain B 2–457（456 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.25；277 K；20% 2,4-MPD, 0.2M NaCl, 0.1M MES, pH 6.25, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.245
2NVW Crystal sctucture of transcriptional regulator Gal80p from kluyveromymes lactis Deposited 2006-11-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 2–457（456 aa） Chain B 2–457（456 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.25；277 K；20% 2,4-MPD, 0.2M NaCl, 0.1M MES, pH 6.25, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.10 Å R-free 0.245

1 other PDB entries and 3 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GAL80_KLULA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–457； UniProt 1–457 Author chain C； PDBConstruct 1–457； UniProt 1–457 Author chain E； PDBConstruct 1–457； UniProt 1–457 Author chain G； PDBConstruct 1–457； UniProt 1–457 Author chain I； PDBConstruct 1–457； UniProt 1–457 Author chain K； PDBConstruct 1–457； UniProt 1–457 Author chain M； PDBConstruct 1–457； UniProt 1–457 Author chain O； PDBConstruct 1–457； UniProt 1–457

Lactose regulatory protein LAC9

OrganismNot specified

UniProt P08657

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain B； UniProt 844–865 Chain D； UniProt 844–865	Fragment：UNP residues 844-865	Galactose/lactose metabolism regulatory protein GAL80 × 2 （Q06433）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM MES, 20-25% (w/v) pentaerythritol propoxylate 5/4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.289
2	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain F； UniProt 844–865 Chain H； UniProt 844–865	Fragment：UNP residues 844-865	Galactose/lactose metabolism regulatory protein GAL80 × 2 （Q06433）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM MES, 20-25% (w/v) pentaerythritol propoxylate 5/4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.289
3	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain J； UniProt 844–865 Chain L； UniProt 844–865	Fragment：UNP residues 844-865	Galactose/lactose metabolism regulatory protein GAL80 × 2 （Q06433）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM MES, 20-25% (w/v) pentaerythritol propoxylate 5/4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.289
4	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain N； UniProt 844–865 Chain P； UniProt 844–865	Fragment：UNP residues 844-865	Galactose/lactose metabolism regulatory protein GAL80 × 2 （Q06433）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；100mM MES, 20-25% (w/v) pentaerythritol propoxylate 5/4, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 3.00 Å R-free 0.289

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3E1K	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1CLD DNA-binding protein Deposited 1995-06-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 85–144（60 aa）	Mutation：INITIATOR MET	CD CADMIUM ION × 2	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LAC9_KLULA
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–22； UniProt 844–865 Author chain D； PDBConstruct 1–22； UniProt 844–865 Author chain F； PDBConstruct 1–22； UniProt 844–865 Author chain H； PDBConstruct 1–22； UniProt 844–865 Author chain J； PDBConstruct 1–22； UniProt 844–865 Author chain L； PDBConstruct 1–22； UniProt 844–865 Author chain N； PDBConstruct 1–22； UniProt 844–865 Author chain P； PDBConstruct 1–22； UniProt 844–865

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

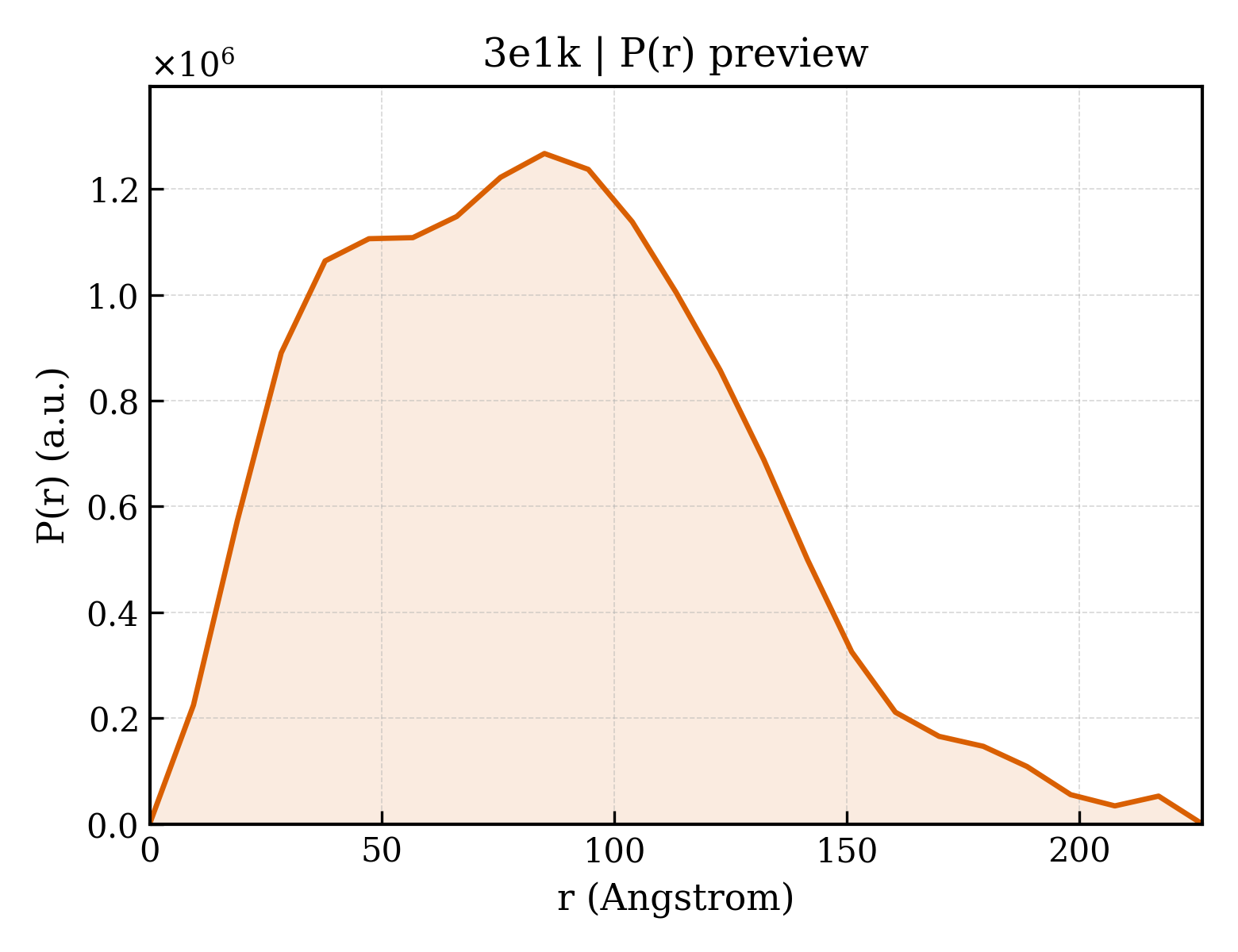

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3e1k
Deposition date deposition_date	2008-08-04
Structure title title	Crystal structure of Kluyveromyces lactis Gal80p in complex with the acidic activation domain of Gal4p
Keywords keywords	;transctiption, repressor, trans-activation, Carbohydrate metabolism, DNA-binding, Galactose metabolism, Transcription, Transcription regulation, Activator, Metal-binding, Nucleus, Zinc ;; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	65.70 Å
Radius of gyration Rg (electron density) rg_electron	66.42 Å
Forward intensity I(0) i0	1793850000.00
Molecular weight molecular_weight	369100.0 kDa
Excluded volume excluded_volume	466920 Å³
Envelope volume envelope_volume	644430 Å³
Hydration-shell volume shell_volume	86545 Å³
Envelope diameter envelope_diameter	248.8 Å
Shell Rg shell_rg	58.44 Å
Envelope Rg envelope_rg	66.08 Å
Shape Rg shape_rg	66.42 Å
Total Rg total_rg	66.24 Å
Total atoms total_atoms	26057
Residues n_residues	3258
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	226.4 Å
Rg (real space) rg_real	66.29 Å
Rg uncertainty (real space) rg_real_error	2.40 Å
I(0) (real space) i0_real	1.7940e+09
I(0) uncertainty (real space) i0_real_error	3.9650e+07
Rg (reciprocal space) rg_reciprocal	65.14 Å
I(0) (reciprocal space) i0_reciprocal	1790000000.0000
Solution quality estimate total_estimate	0.6051
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	84.9 Å
Skewness Skewness skewness	0.438
Kurtosis Kurtosis kurtosis	-0.175
Angular range angular_range	— – 0.1200 Å⁻¹
Current regularization parameter α current_alpha	0.0007
Highest regularization parameter α highest_alpha	54330000.0000
Real-space data points n_real_points	25
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.800; Stabil: 1.000; Sysdev: 0.013; Positv: 1.000; Valcen: 0.921; Smooth: 0.503

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Galactose/lactose metabolism regulatory protein GAL80
Molecular weight formula_weight	52174.9 kDa
Source method src_method	man
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E,G,I,K,M,O
Atom count atom_count	26057

MNNNKRSKLSTVPSSRPIRVGFVGLTSGKSWVAKTHFLAIQQLSSQFQIVALYNPTLKSSLQTIEQLQLKHATGFDSLESFAQYKDIDMIVVSVKVPEHYEVVKNILEHSSQNLNLRYLYVEWALAASVQQAEELYSISQQRANLQTIICLQGRKSPYIVRAKELISEGCIGDINSIEISGNGGWYGYERPMRSPEYLYDIESGVNLISNSFGHTIDVLQYITGSYFQKINAMISNNIPTQFLLDENGKRTKETISKTCPDHLLFQGILENGKVPVSCSFKGGTPVKKLTKNLVIDIHGTKGDLKIEGDAGFVEISNLVLYFYGIKNGNGSSNGTDNNGAAAIKDKEKVTKSPSPSTGTSEEEQTMEVFHLRNYNSVVGNILRIYESIADYHFLGKPESKSSRGPDDLFASTKFDKQGFRFEGFPTFKDAIILHRLIDAVFRSDKEEKTLDVSKIMILEHHHHHH

来源 Source

来源生物 organism	Kluyveromyces lactis
通用名 common_name	yeast
NCBI Class编号 ncbi_taxonomy_id	28985
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Lactose regulatory protein LAC9
Molecular weight formula_weight	2687.8 kDa
Source method src_method	syn
Copy count entity_count	8

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F,H,J,L,N,P

TQQLFNTTTMDDVYNYIFDNDE

▼

7. Fold Classification (SCOP + CATH) 33 domains

SCOP 2.08 (17 domains)

Domain ID domain_id	d3e1ka1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d3e1ka2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d3e1ka3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3e1kc1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d3e1kc2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d3e1ke1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d3e1ke2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d3e1kg1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d3e1kg2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d3e1ki1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d3e1ki2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d3e1kk1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d3e1kk2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d3e1km1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d3e1km2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

Domain ID domain_id	d3e1ko1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.2 — NAD(P)-binding Rossmann-fold domains
Superfamily Superfamily superfamily	c.2.1 — NAD(P)-binding Rossmann-fold domains
Family Family family	c.2.1.3 — Glyceraldehyde-3-phosphate dehydrogenase-like, N-terminal domain

Domain ID domain_id	d3e1ko2
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.81 — FwdE/GAPDH domain-like
Superfamily Superfamily superfamily	d.81.1 — Glyceraldehyde-3-phosphate dehydrogenase-like, C-terminal domain
Family Family family	d.81.1.5 — Glucose 6-phosphate dehydrogenase-like

CATH v4.4 (16 domains)

Domain ID domain_id	3e1kA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	3e1kA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	3e1kC01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	3e1kC02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	3e1kE01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	3e1kE02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	3e1kG01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	3e1kG02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	3e1kI01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	3e1kI02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	3e1kK01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	3e1kK02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	3e1kM01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	3e1kM02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

Domain ID domain_id	3e1kO01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	720 — NAD(P)-binding Rossmann-like Domain

Domain ID domain_id	3e1kO02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	360 — Dihydrodipicolinate Reductase; domain 2
Homologous superfamily homologous superfamily	10 — Dihydrodipicolinate Reductase; domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	101.100 Å
Unit-cell length b length_b	160.500 Å
Unit-cell length c length_c	132.600 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	94.70 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	3.000 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.2310
R_work r_work	0.2280
R_free r_free	0.2890

fit	/app/data/saxs_computation/e1/3e1k/3e1k.fit
pddf	/app/data/pr_computation/e1/3e1k/3e1k.pr.out
profile	/app/data/saxs_computation/e1/3e1k/3e1k.dat

Crystal structure of Kluyveromyces lactis Gal80p in complex with the acidic activation domain of Gal4p

1. Protein Identity and Related Structures Protein Identity & Related Structures

Galactose/lactose metabolism regulatory protein GAL80

State in the Current Structure

Other States of the Same Protein in the Database

Lactose regulatory protein LAC9

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

7. Fold Classification (SCOP + CATH) 33 domains

SCOP 2.08 (17 domains)

CATH v4.4 (16 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
