SAXSdb — 3exy

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ferredoxin

Allochromatium vinosum

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 2–83	Mutation：V13G	SF4 IRON/SULFUR CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions：pH 8；277 K；3.5M AMMONIUM SULPHATE, 0.3 M SODIUM CHLORIDE, 0.1 M TRIS , pH 8.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.48 Å R-free 0.218

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3EXY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1BLU STRUCTURE OF THE 2[4FE-4S] FERREDOXIN FROM CHROMATIUM VINOSUM Deposited 1996-04-16	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–82（82 aa）	Not recorded	SF4 IRON/SULFUR CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；CRYSTALS WERE GROWN AT ROOM TEMPERATURE IN 0.1M TRIS-MALEATE BUFFER, PH 6.5 CONTAINING 2.9 M AMMONIUM SULPHATE AND 0.1 M NACL	Resolution 2.10 Å
3EUN Crystal structure of the 2[4Fe-4S] C57A ferredoxin variant from allochromatium vinosum Deposited 2008-10-10	Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–83（82 aa）	Mutation：C57A	SF4 IRON/SULFUR CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；277 K；3.5M AMMONIUM SULPHATE 0.1 M SODIUM CHLORIDE, 0.1 M TRIS, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.05 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	FER_CHRVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–82； UniProt 2–83

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3exy
Deposition date deposition_date	2008-10-17
Structure title title	Crystal structure of the 2[4Fe-4S] ferredoxin V13G variant from allochromatium vinosum
Keywords keywords	ELECTRON TRANSPORT, FERREDOXIN, [4FE-4S] CLUSTERS, 4Fe-4S, Iron, Iron-sulfur, Metal-binding, Transport; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	12.91 Å
Radius of gyration Rg (electron density) rg_electron	12.00 Å
Forward intensity I(0) i0	2642670.00
Molecular weight molecular_weight	9629.0 kDa
Excluded volume excluded_volume	11180 Å³
Envelope volume envelope_volume	12340 Å³
Hydration-shell volume shell_volume	8996 Å³
Envelope diameter envelope_diameter	44.5 Å
Shell Rg shell_rg	17.49 Å
Envelope Rg envelope_rg	12.51 Å
Shape Rg shape_rg	12.20 Å
Total Rg total_rg	12.69 Å
Total atoms total_atoms	633
Residues n_residues	81
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	46.1 Å
Rg (real space) rg_real	12.92 Å
Rg uncertainty (real space) rg_real_error	0.44 Å
I(0) (real space) i0_real	2.6430e+06
I(0) uncertainty (real space) i0_real_error	2.9210e+04
Rg (reciprocal space) rg_reciprocal	12.91 Å
I(0) (reciprocal space) i0_reciprocal	2643000.0000
Solution quality estimate total_estimate	0.8486
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	14.6 Å
Skewness Skewness skewness	0.360
Kurtosis Kurtosis kurtosis	-0.219
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	317500.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.720; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.904; Smooth: 0.966

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Ferredoxin
Molecular weight formula_weight	9021.9 kDa
Mutation mutation	V13G
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	812

ALMITDECINCDGCEPECPNGAISQGDETYVIEPSLCTECVGHYETSQCVEVCPVDCIIKDPSHEETEDELRAKYERITGEG

来源 Source

来源生物 organism	Allochromatium vinosum
通用名 common_name	Allochromatium vinosum
NCBI Class编号 ncbi_taxonomy_id	1049
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	169

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3exya_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.58 — Ferredoxin-like
Superfamily Superfamily superfamily	d.58.1 — 4Fe-4S ferredoxins
Family Family family	d.58.1.1 — Short-chain ferredoxins

CATH v4.4 (1 domains)

Domain ID domain_id	3exyA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	20 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	51.425 Å
Unit-cell length b length_b	51.425 Å
Unit-cell length c length_c	76.425 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.480 Å
Low-resolution limit resolution_low	30.000 Å
R factor r_factor	0.1620
R_work r_work	0.1620
R_free r_free	0.2177

fit	/app/data/saxs_computation/ex/3exy/3exy.fit
pddf	/app/data/pr_computation/ex/3exy/3exy.pr.out
profile	/app/data/saxs_computation/ex/3exy/3exy.dat

Crystal structure of the 2[4Fe-4S] ferredoxin V13G variant from allochromatium vinosum

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ferredoxin

State in the Current Structure

Other States of the Same Protein in the Database

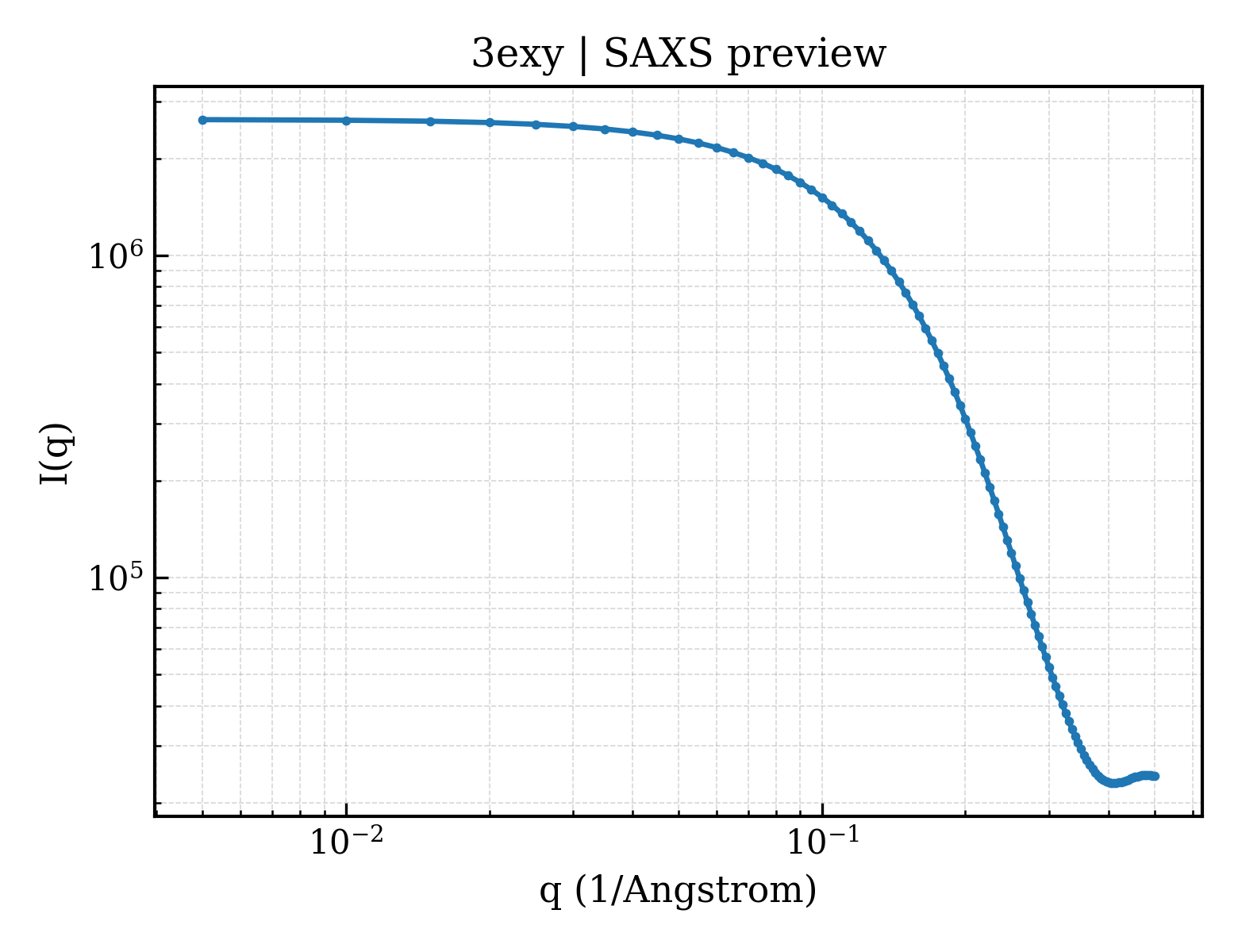

SAXS scattering curve SAXS Profile
