SAXSdb — 3f5r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

FACT complex subunit POB3

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–168	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 2 FMT FORMIC ACID × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M Bis-tris, 1.5M (NH4)2SO4., pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.70 Å R-free 0.192

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3F5R	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2GCJ Crystal Structure of the Pob3 middle domain Deposited 2006-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 220–478（259 aa） Fragment：Pob3 Middle domain	Mutation：Q308K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；21% PEG 3350, 20% Glycerol, 200mM NaCl, 50mM Ammonium Sulphate, 100mM Tris-HCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.55 Å R-free 0.303
2GCJ Crystal Structure of the Pob3 middle domain Deposited 2006-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 220–478（259 aa） Fragment：Pob3 Middle domain	Mutation：Q308K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；21% PEG 3350, 20% Glycerol, 200mM NaCl, 50mM Ammonium Sulphate, 100mM Tris-HCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.55 Å R-free 0.303
2GCJ Crystal Structure of the Pob3 middle domain Deposited 2006-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 220–478（259 aa） Fragment：Pob3 Middle domain	Mutation：Q308K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；21% PEG 3350, 20% Glycerol, 200mM NaCl, 50mM Ammonium Sulphate, 100mM Tris-HCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.55 Å R-free 0.303
2GCJ Crystal Structure of the Pob3 middle domain Deposited 2006-03-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain D 220–478（259 aa） Fragment：Pob3 Middle domain	Mutation：Q308K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；21% PEG 3350, 20% Glycerol, 200mM NaCl, 50mM Ammonium Sulphate, 100mM Tris-HCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.55 Å R-free 0.303
2GCL Structure of the Pob3 Middle domain Deposited 2006-03-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 220–478（259 aa） Fragment：Middle domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	CL CHLORIDE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；21% PEG 3350, 20% glycerol, 200mM NaCl, 50mM Ammonium sulphate, 100mM Tris-HCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.21 Å R-free 0.264
2GCL Structure of the Pob3 Middle domain Deposited 2006-03-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 220–478（259 aa） Fragment：Middle domain	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；298 K；21% PEG 3350, 20% glycerol, 200mM NaCl, 50mM Ammonium sulphate, 100mM Tris-HCl, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.21 Å R-free 0.264
4PQ0 Crystal structure of POB3 middle domain at 1.65A Deposited 2014-02-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 232–473（242 aa） Fragment：UNP RESIDUES 232-473	Not recorded	MLA MALONIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；287 K；0.1M Sodium malonate pH 7.0, 0.1M Ammonium acetate, 20% w/v PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 287K	Resolution 1.65 Å R-free 0.248
8XGC Structure of yeast replisome associated with FACT and histone hexamer, Composite map Deposited 2023-12-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 27 PDB declaration: 29-meric	Chain M 1–552（552 aa）	Not recorded	ZN ZINC ION × 7 ADP ADENOSINE-5'-DIPHOSPHATE × 5	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.70 Å

4 other PDB entries and 8 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	POB3_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 22–189； UniProt 1–168

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3f5r
Deposition date deposition_date	2008-11-04
Structure title title	The crystal structure of a subunit of the heterodimeric FACT complex (Spt16p-Pob3p).
Keywords keywords	;APC7736, FACT complex (Spt16p-Pob3p), Saccharomyces cerevisiae, structural genomics, PSI-2, protein structure initiative, midwest center for structural genomics, MCSG, Chromosomal protein, DNA damage, DNA repair, DNA replication, Nucleus, Phosphoprotein, Transcription, Transcription regulation, transcription regulator ;; transcription regulator
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.74 Å
Radius of gyration Rg (electron density) rg_electron	14.34 Å
Forward intensity I(0) i0	3853200.00
Molecular weight molecular_weight	13154.0 kDa
Excluded volume excluded_volume	16161 Å³
Envelope volume envelope_volume	19215 Å³
Hydration-shell volume shell_volume	11712 Å³
Envelope diameter envelope_diameter	58.0 Å
Shell Rg shell_rg	19.87 Å
Envelope Rg envelope_rg	14.97 Å
Shape Rg shape_rg	14.28 Å
Total Rg total_rg	15.61 Å
Total atoms total_atoms	924
Residues n_residues	111
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

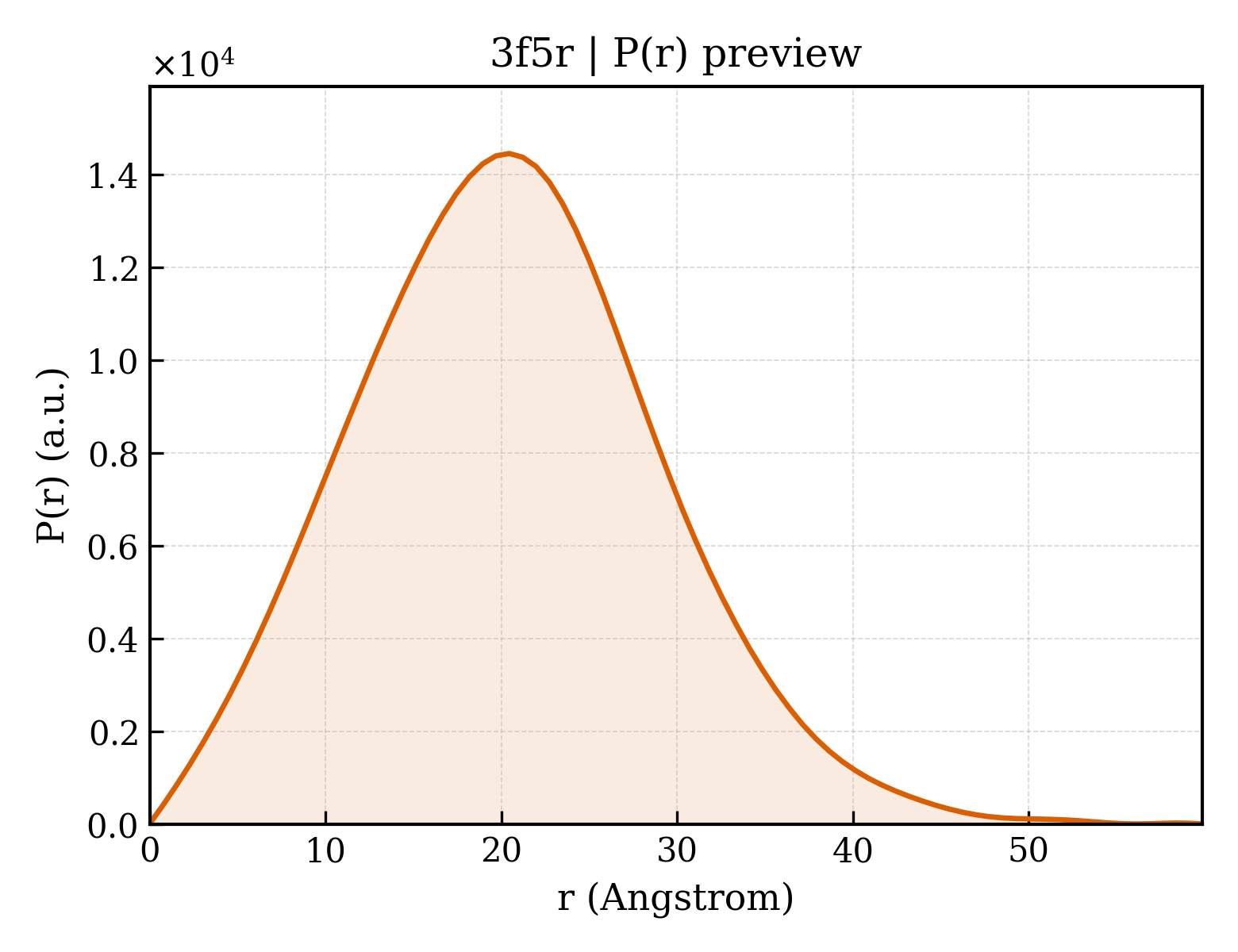

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	59.9 Å
Rg (real space) rg_real	15.69 Å
Rg uncertainty (real space) rg_real_error	0.54 Å
I(0) (real space) i0_real	3.8530e+06
I(0) uncertainty (real space) i0_real_error	4.4240e+04
Rg (reciprocal space) rg_reciprocal	15.70 Å
I(0) (reciprocal space) i0_reciprocal	3853000.0000
Solution quality estimate total_estimate	0.8029
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.5 Å
Skewness Skewness skewness	0.295
Kurtosis Kurtosis kurtosis	0.026
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	558300.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.507; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.915; Smooth: 0.998

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	FACT complex subunit POB3
Molecular weight formula_weight	21984.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1068

MGSSHHHHHHSSGRENLYFQGMSTDFDRIYLNQSKFSGRFRIADSGLGWKISTSGGSAANQARKPFLLPATELSTVQWSRGCRGYDLKINTKNQGVIQLDGFSQDDYNLIKNDFHRRFNIQVEQREHSLRGWNWGKTDLARNEMVFALNGKPTFEIPYARINNTNLTSKNEVGIEFNIQDEEYQPAGDEGS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast,lager beer yeast,yeast ;
NCBI Class编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	FORMIC ACID
Molecular weight formula_weight	46.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	124

▼

7. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3f5rA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

▶

8. Citations (1)

▶

Unit-cell length a length_a	68.268 Å
Unit-cell length b length_b	68.268 Å
Unit-cell length c length_c	67.763 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 32 2 1
Space-group number int_tables_number	154
Crystal system crystal_system	—

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	22.300 Å
R factor r_factor	0.1814
R_work r_work	0.1808
R_free r_free	0.1921

fit	/app/data/saxs_computation/f5/3f5r/3f5r.fit
pddf	/app/data/pr_computation/f5/3f5r/3f5r.pr.out
profile	/app/data/saxs_computation/f5/3f5r/3f5r.dat

The crystal structure of a subunit of the heterodimeric FACT complex (Spt16p-Pob3p).
