SAXSdb — 3fpr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Evasin-1

Rhipicephalus sanguineus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 21–114	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；3% (w/v) PEG 4000, 200mM Ammonium Sulfate, 10% (v/v) MPD, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.63 Å R-free 0.265
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain D； UniProt 21–114	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 7.5；291 K；3% (w/v) PEG 4000, 200mM Ammonium Sulfate, 10% (v/v) MPD, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 1.63 Å R-free 0.265

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3FPR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3FPT The Crystal Structure of the Complex between Evasin-1 and CCL3 Deposited 2009-01-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 21–114（94 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；23% (w/v) PEG 4000, 300mM Ammonium sulfate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.70 Å R-free 0.305
3FPT The Crystal Structure of the Complex between Evasin-1 and CCL3 Deposited 2009-01-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 21–114（94 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；23% (w/v) PEG 4000, 300mM Ammonium sulfate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.70 Å R-free 0.305
3FPT The Crystal Structure of the Complex between Evasin-1 and CCL3 Deposited 2009-01-06	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 21–114（94 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；291 K；23% (w/v) PEG 4000, 300mM Ammonium sulfate, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 2.70 Å R-free 0.305
3FPU The crystallographic structure of the Complex between Evasin-1 and CCL3 Deposited 2009-01-06	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 21–114（94 aa）	Not recorded	NI NICKEL (II) ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.1；291 K；24% (w/v) PEG 3350, 200mM Ammonium sulfate, 100mM HEPES, pH 8.1, VAPOR DIFFUSION, SITTING DROP, temperature 291K	Resolution 1.76 Å R-free 0.285

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	EVA1_RHISA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–94； UniProt 21–114 Author chain D； PDBConstruct 1–94； UniProt 21–114

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3fpr
Deposition date deposition_date	2009-01-06
Structure title title	Crystal Structure of Evasin-1
Keywords keywords	novel fold, Glycoprotein, Secreted, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	17.38 Å
Radius of gyration Rg (electron density) rg_electron	16.53 Å
Forward intensity I(0) i0	7028270.00
Molecular weight molecular_weight	17720.0 kDa
Excluded volume excluded_volume	21484 Å³
Envelope volume envelope_volume	25675 Å³
Hydration-shell volume shell_volume	13630 Å³
Envelope diameter envelope_diameter	60.4 Å
Shell Rg shell_rg	21.62 Å
Envelope Rg envelope_rg	16.83 Å
Shape Rg shape_rg	16.52 Å
Total Rg total_rg	17.42 Å
Total atoms total_atoms	1230
Residues n_residues	163
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

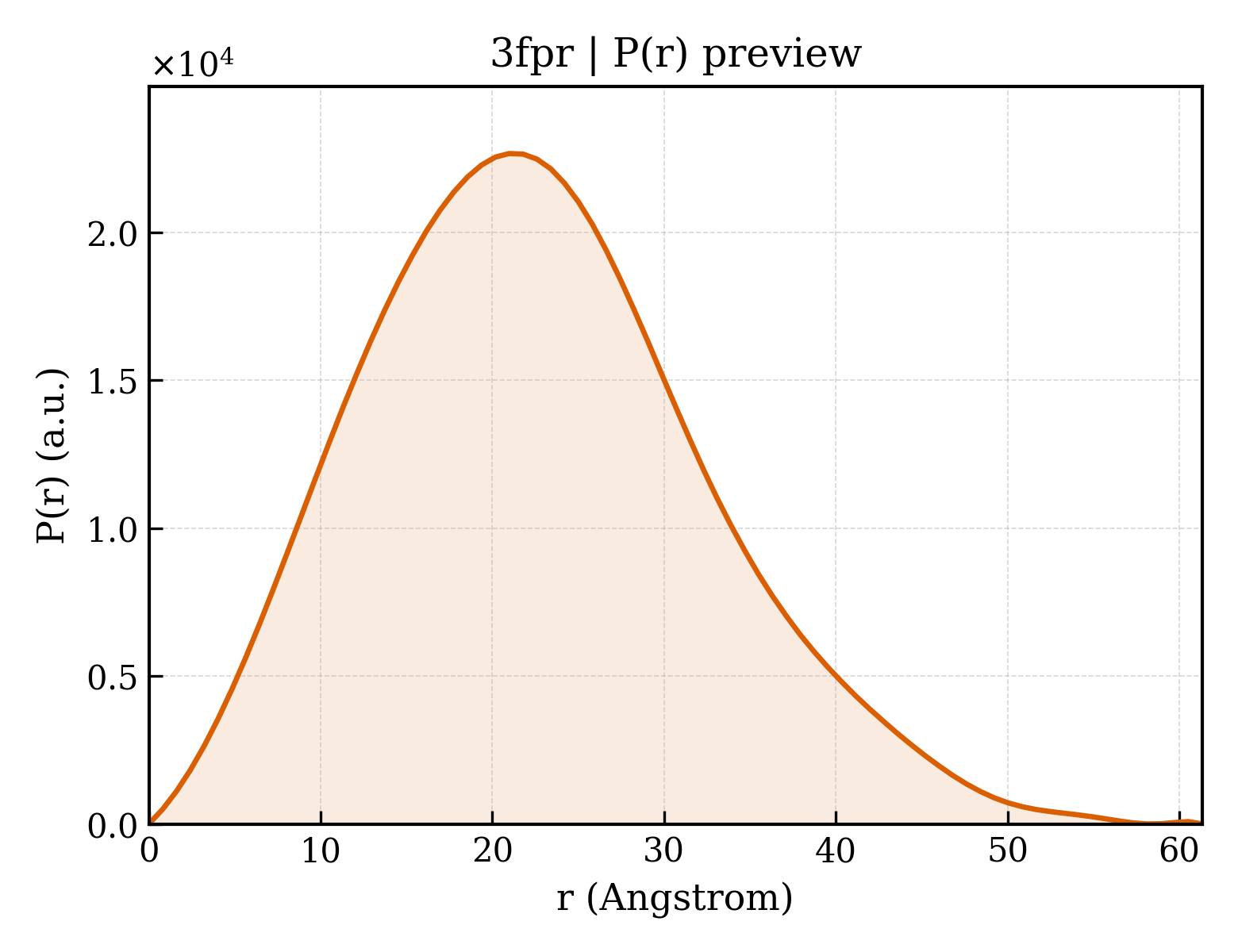

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	61.3 Å
Rg (real space) rg_real	17.38 Å
Rg uncertainty (real space) rg_real_error	0.43 Å
I(0) (real space) i0_real	7.0280e+06
I(0) uncertainty (real space) i0_real_error	8.7620e+04
Rg (reciprocal space) rg_reciprocal	17.38 Å
I(0) (reciprocal space) i0_reciprocal	7028000.0000
Solution quality estimate total_estimate	0.8552
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	21.0 Å
Skewness Skewness skewness	0.380
Kurtosis Kurtosis kurtosis	-0.118
Angular range angular_range	— – 0.4600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1058000.0000
Real-space data points n_real_points	77
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.736; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.945; Smooth: 0.959

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	3fprA00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	130 — Archaeosine Trna-guanine Transglycosylase; Chain: A, domain 4
Homologous superfamily homologous superfamily	100 —

Domain ID domain_id	3fprD00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	130 — Archaeosine Trna-guanine Transglycosylase; Chain: A, domain 4
Homologous superfamily homologous superfamily	100 —

▶

8. Citations (3)

▶

Unit-cell length a length_a	39.604 Å
Unit-cell length b length_b	46.165 Å
Unit-cell length c length_c	99.591 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.630 Å
Low-resolution limit resolution_low	25.730 Å
R factor r_factor	0.2274
R_work r_work	0.2256
R_free r_free	0.2651

Description description	Evasin-1
Molecular weight formula_weight	11306.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	1418

Crystal Structure of Evasin-1

1. Protein Identity and Related Structures Protein Identity & Related Structures

Evasin-1

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 water

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

8. Citations (3)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Rhipicephalus sanguineus
通用名 common_name	Brown dog tick
NCBI Class编号 ncbi_taxonomy_id	34632
宿主生物 host_organism	Spodoptera frugiperda

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	188
