1. Protein Identity and Related Structures Protein Identity & Related Structures

Dipeptidyl-peptidase 3

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–726	Not recorded	ZN ZINC ION × 1 MG MAGNESIUM ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；297 K；20% PEG3350. 0.2M MgForm, VAPOR DIFFUSION, SITTING DROP, temperature 297K	Resolution 1.90 Å R-free 0.219

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3FVY	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3T6B Structure of human DPPIII in complex with the opioid peptide Tynorphin, at 2.4 Angstroms Deposited 2011-07-28	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–726（726 aa）	Mutation：E451A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.2；293 K；0.056M Sodium phosphate monobasic monohydrate, 1.344M Potassium phosphate dibasic, pH 8.2, vapor diffusion, temperature 293K	Resolution 2.40 Å R-free 0.258
3T6B Structure of human DPPIII in complex with the opioid peptide Tynorphin, at 2.4 Angstroms Deposited 2011-07-28	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–726（726 aa）	Mutation：E451A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.2；293 K；0.056M Sodium phosphate monobasic monohydrate, 1.344M Potassium phosphate dibasic, pH 8.2, vapor diffusion, temperature 293K	Resolution 2.40 Å R-free 0.258
3T6J Structure of human DPPIII in complex with the opioid peptide Tynorphin, at 3.0 Angstroms Deposited 2011-07-28	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–726（726 aa）	Mutation：E451A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.2；293 K；0.056M Sodium phosphate monobasic monohydrate, 1.344M Potassium phosphate dibasic, pH 8.2, vapor diffusion, temperature 293K	Resolution 2.98 Å R-free 0.268
5E2Q Structure of human DPP3 in complex with angiotensin-II Deposited 2015-10-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–726（726 aa）	Mutation：C19S, E207C, E451A, S491C, C519S, C654S	MG MAGNESIUM ION × 1 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.056 M sodium phosphate monobasic monohydrate, 1.344 M potassium phosphate dibasic monohydrate	Resolution 2.40 Å R-free 0.247
5E33 Structure of human DPP3 in complex with met-enkephalin Deposited 2015-10-01	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–726（726 aa）	Mutation：C19S, E207C, E451A, S491C, C519S, C654S	ZN ZINC ION × 1 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.056M Sodium phosphate monobasic monohydrate, 1.344M Potassium phospahte dibasic, pH- 8.2	Resolution 1.84 Å R-free 0.224
5E3A Structure of human DPP3 in complex with opioid peptide leu-enkephalin Deposited 2015-10-02	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–726（726 aa）	Mutation：C19S, E207C, E451A, S491C, C519S, C654S	ZN ZINC ION × 1 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.056M SODIUM PHOSPHATE MONOBASIC MONOHYDRATE, 1.344M POTASSIUM PHOSPHATE DIBASIC	Resolution 2.05 Å R-free 0.260
5E3C Structure of human DPP3 in complex with hemorphin like opioid peptide IVYPW Deposited 2015-10-02	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–726（726 aa）	Mutation：C19S, E207C, E451A, S491C, C519S, C654S	ZN ZINC ION × 1 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.056 Sodium phosphate monobasic monohydrate, 1.344M Potassium phosphate dibasic	Resolution 2.77 Å R-free 0.253
5EGY Structure of ligand free human DPP3 in closed form. Deposited 2015-10-27	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–726（726 aa）	Mutation：C19S, E207C, E451A, S491C, C519S, C654S	ZN ZINC ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.056 M Sodium phosphate monobasic monohydrate, 1.344M Potassium phosphate dibasic, pH- 8.2, 293K	Resolution 2.74 Å R-free 0.254
5EHH Structure of human DPP3 in complex with endomorphin-2. Deposited 2015-10-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–726（726 aa） Fragment：UNP residues 1-726	Mutation：C19S, E207C, E451A, S491C, C519S, C654S	ZN ZINC ION × 1 MG MAGNESIUM ION × 2 K POTASSIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 8.2；293.15 K；0.056 M Sodium phosphate monobasic monohydrate, 1.344 M Potassium phosphate dibasic, pH-8.2.	Resolution 2.38 Å R-free 0.237
7OUP Structure of human DPP3 in complex with a hydroxyethylene transition state peptidomimetic Deposited 2021-06-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–737（737 aa）	Mutation：E451A	ZN ZINC ION × 1 K POTASSIUM ION × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.2；293 K；0.056 M sodium phosphate monobasic monohydrate, 1.344 M potassium phosphate dibasic monohydrate	Resolution 2.65 Å R-free 0.253

9 other PDB entries and 10 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DPP3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–728； UniProt 1–726

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3fvy
Deposition date deposition_date	2009-01-16
Structure title title	Crystal structure of human Dipeptidyl Peptidase III
Keywords keywords	;SGC, DPP3, Dipeptidyl Peptidase III, Aminopeptidase, Hydrolase, Metal-binding, Metalloprotease, Phosphoprotein, Protease, Structural Genomics, Structural Genomics Consortium ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	29.20 Å
Radius of gyration Rg (electron density) rg_electron	28.17 Å
Forward intensity I(0) i0	99126200.00
Molecular weight molecular_weight	79773.0 kDa
Excluded volume excluded_volume	100240 Å³
Envelope volume envelope_volume	121990 Å³
Hydration-shell volume shell_volume	35784 Å³
Envelope diameter envelope_diameter	96.2 Å
Shell Rg shell_rg	35.86 Å
Envelope Rg envelope_rg	27.90 Å
Shape Rg shape_rg	28.17 Å
Total Rg total_rg	28.90 Å
Total atoms total_atoms	5638
Residues n_residues	718
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	92.0 Å
Rg (real space) rg_real	29.11 Å
Rg uncertainty (real space) rg_real_error	0.64 Å
I(0) (real space) i0_real	9.9130e+07
I(0) uncertainty (real space) i0_real_error	1.4520e+06
Rg (reciprocal space) rg_reciprocal	29.15 Å
I(0) (reciprocal space) i0_reciprocal	99130000.0000
Solution quality estimate total_estimate	0.7238
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	35.8 Å
Skewness Skewness skewness	0.216
Kurtosis Kurtosis kurtosis	-0.474
Angular range angular_range	— – 0.2700 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	25100000.0000
Real-space data points n_real_points	55
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.940; Stabil: 1.000; Sysdev: 0.218; Positv: 1.000; Valcen: 0.999; Smooth: 0.933

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Dipeptidyl-peptidase 3
Molecular weight formula_weight	81773.9 kDa
EC 编号 ec_number	3.4.14.4
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	6247

GAMADTQYILPNDIGVSSLDCREAFRLLSPTERLYAYHLSRAAWYGGLAVLLQTSPEAPYIYALLSRLFRAQDPDQLHQHALAEGLTEEEYQAFLVYAAGVYSNMGNYKSFGDTKFVPNLPKEKLERVILGSEAAQQHPEEVRGLWQTCGELMFSLEPRLRHLGLGKEGITTYFSGNCTMEDAKLAQDFLDSQNLSAYNTRLFKEVDGEGKPYYEVRLASVLGSEPSLDSEVTSKLKSYEFRGSPFQVTRGDYAPILQKVVEQLEKAKAYAANSHQGQMLAQYIESFTQGSIEAHKRGSRFWIQDKGPIVESYIGFIESYRDPFGSRGEFEGFVAVVNKAMSAKFERLVASAEQLLKELPWPPTFEKDKFLTPDFTSLDVLTFAGSGIPAGINIPNYDDLRQTEGFKNVSLGNVLAVAYATQREKLTFLEEDDKDLYILWKGPSFDVQVGLHELLGHGSGKLFVQDEKGAFNFDQETVINPETGEQIQSWYRSGETWDSKFSTIASSYEECRAESVGLYLCLHPQVLEIFGFEGADAEDVIYVNWLNMVRAGLLALEFYTPEAFNWRQAHMQARFVILRVLLEAGEGLVTITPTTGSDGRPDARVRLDRSKIRSVGKPALERFLRRLQVLKSTGDVAGGRALYEGYATVTDAPPECFLTLRDTVLLRKESRKLIVQPNTRLEGSDVQLLEYEASAAGLIRSFSERFPEDGPELEEILTQLATADARFW

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 Entity 2 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	603

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	3fvyA02
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	540 — Fructose-1,6-Bisphosphatase; Chain A, domain 1
Homologous superfamily homologous superfamily	30 —

Domain ID domain_id	3fvyA03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	70 — Alpha-Beta Plaits
Homologous superfamily homologous superfamily	2600 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	49.812 Å
Unit-cell length b length_b	151.378 Å
Unit-cell length c length_c	53.721 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	100.04 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.900 Å
Low-resolution limit resolution_low	75.590 Å
R factor r_factor	0.1723
R_work r_work	0.1716
R_free r_free	0.2194

fit	/app/data/saxs_computation/fv/3fvy/3fvy.fit
pddf	/app/data/pr_computation/fv/3fvy/3fvy.pr.out
profile	/app/data/saxs_computation/fv/3fvy/3fvy.dat

Crystal structure of human Dipeptidyl Peptidase III

1. Protein Identity and Related Structures Protein Identity & Related Structures

Dipeptidyl-peptidase 3

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

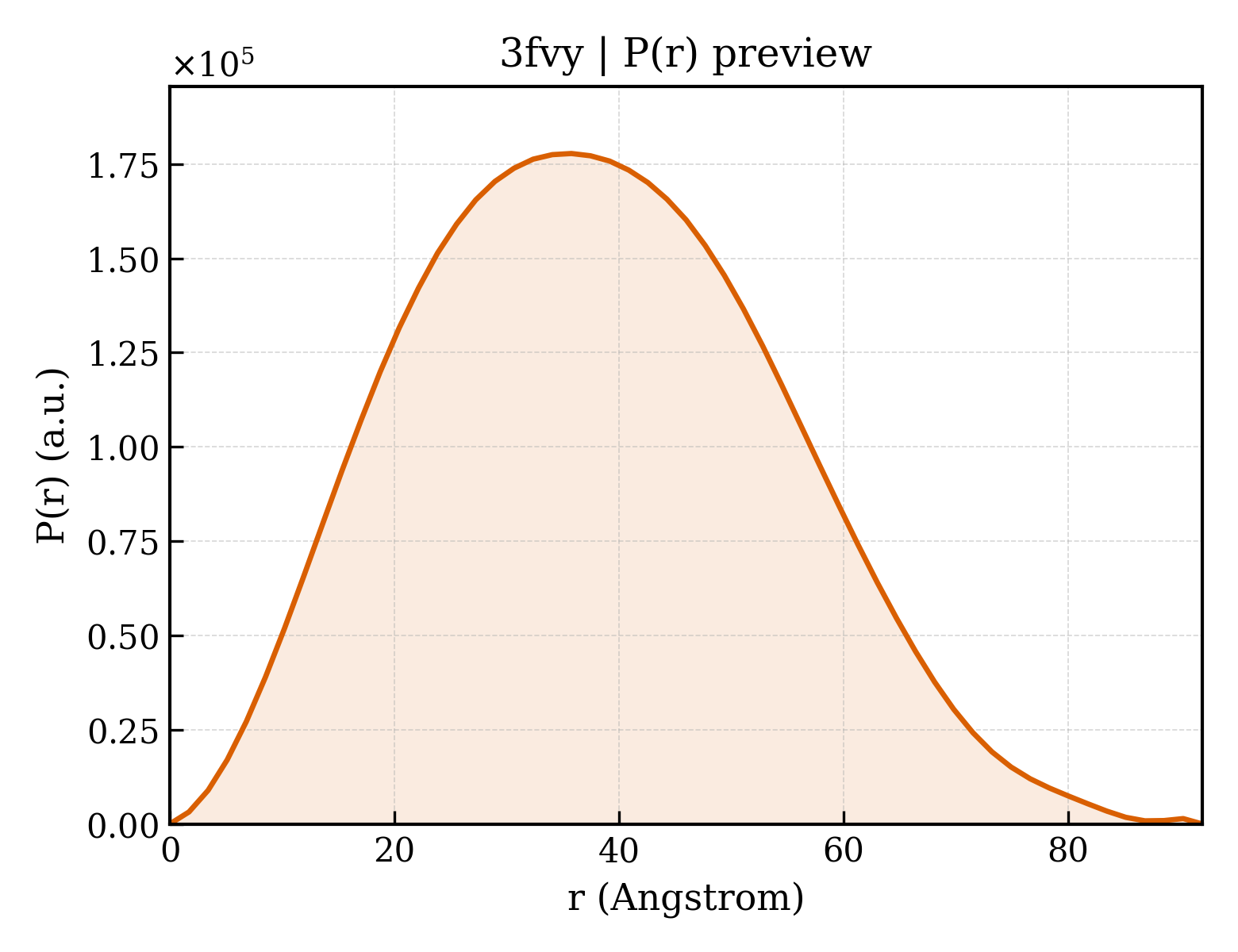

P(r) Distance Distribution P(r) Distribution
