SAXSdb — 3gsl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Disks large homolog 4

Rattus norvegicus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DLG4_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–192； UniProt 61–249 Author chain B； PDBConstruct 4–192； UniProt 61–249

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3gsl
Deposition date deposition_date	2009-03-27
Structure title title	Crystal structure of PSD-95 tandem PDZ domains 1 and 2
Keywords keywords	;PDZ domain, tandem, PSD-95, DLG4, SAP-90, GluR6, Cell junction, Cell membrane, Lipoprotein, Membrane, Palmitate, Phosphoprotein, Postsynaptic cell membrane, SH3 domain, Synapse, STRUCTURAL PROTEIN ;; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3gsl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3gsl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

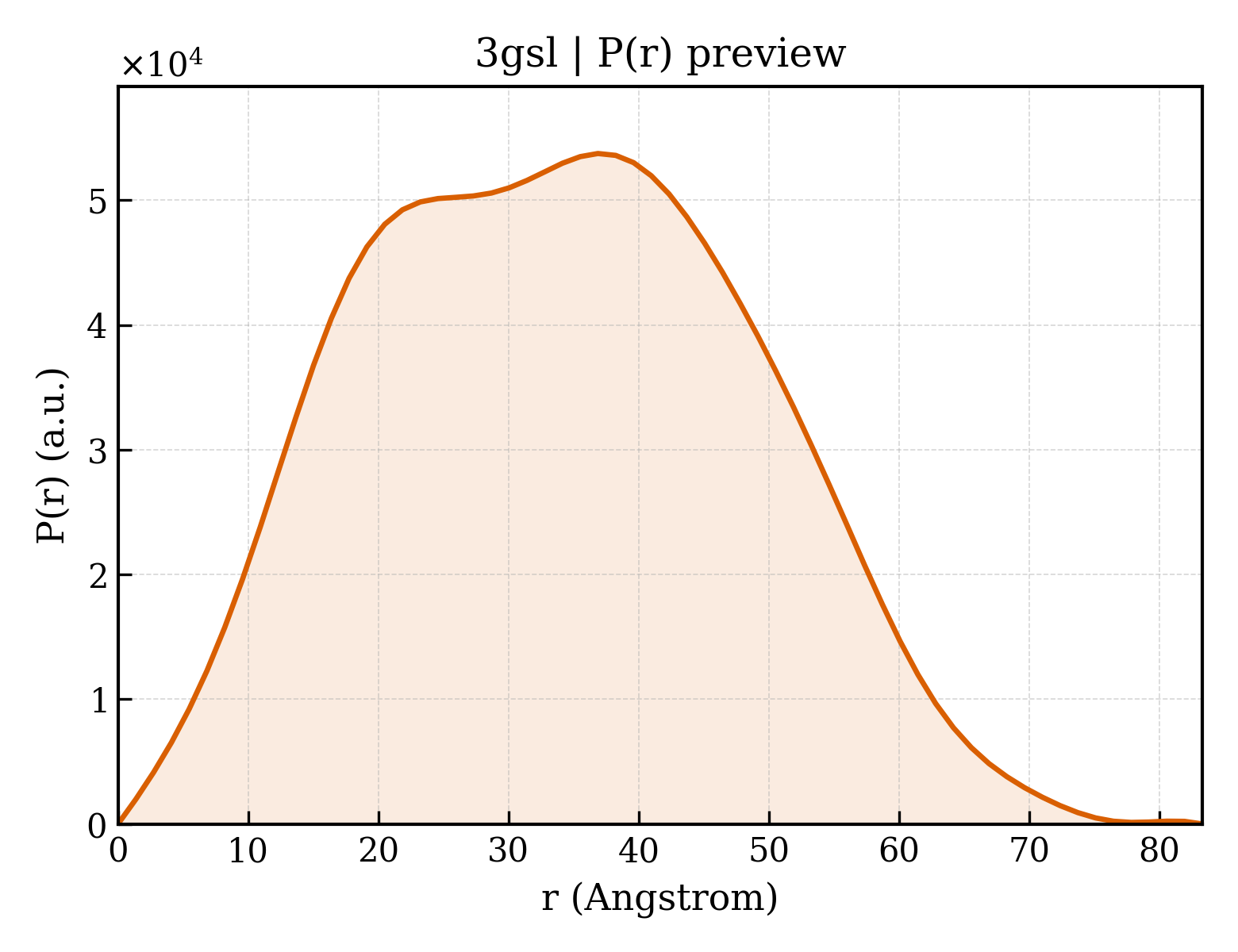

3gsl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.21 Å
Rg (electron density)	20.68 Å
Total Rg	21.48 Å
Atom count	1430
Residues	194
Excluded volume	25447 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3gsl__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3gsl__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (5 domains)

Domain ID domain_id	d3gsla1
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

Domain ID domain_id	d3gsla2
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

Domain ID domain_id	d3gsla3
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

Domain ID domain_id	d3gslb1
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

Domain ID domain_id	d3gslb2
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

CATH v4.4 (4 domains)

Domain ID domain_id	3gslA01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

Domain ID domain_id	3gslA02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

Domain ID domain_id	3gslB01
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

Domain ID domain_id	3gslB02
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

Unit-cell length a length_a	57.244 Å
Unit-cell length b length_b	62.511 Å
Unit-cell length c length_c	59.342 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	99.25 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.050 Å
Low-resolution limit resolution_low	32.310 Å
R factor r_factor	0.2209
R_work r_work	0.2141
R_free r_free	0.2815

Description description	Disks large homolog 4
Molecular weight formula_weight	20790.7 kDa
Source method src_method	man
Copy count entity_count	2

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	3144

Crystal structure of PSD-95 tandem PDZ domains 1 and 2

1. Protein Identity and Related Structures Protein Identity & Related Structures

Disks large homolog 4

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

3gsl__assembly_1__model_1

3gsl__assembly_1__model_1 | I(q)

3gsl__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 9 domains

SCOP 2.08 (5 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	Rattus norvegicus
Common name common_name	rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	Escherichia coli

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	280
