Crystal structure of Siderocalin (NGAL, Lipocalin 2) K134A mutant complexed with Ferric Enterobactin

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Neutrophil gelatinase-associated lipocalin

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 FE (III) ION × 1 O-[(2R)-2-amino-3-(D-seryloxy)propanoyl]-N-[(2,3-dihydroxyphenyl)carbonyl]-L-serine × 1 N-[(2,3-dihydroxyphenyl)carbonyl]-O-[(2R)-2-{[(2,3-dihydroxyphenyl)carbonyl]amino}-3-hydroxypropanoyl]-L-serine × 1 water × 1	Consistent with protein count
2	Protein monomer	Monomer	Protein 1	FE (III) ION × 1 2,3-DIHYDROXY-BENZOIC ACID × 1 water × 1	Consistent with protein count
3	Protein monomer	Monomer	Protein 1	SULFATE ION × 1 FE (III) ION × 1 GLYCEROL × 2 ;N-[(2,3-dihydroxyphenyl)carbonyl]-O-[(2S)-2-{[(2,3-dihydroxyphenyl)carbonyl]amino}-3-({N-[(2,3-dihydroxyphenyl)carbonyl]-L-seryl}oxy)propanoyl]-D-serine ; × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NGAL_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–198； UniProt 1–198 Author chain B； PDBConstruct 1–198； UniProt 1–198 Author chain C； PDBConstruct 1–198； UniProt 1–198

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3i0a
Deposition date deposition_date	2009-06-24
Structure title title	Crystal structure of Siderocalin (NGAL, Lipocalin 2) K134A mutant complexed with Ferric Enterobactin
Keywords keywords	;NGAL, p25, 25 kDa alpha-2-microglobulin-related subunit of MMP-9, Lipocalin-2, Oncogene 24p3, Disulfide bond, Glycoprotein, Pyrrolidone carboxylic acid, Secreted, ANTIMICROBIAL PROTEIN ;; ANTIMICROBIAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3i0a__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

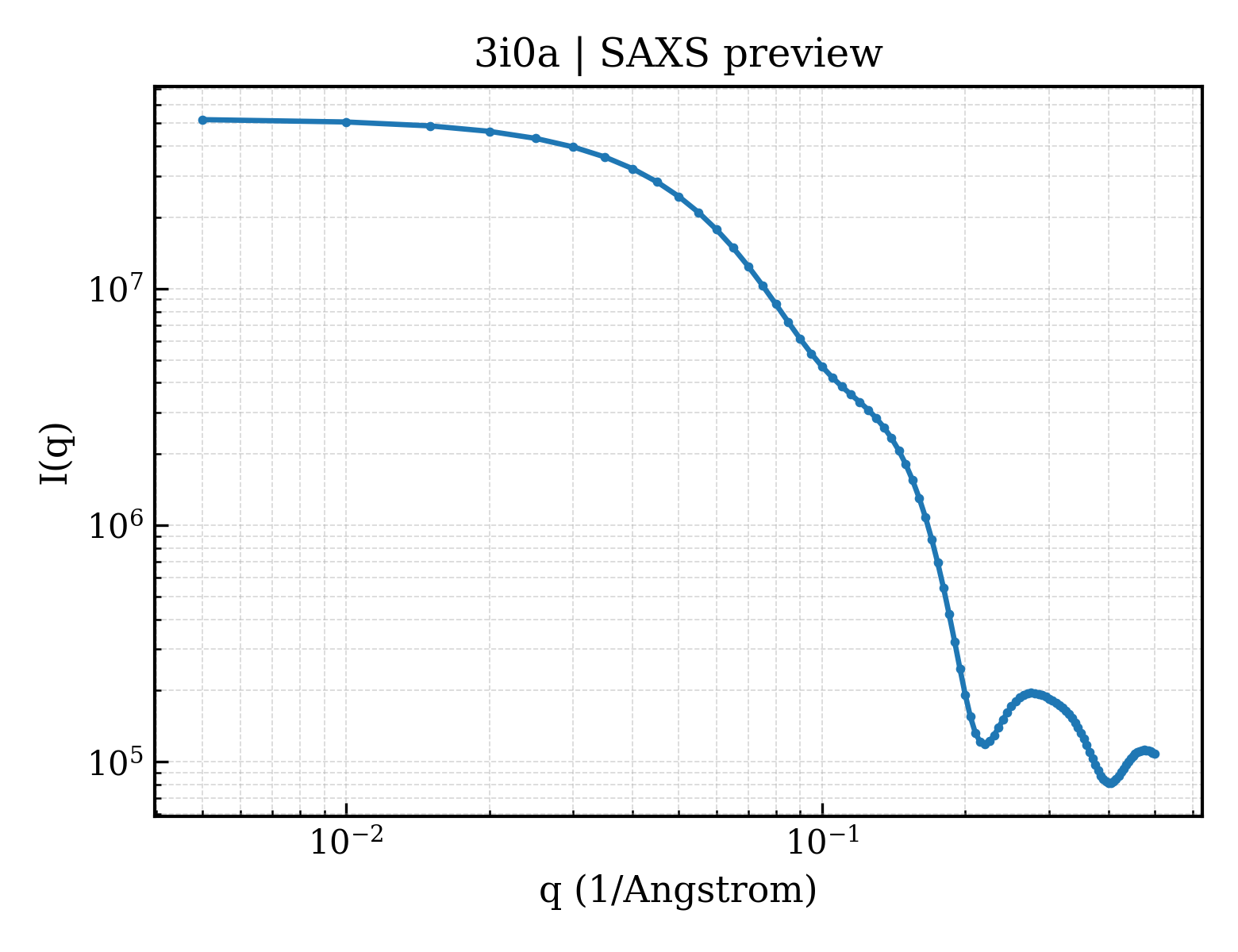

3i0a__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

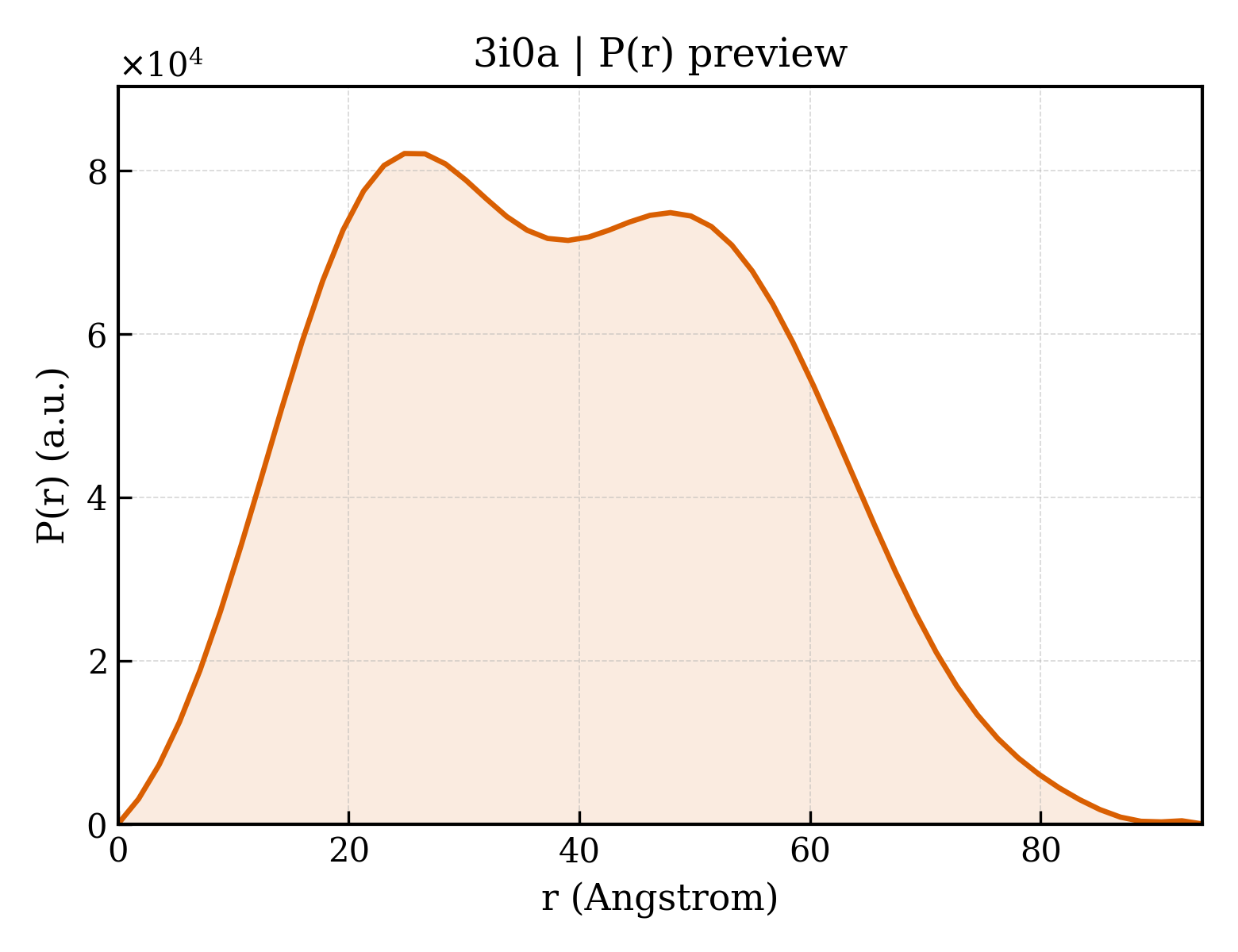

3i0a__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	16.74 Å
Rg (electron density)	15.31 Å
Total Rg	16.60 Å
Atom count	1448
Residues	174
Excluded volume	25863 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3i0a__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3i0a__assembly_2__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`3i0a__assembly_3__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Neutrophil gelatinase-associated lipocalin
Molecular weight formula_weight	22539.9 kDa
Mutation mutation	C87S, K134A
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	4165

MPLGLLWLGLALLGALHAQAQDSTSDLIPAPPLSKVPLQQNFQDNQFQGKWYVVGLAGNAILREDKDPQKMYATIYELKEDKSYNVTSVLFRKKKCDYWIRTFVPGSQPGEFTLGNIKSYPGLTSYLVRVVSTNYNQHAMVFFKKVSQNREYFAITLYGRTKELTSELKENFIRFSKSLGLPENHIVFPVPIDQCIDG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 non-polymer

Description description	FE (III) ION
Molecular weight formula_weight	55.8 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	O-[(2R)-2-amino-3-(D-seryloxy)propanoyl]-N-[(2,3-dihydroxyphenyl)carbonyl]-L-serine
Molecular weight formula_weight	415.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	N-[(2,3-dihydroxyphenyl)carbonyl]-O-[(2R)-2-{[(2,3-dihydroxyphenyl)carbonyl]amino}-3-hydroxypropanoyl]-L-serine
Molecular weight formula_weight	464.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 non-polymer

Description description	2,3-DIHYDROXY-BENZOIC ACID
Molecular weight formula_weight	154.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	;N-[(2,3-dihydroxyphenyl)carbonyl]-O-[(2S)-2-{[(2,3-dihydroxyphenyl)carbonyl]amino}-3-({N-[(2,3-dihydroxyphenyl)carbonyl]-L-seryl}oxy)propanoyl]-D-serine ;
Molecular weight formula_weight	687.6 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	100

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (3 domains)

Domain ID domain_id	d3i0aa_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.1 — Retinol binding protein-like

Domain ID domain_id	d3i0ab_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.1 — Retinol binding protein-like

Domain ID domain_id	d3i0ac_
Class class	b — All beta proteins
Fold Fold fold	b.60 — Lipocalins
Superfamily Superfamily superfamily	b.60.1 — Lipocalins
Family Family family	b.60.1.1 — Retinol binding protein-like

CATH v4.4 (3 domains)

Domain ID domain_id	3i0aA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

Domain ID domain_id	3i0aB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

Domain ID domain_id	3i0aC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	128 — Lipocalin
Homologous superfamily homologous superfamily	20 — Calycin beta-barrel core domain

▶

Unit-cell length a length_a	114.253 Å
Unit-cell length b length_b	114.253 Å
Unit-cell length c length_c	117.950 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	P 41 21 2
Space-group number int_tables_number	92
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.2572
R_work r_work	0.2549
R_free r_free	0.2995
