3ika

Crystal Structure of EGFR 696-1022 T790M Mutant Covalently Binding to WZ4002

Method: X-RAY DIFFRACTION
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Epidermal growth factor receptor

Homo sapiens

UniProt P00533

State in the Current Structure

Assembly Physical composition Protein state Molecular copy count Associated components Data consistency
1 Protein monomer Monomer Protein 1 N-{3-[(5-chloro-2-{[2-methoxy-4-(4-methylpiperazin-1-yl)phenyl]amino}pyrimidin-4-yl)oxy]phenyl}prop-2-enamide × 1 water × 1 Consistent with protein count
2 Protein monomer Monomer Protein 1 water × 1 Consistent with protein count
3 Protein homooligomer Homooligomer Protein 2 N-{3-[(5-chloro-2-{[2-methoxy-4-(4-methylpiperazin-1-yl)phenyl]amino}pyrimidin-4-yl)oxy]phenyl}prop-2-enamide × 1 water × 2 Consistent with protein count

Other States of the Same Protein in the Database

Monomer
1m14 1m17 1xkk 1z9i 2itn 2ito 2itp 2itq 2itt 2itu 2itv 2itw

358 assemblies; showing the first 12

Homodimer
2eb2 2eb3 2gs2 2gs7 2m0b 2m20 3gop 3gt8 3ika 3ug1 3ug2 3vjn

91 assemblies; showing the first 12

Homotetramer
5gty 5gty

2 assemblies

Other homooligomers

None

Heteromeric or nucleic-acid complex
1ivo 1mox 1yy9 2ks1 2rf9 2rf9 2rfd 2rfd 2rfe 2rfe 3b2u 3b2u

115 assemblies; showing the first 12

View Construct and Data Evidence
UniProt name EGFR_HUMAN
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 3–331； UniProt 694–1022 Author chain B； PDBConstruct 3–331； UniProt 694–1022

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id3ika
Deposition date deposition_date2009-08-05
Structure title titleCrystal Structure of EGFR 696-1022 T790M Mutant Covalently Binding to WZ4002
Keywords keywords;EGFR, T790M, WZ4002, WZ-4002, Alternative splicing, ATP-binding, Cell membrane, Disease mutation, Disulfide bond, Glycoprotein, Isopeptide bond, Kinase, Membrane, Nucleotide-binding, Phosphoprotein, Polymorphism, Receptor, Secreted, Transferase, Transmembrane, Tumor suppressor, Tyrosine-protein kinase, Ubl conjugation ;; TRANSFERASE
Experimental Method methodX-RAY DIFFRACTION
▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3ika__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

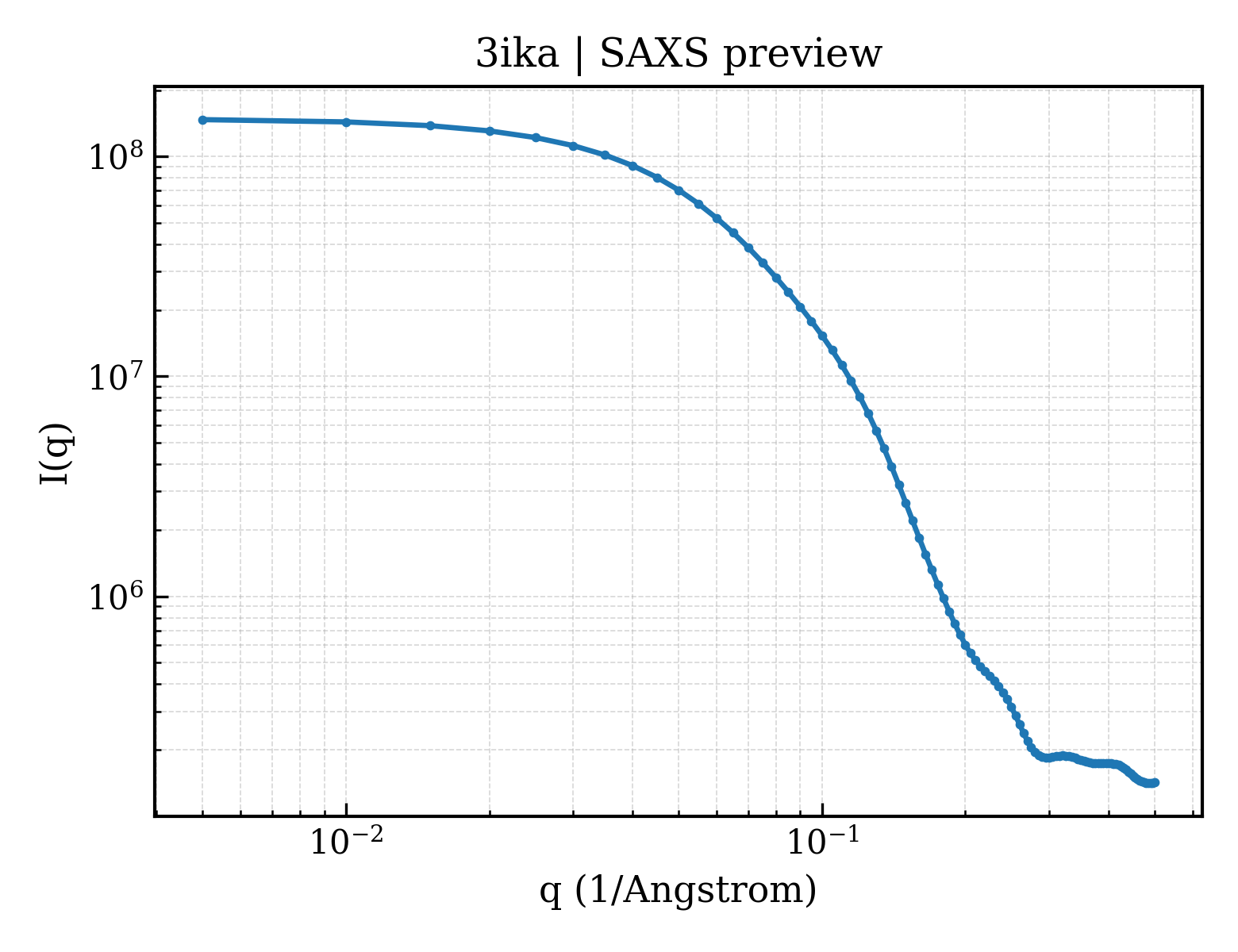

3ika__assembly_1__model_1 | I(q)

10-2 10-1 105 106 107 q (1/Angstrom) I(q)
100 plotted points; both axes use logarithmic scales.

3ika__assembly_1__model_1 | P(r) · Pending

The new assembly/model P(r) has not been calculated yet This placeholder does not display legacy data r (Angstrom) P(r)
P(r) will be calculated and displayed separately for the same assembly/model.
Rg（Guinier）20.89 Å
Rg (electron density)19.86 Å
Total Rg20.87 Å
Atom count2475
Residues310
Excluded volume44412 ų
Maximum q0.500 Å⁻¹
Assembly Model Structure unit Oligomeric description Status CRYSOL Actions
1 1 3ika__assembly_1__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
2 1 3ika__assembly_2__model_1 monomeric （1） Success 4.1.3-1-20251215 (887e7ef) View Download
3 1 3ika__assembly_3__model_1 dimeric （2） Success 4.1.3-1-20251215 (887e7ef) View Download
▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

▼

6. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_idd3ikaa_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamilyd.144.1 — Protein kinase-like (PK-like)
Family Family familyd.144.1.7 — Protein kinases, catalytic subunit
Domain ID domain_idd3ikab_
Class classd — Alpha and beta proteins (a+b)
Fold Fold foldd.144 — Protein kinase-like (PK-like)
Superfamily Superfamily superfamilyd.144.1 — Protein kinase-like (PK-like)
Family Family familyd.144.1.7 — Protein kinases, catalytic subunit

CATH v4.4 (4 domains)

Domain ID domain_id3ikaA01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily20 — Phosphorylase Kinase; domain 1
Domain ID domain_id3ikaA02
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily10 — Transferase(Phosphotransferase) domain 1
Domain ID domain_id3ikaB01
Class class3 — Alpha Beta
Architecture architecture30 — 2-Layer Sandwich
Topology topology200 — Phosphorylase Kinase; domain 1
Homologous superfamily homologous superfamily20 — Phosphorylase Kinase; domain 1
Domain ID domain_id3ikaB02
Class class1 — Mainly Alpha
Architecture architecture10 — Orthogonal Bundle
Topology topology510 — Transferase(Phosphotransferase); domain 1
Homologous superfamily homologous superfamily10 — Transferase(Phosphotransferase) domain 1
▶

7. Citations (1)
