SAXSdb — 3j4r

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

cAMP-dependent protein kinase type II-alpha regulatory subunit

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	A-kinase anchor protein 18 × 1 cAMP-dependent protein kinase catalytic subunit alpha × 2 （P05132）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	Q8K1M3_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–402； UniProt 1–402 Author chain C； PDBConstruct 1–402； UniProt 1–402

cAMP-dependent protein kinase catalytic subunit alpha

Mus musculus

UniProt P05132

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	A-kinase anchor protein 18 × 1 cAMP-dependent protein kinase type II-alpha regulatory subunit × 2 （Q8K1M3）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KAPCA_MOUSE
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain D； PDBConstruct 1–351； UniProt 1–351 Author chain E； PDBConstruct 1–351； UniProt 1–351

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3j4r
Deposition date deposition_date	2013-09-25
Structure title title	Pseudo-atomic model of the AKAP18-PKA Complex in a linear conformation derived from electron microscopy
Keywords keywords	;A-kinase anchoring protein, cAMP-Dependent Kinase, RII, PKA regulatory subunit II, phosphorylation, anchoring, intrinsic disorder, TRANSFERASE ;; TRANSFERASE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3j4r__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3j4r__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

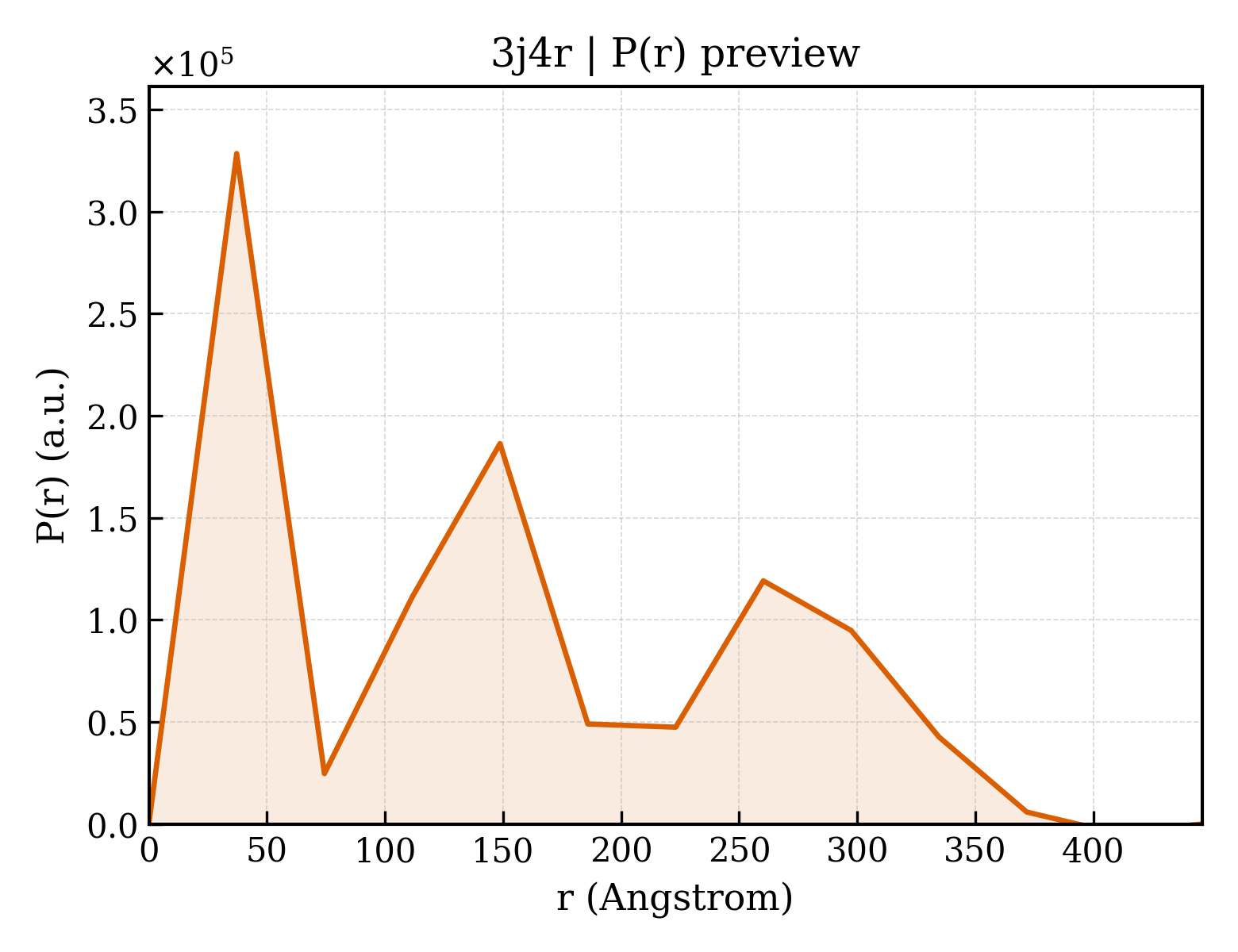

3j4r__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	126.10 Å
Total Rg	124.90 Å
Atom count	12903
Residues	1644
Excluded volume	229160 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3j4r__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	A-kinase anchor protein 18
Molecular weight formula_weight	39478.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	12906

MERPAAGEIDANKCDHLSRGEEGTGDLETSPVGSLADLPFAAVDIQDDCGLPDVPQGNVPQGNPKRSKENRGDRNDHVKKRKKAKKDYQPNYFLSIPITNKKITAGIKVLQNSILRQDNRLTKAMVGDGSFHITLLVMQLLNEDEVNIGTDALLELKPFVEEILEGKHLTLPFHGIGTFQGQVGFVKLADGDHVSALLEIAETAKRTFQEKGILAGESRTFKPHLTFMKLSKAPMLWKKGVRKIEPGLYEQFIDHRFGEEILYQIDLCSMLKKKQSNGYYHCESSIVIGEKDRKEPEDAELVRLSKRLVENAVLKAVQQYLEETQNKKQPGEGNSVKAEEGDRNGDGSDNNRK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	cAMP-dependent protein kinase type II-alpha regulatory subunit
Molecular weight formula_weight	45644.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,C

MSHIQIPAGLTELLQGYTVEVLRQQPPDLVDFAVEYFTRLREARRQESDTFIVSPTTFHTQESSAVPVIEEDGESDSDSEDADLEVPVPSKFTRRVSVCAETFNPDEEEEDNDPRVVHPKTDEQRCRLQEACKDILLFKNLDQEQLSQVLDAMFEKIVKTDEHVIDQGDDGDNFYVIERGTYDILVTKDNQTRSVGQYDNRGSFGELALMYNTPRAATIIATSEGSLWGLDRVTFRRIIVKNNAKKRKMFESFIESVPLFKSLEMSERMKIVDVIGEKIYKDGERIIAQGEKADSFYIIESGEVSILIRSKTKSNKNGGNQEVEIAHCHKGQYFGELALVTNKPRAASAYAVGDVKCLVMDVQAFERLLGPCMDIMKRNISHYEEQLVKMFGSNLDLMDPGQ

Source Source

Source organism organism	Mus musculus
Common name common_name	mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	cAMP-dependent protein kinase catalytic subunit alpha
Molecular weight formula_weight	40628.6 kDa
EC 编号 ec_number	2.7.11.11
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,E

MGNAAAAKKGSEQESVKEFLAKAKEDFLKKWETPSQNTAQLDQFDRIKTLGTGSFGRVMLVKHKESGNHYAMKILDKQKVVKLKQIEHTLNEKRILQAVNFPFLVKLEFSFKDNSNLYMVMEYVAGGEMFSHLRRIGRFSEPHARFYAAQIVLTFEYLHSLDLIYRDLKPENLLIDQQGYIQVTDFGFAKRVKGRTWTLCGTPEYLAPEIILSKGYNKAVDWWALGVLIYEMAAGYPPFFADQPIQIYEKIVSGKVRFPSHFSSDLKDLLRNLLQVDLTKRFGNLKNGVNDIKNHKWFATTDWIAIYQRKVEAPFIPKFKGPGDTSNFDDYEEEEIRVSINEKCGKEFTEF

Source Source

Source organism organism	Mus musculus
Common name common_name	mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	1

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	35.00 Å
Resolution测定Method resolution_method	Angular Reconstitution and Refinement
颗粒数 num_particles	1000

Pseudo-atomic model of the AKAP18-PKA Complex in a linear conformation derived from electron microscopy
