SAXSdb — 3jv6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Transcription factor RelB

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 278–378	Fragment：dimerization domain (UNP residues 278-378)	Nuclear factor NF-kappa-B p100 subunit × 1 （Q9WTK5） SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；291 K；PEG 8000, ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.78 Å R-free 0.248
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 278–378	Fragment：dimerization domain (UNP residues 278-378)	Nuclear factor NF-kappa-B p100 subunit × 1 （Q9WTK5） SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；291 K；PEG 8000, ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.78 Å R-free 0.248
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain E； UniProt 278–378	Fragment：dimerization domain (UNP residues 278-378)	Nuclear factor NF-kappa-B p100 subunit × 1 （Q9WTK5） SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；291 K；PEG 8000, ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.78 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3JV6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1ZK9 NF-kB RelB forms an intertwined homodimer Deposited 2005-05-02	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 277–378（102 aa） Fragment：dimerization domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；PEG 8000, ammonium sulfate, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.18 Å R-free 0.218
1ZKA NF-kB RelB forms an intertwined homodimer, Y300S mutant Deposited 2005-05-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 277–378（102 aa） Fragment：dimerization domain	Mutation：Y300S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；PEG 8000,AS, cacodylate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.20 Å R-free 0.231
2V2T X-ray structure of a NF-kB p50-RelB-DNA complex Deposited 2007-06-07	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric	Chain A 91–378（288 aa） Fragment：RESIDUES 91-378	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；5% PEG3350 100 MM NACITRATE 1MM SPERMINE 5MM DTT, pH 7	Resolution 3.05 Å R-free 0.276
3JSS Crystal structure of a mutant RelB dimerization domain Deposited 2009-09-10	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 278–378（101 aa） Fragment：dimerization domain (UNP residues 278-378)	Mutation：V314R, A324G, F358Q, L362K	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20% PEG800, 0.1M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.60 Å R-free 0.259
3JUZ Crystal structure of a mutant of RelB dimerization domain(M5) Deposited 2009-09-15	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 278–378（101 aa） Fragment：dimerization domain (UNP residues 278-378)	Mutation：V314R, A324G, F358Q, L362K, N287D	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20 % PEG8000, 0.1 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.51 Å R-free 0.226
3JV0 Crystal structure of a mutant of RelB dimerization domain(M6) Deposited 2009-09-15	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 278–378（101 aa） Fragment：dimerization domain (UNP residues 278-378)	Mutation：V314R, A324G, F358Q, L362K, N287D, I335F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；20 % PEG8000, 0.1 M ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.65 Å R-free 0.258
3JV4 Crystal structure of the dimerization domains p50 and RelB Deposited 2009-09-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 278–378（101 aa） Fragment：dimerization domain (UNP residues 278-378)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；PEG8000, ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.15 Å R-free 0.280
3JV4 Crystal structure of the dimerization domains p50 and RelB Deposited 2009-09-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 278–378（101 aa） Fragment：dimerization domain (UNP residues 278-378)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；PEG8000, ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.15 Å R-free 0.280
3JV4 Crystal structure of the dimerization domains p50 and RelB Deposited 2009-09-15	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 278–378（101 aa） Fragment：dimerization domain (UNP residues 278-378)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；PEG8000, ammonium sulfate, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.15 Å R-free 0.280
4JGM Crystal structure of RelB double mutants: Y300F/I335V Deposited 2013-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 277–378（102 aa） Fragment：Dimerization domain	Mutation：Y300F, I335V	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；30% PEG4000, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 3.00 Å R-free 0.292
4JHB Crystal structure of RelB double mutants: Y300F/I335F Deposited 2013-03-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 277–378（102 aa） Fragment：Dimerization domain	Mutation：Y300F, I335F	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；30% PEG4000, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.44 Å R-free 0.226

9 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RELB_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–101； UniProt 278–378 Author chain C； PDBConstruct 1–101； UniProt 278–378 Author chain E； PDBConstruct 1–101； UniProt 278–378

Nuclear factor NF-kappa-B p100 subunit

Mus musculus

UniProt Q9WTK5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 225–331	Fragment：dimerization domain (UNP residues 225-331)	Transcription factor RelB × 1 （Q04863） SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；291 K；PEG 8000, ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.78 Å R-free 0.248
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 225–331	Fragment：dimerization domain (UNP residues 225-331)	Transcription factor RelB × 1 （Q04863） SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；291 K；PEG 8000, ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.78 Å R-free 0.248
3	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain F； UniProt 225–331	Fragment：dimerization domain (UNP residues 225-331)	Transcription factor RelB × 1 （Q04863） SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；291 K；PEG 8000, ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.78 Å R-free 0.248

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3JV6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3JV5 Crystal structure of the dimerization domains p52 homodimer Deposited 2009-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 225–328（104 aa） Fragment：dimerization domain (UNP residues 225-328) Chain B 225–328（104 aa） Fragment：dimerization domain (UNP residues 225-328)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；PEG8000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.65 Å R-free 0.268
3JV5 Crystal structure of the dimerization domains p52 homodimer Deposited 2009-09-15	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 225–328（104 aa） Fragment：dimerization domain (UNP residues 225-328) Chain D 225–328（104 aa） Fragment：dimerization domain (UNP residues 225-328)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；PEG8000, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 2.65 Å R-free 0.268

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	NFKB2_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–107； UniProt 225–331 Author chain D； PDBConstruct 1–107； UniProt 225–331 Author chain F； PDBConstruct 1–107； UniProt 225–331

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3jv6
Deposition date deposition_date	2009-09-15
Structure title title	Crystal structure of the dimerization domains p52 and RelB
Keywords keywords	;NF-kB protein, Heterodimer, RelB and p52, Activator, Nucleus, Phosphoprotein, Transcription, Transcription regulation, ANK repeat, DNA-binding, Isopeptide bond ;; TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	36.12 Å
Radius of gyration Rg (electron density) rg_electron	36.24 Å
Forward intensity I(0) i0	83449000.00
Molecular weight molecular_weight	71806.0 kDa
Excluded volume excluded_volume	89286 Å³
Envelope volume envelope_volume	122430 Å³
Hydration-shell volume shell_volume	30665 Å³
Envelope diameter envelope_diameter	136.7 Å
Shell Rg shell_rg	38.65 Å
Envelope Rg envelope_rg	36.27 Å
Shape Rg shape_rg	36.27 Å
Total Rg total_rg	36.34 Å
Total atoms total_atoms	5045
Residues n_residues	621
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

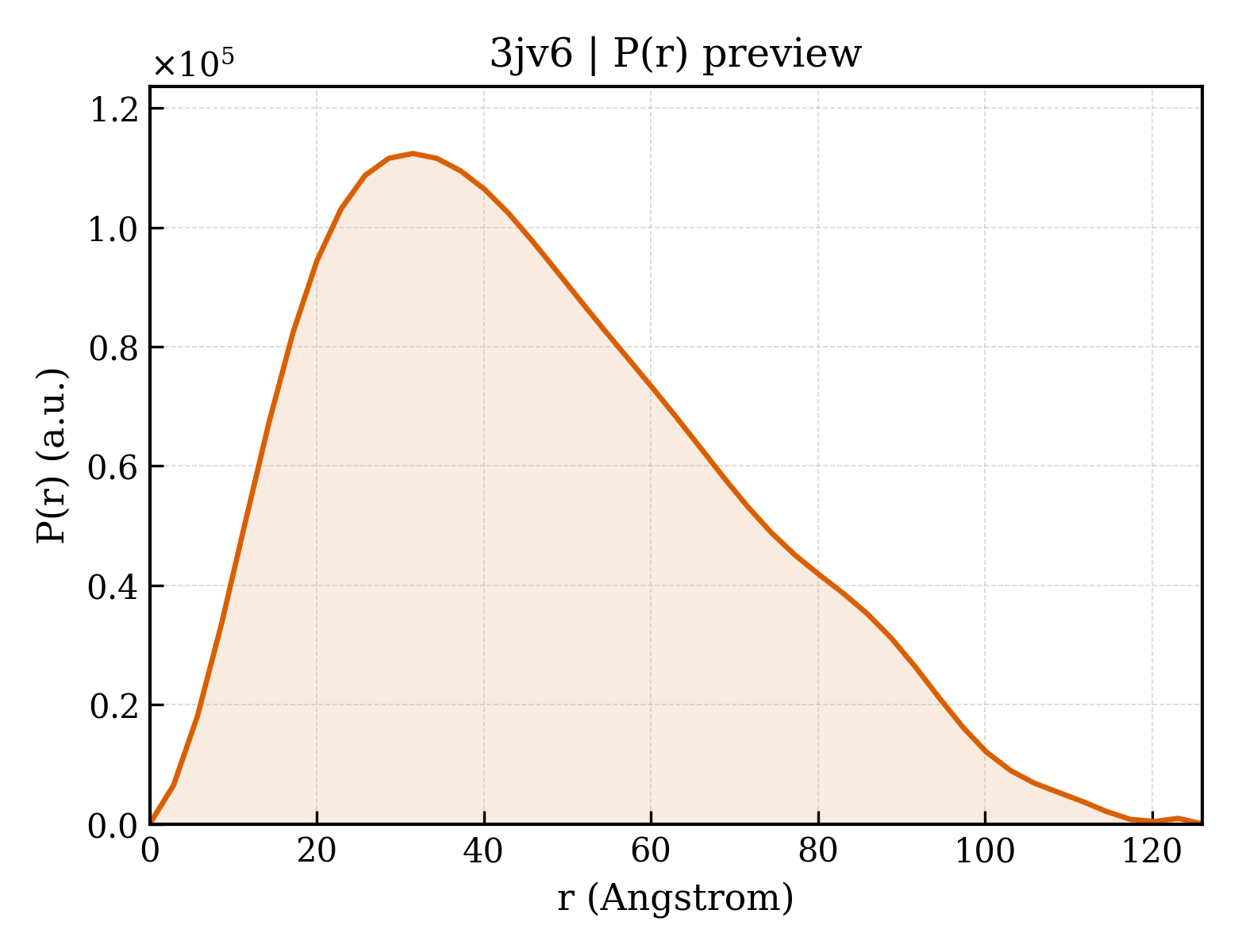

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	126.0 Å
Rg (real space) rg_real	36.50 Å
Rg uncertainty (real space) rg_real_error	1.47 Å
I(0) (real space) i0_real	8.3450e+07
I(0) uncertainty (real space) i0_real_error	1.5580e+06
Rg (reciprocal space) rg_reciprocal	36.27 Å
I(0) (reciprocal space) i0_reciprocal	83430000.0000
Solution quality estimate total_estimate	0.8189
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.5 Å
Skewness Skewness skewness	0.504
Kurtosis Kurtosis kurtosis	-0.424
Angular range angular_range	— – 0.2200 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8652000.0000
Real-space data points n_real_points	45
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.749; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.599; Smooth: 0.796

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Transcription factor RelB
Molecular weight formula_weight	11405.9 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C,E
Atom count atom_count	5191

TSELRICRINKESGPCTGGEELYLLCDKVQKEDISVVFSTASWEGRADFSQADVHRQIAIVFKTPPYEDLEISEPVTVNVFLQRLTDGVCSEPLPFTYLPR

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Nuclear factor NF-kappa-B p100 subunit
Molecular weight formula_weight	12431.0 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,F

ASNLKISRMDKTAGSVRGGDEVYLLCDKVQKDDIEVRFYEDDENGWQAFGDFSPTDVHKQYAIVFRTPPYHKMKIERPVTVFLQLKRKRGGDVSDSKQFTYYPVVED

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	9

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	146

▼

7. Fold Classification (SCOP + CATH) 12 domains

SCOP 2.08 (6 domains)

Domain ID domain_id	d3jv6a_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.1 — NF-kappa-B/REL/DORSAL transcription factors, C-terminal domain

Domain ID domain_id	d3jv6b_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.1 — NF-kappa-B/REL/DORSAL transcription factors, C-terminal domain

Domain ID domain_id	d3jv6c_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.1 — NF-kappa-B/REL/DORSAL transcription factors, C-terminal domain

Domain ID domain_id	d3jv6d_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.1 — NF-kappa-B/REL/DORSAL transcription factors, C-terminal domain

Domain ID domain_id	d3jv6e_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.1 — NF-kappa-B/REL/DORSAL transcription factors, C-terminal domain

Domain ID domain_id	d3jv6f_
Class class	b — All beta proteins
Fold Fold fold	b.1 — Immunoglobulin-like beta-sandwich
Superfamily Superfamily superfamily	b.1.18 — E set domains
Family Family family	b.1.18.1 — NF-kappa-B/REL/DORSAL transcription factors, C-terminal domain

CATH v4.4 (6 domains)

Domain ID domain_id	3jv6A00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3jv6B00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3jv6C00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3jv6D00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3jv6E00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

Domain ID domain_id	3jv6F00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	10 — Immunoglobulins

▶

8. Citations (1)

▶

Unit-cell length a length_a	126.335 Å
Unit-cell length b length_b	141.144 Å
Unit-cell length c length_c	168.986 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	24

Space group space_group	I 2 2 2
Space-group number int_tables_number	23
Crystal system crystal_system	—

Resolution resolution	2.780 Å
Low-resolution limit resolution_low	29.630 Å
R factor r_factor	—
R_work r_work	0.2050
R_free r_free	0.2480

fit	/app/data/saxs_computation/jv/3jv6/3jv6.fit
pddf	/app/data/pr_computation/jv/3jv6/3jv6.pr.out
profile	/app/data/saxs_computation/jv/3jv6/3jv6.dat

Crystal structure of the dimerization domains p52 and RelB
