SAXSdb — 3km9

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Complement C5

OrganismNot specified

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	Staphylococcal enterotoxin-like toxin × 1 （A6QE84） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CADMIUM ION × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	Staphylococcal enterotoxin-like toxin × 1 （A6QE84） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CADMIUM ION × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CO5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1676； UniProt 1–1676 Author chain B； PDBConstruct 1–1676； UniProt 1–1676

Staphylococcal enterotoxin-like toxin

Staphylococcus aureus subsp. aureus

UniProt A6QE84

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 2 其他Polymer 1	Complement C5 × 1 （P01031） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CADMIUM ION × 3 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count
2	Other combination	Heteromer	Protein 2 其他Polymer 1	Complement C5 × 1 （P01031） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 1 CADMIUM ION × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A6QE84_STAAE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain X； PDBConstruct 1–103； UniProt 129–231 Author chain Y； PDBConstruct 1–103； UniProt 129–231

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3km9
Deposition date deposition_date	2009-11-10
Structure title title	Structure of complement C5 in complex with the C-terminal beta-grasp domain of SSL7
Keywords keywords	;OB-fold, beta-grasp domain, FN3 domain, Cleavage on pair of basic residues, Complement alternate pathway, Complement pathway, Cytolysis, Disulfide bond, Glycoprotein, Immune response, Inflammatory response, Innate immunity, Membrane attack complex, Secreted, IMMUNE SYSTEM ;; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3km9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3km9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

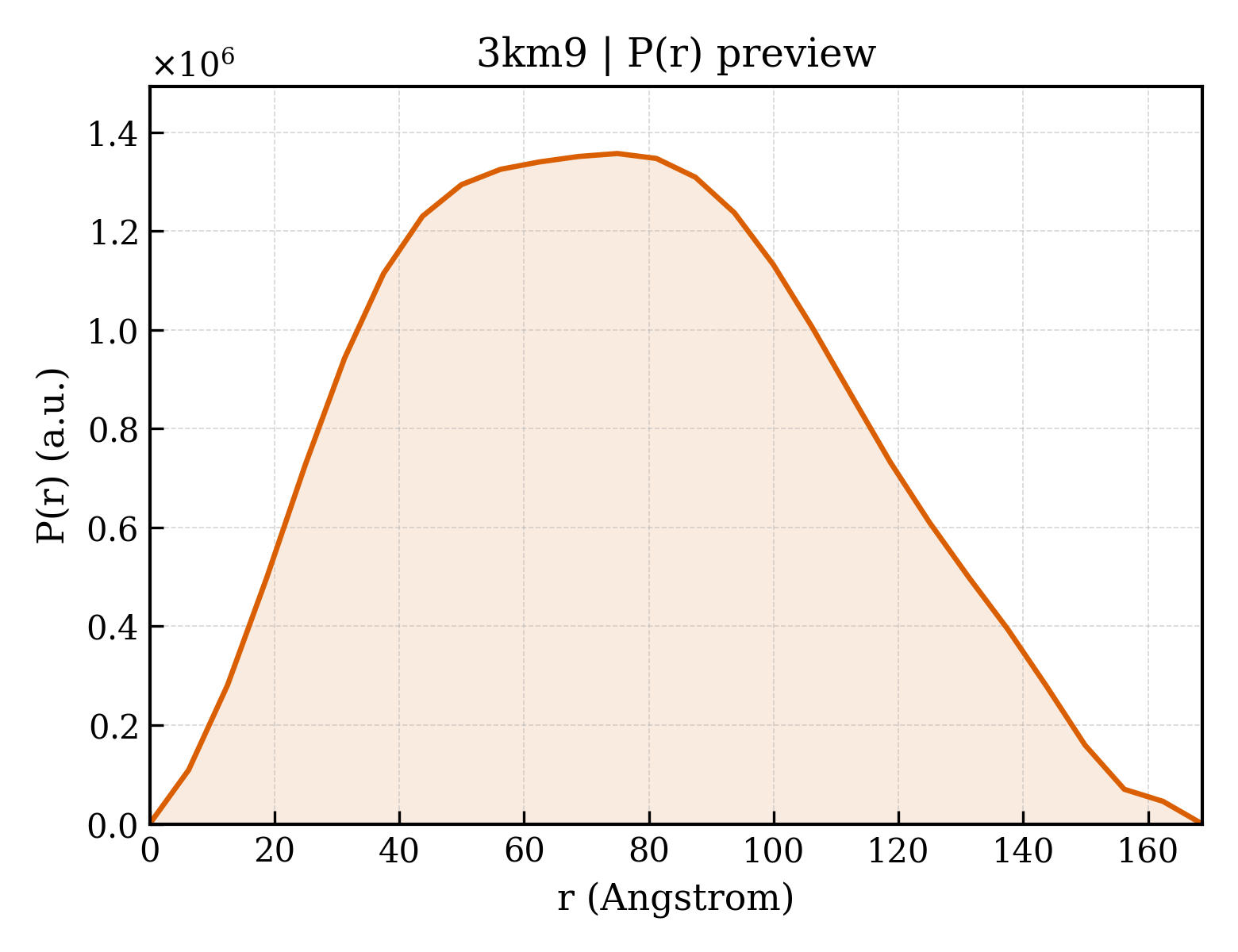

3km9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	41.14 Å
Rg (electron density)	40.63 Å
Total Rg	40.99 Å
Atom count	12405
Residues	1561
Excluded volume	222370 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3km9__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`3km9__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Complement C5
Molecular weight formula_weight	188526.1 kDa
Source method src_method	nat
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	24809

MGLLGILCFLIFLGKTWGQEQTYVISAPKIFRVGASENIVIQVYGYTEAFDATISIKSYPDKKFSYSSGHVHLSSENKFQNSAILTIQPKQLPGGQNPVSYVYLEVVSKHFSKSKRMPITYDNGFLFIHTDKPVYTPDQSVKVRVYSLNDDLKPAKRETVLTFIDPEGSEVDMVEEIDHIGIISFPDFKIPSNPRYGMWTIKAKYKEDFSTTGTAYFEVKEYVLPHFSVSIEPEYNFIGYKNFKNFEITIKARYFYNKVVTEADVYITFGIREDLKDDQKEMMQTAMQNTMLINGIAQVTFDSETAVKELSYYSLEDLNNKYLYIAVTVIESTGGFSEEAEIPGIKYVLSPYKLNLVATPLFLKPGIPYPIKVQVKDSLDQLVGGVPVTLNAQTIDVNQETSDLDPSKSVTRVDDGVASFVLNLPSGVTVLEFNVKTDAPDLPEENQAREGYRAIAYSSLSQSYLYIDWTDNHKALLVGEHLNIIVTPKSPYIDKITHYNYLILSKGKIIHFGTREKFSDASYQSINIPVTQNMVPSSRLLVYYIVTGEQTAELVSDSVWLNIEEKCGNQLQVHLSPDADAYSPGQTVSLNMATGMDSWVALAAVDSAVYGVQRGAKKPLERVFQFLEKSDLGCGAGGGLNNANVFHLAGLTFLTNANADDSQENDEPCKEILRPRRTLQKKIEEIAAKYKHSVVKKCCYDGACVNNDETCEQRAARISLGPRCIKAFTECCVVASQLRANISHKDMQLGRLHMKTLLPVSKPEIRSYFPESWLWEVHLVPRRKQLQFALPDSLTTWEIQGIGISNTGICVADTVKAKVFKDVFLEMNIPYSVVRGEQIQLKGTVYNYRTSGMQFCVKMSAVEGICTSESPVIDHQGTKSSKCVRQKVEGSSSHLVTFTVLPLEIGLHNINFSLETWFGKEILVKTLRVVPEGVKRESYSGVTLDPRGIYGTISRRKEFPYRIPLDLVPKTEIKRILSVKGLLVGEILSAVLSQEGINILTHLPKGSAEAELMSVVPVFYVFHYLETGNHWNIFHSDPLIEKQKLKKKLKEGMLSIMSYRNADYSYSVWKGGSASTWLTAFALRVLGQVNKYVEQNQNSICNSLLWLVENYQLDNGSFKENSQYQPIKLQGTLPVEARENSLYLTAFTVIGIRKAFDICPLVKIDTALIKADNFLLENTLPAQSTFTLAISAYALSLGDKTHPQFRSIVSALKREALVKGNPPIYRFWKDNLQHKDSSVPNTGTARMVETTAYALLTSLNLKDINYVNPVIKWLSEEQRYGGGFYSTQDTINAIEGLTEYSLLVKQLRLSMDIDVSYKHKGALHNYKMTDKNFLGRPVEVLLNDDLIVSTGFGSGLATVHVTTVVHKTSTSEEVCSFYLKIDTQDIEASHYRGYGNSDYKRIVACASYKPSREESSSGSSHAVMDISLPTGISANEEDLKALVEGVDQLFTDYQIKDGHVILQLNSIPSSDFLCVRFRIFELFEVGFLSPATFTVYEYHRPDKQCTMFYSTSNIKIQKVCEGAACKCVEADCGQMQEELDLTISAETRKQTACKPEIAYAYKVSITSITVENVFVKYKATLLDIYKTGEAVAEKDSEITFIKKVTCTNAELVKGRQYLIMGKEALQIKYNFSFRYIYPLDSLTWIEYWPRDTTCSSCQAFLANLDEFAEDIFLNGC

Entity 2 Entity 2 polymer

Description description	Staphylococcal enterotoxin-like toxin
Molecular weight formula_weight	11770.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y

SSETNTHLFVNKVYGGNLDASIDSFSINKEEVSLKELDFKIRQHLVKNYGLYKGTTKYGKITINLKDGEKQEIDLGDKLQFERMGDVLNSKDINKIEVTLKQI

Source Source

Source organism organism	Staphylococcus aureus subsp. aureus
NCBI taxonomy ID ncbi_taxonomy_id	426430
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	2

▶

Unit-cell length a length_a	144.790 Å
Unit-cell length b length_b	144.790 Å
Unit-cell length c length_c	245.280 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31
Space-group number int_tables_number	144
Crystal system crystal_system	—

Resolution resolution	4.200 Å
Low-resolution limit resolution_low	49.752 Å
R factor r_factor	0.2364
R_work r_work	0.2333
R_free r_free	0.2971
