SAXSdb — 3l4f

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Rho guanine nucleotide exchange factor 7

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 587–646 Chain B； UniProt 587–646 Chain C； UniProt 587–646	Fragment：The C-terminal coiled-coil domain	SH3 and multiple ankyrin repeat domains protein 1 × 1 （Q9WV48）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；15% ETHANOL, 10% ETHYLENE GLYCOL, 0.1M MES-NAOH, pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.80 Å R-free 0.307

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3L4F	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2AK5 beta PIX-SH3 complexed with a Cbl-b peptide Deposited 2005-08-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 5–66（62 aa） Fragment：beta-pix SH3A Chain B 5–66（62 aa） Fragment：beta-pix SH3A	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.5；291 K；PEG 3000, SODIUM CITRATE, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 291K, pH 6.50	Resolution 1.85 Å R-free 0.269
2DF6 Crystal Structure of the SH3 Domain of betaPIX in Complex with a High Affinity Peptide from PAK2 Deposited 2006-02-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 10–63（54 aa） Fragment：SH3 domain(residues 10-63)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；100mM MES, 35% PEG 5000MME, 200mM ammonium sulfate, pH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.30 Å R-free 0.215
2DF6 Crystal Structure of the SH3 Domain of betaPIX in Complex with a High Affinity Peptide from PAK2 Deposited 2006-02-25	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 10–63（54 aa） Fragment：SH3 domain(residues 10-63)	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.7；277 K；100mM MES, 35% PEG 5000MME, 200mM ammonium sulfate, pH 6.7, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.30 Å R-free 0.215
2G6F Crystal Structure of the SH3 Domain of betaPIX in Complex with a High Affinity Peptide from PAK2 Deposited 2006-02-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain X 10–63（54 aa） Fragment：SH3 domain(residues 10-63)	Not recorded	NCO COBALT HEXAMMINE(III) × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.5；293 K；0.1M HEPES, 53% MPD, 200mM [Co(NH3)]Cl3, pH 8.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 0.92 Å R-free 0.199
2P4R Structural basis for a novel interaction between AIP4 and beta-PIX Deposited 2007-03-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 10–63（54 aa） Fragment：Beta-PIX SH3 (10-63)	Not recorded	SO4 SULFATE ION × 1 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M TrisHCl, 0.2 M ammonium sulfate, 32-38% (w/v) PEG-MME 5000, pH 7.1-7.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.246
2P4R Structural basis for a novel interaction between AIP4 and beta-PIX Deposited 2007-03-13	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 10–63（54 aa） Fragment：Beta-PIX SH3 (10-63)	Not recorded	SO4 SULFATE ION × 2 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；0.1 M TrisHCl, 0.2 M ammonium sulfate, 32-38% (w/v) PEG-MME 5000, pH 7.1-7.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.246
2W6B Crystal Structure of the Trimeric beta-PIX Coiled-Coil Domain Deposited 2008-12-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 3 PDB declaration: trimeric	Chain A 588–638（51 aa） Fragment：COILED-COIL, RESIDUES 588-638	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions 35% MPD, 0.24 M NON-DETERGENT SULPHOBETAINE 195 (NDSB-195)	Resolution 2.80 Å R-free 0.305

5 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARHG7_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–61； UniProt 587–646 Author chain B； PDBConstruct 2–61； UniProt 587–646 Author chain C； PDBConstruct 2–61； UniProt 587–646

SH3 and multiple ankyrin repeat domains protein 1

Rattus norvegicus

UniProt Q9WV48

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 4 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain D； UniProt 653–765	Fragment：PDZ domain	Rho guanine nucleotide exchange factor 7 × 3 （O55043）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；298 K；15% ETHANOL, 10% ETHYLENE GLYCOL, 0.1M MES-NAOH, pH 6.50, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.80 Å R-free 0.307

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3L4F	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Q3O Crystal structure of the Shank PDZ-ligand complex reveals a class I PDZ interaction and a novel PDZ-PDZ dimerization Deposited 2003-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 582–690（109 aa） Fragment：PDZ domain Chain B 582–690（109 aa） Fragment：PDZ domain	Not recorded	BR BROMIDE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.5；294 K；PEG 20K, NaBr, Glycerol, Sodium acetate, pH 4.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 1.80 Å R-free 0.251
1Q3P Crystal structure of the Shank PDZ-ligand complex reveals a class I PDZ interaction and a novel PDZ-PDZ dimerization Deposited 2003-07-31	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 582–690（109 aa） Fragment：PDZ domain Chain B 582–690（109 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；PEG 6000, KCl, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.25 Å R-free 0.280
1Q3P Crystal structure of the Shank PDZ-ligand complex reveals a class I PDZ interaction and a novel PDZ-PDZ dimerization Deposited 2003-07-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 582–690（109 aa） Fragment：PDZ domain Chain B 582–690（109 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；PEG 6000, KCl, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.25 Å R-free 0.280
3QJM Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；100mM sodium acetate(pH 5.5-6.0), 0.8M lithium sulfate, 0.7M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.31 Å R-free 0.267
3QJM Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；294 K；100mM sodium acetate(pH 5.5-6.0), 0.8M lithium sulfate, 0.7M ammonium sulfate, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.31 Å R-free 0.267
3QJN Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100mM MES, 12% ethanol, 10% ethylene glycol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.71 Å R-free 0.272
3QJN Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100mM MES, 12% ethanol, 10% ethylene glycol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.71 Å R-free 0.272
3QJN Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100mM MES, 12% ethanol, 10% ethylene glycol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.71 Å R-free 0.272
3QJN Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100mM MES, 12% ethanol, 10% ethylene glycol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.71 Å R-free 0.272
3QJN Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100mM MES, 12% ethanol, 10% ethylene glycol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.71 Å R-free 0.272
3QJN Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100mM MES, 12% ethanol, 10% ethylene glycol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.71 Å R-free 0.272
3QJN Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100mM MES, 12% ethanol, 10% ethylene glycol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.71 Å R-free 0.272
3QJN Structural flexibility of Shank PDZ domain is important for its binding to different ligands Deposited 2011-01-30	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 654–768（115 aa） Fragment：PDZ domain	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；294 K；100mM MES, 12% ethanol, 10% ethylene glycol, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 294K	Resolution 2.71 Å R-free 0.272
7A9B Crystal structure of Shank1 PDZ domain with ARAP3-derived peptide Deposited 2020-09-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 654–763（110 aa） Chain B 654–763（110 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；100 nL of protein solution (15 mg/ml mutant protein in 10 mM HEPES buffer, pH 8.0, 150 mM NaCl, 5% (v/v) glycerol and 0.5 mM TCEP) were mixed with 100 nL reservoir buffer (16% (w/v) polyethylene glycol 3350 and 0.2 M ammonium citrate), above a reservoir volume of 20 microL	Resolution 2.00 Å R-free 0.249

5 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SHAN1_RAT
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain D； PDBConstruct 20–132； UniProt 653–765

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3l4f
Deposition date deposition_date	2009-12-19
Structure title title	Crystal Structure of betaPIX Coiled-Coil Domain and Shank PDZ Complex
Keywords keywords	;COILED-COIL, PDZ, Guanine-nucleotide releasing factor, Phosphoprotein, SH3 domain, ANK repeat, Cell junction, Cell membrane, Membrane, Postsynaptic cell membrane, Synapse, SIGNALING PROTEIN-PROTEIN BINDING complex ;; SIGNALING PROTEIN/PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.73 Å
Radius of gyration Rg (electron density) rg_electron	32.66 Å
Forward intensity I(0) i0	18391400.00
Molecular weight molecular_weight	32724.0 kDa
Excluded volume excluded_volume	40988 Å³
Envelope volume envelope_volume	58443 Å³
Hydration-shell volume shell_volume	17904 Å³
Envelope diameter envelope_diameter	114.7 Å
Shell Rg shell_rg	32.90 Å
Envelope Rg envelope_rg	32.14 Å
Shape Rg shape_rg	32.63 Å
Total Rg total_rg	32.80 Å
Total atoms total_atoms	2289
Residues n_residues	282
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

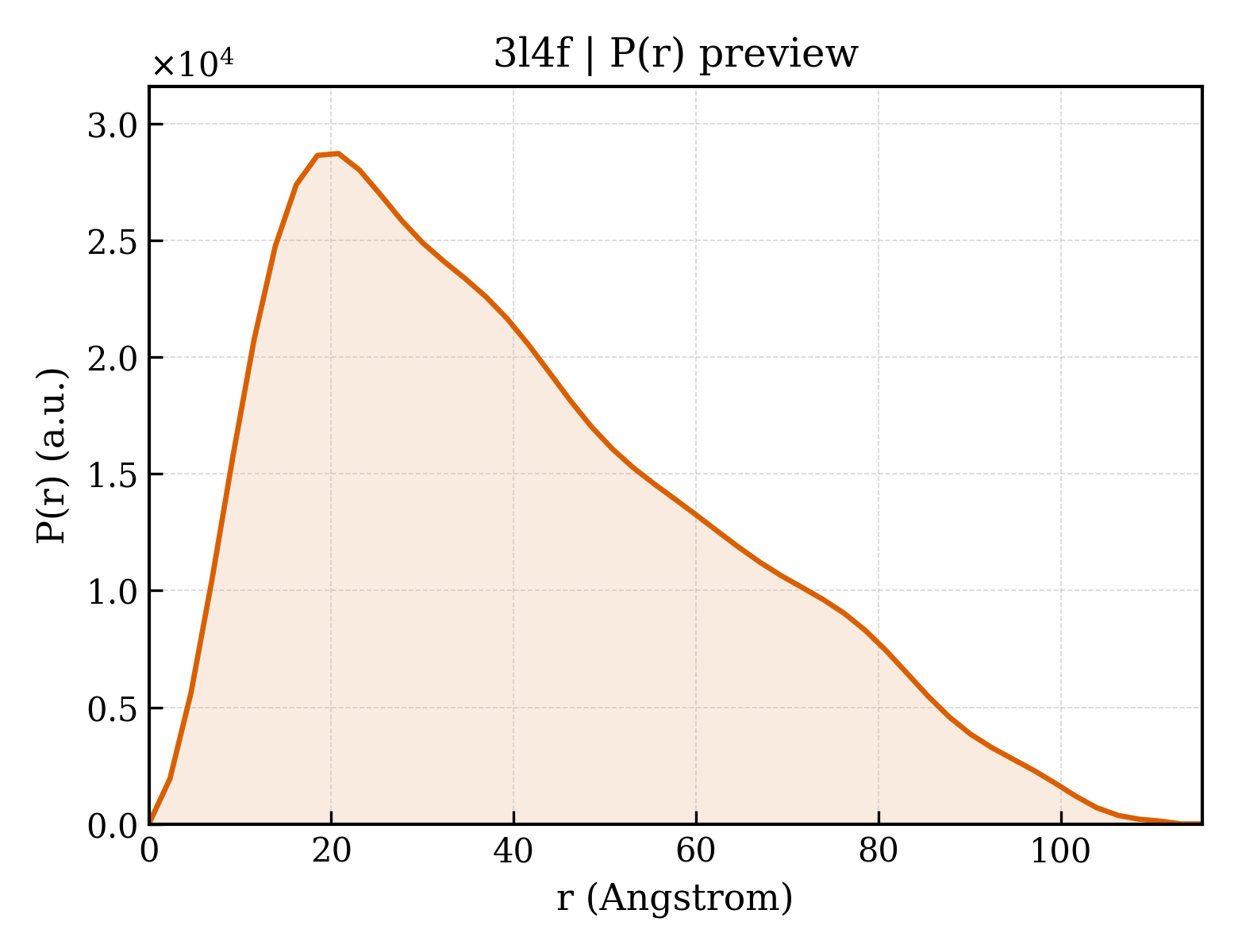

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	115.5 Å
Rg (real space) rg_real	32.44 Å
Rg uncertainty (real space) rg_real_error	1.62 Å
I(0) (real space) i0_real	1.8390e+07
I(0) uncertainty (real space) i0_real_error	3.5420e+05
Rg (reciprocal space) rg_reciprocal	32.14 Å
I(0) (reciprocal space) i0_reciprocal	18390000.0000
Solution quality estimate total_estimate	0.6934
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	20.8 Å
Skewness Skewness skewness	0.605
Kurtosis Kurtosis kurtosis	-0.445
Angular range angular_range	— – 0.2500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	1465000.0000
Real-space data points n_real_points	51
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.356; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.145; Smooth: 0.797

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Rho guanine nucleotide exchange factor 7
Molecular weight formula_weight	7333.4 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	2309

MEKSLVDTVYALKDEVQELRQDNKKMKKSLEEEQRARKDLEKLVRKVLKNMNDPAWDETNL

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	SH3 and multiple ankyrin repeat domains protein 1
Molecular weight formula_weight	14618.7 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MGSSHHHHHHSQDPLVPRGSGSDYIIKEKTVLLQKKDSEGFGFVLRGAKAQTPIEEFTPTPAFPALQYLESVDEGGVAWRAGLRMGDFLIEVNGQNVVKVGHRQVVNMIRQGGNTLMVKVVMVTRHPDMDEA

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	20

▼

7. Fold Classification (SCOP + CATH) 6 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3l4fd1
Class class	b — All beta proteins
Fold Fold fold	b.36 — PDZ domain-like
Superfamily Superfamily superfamily	b.36.1 — PDZ domain-like
Family Family family	b.36.1.1 — PDZ domain

Domain ID domain_id	d3l4fd2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (4 domains)

Domain ID domain_id	3l4fA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	390 — L1 transposable element, trimerization domain

Domain ID domain_id	3l4fB00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	390 — L1 transposable element, trimerization domain

Domain ID domain_id	3l4fC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	5 — Single alpha-helices involved in coiled-coils or other helix-helix interfaces
Homologous superfamily homologous superfamily	390 — L1 transposable element, trimerization domain

Domain ID domain_id	3l4fD00
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	42 — Pdz3 Domain
Homologous superfamily homologous superfamily	10 — PDZ domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	47.666 Å
Unit-cell length b length_b	47.666 Å
Unit-cell length c length_c	263.161 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	18

Space group space_group	P 32 1 2
Space-group number int_tables_number	153
Crystal system crystal_system	—

Resolution resolution	2.800 Å
Low-resolution limit resolution_low	41.280 Å
R factor r_factor	0.2720
R_work r_work	0.2720
R_free r_free	0.3070

fit	/app/data/saxs_computation/l4/3l4f/3l4f.fit
pddf	/app/data/pr_computation/l4/3l4f/3l4f.pr.out
profile	/app/data/saxs_computation/l4/3l4f/3l4f.dat
