SAXSdb — 3l8j

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Programmed cell death protein 10

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 14–212	Not recorded	No other associated polymer	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.16 M calcium acetate, 0.08 M sodium cacodylate pH 6.5, 20% glycerol, 13.5% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.05 Å R-free 0.293

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3L8J	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3AJM Crystal structure of programmed cell death 10 in complex with inositol 1,3,4,5-tetrakisphosphate Deposited 2010-06-09	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 8–212（205 aa） Fragment：UNP residues 8-212 Chain B 8–212（205 aa） Fragment：UNP residues 8-212	Not recorded	4IP INOSITOL-(1,3,4,5)-TETRAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；30% PEG, 0.1M sodium cacodylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.30 Å R-free 0.264
3L8I Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity Deposited 2009-12-31	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Chain B 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1M potassium fluoride, 13% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.50 Å R-free 0.288
3L8I Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity Deposited 2009-12-31	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1M potassium fluoride, 13% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.50 Å R-free 0.288
3L8I Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity Deposited 2009-12-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1M potassium fluoride, 13% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.50 Å R-free 0.288
3L8I Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity Deposited 2009-12-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1M potassium fluoride, 13% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.50 Å R-free 0.288
3RQE Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD1 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350., pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.295
3RQE Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD1 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350., pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.295
3RQE Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD1 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350., pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.295
3RQF Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD2 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride,15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.291
3RQF Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD2 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride,15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.291
3RQF Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD2 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride,15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.291
3RQF Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD2 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride,15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.291
3RQG Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD4 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.291
3RQG Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD4 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.291
3RQG Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD4 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.291
3RQG Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD4 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.291
3W8H Crystal structure of CCM3 in complex with the C-terminal regulatory domain of STK25 Deposited 2013-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 8–212（205 aa） Fragment：UNP RESIDUES 8-212	Not recorded	SO4 SULFATE ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M Bis-Tris, 25% PEG3350, 0.2M ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.43 Å R-free 0.264
3W8I Crystal structure of CCM3 in complex with the C-terminal regulatory domain of MST4 Deposited 2013-03-13	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 8–212（205 aa） Fragment：UNP RESIDUES 8-212	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1M Bis-Tris, 25% PEG3350, 0.3M ammonium acetate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.267
4GEH Crystal structure of MST4 dimerization domain complex with PDCD10 Deposited 2012-08-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 9–212（204 aa） Fragment：UNP residues 9-212	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；2% v/v Tacsimate pH 6.0, 0.1M BIS-TRIS pH 6.5, 18% w/v PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.95 Å R-free 0.253
4GEH Crystal structure of MST4 dimerization domain complex with PDCD10 Deposited 2012-08-02	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 9–212（204 aa） Fragment：UNP residues 9-212	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；2% v/v Tacsimate pH 6.0, 0.1M BIS-TRIS pH 6.5, 18% w/v PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.95 Å R-free 0.253
4TVQ CCM3 in complex with CCM2 LD-like motif Deposited 2014-06-27	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Chain B 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；15-20% PEG3350, 0.1-0.2M POTASSIUM FLUORIDE, PH 7.0, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K	Resolution 2.80 Å R-free 0.277
4TVQ CCM3 in complex with CCM2 LD-like motif Deposited 2014-06-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；15-20% PEG3350, 0.1-0.2M POTASSIUM FLUORIDE, PH 7.0, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K	Resolution 2.80 Å R-free 0.277

9 other PDB entries and 22 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PDC10_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–202； UniProt 14–212

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3l8j
Deposition date deposition_date	2009-12-31
Structure title title	Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity
Keywords keywords	cerebral cavernous malformation, FAT domain, dimerization, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.61 Å
Radius of gyration Rg (electron density) rg_electron	21.88 Å
Forward intensity I(0) i0	9206420.00
Molecular weight molecular_weight	23161.0 kDa
Excluded volume excluded_volume	29390 Å³
Envelope volume envelope_volume	39895 Å³
Hydration-shell volume shell_volume	16311 Å³
Envelope diameter envelope_diameter	78.2 Å
Shell Rg shell_rg	26.97 Å
Envelope Rg envelope_rg	22.34 Å
Shape Rg shape_rg	21.84 Å
Total Rg total_rg	22.83 Å
Total atoms total_atoms	1630
Residues n_residues	200
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	76.6 Å
Rg (real space) rg_real	22.73 Å
Rg uncertainty (real space) rg_real_error	0.70 Å
I(0) (real space) i0_real	9.2060e+06
I(0) uncertainty (real space) i0_real_error	1.3590e+05
Rg (reciprocal space) rg_reciprocal	22.71 Å
I(0) (reciprocal space) i0_reciprocal	9206000.0000
Solution quality estimate total_estimate	0.8734
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	22.1 Å
Skewness Skewness skewness	0.435
Kurtosis Kurtosis kurtosis	-0.360
Angular range angular_range	— – 0.3500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	986800.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.838; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.875; Smooth: 0.961

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (1)

▼

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	3l8jA01
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	3l8jA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	330 — Nucleotidyltransferases domain 2

▶

8. Citations (1)

▶

Unit-cell length a length_a	77.445 Å
Unit-cell length b length_b	77.445 Å
Unit-cell length c length_c	108.629 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 41 2 2
Space-group number int_tables_number	91
Crystal system crystal_system	—

Resolution resolution	3.050 Å
Low-resolution limit resolution_low	25.000 Å
R factor r_factor	0.2789
R_work r_work	0.2783
R_free r_free	0.2926

Description description	Programmed cell death protein 10
Molecular weight formula_weight	23377.0 kDa
Source method src_method	man
Copy count entity_count	1

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1630

Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity

1. Protein Identity and Related Structures Protein Identity & Related Structures

Programmed cell death protein 10

State in the Current Structure

Other States of the Same Protein in the Database

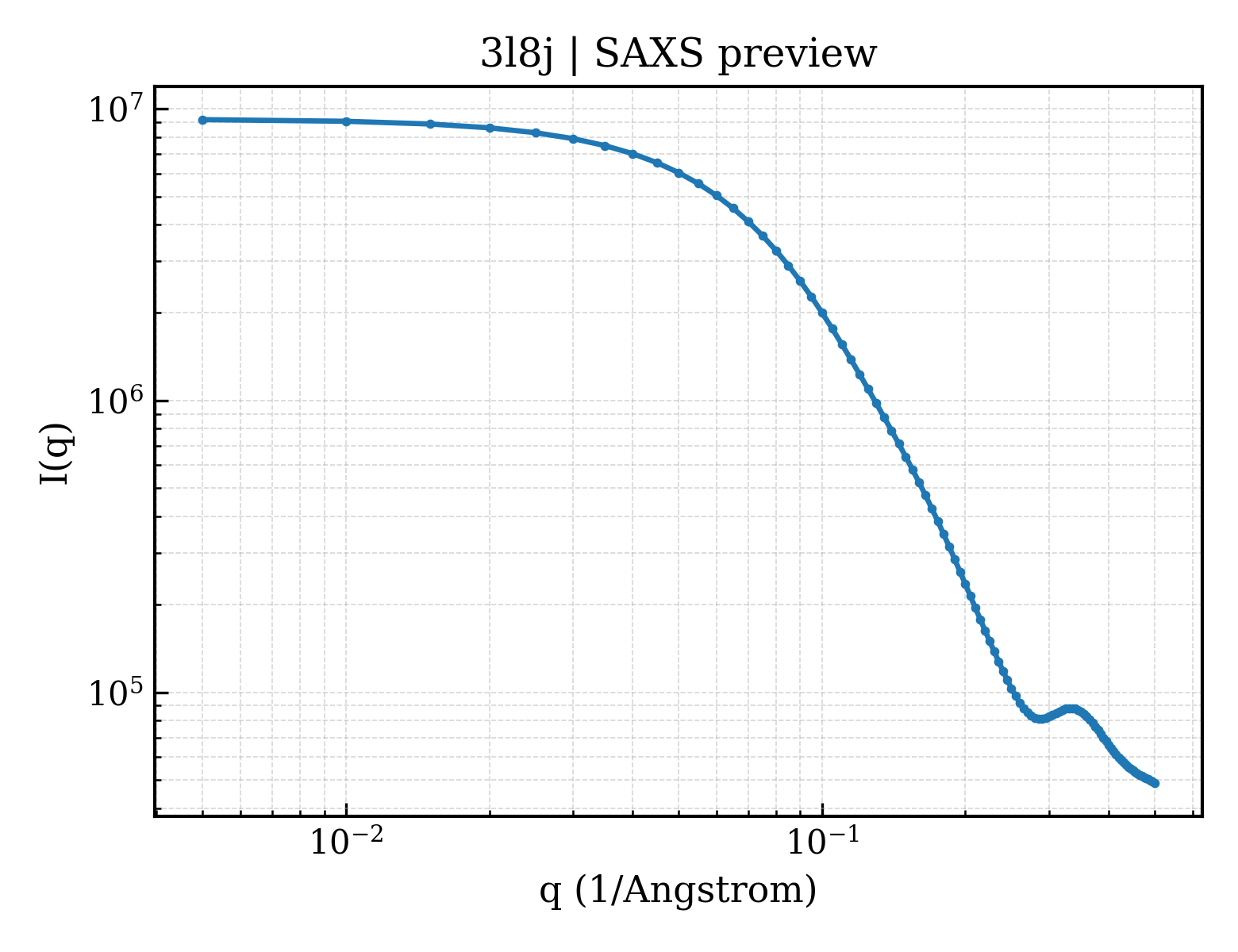

SAXS scattering curve SAXS Profile

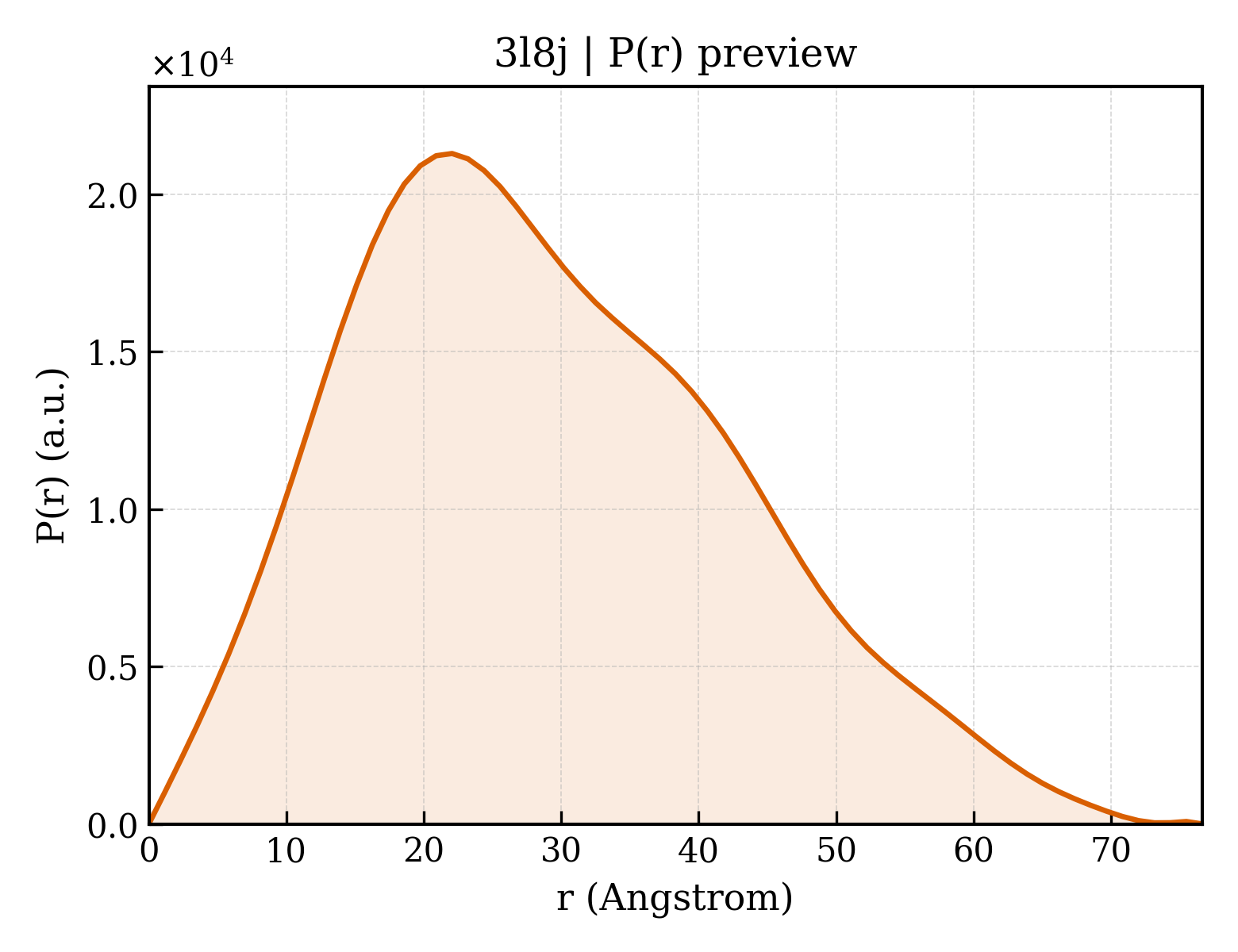

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

7. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

fit	/app/data/saxs_computation/l8/3l8j/3l8j.fit
pddf	/app/data/pr_computation/l8/3l8j/3l8j.pr.out
profile	/app/data/saxs_computation/l8/3l8j/3l8j.dat
