SAXSdb — 4geh

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Programmed cell death protein 10

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 9–212	Fragment：UNP residues 9-212	Serine/threonine-protein kinase MST4 × 1 （Q9P289）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；289 K；2% v/v Tacsimate pH 6.0, 0.1M BIS-TRIS pH 6.5, 18% w/v PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.95 Å R-free 0.253
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 9–212	Fragment：UNP residues 9-212	Serine/threonine-protein kinase MST4 × 1 （Q9P289）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；289 K；2% v/v Tacsimate pH 6.0, 0.1M BIS-TRIS pH 6.5, 18% w/v PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.95 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4GEH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3AJM Crystal structure of programmed cell death 10 in complex with inositol 1,3,4,5-tetrakisphosphate Deposited 2010-06-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 8–212（205 aa） Fragment：UNP residues 8-212 Chain B 8–212（205 aa） Fragment：UNP residues 8-212	Not recorded	4IP INOSITOL-(1,3,4,5)-TETRAKISPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；30% PEG, 0.1M sodium cacodylate, pH 6.0, VAPOR DIFFUSION, HANGING DROP, temperature 293.0K	Resolution 2.30 Å R-free 0.264
3L8I Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity Deposited 2009-12-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Chain B 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1M potassium fluoride, 13% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.50 Å R-free 0.288
3L8I Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity Deposited 2009-12-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1M potassium fluoride, 13% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.50 Å R-free 0.288
3L8I Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity Deposited 2009-12-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1M potassium fluoride, 13% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.50 Å R-free 0.288
3L8I Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity Deposited 2009-12-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 4 PDB declaration: tetrameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.1M potassium fluoride, 13% PEG 3350, pH 6.5, VAPOR DIFFUSION, HANGING DROP, temperature 298.0K	Resolution 2.50 Å R-free 0.288
3L8J Crystal structure of CCM3, a cerebral cavernous malformation protein critical for vascular integrity Deposited 2009-12-31	Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 14–212（199 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；0.16 M calcium acetate, 0.08 M sodium cacodylate pH 6.5, 20% glycerol, 13.5% PEG 8000, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.05 Å R-free 0.293
3RQE Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD1 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350., pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.295
3RQE Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD1 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350., pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.295
3RQE Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD1 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350., pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.295
3RQF Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD2 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride,15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.291
3RQF Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD2 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride,15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.291
3RQF Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD2 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride,15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.291
3RQF Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD2 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride,15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.70 Å R-free 0.291
3RQG Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD4 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.291
3RQG Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD4 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.291
3RQG Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD4 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.291
3RQG Cerebral cavernous malformation 3 (CCM3) in complex with paxillin LD4 Deposited 2011-04-28	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–212（212 aa） Chain B 1–212（212 aa） Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；0.1-0.2 M potassium fluoride, 15-20% PEG3350, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.50 Å R-free 0.291
3W8H Crystal structure of CCM3 in complex with the C-terminal regulatory domain of STK25 Deposited 2013-03-13	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 8–212（205 aa） Fragment：UNP RESIDUES 8-212	Not recorded	SO4 SULFATE ION × 14	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M Bis-Tris, 25% PEG3350, 0.2M ammonium sulfate, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.43 Å R-free 0.264
3W8I Crystal structure of CCM3 in complex with the C-terminal regulatory domain of MST4 Deposited 2013-03-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 8–212（205 aa） Fragment：UNP RESIDUES 8-212	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1M Bis-Tris, 25% PEG3350, 0.3M ammonium acetate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.267
4TVQ CCM3 in complex with CCM2 LD-like motif Deposited 2014-06-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–212（212 aa） Chain B 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；15-20% PEG3350, 0.1-0.2M POTASSIUM FLUORIDE, PH 7.0, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K	Resolution 2.80 Å R-free 0.277
4TVQ CCM3 in complex with CCM2 LD-like motif Deposited 2014-06-27	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 1–212（212 aa） Chain D 1–212（212 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；298 K；15-20% PEG3350, 0.1-0.2M POTASSIUM FLUORIDE, PH 7.0, VAPOR DIFFUSION, HANGING DROP, TEMPERATURE 298K	Resolution 2.80 Å R-free 0.277

9 other PDB entries and 21 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PDC10_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–207； UniProt 9–212 Author chain C； PDBConstruct 4–207； UniProt 9–212

Serine/threonine-protein kinase MST4

Homo sapiens

UniProt Q9P289

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 325–413	Fragment：Dimerization domain, UNP residues 325-413	Programmed cell death protein 10 × 1 （Q9BUL8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；289 K；2% v/v Tacsimate pH 6.0, 0.1M BIS-TRIS pH 6.5, 18% w/v PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.95 Å R-free 0.253
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 325–413	Fragment：Dimerization domain, UNP residues 325-413	Programmed cell death protein 10 × 1 （Q9BUL8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；289 K；2% v/v Tacsimate pH 6.0, 0.1M BIS-TRIS pH 6.5, 18% w/v PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 1.95 Å R-free 0.253

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 4GEH	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3GGF Crystal structure of human Serine/threonine-protein kinase MST4 in complex with an quinazolin Deposited 2009-02-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–300（300 aa） Fragment：protein kinase	Not recorded	CD CADMIUM ION × 4 GVD [4-({4-[(5-CYCLOPROPYL-1H-PYRAZOL-3-YL)AMINO]QUINAZOLIN-2-YL}IMINO)CYCLOHEXA-2,5-DIEN-1-YL]ACETONITRILE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277.15 K；12%w/v PEG 3350; 0.005M CdCl2; 0.1M HEPES, pH7.0 , VAPOR DIFFUSION, SITTING DROP, temperature 277.15K	Resolution 2.35 Å R-free 0.277
3GGF Crystal structure of human Serine/threonine-protein kinase MST4 in complex with an quinazolin Deposited 2009-02-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–300（300 aa） Fragment：protein kinase	Not recorded	CD CADMIUM ION × 3 GVD [4-({4-[(5-CYCLOPROPYL-1H-PYRAZOL-3-YL)AMINO]QUINAZOLIN-2-YL}IMINO)CYCLOHEXA-2,5-DIEN-1-YL]ACETONITRILE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277.15 K；12%w/v PEG 3350; 0.005M CdCl2; 0.1M HEPES, pH7.0 , VAPOR DIFFUSION, SITTING DROP, temperature 277.15K	Resolution 2.35 Å R-free 0.277
3GGF Crystal structure of human Serine/threonine-protein kinase MST4 in complex with an quinazolin Deposited 2009-02-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–300（300 aa） Fragment：protein kinase Chain B 1–300（300 aa） Fragment：protein kinase	Not recorded	CD CADMIUM ION × 7 GVD [4-({4-[(5-CYCLOPROPYL-1H-PYRAZOL-3-YL)AMINO]QUINAZOLIN-2-YL}IMINO)CYCLOHEXA-2,5-DIEN-1-YL]ACETONITRILE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277.15 K；12%w/v PEG 3350; 0.005M CdCl2; 0.1M HEPES, pH7.0 , VAPOR DIFFUSION, SITTING DROP, temperature 277.15K	Resolution 2.35 Å R-free 0.277
3W8I Crystal structure of CCM3 in complex with the C-terminal regulatory domain of MST4 Deposited 2013-03-13	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 346–416（71 aa） Fragment：UNP RESIDUES 346-416	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；0.1M Bis-Tris, 25% PEG3350, 0.3M ammonium acetate, pH 6.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.40 Å R-free 0.267
4FZA Crystal structure of MST4-MO25 complex Deposited 2012-07-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 18–297（280 aa） Fragment：Kinase domain, UNP residues 18-297	Mutation：D162A	GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.1M Tris pH 8.0, 20% PEG 350 mme, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.15 Å R-free 0.252
4FZD Crystal structure of MST4-MO25 complex with WSF motif Deposited 2012-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 18–297（280 aa） Fragment：Kinase domain, UNP residues 18-297 Chain C 323–327（5 aa） Fragment：WSF motif, UNP residues 323-327	Mutation：D162A	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.1M Tris pH 8.0, 18% PEG 350 mme, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.25 Å R-free 0.260
4FZF Crystal structure of MST4-MO25 complex with DKI Deposited 2012-07-06	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 18–297（280 aa） Fragment：Kinase domain, UNP residues 18-297	Mutation：D162A	DKI 5-AMINO-3-{[4-(AMINOSULFONYL)PHENYL]AMINO}-N-(2,6-DIFLUOROPHENYL)-1H-1,2,4-TRIAZOLE-1-CARBOTHIOAMIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；289 K；0.1M Tris pH 8.0, 20% PEG 350 mme, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 3.64 Å R-free 0.309
5XY9 Structure of the MST4 and 14-3-3 complex Deposited 2017-07-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 314–325（12 aa） Fragment：UNP residues 314-325 Chain D 314–325（12 aa） Fragment：UNP residues 314-325	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	GOL GLYCEROL × 1 PE4 2-{2-[2-(2-{2-[2-(2-ETHOXY-ETHOXY)-ETHOXY]-ETHOXY}-ETHOXY)-ETHOXY]-ETHOXY}-ETHANOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；0.2M MgCl2, 0.1M Tris pH 8.5, 25% PEG 3350	Resolution 2.30 Å R-free 0.245
5YF4 A kinase complex MST4-MOB4 Deposited 2017-09-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 320–335（16 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；0.1M HEPES, pH 7.5, 30% PEG 1000	Resolution 1.90 Å R-free 0.198
7B36 MST4 in complex with compound G-5555 Deposited 2020-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–300（300 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 59T 8-[(trans-5-amino-1,3-dioxan-2-yl)methyl]-6-[2-chloro-4-(6-methylpyridin-2-yl)phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7(8H)-one × 1 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；solution: protein 12 mg/ml in buffer 25mM HEPES pH 7.5, 200 mM NaCl, 0.5mM TCEP, 5% glycerol reservoir: 28% PEG6000, 0.1M HEPES pH 7.5	Resolution 2.11 Å R-free 0.244
7B36 MST4 in complex with compound G-5555 Deposited 2020-11-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–300（300 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 59T 8-[(trans-5-amino-1,3-dioxan-2-yl)methyl]-6-[2-chloro-4-(6-methylpyridin-2-yl)phenyl]-2-(methylamino)pyrido[2,3-d]pyrimidin-7(8H)-one × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；solution: protein 12 mg/ml in buffer 25mM HEPES pH 7.5, 200 mM NaCl, 0.5mM TCEP, 5% glycerol reservoir: 28% PEG6000, 0.1M HEPES pH 7.5	Resolution 2.11 Å R-free 0.244

8 other PDB entries and 11 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MST4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 3–91； UniProt 325–413 Author chain D； PDBConstruct 3–91； UniProt 325–413

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	4geh
Deposition date deposition_date	2012-08-02
Structure title title	Crystal structure of MST4 dimerization domain complex with PDCD10
Keywords keywords	;alpha helix-rich protein, serine/threonine-protein kinase, protein binding, cell proliferation, cell growth, PROTEIN BINDING-TRANSFERASE complex ;; PROTEIN BINDING/TRANSFERASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	30.36 Å
Radius of gyration Rg (electron density) rg_electron	30.02 Å
Forward intensity I(0) i0	55822400.00
Molecular weight molecular_weight	60008.0 kDa
Excluded volume excluded_volume	75897 Å³
Envelope volume envelope_volume	98205 Å³
Hydration-shell volume shell_volume	28767 Å³
Envelope diameter envelope_diameter	105.1 Å
Shell Rg shell_rg	35.18 Å
Envelope Rg envelope_rg	29.70 Å
Shape Rg shape_rg	30.05 Å
Total Rg total_rg	30.44 Å
Total atoms total_atoms	4213
Residues n_residues	530
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

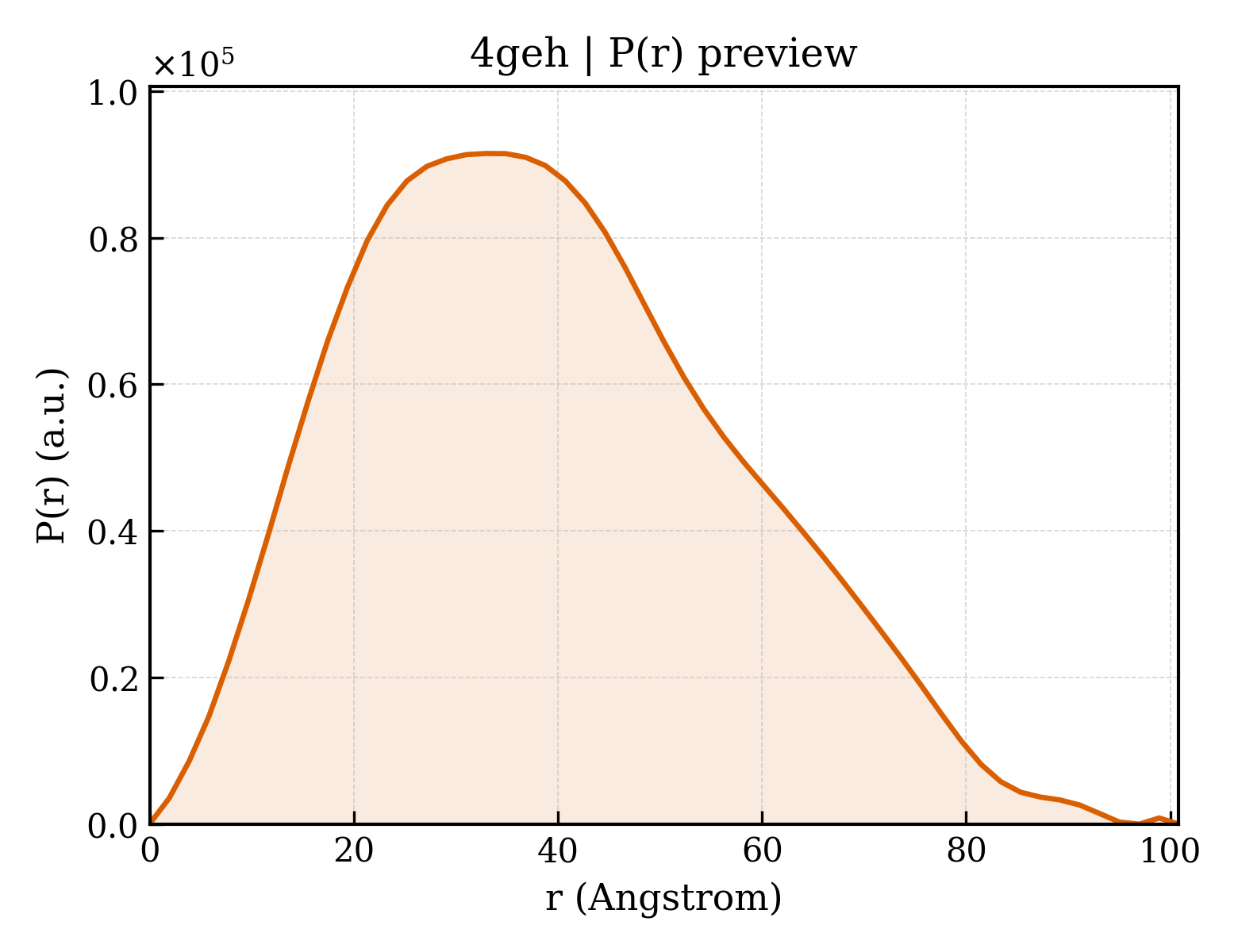

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	100.8 Å
Rg (real space) rg_real	30.45 Å
Rg uncertainty (real space) rg_real_error	1.02 Å
I(0) (real space) i0_real	5.5820e+07
I(0) uncertainty (real space) i0_real_error	8.8750e+05
Rg (reciprocal space) rg_reciprocal	30.42 Å
I(0) (reciprocal space) i0_reciprocal	55820000.0000
Solution quality estimate total_estimate	0.8142
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	33.0 Å
Skewness Skewness skewness	0.377
Kurtosis Kurtosis kurtosis	-0.446
Angular range angular_range	— – 0.2600 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8500000.0000
Real-space data points n_real_points	53
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.890; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.913; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Programmed cell death protein 10
Molecular weight formula_weight	23953.6 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	4399

GMAKNEAETTSMVSMPLYAVMYPVFNELERVNLSAAQTLRAAFIKAEKENPGLTQDIIMKILEKKSVEVNFTESLLRMAADDVEEYMIERPEPEFQDLNEKARALKQILSKIPDEINDRVRFLQTIKDIASAIKELLDTVNNVFKKYQYQNRRALEHQKKEFVKYSKSFSDTLKTYFKDGKAINVFVSANRLIHQTNLILQTFKTVA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Serine/threonine-protein kinase MST4
Molecular weight formula_weight	10011.5 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MGSFTTVRKKPDPKKVQNGAEQDLVQTLSCLSMIITPAFAELKQQDENNASRNQAIEELEKSIAVAEAACPGITDKMVKKLIEKFQKCSAD

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	174

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	4gehA00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1950 —

Domain ID domain_id	4gehB00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	70 —

Domain ID domain_id	4gehC00
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1950 —

Domain ID domain_id	4gehD00
Class class	1 — Mainly Alpha
Architecture architecture	10 — Orthogonal Bundle
Topology topology	12 — Lyase 2-enoyl-coa Hydratase; Chain A, domain 2
Homologous superfamily homologous superfamily	70 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	75.243 Å
Unit-cell length b length_b	84.018 Å
Unit-cell length c length_c	109.679 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	45.970 Å
R factor r_factor	0.2217
R_work r_work	0.2200
R_free r_free	0.2532

fit	/app/data/saxs_computation/ge/4geh/4geh.fit
pddf	/app/data/pr_computation/ge/4geh/4geh.pr.out
profile	/app/data/saxs_computation/ge/4geh/4geh.dat
