3lb8

Crystal structure of the covalent putidaredoxin reductase-putidaredoxin complex

Method: X-RAY DIFFRACTION D_max: 97.3 Å Quality: EXCELLENT

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Putidaredoxin reductase

Pseudomonas putida

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 2–422	Not recorded	Putidaredoxin × 1 （P00259） FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.3；298 K；1.3 M malonate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.272
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 2–422	Not recorded	Putidaredoxin × 1 （P00259） FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.3；298 K；1.3 M malonate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.272

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3LB8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1Q1R Crystal Structure of Putidaredoxin Reductase from Pseudomonas putida Deposited 2003-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–422（422 aa）	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；lithium sulfate, lithium acetate, lithium formate, bis-tris propane, glycerol, dithiothreitol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.91 Å R-free 0.236
1Q1R Crystal Structure of Putidaredoxin Reductase from Pseudomonas putida Deposited 2003-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–422（422 aa）	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；lithium sulfate, lithium acetate, lithium formate, bis-tris propane, glycerol, dithiothreitol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 1.91 Å R-free 0.236
1Q1W Crystal Structure of Putidaredoxin Reductase from Pseudomonas putida Deposited 2003-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–422（422 aa）	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；lithium sulfate, lithium acetate, lithium formate, bis-tris propane, glycerol, dithiothreitol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.240
1Q1W Crystal Structure of Putidaredoxin Reductase from Pseudomonas putida Deposited 2003-07-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–422（422 aa）	Not recorded	FAD FLAVIN-ADENINE DINUCLEOTIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；298 K；lithium sulfate, lithium acetate, lithium formate, bis-tris propane, glycerol, dithiothreitol, pH 8.0, VAPOR DIFFUSION, SITTING DROP, temperature 298K	Resolution 2.60 Å R-free 0.240

2 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	CAMA_PSEPU
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–421； UniProt 2–422 Author chain B； PDBConstruct 1–421； UniProt 2–422

Putidaredoxin

Pseudomonas putida

UniProt P00259

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 2–107	Mutation：C73S, C85S	Putidaredoxin reductase × 1 （P16640） FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.3；298 K；1.3 M malonate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.272
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 2–107	Mutation：C73S, C85S	Putidaredoxin reductase × 1 （P16640） FAD FLAVIN-ADENINE DINUCLEOTIDE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 6.3；298 K；1.3 M malonate, pH 6.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.60 Å R-free 0.272

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 3LB8	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
1GPX C85S GAPDX, NMR, 20 STRUCTURES Deposited 1998-06-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Mutation：C85S	GA GALLIUM (III) ION × 1	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 0.01M；Pressure 1 NMR sample composition 90/10 H2O/D2O	Resolution not provided
1OQQ Crystal structure of C73S/C85S mutant of putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida, at 1.47A resolution Deposited 2003-03-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Mutation：C73S, C85S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；298 K；ammonium sulfate, sodium citrate, sodium/potassium phosphate, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.47 Å R-free 0.218
1OQQ Crystal structure of C73S/C85S mutant of putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida, at 1.47A resolution Deposited 2003-03-10	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–106（106 aa）	Mutation：C73S, C85S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；298 K；ammonium sulfate, sodium citrate, sodium/potassium phosphate, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.47 Å R-free 0.218
1OQR Crystal structure of C73S mutant of putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida, at 1.65A resolution Deposited 2003-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；298 K；lithium sulfate, sodium citrate, dithiothreitol, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.65 Å R-free 0.257
1OQR Crystal structure of C73S mutant of putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida, at 1.65A resolution Deposited 2003-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–106（106 aa）	Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；298 K；lithium sulfate, sodium citrate, dithiothreitol, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.65 Å R-free 0.257
1OQR Crystal structure of C73S mutant of putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida, at 1.65A resolution Deposited 2003-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–106（106 aa）	Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；298 K；lithium sulfate, sodium citrate, dithiothreitol, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.65 Å R-free 0.257
1OQR Crystal structure of C73S mutant of putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida, at 1.65A resolution Deposited 2003-03-10	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 1–106（106 aa） Chain C 1–106（106 aa）	Mutation：C73S Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；298 K；lithium sulfate, sodium citrate, dithiothreitol, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 1.65 Å R-free 0.257
1PDX PUTIDAREDOXIN Deposited 1999-02-15	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–107（106 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	SOLUTION NMR NMR measurement conditions pH 7.4；290 K；Pressure 1	Resolution not provided
1PUT AN NMR-DERIVED MODEL FOR THE SOLUTION STRUCTURE OF OXIDIZED PUTIDAREDOXIN, A 2FE, 2-S FERREDOXIN FROM PSEUDOMONAS Deposited 1994-07-09	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	SOLUTION NMR mmCIF provides none of the parsed conditions	Resolution not provided
1R7S PUTIDAREDOXIN (Fe2S2 ferredoxin), C73G mutant Deposited 2003-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Mutation：C73G	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；1.5M Li2SO4, 0.1M Hepes, 2nM n-octanoyl sucrose, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.91 Å R-free 0.211
1R7S PUTIDAREDOXIN (Fe2S2 ferredoxin), C73G mutant Deposited 2003-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–106（106 aa）	Mutation：C73G	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；1.5M Li2SO4, 0.1M Hepes, 2nM n-octanoyl sucrose, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.91 Å R-free 0.211
1R7S PUTIDAREDOXIN (Fe2S2 ferredoxin), C73G mutant Deposited 2003-10-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–106（106 aa）	Mutation：C73G	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；277 K；1.5M Li2SO4, 0.1M Hepes, 2nM n-octanoyl sucrose, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.91 Å R-free 0.211
1XLN Crystal structure of oxidized C73S/C85S putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida Deposited 2004-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Mutation：C73S, C85S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；293 K；Ammonium sulfate, sodium citrate, sodium/potassium phosphate, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.03 Å R-free 0.231
1XLN Crystal structure of oxidized C73S/C85S putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida Deposited 2004-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–106（106 aa）	Mutation：C73S, C85S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；293 K；Ammonium sulfate, sodium citrate, sodium/potassium phosphate, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.03 Å R-free 0.231
1XLO Structure of reduced C73S/C85S putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida Deposited 2004-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Mutation：C73S, C85S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；293 K；Ammonium sulfate, sodium citrate, sodium/potassium phosphate, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.84 Å R-free 0.237
1XLO Structure of reduced C73S/C85S putidaredoxin, a [2Fe-2S] ferredoxin from Pseudomonas putida Deposited 2004-09-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–106（106 aa）	Mutation：C73S, C85S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.9；293 K；Ammonium sulfate, sodium citrate, sodium/potassium phosphate, pH 5.9, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.84 Å R-free 0.237
1XLP Structure of oxidized C73S putidaredoxin from Pseudomonas putida Deposited 2004-09-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–107（106 aa）	Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；293 K；lithium sulfate, sodium citrate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.221
1XLP Structure of oxidized C73S putidaredoxin from Pseudomonas putida Deposited 2004-09-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–107（106 aa）	Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；293 K；lithium sulfate, sodium citrate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.221
1XLP Structure of oxidized C73S putidaredoxin from Pseudomonas putida Deposited 2004-09-30	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2–107（106 aa）	Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；293 K；lithium sulfate, sodium citrate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.221
1XLP Structure of oxidized C73S putidaredoxin from Pseudomonas putida Deposited 2004-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain B 2–107（106 aa） Chain C 2–107（106 aa）	Mutation：C73S Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；293 K；lithium sulfate, sodium citrate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.00 Å R-free 0.221
1XLQ Crystal structure of reduced C73S putidaredoxin from Pseudomonas putida Deposited 2004-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；293 K；lithium sulfate, sodium citrate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.45 Å R-free 0.201
1XLQ Crystal structure of reduced C73S putidaredoxin from Pseudomonas putida Deposited 2004-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–106（106 aa）	Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；293 K；lithium sulfate, sodium citrate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.45 Å R-free 0.201
1XLQ Crystal structure of reduced C73S putidaredoxin from Pseudomonas putida Deposited 2004-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain C 1–106（106 aa）	Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；293 K；lithium sulfate, sodium citrate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.45 Å R-free 0.201
1XLQ Crystal structure of reduced C73S putidaredoxin from Pseudomonas putida Deposited 2004-09-30	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–106（106 aa） Chain B 1–106（106 aa）	Mutation：C73S Mutation：C73S	FES FE2/S2 (INORGANIC) CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.7；293 K；lithium sulfate, sodium citrate, pH 5.7, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.45 Å R-free 0.201
1YJI RDC-refined Solution NMR structure of reduced putidaredoxin Deposited 2005-01-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 50 mM KCl；Pressure ambient NMR sample composition 1 mM reduced putidaredoxin 15N; 50 mM Tris-Cl buffer, 50 mM KCl, pH 7.4 \| 90% H2O/10% D2O	Resolution not provided
1YJJ RDC-refined Solution NMR structure of oxidized putidaredoxin Deposited 2005-01-14	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–106（106 aa）	Not recorded	FES FE2/S2 (INORGANIC) CLUSTER × 1	SOLUTION NMR NMR measurement conditions pH 7.4；298 K；Ionic strength (raw mmCIF value) 50 mM KCl；Pressure ambient NMR sample composition 1 mM oxidized putidaredoxin 15N; 50 mM Tris-Cl buffer, 50 mM KCl, pH 7.4 \| 90% H2O/10% D2O	Resolution not provided
2M56 The structure of the complex of cytochrome P450cam and its electron donor putidaredoxin determined by paramagnetic NMR spectroscopy Deposited 2013-02-14	Different mutation/modification Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–107（106 aa）	Mutation：C74S	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CAM CAMPHOR × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	SOLUTION NMR NMR measurement conditions pH 7.4；290 K；Ionic strength (raw mmCIF value) 100；Pressure ambient NMR sample composition 100 uM [U-95% 15N] entity_1-1, 93% H2O/7% D2O \| 93% H2O/7% D2O	Resolution not provided
3W9C Crystal structure of the electron transfer complex of cytochrome p450cam with putidaredoxin Deposited 2013-04-03	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–107（106 aa）	Mutation：C73S	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 SO4 SULFATE ION × 4 GOL GLYCEROL × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；289 K；0.1M HEPES (PH7.5), 0.1M SODIUM CHLORIDE, 1.6M AMMONIUM SULFATE, VAPOR DIFFUSION, HANGING DROP, temperature 289K	Resolution 2.50 Å R-free 0.251
4JWS Crystal structure of Cytochrome P450cam-putidaredoxin complex Deposited 2013-03-27	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2–107（106 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 1 1N0 1,1'-hexane-1,6-diyldipyrrolidine-2,5-dione × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.15 Å R-free 0.225
4JWS Crystal structure of Cytochrome P450cam-putidaredoxin complex Deposited 2013-03-27	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 2–107（106 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 1 1N0 1,1'-hexane-1,6-diyldipyrrolidine-2,5-dione × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.15 Å R-free 0.225
4JWU Crystal structure of Cytochrome P450cam-putidaredoxin complex Deposited 2013-03-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–107（107 aa）	Mutation：C85S, C73S, D19C	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 1 1N0 1,1'-hexane-1,6-diyldipyrrolidine-2,5-dione × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.266
4JWU Crystal structure of Cytochrome P450cam-putidaredoxin complex Deposited 2013-03-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–107（107 aa）	Mutation：C85S, C73S, D19C	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CA CALCIUM ION × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.20 Å R-free 0.266
4JX1 Crystal structure of reduced Cytochrome P450cam-putidaredoxin complex bound to camphor and 5-exo-hydroxycamphor Deposited 2013-03-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–107（107 aa）	Mutation：C85S, C73S, D19C	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CAM CAMPHOR × 1 CAH 5-EXO-HYDROXYCAMPHOR × 1 CA CALCIUM ION × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.09 Å R-free 0.212
4JX1 Crystal structure of reduced Cytochrome P450cam-putidaredoxin complex bound to camphor and 5-exo-hydroxycamphor Deposited 2013-03-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–107（107 aa）	Mutation：C85S, C73S, D19C	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CAM CAMPHOR × 1 CA CALCIUM ION × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.09 Å R-free 0.212
4JX1 Crystal structure of reduced Cytochrome P450cam-putidaredoxin complex bound to camphor and 5-exo-hydroxycamphor Deposited 2013-03-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–107（107 aa）	Mutation：C85S, C73S, D19C	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CAM CAMPHOR × 1 CAH 5-EXO-HYDROXYCAMPHOR × 1 CA CALCIUM ION × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1 1N0 1,1'-hexane-1,6-diyldipyrrolidine-2,5-dione × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.09 Å R-free 0.212
4JX1 Crystal structure of reduced Cytochrome P450cam-putidaredoxin complex bound to camphor and 5-exo-hydroxycamphor Deposited 2013-03-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 1–107（107 aa）	Mutation：C85S, C73S, D19C	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CAM CAMPHOR × 1 CAH 5-EXO-HYDROXYCAMPHOR × 1 CA CALCIUM ION × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.4；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.09 Å R-free 0.212
5GXG High-resolution crystal structure of the electron transfer complex of cytochrome p450cam with putidaredoxin Deposited 2016-09-17	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 2–107（106 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 SO4 SULFATE ION × 5 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1M HEPES, 0.1M Sodium Chloride, 1.6M Ammonium sulfate	Resolution 1.70 Å R-free 0.192
5GXG High-resolution crystal structure of the electron transfer complex of cytochrome p450cam with putidaredoxin Deposited 2016-09-17	Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 2–107（106 aa）	Not recorded	HEM PROTOPORPHYRIN IX CONTAINING FE × 2 SO4 SULFATE ION × 10 DTT 2,3-DIHYDROXY-1,4-DITHIOBUTANE × 2 FES FE2/S2 (INORGANIC) CLUSTER × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1M HEPES, 0.1M Sodium Chloride, 1.6M Ammonium sulfate	Resolution 1.70 Å R-free 0.192
6NBL Cytochrome P450cam-putidaredoxin complex bound to camphor and cyanide Deposited 2018-12-07	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 2–107（106 aa）	Mutation：D19C, C74S	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CYN CYANIDE ION × 1 CAM CAMPHOR × 1 CA CALCIUM ION × 1 1N0 1,1'-hexane-1,6-diyldipyrrolidine-2,5-dione × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, 50 mM KCN	Resolution 2.15 Å R-free 0.254
6NBL Cytochrome P450cam-putidaredoxin complex bound to camphor and cyanide Deposited 2018-12-07	Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 2–107（106 aa）	Mutation：D19C, C74S	HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CYN CYANIDE ION × 1 CAM CAMPHOR × 1 CA CALCIUM ION × 1 1N0 1,1'-hexane-1,6-diyldipyrrolidine-2,5-dione × 1 FES FE2/S2 (INORGANIC) CLUSTER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；298 K；0.2 M calcium acetate hydrate, 14-22% PEG3350, pH 7.4, 50 mM KCN	Resolution 2.15 Å R-free 0.254

19 other PDB entries and 40 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	PUTX_PSEPU
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–106； UniProt 2–107 Author chain D； PDBConstruct 1–106； UniProt 2–107

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

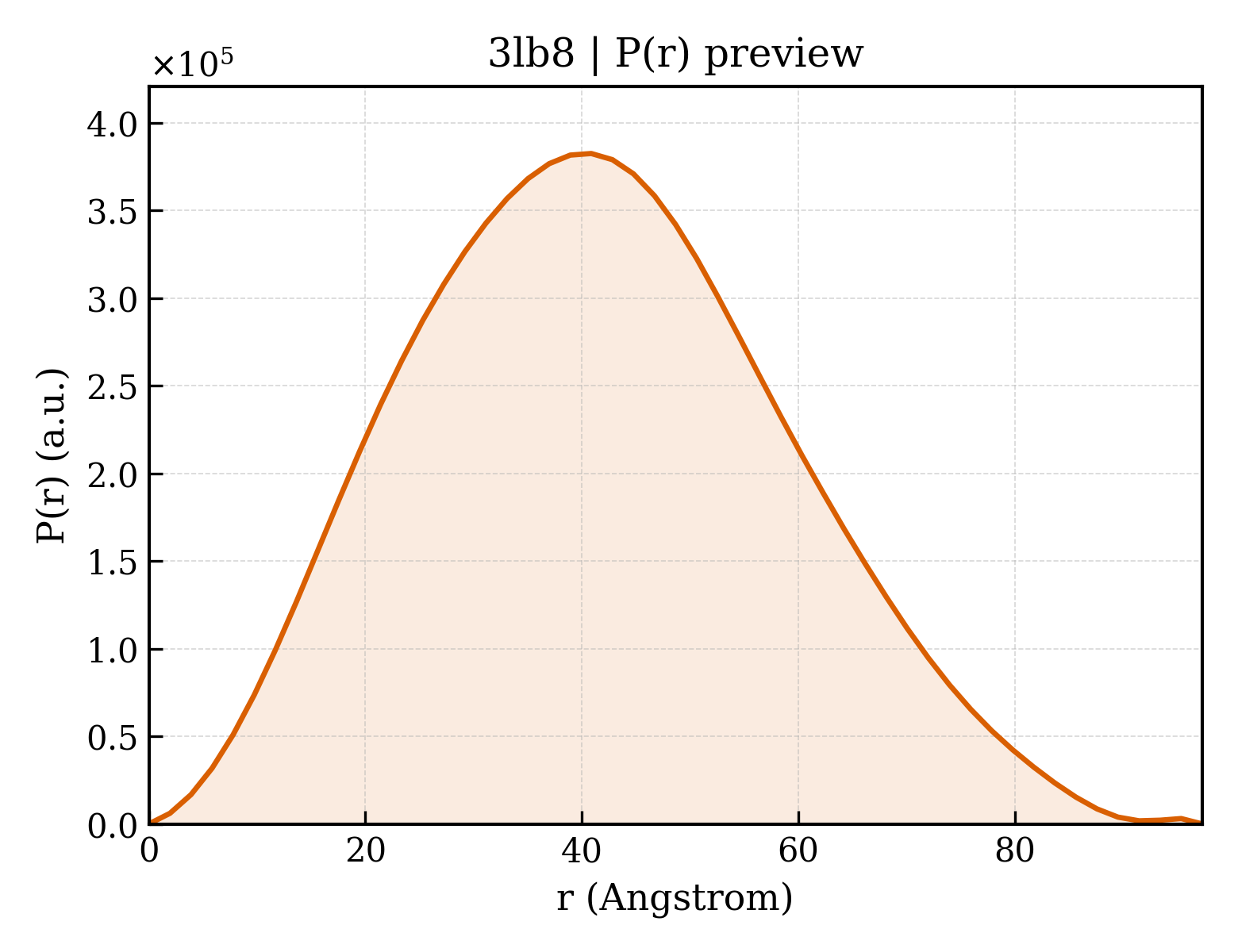

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3lb8
Deposition date deposition_date	2010-01-07
Structure title title	Crystal structure of the covalent putidaredoxin reductase-putidaredoxin complex
Keywords keywords	;covalently linked protein-protein complex, FAD, Flavoprotein, Oxidoreductase, Electron transport, Iron-sulfur, Metal-binding, Oxidoreductase-Electron Transport complex ;; Oxidoreductase/Electron Transport
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	31.88 Å
Radius of gyration Rg (electron density) rg_electron	30.90 Å
Forward intensity I(0) i0	215602000.00
Molecular weight molecular_weight	114190.0 kDa
Excluded volume excluded_volume	141890 Å³
Envelope volume envelope_volume	179180 Å³
Hydration-shell volume shell_volume	46910 Å³
Envelope diameter envelope_diameter	104.4 Å
Shell Rg shell_rg	39.08 Å
Envelope Rg envelope_rg	30.69 Å
Shape Rg shape_rg	30.94 Å
Total Rg total_rg	31.47 Å
Total atoms total_atoms	8001
Residues n_residues	1043
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	97.3 Å
Rg (real space) rg_real	31.72 Å
Rg uncertainty (real space) rg_real_error	0.49 Å
I(0) (real space) i0_real	2.1560e+08
I(0) uncertainty (real space) i0_real_error	3.3980e+06
Rg (reciprocal space) rg_reciprocal	31.79 Å
I(0) (reciprocal space) i0_reciprocal	215600000.0000
Solution quality estimate total_estimate	0.9034
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	40.9 Å
Skewness Skewness skewness	0.209
Kurtosis Kurtosis kurtosis	-0.442
Angular range angular_range	— – 0.2500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	74530000.0000
Real-space data points n_real_points	51
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.942; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.925

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Putidaredoxin reductase
Molecular weight formula_weight	47265.7 kDa
EC 编号 ec_number	1.18.1.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	8063

NANDNVVIVGTGLAGVEVAFGLRASGWEGNIRLVGDATVIPHHLPPLSKAYLAGKATAESLYLRTPDAYAAQNIQLLGGTQVTAINRDRQQVILSDGRALDYDRLVLATGGRPRPLPVASGAVGKANNFRYLRTLEDAECIRRQLIADNRLVVIGGGYIGLEVAATAIKANMHVTLLDTAARVLERVTAPPVSAFYEHLHREAGVDIRTGTQVCGFEMSTDQQKVTAVLCEDGTRLPADLVIAGIGLIPNCELASAAGLQVDNGIVINEHMQTSDPLIMAVGDCARFHSQLYDRWVRIESVPNALEQARKIAAILCGKVPRDEAAPWFWSDQYEIGLKMVGLSEGYDRIIVRGSLAQPDFSVFYLQGDRVLAVDTVNRPVEFNQSKQIITDRLPVEPNLLGDESVPLKEIIAAAKAELSSAKAELSSAPRHHHHHH

来源 Source

来源生物 organism	Pseudomonas putida
NCBI Class编号 ncbi_taxonomy_id	303
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Putidaredoxin
Molecular weight formula_weight	11396.8 kDa
Mutation mutation	C73S, C85S
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

SKVVYVSHDGTRRELDVADGVSLMQAAVSNGIYDIVGDCGGSASCATCHVYVNEAFTDKVPAANEREIGMLESVTAELKPNSRLSCQIIMTPELDGIVVDVPDRQW

来源 Source

来源生物 organism	Pseudomonas putida
NCBI Class编号 ncbi_taxonomy_id	303
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	FE2/S2 (INORGANIC) CLUSTER
Molecular weight formula_weight	175.8 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	62

▼

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3lb8c_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

Domain ID domain_id	d3lb8d_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.4 — 2Fe-2S ferredoxin-like
Family Family family	d.15.4.1 — 2Fe-2S ferredoxin-related

CATH v4.4 (8 domains)

Domain ID domain_id	3lb8A01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	3lb8A02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	3lb8A03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

Domain ID domain_id	3lb8B01
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	3lb8B02
Class class	3 — Alpha Beta
Architecture architecture	50 — 3-Layer(bba) Sandwich
Topology topology	50 — FAD/NAD(P)-binding domain
Homologous superfamily homologous superfamily	60 — FAD/NAD(P)-binding domain

Domain ID domain_id	3lb8B03
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	390 — Enolase-like; domain 1
Homologous superfamily homologous superfamily	30 — FAD/NAD-linked reductase, C-terminal dimerisation domain

Domain ID domain_id	3lb8C00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

Domain ID domain_id	3lb8D00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	30 — Beta-grasp domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	67.600 Å
Unit-cell length b length_b	103.400 Å
Unit-cell length c length_c	167.700 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	49.500 Å
R factor r_factor	0.2440
R_work r_work	0.2440
R_free r_free	0.2720

fit	/app/data/saxs_computation/lb/3lb8/3lb8.fit
pddf	/app/data/pr_computation/lb/3lb8/3lb8.pr.out
profile	/app/data/saxs_computation/lb/3lb8/3lb8.dat

Crystal structure of the covalent putidaredoxin reductase-putidaredoxin complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Putidaredoxin reductase

State in the Current Structure

Other States of the Same Protein in the Database

Putidaredoxin

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

2. Structure Basics 2. Structure Basics

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

5. Crystallography and Experiment 5. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

6. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Polymer Polymer

来源 Source

Entity 2 Entity 2 polymer

Polymer Polymer

来源 Source

Entity 3 Entity 3 non-polymer

Entity 4 Entity 4 non-polymer

Entity 5 Entity 5 water

7. Fold Classification (SCOP + CATH) 10 domains

SCOP 2.08 (2 domains)

CATH v4.4 (8 domains)

8. Citations (1)

9. Files and Curves (10)

Files (7)

Curves (3)
