SAXSdb — 3lui

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Sorting nexin-17

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–112	Fragment：SNX17 PX domain (residues 1-112)	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；1.8M lithium sulphate, 0.1M Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.245
2	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain B； UniProt 1–112	Fragment：SNX17 PX domain (residues 1-112)	SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；1.8M lithium sulphate, 0.1M Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.245
3	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain C； UniProt 1–112	Fragment：SNX17 PX domain (residues 1-112)	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；1.8M lithium sulphate, 0.1M Tris, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.245

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3LUI	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3FOG Crystal structure of the PX domain of sorting nexin-17 (SNX17) Deposited 2008-12-30	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–108（108 aa） Fragment：residues 1-115	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；20% PEG 3350, 0.2M sodium fluoride, 0.1M bis-Tris propane, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 2.80 Å R-free 0.279
4GXB Structure of the SNX17 atypical FERM domain bound to the NPxY motif of P-selectin Deposited 2012-09-04	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 111–388（278 aa） Fragment：FERM domain, UNP residues 111-388	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；0.1M sodium acetate, 0.2M magnesium chloride, 15% PEG4000, pH 5.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.80 Å R-free 0.204
4TKN Structure of the SNX17 FERM domain bound to the second NPxF motif of KRIT1 Deposited 2014-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 108–391（284 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；1.9 M Ammonium Sulfate, 0.1 M HEPES pH 7.5, 5% PEG 400	Resolution 3.00 Å R-free 0.268
4TKN Structure of the SNX17 FERM domain bound to the second NPxF motif of KRIT1 Deposited 2014-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 108–391（284 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；1.9 M Ammonium Sulfate, 0.1 M HEPES pH 7.5, 5% PEG 400	Resolution 3.00 Å R-free 0.268
4TKN Structure of the SNX17 FERM domain bound to the second NPxF motif of KRIT1 Deposited 2014-05-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 108–391（284 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；298 K；1.9 M Ammonium Sulfate, 0.1 M HEPES pH 7.5, 5% PEG 400	Resolution 3.00 Å R-free 0.268
7RM8 Solution NMR structure of PDLIM7 PDZ bound to SNX17 peptide Deposited 2021-07-26	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 457–470（14 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 5.8；298 K；Ionic strength (raw mmCIF value) 75 mM NaCl；Pressure 1 NMR sample composition 1 mM [U-13C; U-15N] PDLIM7_SNX17_Fusion, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
9AU7 Human Retriever VPS35L/VPS29/VPS26C complex bound to SNX17 peptide (Composite Map) Deposited 2024-02-28	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain D 451–470（20 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å

5 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	SNX17_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 4–115； UniProt 1–112 Author chain B； PDBConstruct 4–115； UniProt 1–112 Author chain C； PDBConstruct 4–115； UniProt 1–112

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3lui
Deposition date deposition_date	2010-02-17
Structure title title	Crystal structure of the SNX17 PX domain with bound sulphate
Keywords keywords	SNX17, sorting nexin, PX domain, endosome, Phosphoprotein, Protein transport, Transport; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	23.00 Å
Radius of gyration Rg (electron density) rg_electron	21.89 Å
Forward intensity I(0) i0	25980500.00
Molecular weight molecular_weight	37335.0 kDa
Excluded volume excluded_volume	46083 Å³
Envelope volume envelope_volume	58761 Å³
Hydration-shell volume shell_volume	22834 Å³
Envelope diameter envelope_diameter	66.4 Å
Shell Rg shell_rg	28.05 Å
Envelope Rg envelope_rg	21.23 Å
Shape Rg shape_rg	21.90 Å
Total Rg total_rg	22.62 Å
Total atoms total_atoms	2624
Residues n_residues	319
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

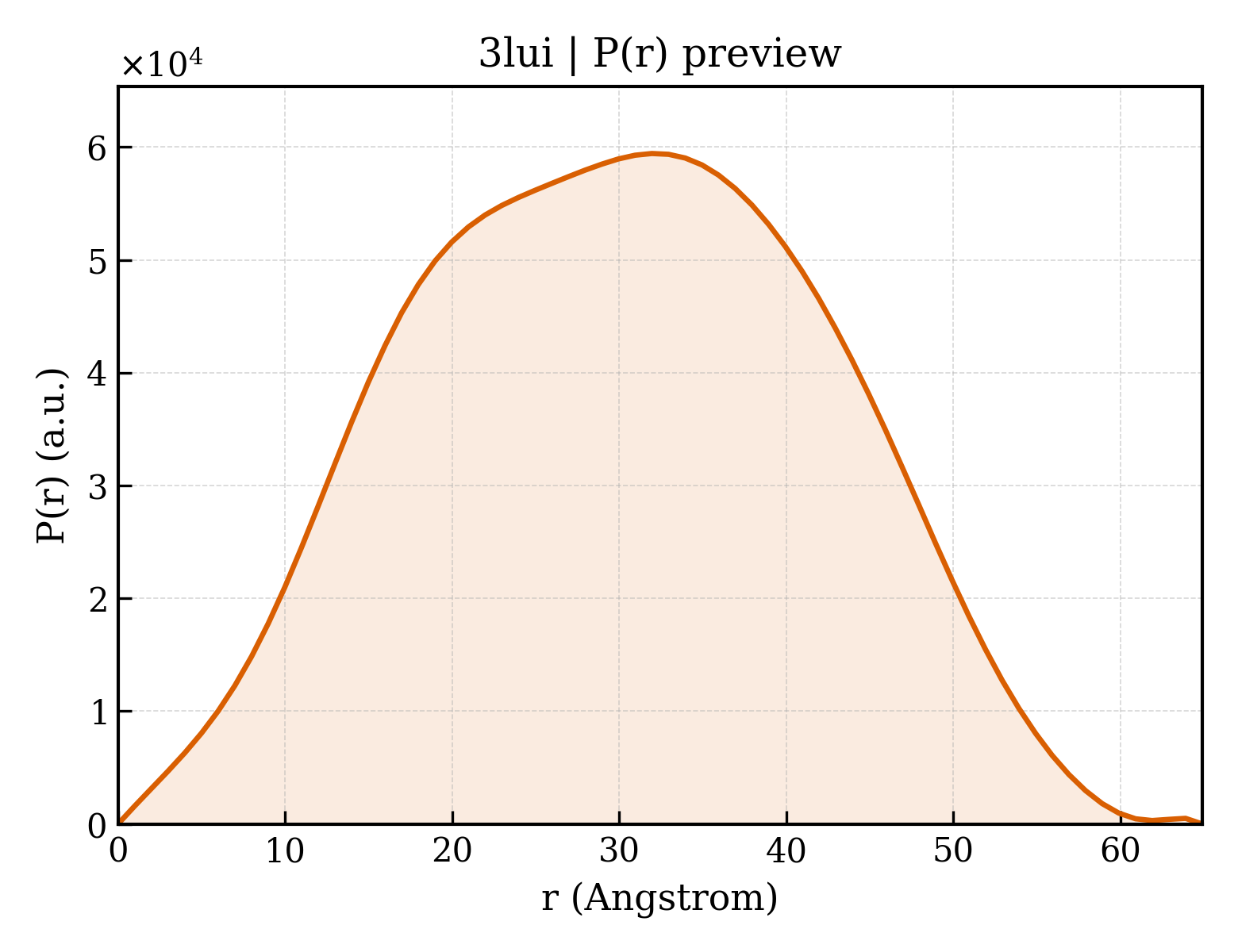

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	64.9 Å
Rg (real space) rg_real	22.84 Å
Rg uncertainty (real space) rg_real_error	0.32 Å
I(0) (real space) i0_real	2.5980e+07
I(0) uncertainty (real space) i0_real_error	3.1670e+05
Rg (reciprocal space) rg_reciprocal	22.88 Å
I(0) (reciprocal space) i0_reciprocal	25980000.0000
Solution quality estimate total_estimate	0.9187
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	31.9 Å
Skewness Skewness skewness	0.013
Kurtosis Kurtosis kurtosis	-0.685
Angular range angular_range	— – 0.3450 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	5971000.0000
Real-space data points n_real_points	66
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.992; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.969

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Sorting nexin-17
Molecular weight formula_weight	13082.6 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	3144

SNAMHFSIPETESRSGDSGGSAYVAYNIHVNGVLHCRVRYSQLLGLHEQLRKEYGANVLPAFPPKKLFSLTPAEVEQRREQLEKYMQAVRQDPLLGSSETFNSFLRRAQQETQQV

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	520

▼

7. Fold Classification (SCOP + CATH) 7 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d3luia_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.189 — PX domain
Superfamily Superfamily superfamily	d.189.1 — PX domain
Family Family family	d.189.1.0 — automated matches

Domain ID domain_id	d3luib_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.189 — PX domain
Superfamily Superfamily superfamily	d.189.1 — PX domain
Family Family family	d.189.1.0 — automated matches

Domain ID domain_id	d3luic1
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.189 — PX domain
Superfamily Superfamily superfamily	d.189.1 — PX domain
Family Family family	d.189.1.0 — automated matches

Domain ID domain_id	d3luic2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	3luiA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1520 — PX Domain
Homologous superfamily homologous superfamily	10 — Phox-like domain

Domain ID domain_id	3luiB00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1520 — PX Domain
Homologous superfamily homologous superfamily	10 — Phox-like domain

Domain ID domain_id	3luiC00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1520 — PX Domain
Homologous superfamily homologous superfamily	10 — Phox-like domain

▶

8. Citations (1)

▶

Unit-cell length a length_a	56.893 Å
Unit-cell length b length_b	66.588 Å
Unit-cell length c length_c	98.193 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	49.227 Å
R factor r_factor	0.2025
R_work r_work	0.2002
R_free r_free	0.2447

fit	/app/data/saxs_computation/lu/3lui/3lui.fit
pddf	/app/data/pr_computation/lu/3lui/3lui.pr.out
profile	/app/data/saxs_computation/lu/3lui/3lui.dat
