SAXSdb — 9au7

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

VPS35 endosomal protein-sorting factor-like

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Vacuolar protein sorting-associated protein 29 × 1 （Q9UBQ0） Vacuolar protein sorting-associated protein 26C × 1 （O14972） Sorting nexin-17 × 1 （Q15036）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VP35L_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–963； UniProt 1–963

Vacuolar protein sorting-associated protein 29

Homo sapiens

UniProt Q9UBQ0

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	VPS35 endosomal protein-sorting factor-like × 1 （Q7Z3J2） Vacuolar protein sorting-associated protein 26C × 1 （O14972） Sorting nexin-17 × 1 （Q15036）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VPS29_HUMAN
Isoform	Q9UBQ0-2
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–186； UniProt 1–186

Vacuolar protein sorting-associated protein 26C

Homo sapiens

UniProt O14972

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	VPS35 endosomal protein-sorting factor-like × 1 （Q7Z3J2） Vacuolar protein sorting-associated protein 29 × 1 （Q9UBQ0） Sorting nexin-17 × 1 （Q15036）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	VP26C_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–297； UniProt 1–297

Sorting nexin-17

OrganismNot specified

UniProt Q15036

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	VPS35 endosomal protein-sorting factor-like × 1 （Q7Z3J2） Vacuolar protein sorting-associated protein 29 × 1 （Q9UBQ0） Vacuolar protein sorting-associated protein 26C × 1 （O14972）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SNX17_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–20； UniProt 451–470

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9au7
Deposition date deposition_date	2024-02-28
Structure title title	Human Retriever VPS35L/VPS29/VPS26C complex bound to SNX17 peptide (Composite Map)
Keywords keywords	Retreiver, CCC, Endosomal recycling, Sorting Nexin, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9au7__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9au7__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

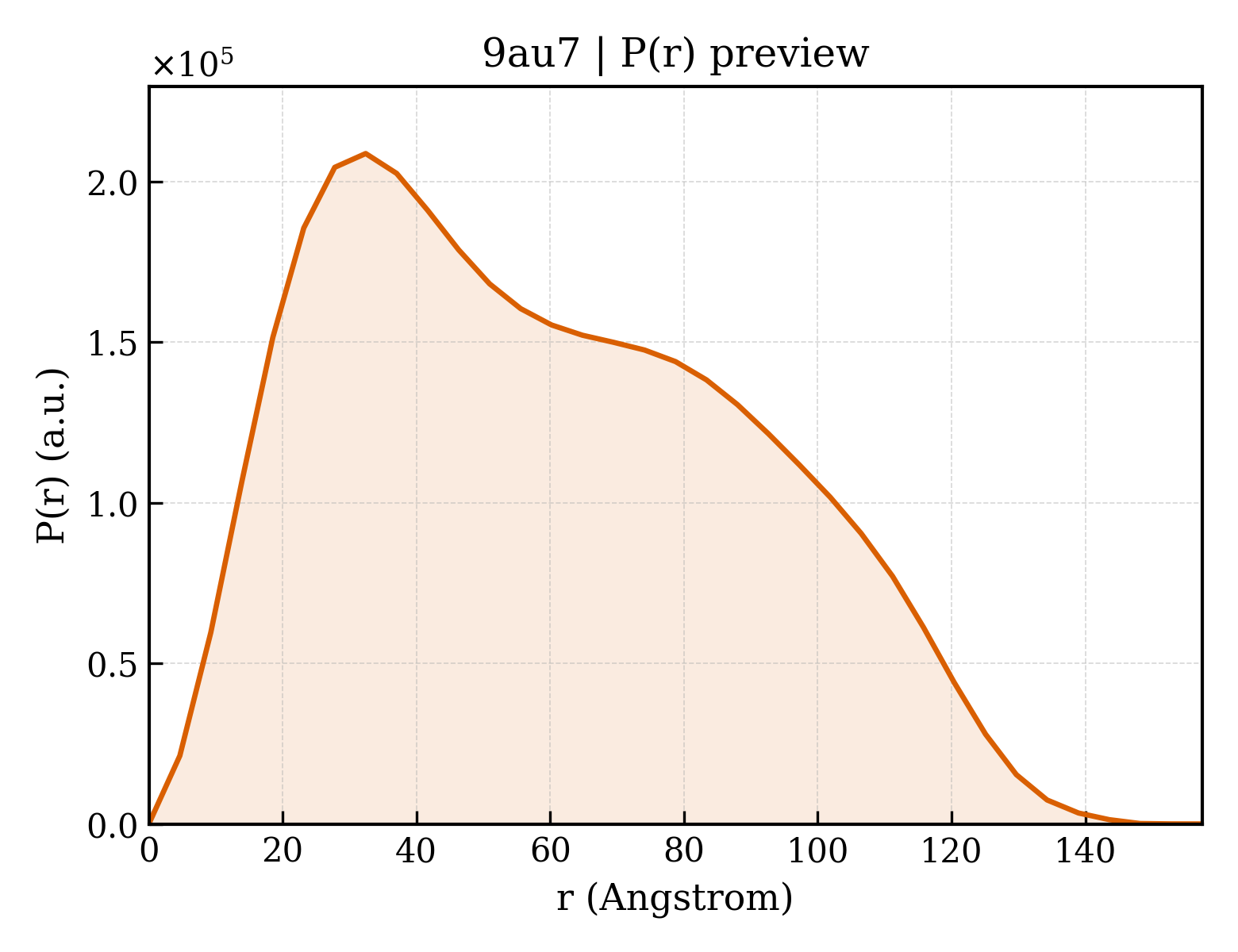

9au7__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	46.66 Å
Rg (electron density)	46.92 Å
Total Rg	47.02 Å
Atom count	17304
Residues	1079
Excluded volume	155130 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9au7__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	VPS35 endosomal protein-sorting factor-like
Molecular weight formula_weight	109700.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	17304

MAVFPWHSRNRNYKAEFASCRLEAVPLEFGDYHPLKPITVTESKTKKVNRKGSTSSTSSSSSSSVVDPLSSVLDGTDPLSMFAATADPAALAAAMDSSRRKRDRDDNSVVGSDFEPWTNKRGEILARYTTTEKLSINLFMGSEKGKAGTATLAMSEKVRTRLEELDDFEEGSQKELLNLTQQDYVNRIEELNQSLKDAWASDQKVKALKIVIQCSKLLSDTSVIQFYPSKFVLITDILDTFGKLVYERIFSMCVDSRSVLPDHFSPENANDTAKETCLNWFFKIASIRELIPRFYVEASILKCNKFLSKTGISECLPRLTCMIRGIGDPLVSVYARAYLCRVGMEVAPHLKETLNKNFFDFLLTFKQIHGDTVQNQLVVQGVELPSYLPLYPPAMDWIFQCISYHAPEALLTEMMERCKKLGNNALLLNSVMSAFRAEFIATRSMDFIGMIKECDESGFPKHLLFRSLGLNLALADPPESDRLQILNEAWKVITKLKNPQDYINCAEVWVEYTCKHFTKREVNTVLADVIKHMTPDRAFEDSYPQLQLIIKKVIAHFHDFSVLFSVEKFLPFLDMFQKESVRVEVCKCIMDAFIKHQQEPTKDPVILNALLHVCKTMHDSVNALTLEDEKRMLSYLINGFIKMVSFGRDFEQQLSFYVESRSMFCNLEPVLVQLIHSVNRLAMETRKVMKGNHSRKTAAFVRACVAYCFITIPSLAGIFTRLNLYLHSGQVALANQCLSQADAFFKAAISLVPEVPKMINIDGKMRPSESFLLEFLCNFFSTLLIVPDHPEHGVLFLVRELLNVIQDYTWEDNSDEKIRIYTCVLHLLSAMSQETYLYHIDKVDSNDSLYGGDSKFLAENNKLCETVMAQILEHLKTLAKDEALKRQSSLGLSFFNSILAHGDLRNNKLNQLSVNLWHLAQRHGCADTRTMVKTLEYIKKQSKQPDMTHLTELALRLPLQTRT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Vacuolar protein sorting-associated protein 29
Molecular weight formula_weight	23038.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MAGHRLVLVLGDLHIPHRCNSLPAKFKKLLVPGKIQHILCTGNLCTKESYDYLKTLAGDVHIVRGDFDENLNYPEQKVVTVGQFKIGLIHGHQVIPWGDMASLALLQRQFDVDILISGHTHKFEAFEHENKFYINPGSATGAYNALETNIIPSFVLMDIQASTVVTYVYQLIGDDVKVERIEYKKPENLYFQGGGSGGSHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Vacuolar protein sorting-associated protein 26C
Molecular weight formula_weight	33049.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MGTALDIKIKRANKVYHAGEVLSGVVVISSKDSVQHQGVSLTMEGTVNLQLSAKSVGVFEAFYNSVKPIQIINSTIEMVKPGKFPSGKTEIPFEFPLHLKGNKVLYETYHGVFVNIQYTLRCDMKRSLLAKDLTKTCEFIVHSAPQKGKFTPSPVDFTITPETLQNVKERALLPKFLLRGHLNSTNCVITQPLTGELVVESSEAAIRSVELQLVRVETCGCAEGYARDATEIQNIQIADGDVCRGLSVPIYMVFPRLFTCPTLETTNFKVEFEVNIVVLLHPDHLITENFPLKLCRI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Sorting nexin-17
Molecular weight formula_weight	2052.1 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

ASASDVHGNFAFEGIGDEDL

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.40 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	227973

Human Retriever VPS35L/VPS29/VPS26C complex bound to SNX17 peptide (Composite Map)
