Homo sapiens
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Netrin receptor DCC × 1 （P70211） GLYCEROL × 1 water × 2 | Consistent with protein count |
| UniProt name | MYO10_HUMAN |
| Isoform | — |
| PDB entities | 1 |
| Chains and sequence ranges | Author chain A； PDBConstruct 3–511； UniProt 1503–2047 |
Mus musculus
| Assembly | Physical composition | Protein state | Molecular copy count | Associated components | Data consistency |
|---|---|---|---|---|---|
| 1 | Protein heterocomplex | Heteromer | Protein 2 | Myosin-X × 1 （Q9HD67） GLYCEROL × 1 water × 2 | Consistent with protein count |
| UniProt name | DCC_MOUSE |
| Isoform | — |
| PDB entities | 2 |
| Chains and sequence ranges | Author chain B； PDBConstruct 1–36； UniProt 1410–1445 |
The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.
| Entry ID entry_id | 3pzd |
| Deposition date deposition_date | 2010-12-14 |
| Structure title title | Structure of the myosin X MyTH4-FERM/DCC complex |
| Keywords keywords | protein-protein complex, MyTH4 domain, FERM domain, Cargo Binding, MOTOR PROTEIN-APOPTOSIS complex; MOTOR PROTEIN/APOPTOSIS |
| Experimental Method method | X-RAY DIFFRACTION |

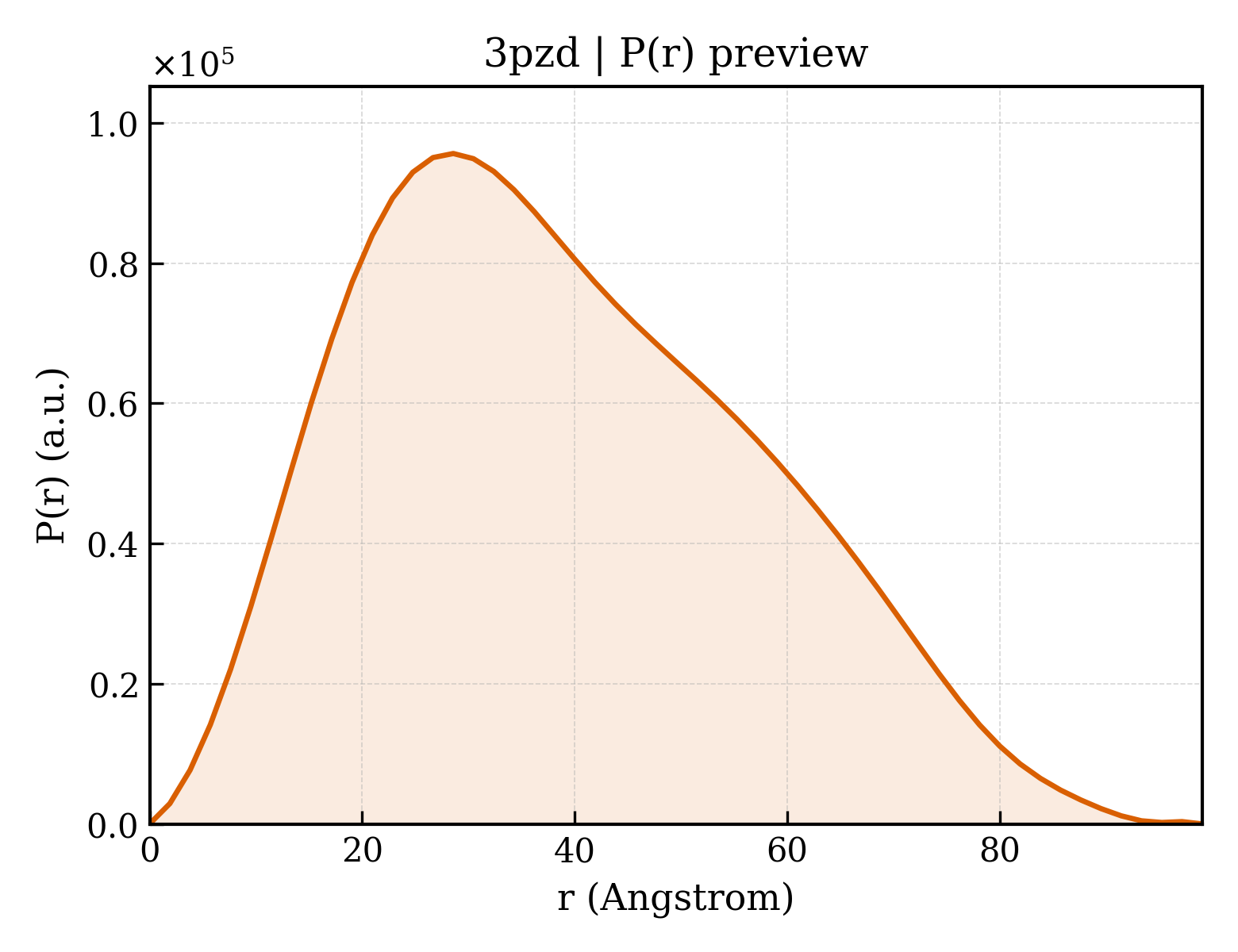

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.
Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)
| Rg（Guinier） | 30.26 Å |
| Rg (electron density) | 29.64 Å |
| Total Rg | 30.15 Å |
| Atom count | 4226 |
| Residues | 534 |
| Excluded volume | 75574 ų |
| Maximum q | 0.500 Å⁻¹ |
| Domain ID domain_id | 3pzdA01 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 25 — Alpha Horseshoe |
| Topology topology | 40 — Serine Threonine Protein Phosphatase 5, Tetratricopeptide repeat |
| Homologous superfamily homologous superfamily | 530 — MyTH4 domain |
| Domain ID domain_id | 3pzdA02 |
| Class class | 3 — Alpha Beta |
| Architecture architecture | 10 — Roll |
| Topology topology | 20 — Ubiquitin-like (UB roll) |
| Homologous superfamily homologous superfamily | 90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1 |
| Domain ID domain_id | 3pzdA03 |
| Class class | 1 — Mainly Alpha |
| Architecture architecture | 20 — Up-down Bundle |
| Topology topology | 80 — Acyl-CoA Binding Protein |
| Homologous superfamily homologous superfamily | 10 — |
| Domain ID domain_id | 3pzdA04 |
| Class class | 2 — Mainly Beta |
| Architecture architecture | 30 — Roll |
| Topology topology | 29 — PH-domain like |
| Homologous superfamily homologous superfamily | 30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB) |
