SAXSdb — 3q4l

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DNA polymerase III subunit beta

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	peptide ligand × 2 SODIUM ION × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	DPO3B_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–368； UniProt 1–366 Author chain B； PDBConstruct 3–368； UniProt 1–366

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3q4l
Deposition date deposition_date	2010-12-23
Structure title title	Structure of a small peptide ligand bound to E.coli DNA sliding clamp
Keywords keywords	;DNA polymerase, sliding clamp, processivity factors, ligand binding, DNA replication, DNA-directed DNA polymerase, Nucleotidyltransferase, Transferase, transferase-peptide complex, transferase-transferase inhibitor complex ;; transferase/transferase inhibitor
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3q4l__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3q4l__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

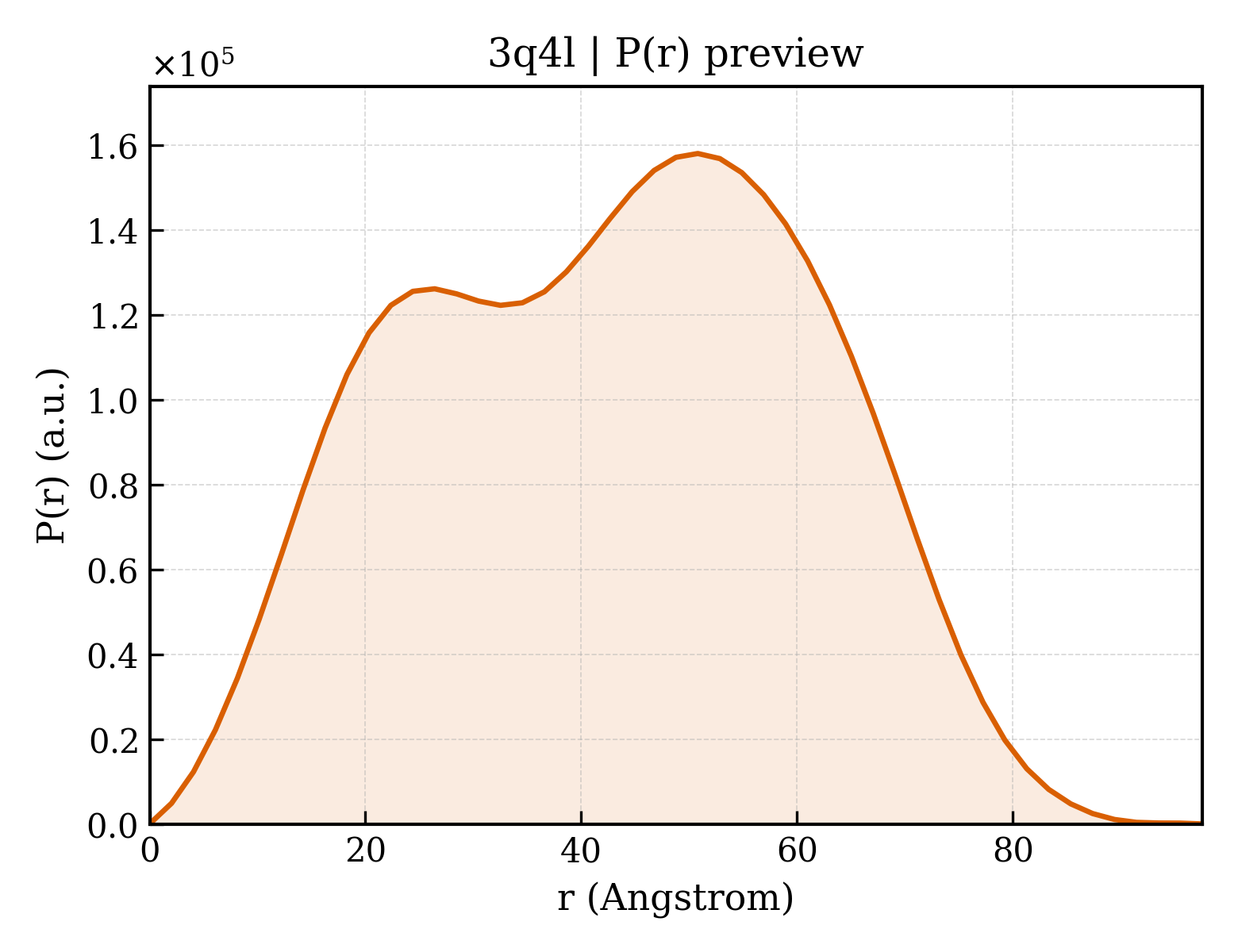

3q4l__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	33.11 Å
Rg (electron density)	32.00 Å
Total Rg	32.68 Å
Atom count	5591
Residues	733
Excluded volume	99884 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3q4l__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	DNA polymerase III subunit beta
Molecular weight formula_weight	40772.7 kDa
EC 编号 ec_number	2.7.7.7
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	5916

AAMKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAILSNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	83333
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	peptide ligand
Molecular weight formula_weight	769.7 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

XQADLF

Entity 3 Entity 3 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	296

▼

6. Fold Classification (SCOP + CATH) 6 domains

CATH v4.4 (6 domains)

Domain ID domain_id	3q4lA01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	150 — DNA Polymerase III; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

Domain ID domain_id	3q4lA02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	150 — DNA Polymerase III; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

Domain ID domain_id	3q4lA03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	150 — DNA Polymerase III; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

Domain ID domain_id	3q4lB01
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	150 — DNA Polymerase III; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

Domain ID domain_id	3q4lB02
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	150 — DNA Polymerase III; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

Domain ID domain_id	3q4lB03
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	150 — DNA Polymerase III; Chain A, domain 2
Homologous superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

▶

Unit-cell length a length_a	34.840 Å
Unit-cell length b length_b	79.570 Å
Unit-cell length c length_c	81.640 Å
Unit-cell angle α angle_alpha	65.28 °
Unit-cell angle β angle_beta	75.26 °
Unit-cell angle γ angle_gamma	82.22 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	1.950 Å
Low-resolution limit resolution_low	39.000 Å
R factor r_factor	0.2005
R_work r_work	0.1988
R_free r_free	0.2321
