1jqj

;Mechanism of Processivity Clamp Opening by the Delta Subunit Wrench of the Clamp Loader Complex of E. coli DNA Polymerase III: Structure of the beta-delta complex ;

Method: X-RAY DIFFRACTION D_max: 165.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

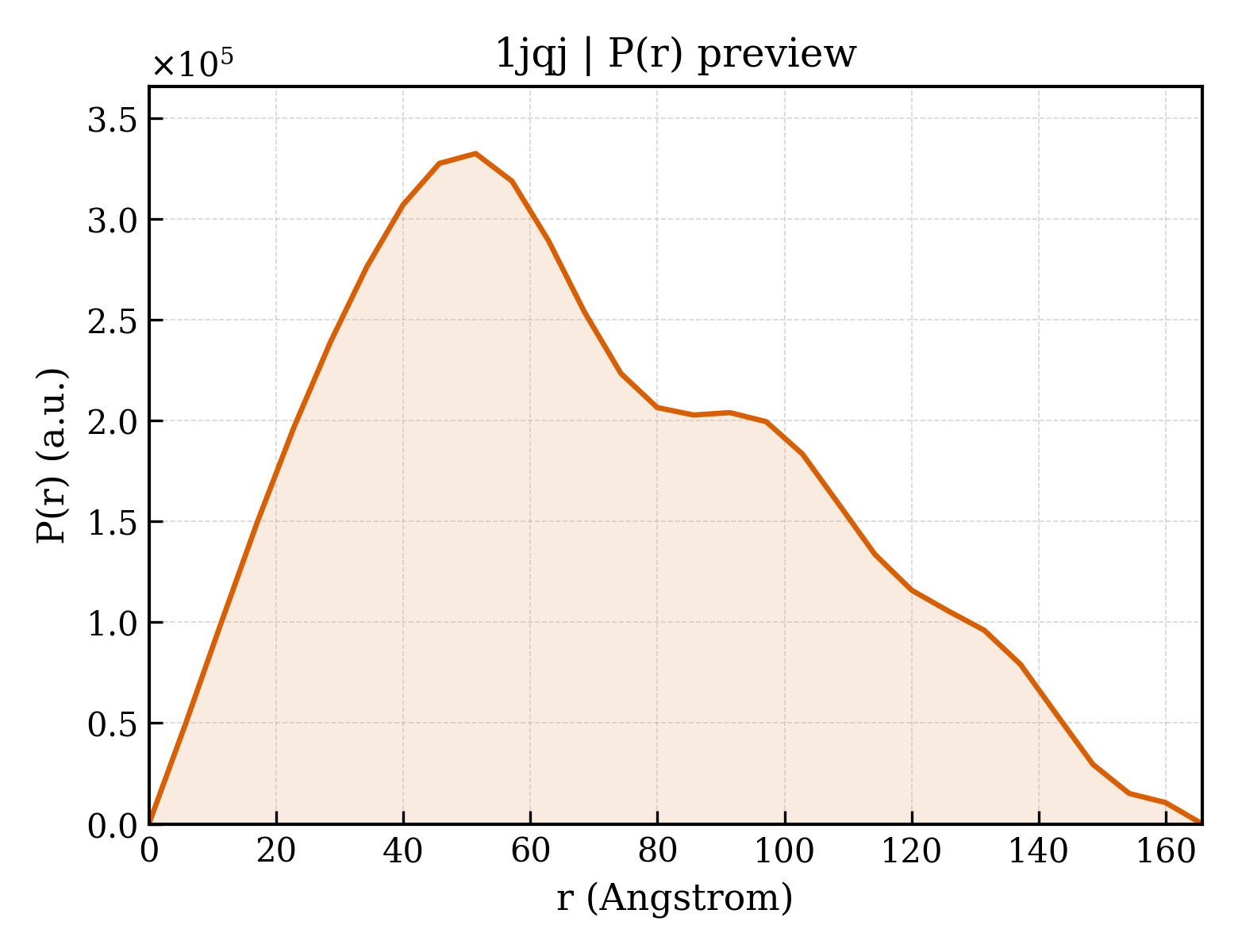

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	1jqj
沉积日期 deposition_date	2001-08-07
结构标题 title	;Mechanism of Processivity Clamp Opening by the Delta Subunit Wrench of the Clamp Loader Complex of E. coli DNA Polymerase III: Structure of the beta-delta complex ;
关键词 keywords	DNA Polymerase, Processivity Clamp, Clamp Loader, DNA Replication, AAA+ ATPase, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	53.48 Å
回转半径 Rg (电子) rg_electron	53.91 Å
零角强度 I(0) i0	348825000.00
分子量 molecular_weight	154620.0 kDa
排除体积 excluded_volume	193740 Å³
包络体积 envelope_volume	320800 Å³
水化壳体积 shell_volume	51468 Å³
包络直径 envelope_diameter	176.2 Å
壳层 Rg shell_rg	53.08 Å
包络 Rg envelope_rg	52.63 Å
形状 Rg shape_rg	53.93 Å
总 Rg total_rg	53.85 Å
总原子数 total_atoms	10860
残基数 n_residues	1385
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	165.7 Å
Rg (实空间) rg_real	53.83 Å
Rg 误差 (实空间) rg_real_error	1.63 Å
I(0) (实空间) i0_real	3.4880e+08
I(0) 误差 (实空间) i0_real_error	7.1500e+06
Rg (倒空间) rg_reciprocal	53.15 Å
I(0) (倒空间) i0_reciprocal	348500000.0000
解质量估计 total_estimate	0.5877
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	51.4 Å
偏度 Skewness skewness	0.405
峰度 Kurtosis kurtosis	-0.647
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	13540000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.901; Stabil: 0.999; Sysdev: 0.001; Positv: 1.000; Valcen: 0.928; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	DNA polymerase III, beta chain
分子量 formula_weight	40546.4 kDa
EC 编号 ec_number	2.7.7.7
突变 mutation	I272A, L273A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	10860

MKFTVEREHLLKPLQQVSGPLGGRPTLPILGNLLLQVADGTLSLTGTDLEMEMVARVALVQPHEPGATTVPARKFFDICRGLPEGAEIAVQLEGERMLVRSGRSRFSLSTLPAADFPNLDDWQSEVEFTLPQATMKRLIEATQFSMAHQDVRYYLNGMLFETEGEELRTVATDGHRLAVCSMPIGQSLPSHSVIVPRKGVIELMRMLDGGDNPLRVQIGSNNIRAHVGDFIFTSKLVDGRFPDYRRVLPKNPDKHLEAGCDLLKQAFARAAAASNEKFRGVRLYVSENQLKITANNPEQEEAEEILDVTYSGAEMEIGFNVSYVLDVLNALKCENVRMMLTDSVSSVQIEDAASQSAAYVVMPMRL

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	DNA polymerase III, delta subunit
分子量 formula_weight	38745.6 kDa
EC 编号 ec_number	2.7.7.7
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,D

MIRLYPEQLRAQLNEGLRAAYLLLGNDPLLLQESQDAVRQVAAAQGFEEHHTFSIDPNTDWNAIFSLCQAMSLFASRQTLLLLLPENGPNAAINEQLLTLTGLLHDDLLLIVRGNKLSKAQENAAWFTALANRSVQVTCQTPEQAQLPRWVAARAKQLNLELDDAANQVLCYCYEGNLLALAQALERLSLLWPDGKLTLPRVEQAVNDAAHFTPFHWVDALLMGKSKRALHILQQLRLEGSEPVILLRTLQRELLLLVNLKRQSAHTPLRALFDKHRVWQNRRGMMGEALNRLSQTQLRQAVQLLTRTELTLKQDYGQSVWAELEGLSLLLCHKPLADVFIDG

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

▼

6. 折叠分类 (SCOP + CATH) 22 domains

SCOP 2.08 (10 domains)

结构域编号 domain_id	d1jqja1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1jqja2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1jqja3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1jqjb1
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1jqjb2
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1jqjb3
类 Class class	d — Alpha and beta proteins (a+b)
折叠类型 Fold fold	d.131 — DNA clamp
超家族 Superfamily superfamily	d.131.1 — DNA clamp
家族 Family family	d.131.1.1 — DNA polymerase III, beta subunit

结构域编号 domain_id	d1jqjc1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.80 — post-AAA+ oligomerization domain-like
超家族 Superfamily superfamily	a.80.1 — post-AAA+ oligomerization domain-like
家族 Family family	a.80.1.1 — DNA polymerase III clamp loader subunits, C-terminal domain

结构域编号 domain_id	d1jqjc2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.20 — Extended AAA-ATPase domain

结构域编号 domain_id	d1jqjd1
类 Class class	a — All alpha proteins
折叠类型 Fold fold	a.80 — post-AAA+ oligomerization domain-like
超家族 Superfamily superfamily	a.80.1 — post-AAA+ oligomerization domain-like
家族 Family family	a.80.1.1 — DNA polymerase III clamp loader subunits, C-terminal domain

结构域编号 domain_id	d1jqjd2
类 Class class	c — Alpha and beta proteins (a/b)
折叠类型 Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
超家族 Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
家族 Family family	c.37.1.20 — Extended AAA-ATPase domain

CATH v4.4 (12 domains)

结构域编号 domain_id	1jqjA01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1jqjA02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1jqjA03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1jqjB01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1jqjB02
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1jqjB03
类 Class class	3 — Alpha Beta
架构 Architecture architecture	10 — Roll
拓扑 Topology topology	150 — DNA Polymerase III; Chain A, domain 2
同源超家族 H-superfamily homologous superfamily	10 — DNA Polymerase III, subunit A, domain 2

结构域编号 domain_id	1jqjC01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1jqjC02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	272 — Zinc Finger, Delta Prime; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1jqjC03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	8 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	60 —

结构域编号 domain_id	1jqjD01
类 Class class	3 — Alpha Beta
架构 Architecture architecture	40 — 3-Layer(aba) Sandwich
拓扑 Topology topology	50 — Rossmann fold
同源超家族 H-superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

结构域编号 domain_id	1jqjD02
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	20 — Up-down Bundle
拓扑 Topology topology	272 — Zinc Finger, Delta Prime; domain 3
同源超家族 H-superfamily homologous superfamily	10 —

结构域编号 domain_id	1jqjD03
类 Class class	1 — Mainly Alpha
架构 Architecture architecture	10 — Orthogonal Bundle
拓扑 Topology topology	8 — Helicase, Ruva Protein; domain 3
同源超家族 H-superfamily homologous superfamily	60 —

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	198.836 Å
晶胞边长 b length_b	99.293 Å
晶胞边长 c length_c	113.023 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	119.17 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.900 Å
最低分辨率 resolution_low	500.000 Å
R 因子 r_factor	—
R_work r_work	0.2658
R_free r_free	0.3079

fit	/app/data/saxs_computation/jq/1jqj/1jqj.fit
pddf	/app/data/pr_computation/jq/1jqj/1jqj.pr.out
profile	/app/data/saxs_computation/jq/1jqj/1jqj.dat
