SAXSdb — 3qw6

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Botulinum neurotoxin type A

Clostridium botulinum

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–424	Fragment：light chain (UNP residues 1-424)	inhibitory peptide RYGC × 1 ZN ZINC ION × 1 SO4 SULFATE ION × 3 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.9；293 K；22% PEG3350, 0.3 M ammonium sulfate, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.222

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3QW6	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2W2D Crystal Structure of a Catalytically Active, Non-toxic Endopeptidase Derivative of Clostridium botulinum Toxin A Deposited 2008-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 1–442（442 aa） Fragment：RESIDUES 1-442 Chain B 447–877（431 aa） Fragment：RESIDUES 447-877	Not recorded	SO4 SULFATE ION × 2 ZN ZINC ION × 1 CL CHLORIDE ION × 2 GOL GLYCEROL × 5	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PROTEIN: 0.05 M HEPES PH 7.2 AND 0.2 M NACL MOTHER LIQUOR: 15% SUCROSE, 0.1 M TRIS PH 8.5, 1.5 M AMMONIUM SULPHATE.	Resolution 2.59 Å R-free 0.253
2W2D Crystal Structure of a Catalytically Active, Non-toxic Endopeptidase Derivative of Clostridium botulinum Toxin A Deposited 2008-10-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein homooligomer Homooligomer；Protein × 2 PDB declaration: dimeric	Chain C 1–442（442 aa） Fragment：RESIDUES 1-442 Chain D 447–877（431 aa） Fragment：RESIDUES 447-877	Not recorded	SO4 SULFATE ION × 2 ZN ZINC ION × 1 CL CHLORIDE ION × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 8.5；PROTEIN: 0.05 M HEPES PH 7.2 AND 0.2 M NACL MOTHER LIQUOR: 15% SUCROSE, 0.1 M TRIS PH 8.5, 1.5 M AMMONIUM SULPHATE.	Resolution 2.59 Å R-free 0.253
3BWI Crystal structure of the catalytic domain of botulinum neurotoxin serotype A with an acetate ion bound at the active site Deposited 2008-01-09	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–424（424 aa） Fragment：residues 1-424	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 2 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；15% PEG 3350, 0.3M ammonium sulfate, 0.1M Bis-Tris , pH 6.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.70 Å R-free 0.240
3C88 Crystal structure of the catalytic domain of botulinum neurotoxin serotype A with inhibitory peptide RRGC Deposited 2008-02-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–424（424 aa） Fragment：residues 1-424	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；12% PEG 3350, 0.2M ammonium sulfate, 0.1M Bis-Tris, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.217
3C89 Crystal structure of the catalytic domain of botulinum neurotoxin serotype A with inhibitory peptide RRGM Deposited 2008-02-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–424（424 aa） Fragment：RESIDUES 1-424	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；293 K；15% PEG 3350, 0.3M AMMONIUM SULFATE, 0.1M BIS-TRIS, pH 6.40, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.58 Å R-free 0.208
3C8A Crystal structure of the catalytic domain of botulinum neurotoxin serotype A with inhibitory peptide RRGL Deposited 2008-02-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–424（424 aa） Fragment：RESIDUES 1-424	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；293 K；18% PEG 3350, 0.3M AMMONIUM SULFATE, 0.1M BIS-TRIS, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.52 Å R-free 0.207
3C8B Crystal structure of the catalytic domain of botulinum neurotoxin serotype A with inhibitory peptide RRGI Deposited 2008-02-11	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–424（424 aa） Fragment：RESIDUES 1-424	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；293 K；17% PEG 3350, 0.25M AMMONIUM SULFATE, 0.1M BIS-TRIS, pH 6.90, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.47 Å R-free 0.216
3DDA Crystal structure of the catalytic domain of Botulinum neurotoxin serotype a with a snap-25 peptide Deposited 2008-06-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–424（424 aa） Fragment：residues 1-424	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；20% PEG8000, 0.2M Ammoium Sulfate, 0.1M Sodium Cacodylate, 5% Ethylene Glycol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.50 Å R-free 0.200
3DDB Crystal structure of the catalytic domain of Botulinum neurotoxin serotype a with a substrate analog peptide Deposited 2008-06-05	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–424（424 aa） Fragment：residues 1-424	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；20% PEG8000, 0.2M Ammoium Sulfate, 0.1M Sodium Cacodylate, 5% Ethylene Glycol, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.218
3DS9 A potent peptidomimetic inhibitor of botulinum neurotoxin serotype A has a very different conformation than SNAP-25 substrate Deposited 2008-07-11	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–417（417 aa） Fragment：light chain	Mutation：residues 2-420	ZN ZINC ION × 1 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1X PEG MME 2000, 5 mM NiCl2, and 100 mM HEPES pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.76 Å R-free 0.248
3DSE A potent peptidomimetic inhibitor of botulinum neurotoxin serotype A has a very different conformation than SNAP-25 substrate Deposited 2008-07-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–417（417 aa） Fragment：light chain	Mutation：residues 2-420	ZN ZINC ION × 1 NI NICKEL (II) ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.8；293 K；0.1X PEG MME 2000, 5 mM NiCl2, and 100 mM HEPES pH 7.8, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 1.90 Å R-free 0.243
3K3Q Crystal Structure of a Llama Antibody complexed with the C. Botulinum Neurotoxin Serotype A Catalytic Domain Deposited 2009-10-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 3–250（248 aa） Fragment：N-terminal fragment of BoNT catalytic domain (residues 3-250) Chain C 251–425（175 aa） Fragment：C-terminal fragment of BoNT catalytic domain (residues 251-425)	Not recorded	ZN ZINC ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；25% ethylene glycol, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.256
3K3Q Crystal Structure of a Llama Antibody complexed with the C. Botulinum Neurotoxin Serotype A Catalytic Domain Deposited 2009-10-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 3–250（248 aa） Fragment：N-terminal fragment of BoNT catalytic domain (residues 3-250) Chain C 251–425（175 aa） Fragment：C-terminal fragment of BoNT catalytic domain (residues 251-425)	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；25% ethylene glycol, pH 7.0, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.60 Å R-free 0.256
3QIX Crystal Structure of BoNT/A LC with Zinc bound Deposited 2011-01-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–424（422 aa） Fragment：light chain (UNP residues 3-424)	Not recorded	EDO 1,2-ETHANEDIOL × 1 ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；15% PEG6000, 5% glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.41 Å R-free 0.228
3QIX Crystal Structure of BoNT/A LC with Zinc bound Deposited 2011-01-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 3–424（422 aa） Fragment：light chain (UNP residues 3-424)	Not recorded	ZN ZINC ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；15% PEG6000, 5% glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.41 Å R-free 0.228
3QIY Crystal Structure of BoNT/A LC complexed with Hydroxamate-based Inhibitor PT-1 Deposited 2011-01-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–424（422 aa） Fragment：light chain (UNP residues 3-424)	Not recorded	ZN ZINC ION × 1 QI1 4-[bis(4-chlorobenzyl)amino]-N-hydroxybutanamide × 1 EDO 1,2-ETHANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；293 K；13% PEG6000, 100 mM MES, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.263
3QIZ Crystal Structure of BoNT/A LC complexed with Hydroxamate-based Inhibitor PT-2 Deposited 2011-01-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–424（422 aa） Fragment：light chain (UNP residues 3-424)	Not recorded	ZN ZINC ION × 1 QI2 (2S,4R)-2-(2-{[3-(4-fluoro-3-methylphenyl)propyl](methyl)amino}ethyl)-4-(4-fluorophenyl)-N-hydroxy-4-methoxybutanamide × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；15% PEG6000, 5% glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.00 Å R-free 0.223
3QJ0 Crystal Structure of BoNT/A LC complexed with Hydroxamate-based Inhibitor PT-3 Deposited 2011-01-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–424（422 aa） Fragment：light chain (UNP residues 3-424)	Not recorded	ZN ZINC ION × 1 QI3 (4R)-4-(4-chlorophenoxy)-1-[(4-chlorophenyl)sulfonyl]-N-hydroxy-L-prolinamide × 1 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；10% PEG6000, 100 mM MES, pH 6.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.30 Å R-free 0.229
3QW5 Crystal structure of the protease domain of Botulinum Neurotoxin Serotype A with a peptide inhibitor RRGF Deposited 2011-02-26	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–424（424 aa） Fragment：light chain (UNP residues 1-424)	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.6；293 K；25% PEG3350, 0.3 M ammonium sulfate, pH 6.60, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.232
3QW7 Crystal structure of the protease domain of Botulinum Neurotoxin Serotype A with a peptide inhibitor RRFC Deposited 2011-02-27	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–424（424 aa） Fragment：light chain (UNP residues 1-424)	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 3 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.9；293 K；22% PEG3350, 0.3 M ammonium sulfate, pH 6.9, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.50 Å R-free 0.209
3QW8 Crystal structure of the protease domain of Botulinum Neurotoxin Serotype A with a peptide inhibitor CRGC Deposited 2011-02-27	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–424（424 aa） Fragment：light chain (UNP residues 1-424)	Not recorded	ZN ZINC ION × 1 SO4 SULFATE ION × 3 NA SODIUM ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.8；293 K；22% PEG3350, 0.3 M ammonium sulfate, pH 6.80, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.60 Å R-free 0.217
4KS6 Crystal structure of the catalytic domain of botulinum neurotoxin BoNT/A C134S mutant with covalent inhibitor that modifies Cys-165 causing disorder in 166-174 stretch Deposited 2013-05-17	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–425（425 aa） Fragment：Catalytic domain residues 1-425	Mutation：C134S	ZN ZINC ION × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 3 PEG DI(HYDROXYETHYL)ETHER × 1 PGO S-1,2-PROPANEDIOL × 2 EDO 1,2-ETHANEDIOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6；293 K；protein complex - 6 microL LCA C134S at 145 microM + 1.4 microL KG23 at 1.25 milli-M, Reservoir - 17.5% PEG 600, 0.065 M HEPES pH 7.5. Cryoprotectant - CryoProtX CM1, 10% PEG 20K, 100 milliM CHC (citric acid, HEPES, CHES - 40% pH 4 / 60% pH 10), VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.93 Å R-free 0.252
4KTX Crystal structure of the catalytic domain of botulinum neurotoxin BoNT/A C134S mutant with covalent inhibitor that modifies Cys-165 causing disorder in 167-174 stretch Deposited 2013-05-21	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–425（425 aa） Fragment：Catalytic domain residues 1-425	Mutation：C134S	ZN ZINC ION × 1 PGO S-1,2-PROPANEDIOL × 1 SO4 SULFATE ION × 1 GOL GLYCEROL × 3	X-RAY DIFFRACTION X-ray crystallization conditions pH 6；293 K；Protein - preformed complex LCA_C134S-KG13 at 10 mg/mL, Reservoir - 4% PEG 4000, 0.1 M imidazole malate, Cryoprotectant 40% CryoProtX CM3, 18% MPEG 2K, 0.1 M PCTP (Na propionate, Na cacodylate, Bis-Tris-propane) (50% pH 4 / 50% pH 9.5), VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.59 Å R-free 0.298
4KUF Crystal structure of the catalytic domain of botulinum neurotoxin BoNT/A C134 mutant with MTSEA modified Cys-165 causing stretch disorder Deposited 2013-05-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–425（425 aa） Fragment：Catalytic domain residues 1-425	Mutation：C134S Non-standard monomer：Yes (specific site not provided by mmCIF)	ZN ZINC ION × 1 DMS DIMETHYL SULFOXIDE × 4 LMR (2S)-2-hydroxybutanedioic acid × 1 GOL GLYCEROL × 1 EDO 1,2-ETHANEDIOL × 9 NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；293 K；LCA-C134S-MTSEA at 3 mg/ml in 0.010 M Tris-HCl, pH 7.9, 0.050 M Li2SO4, DROPS - 3+3 micro-l, RESERVOIR - 42% MPEG-550, 0.1 M Li2SO4, 0.2 M imidazole malate, pH 5.5, CRYOSOLUTION - 18% MPEG2K, 22% MPD, 10% DMSO, 0.050 M bicine, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.70 Å R-free 0.231
5L21 Crystal structure of BoNT/A receptor binding domain in complex with VHH C2 Deposited 2016-07-29	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 872–1296（425 aa）	Mutation：T1158A	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；291 K；18% polyethylene glycol 6,000; 100 mM Sodium Acetate, pH 5.0	Resolution 1.68 Å R-free 0.205

22 other PDB entries and 25 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	BXA1_CLOBH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–424； UniProt 1–424

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3qw6
Deposition date deposition_date	2011-02-26
Structure title title	Crystal structure of the protease domain of Botulinum Neurotoxin Serotype A with a peptide inhibitor RYGC
Keywords keywords	;endopeptidase, syntaxin, bio-warfare agent, membrane, metal-binding, metalloprotease, protease, secreted, transmembrane, SNAP25, HYDROLASE-HYDROLASE INHIBITOR complex ;; HYDROLASE/HYDROLASE INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

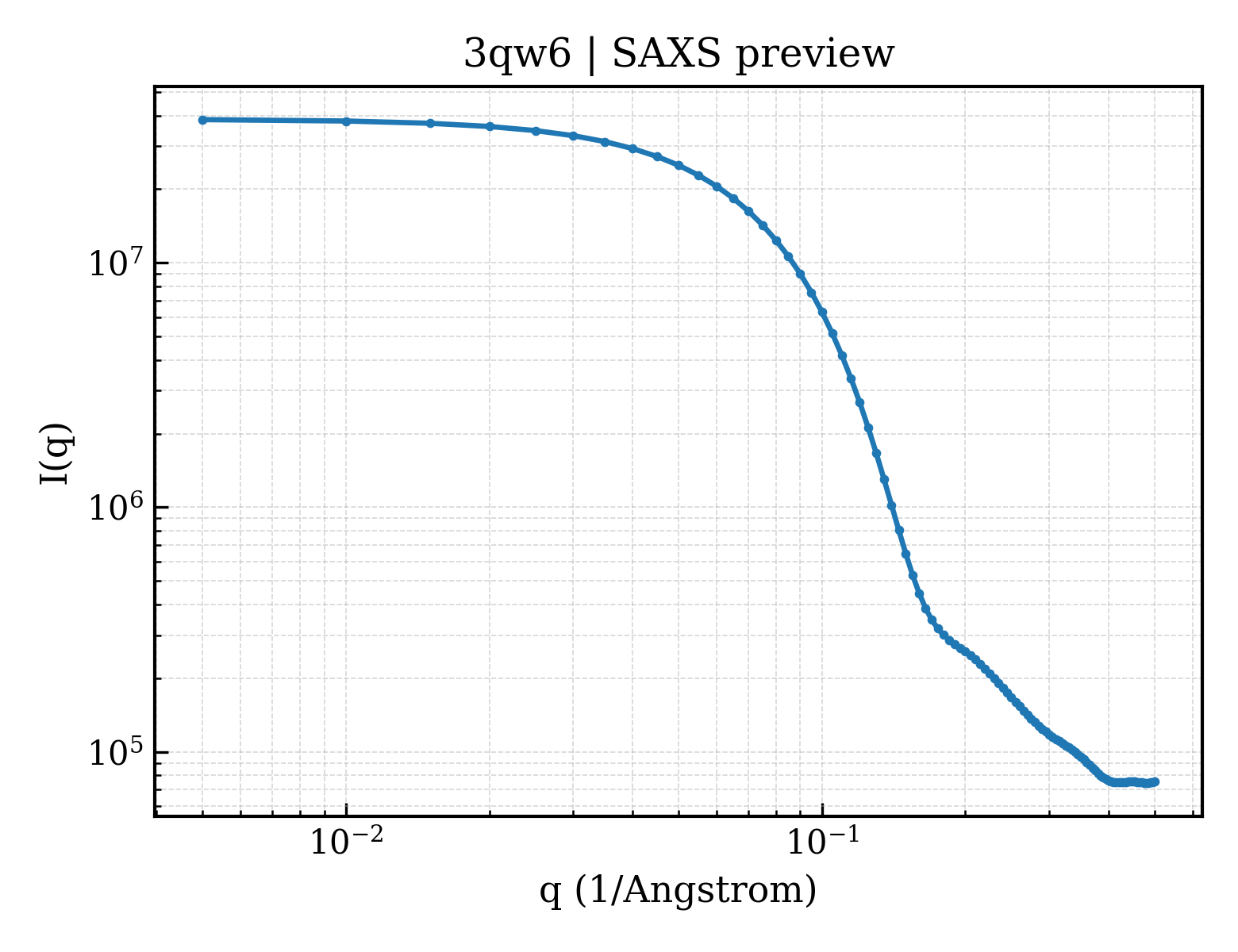

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	22.77 Å
Radius of gyration Rg (electron density) rg_electron	21.71 Å
Forward intensity I(0) i0	38628200.00
Molecular weight molecular_weight	49128.0 kDa
Excluded volume excluded_volume	61876 Å³
Envelope volume envelope_volume	71395 Å³
Hydration-shell volume shell_volume	26703 Å³
Envelope diameter envelope_diameter	73.2 Å
Shell Rg shell_rg	29.21 Å
Envelope Rg envelope_rg	22.04 Å
Shape Rg shape_rg	21.68 Å
Total Rg total_rg	22.70 Å
Total atoms total_atoms	3466
Residues n_residues	426
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

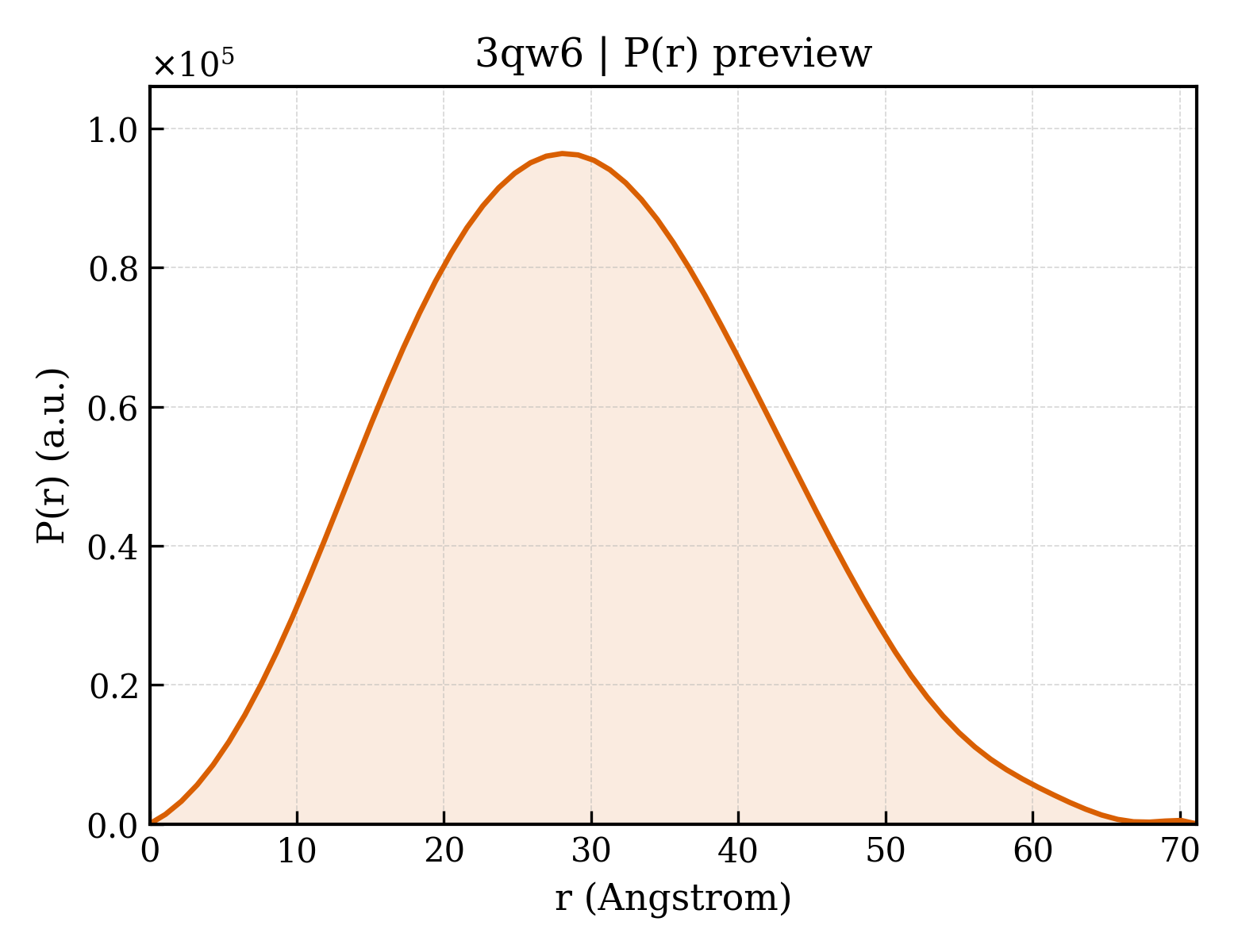

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	71.2 Å
Rg (real space) rg_real	22.66 Å
Rg uncertainty (real space) rg_real_error	0.38 Å
I(0) (real space) i0_real	3.8630e+07
I(0) uncertainty (real space) i0_real_error	5.0400e+05
Rg (reciprocal space) rg_reciprocal	22.69 Å
I(0) (reciprocal space) i0_reciprocal	38630000.0000
Solution quality estimate total_estimate	0.9001
Solution quality rating solution_quality	EXCELLENT a EXCELLENT solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	28.0 Å
Skewness Skewness skewness	0.214
Kurtosis Kurtosis kurtosis	-0.384
Angular range angular_range	— – 0.3500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	8710000.0000
Real-space data points n_real_points	67
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.909; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.981

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Botulinum neurotoxin type A
Molecular weight formula_weight	49415.7 kDa
EC 编号 ec_number	3.4.24.69
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3769

MPFVNKQFNYKDPVNGVDIAYIKIPNAGQMQPVKAFKIHNKIWVIPERDTFTNPEEGDLNPPPEAKQVPVSYYDSTYLSTDNEKDNYLKGVTKLFERIYSTDLGRMLLTSIVRGIPFWGGSTIDTELKVIDTNCINVIQPDGSYRSEELNLVIIGPSADIIQFECKSFGHEVLNLTRNGYGSTQYIRFSPDFTFGFEESLEVDTNPLLGAGKFATDPAVTLAHELIHAGHRLYGIAINPNRVFKVNTNAYYEMSGLEVSFEELRTFGGHDAKFIDSLQENEFRLYYYNKFKDIASTLNKAKSIVGTTASLQYMKNVFKEKYLLSEDTSGKFSVDKLKFDKLYKMLTEIYTEDNFVKFFKVLNRKTYLNFDKAVFKINIVPKVNYTIYDGFNLRNTNLAANFNGQNTEINNMNFTKLKNFTGLFEHHHHHH

来源 Source

来源生物 organism	Clostridium botulinum
NCBI Class编号 ncbi_taxonomy_id	441771
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	inhibitory peptide RYGC
Molecular weight formula_weight	496.6 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

RYGCX

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	SODIUM ION
Molecular weight formula_weight	23.0 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	303

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3qw6a_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.92 — Zincin-like
Superfamily Superfamily superfamily	d.92.1 — Metalloproteases ('zincins'), catalytic domain
Family Family family	d.92.1.7 — Clostridium neurotoxins, catalytic domain

CATH v4.4 (1 domains)

Domain ID domain_id	3qw6A00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1240 — Zincin-like
Homologous superfamily homologous superfamily	10 — Metalloproteases ("zincins"), catalytic domain like

▶

8. Citations (1)

▶

Unit-cell length a length_a	51.066 Å
Unit-cell length b length_b	66.376 Å
Unit-cell length c length_c	64.805 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.38 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	35.990 Å
R factor r_factor	0.2050
R_work r_work	0.2050
R_free r_free	0.2220

fit	/app/data/saxs_computation/qw/3qw6/3qw6.fit
pddf	/app/data/pr_computation/qw/3qw6/3qw6.pr.out
profile	/app/data/saxs_computation/qw/3qw6/3qw6.dat
