1. Protein Identity and Related Structures Protein Identity & Related Structures

Botulinum neurotoxin A light chain

Clostridium botulinum

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Synaptosomal-associated protein 25 × 1 ZINC ION × 1 SULFATE ION × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BXA1_CLOBH
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–424； UniProt 1–424

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3ddb
Deposition date deposition_date	2008-06-05
Structure title title	Crystal structure of the catalytic domain of Botulinum neurotoxin serotype a with a substrate analog peptide
Keywords keywords	;BOTULINUM NEUROTOXIN TYPE A, BOTOX, CATALYTIC DOMAIN, ENDOPEPTIDASE, SYNTAXIN, BIO-WARFARE AGENT, HYDROLASE, METAL-BINDING, METALLOPROTEASE, PROTEASE, SECRETED, TRANSMEMBRANE, ZINC, ENZYME-SUBSTRATE COMPLEX, Pharmaceutical ;; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3ddb__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3ddb__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

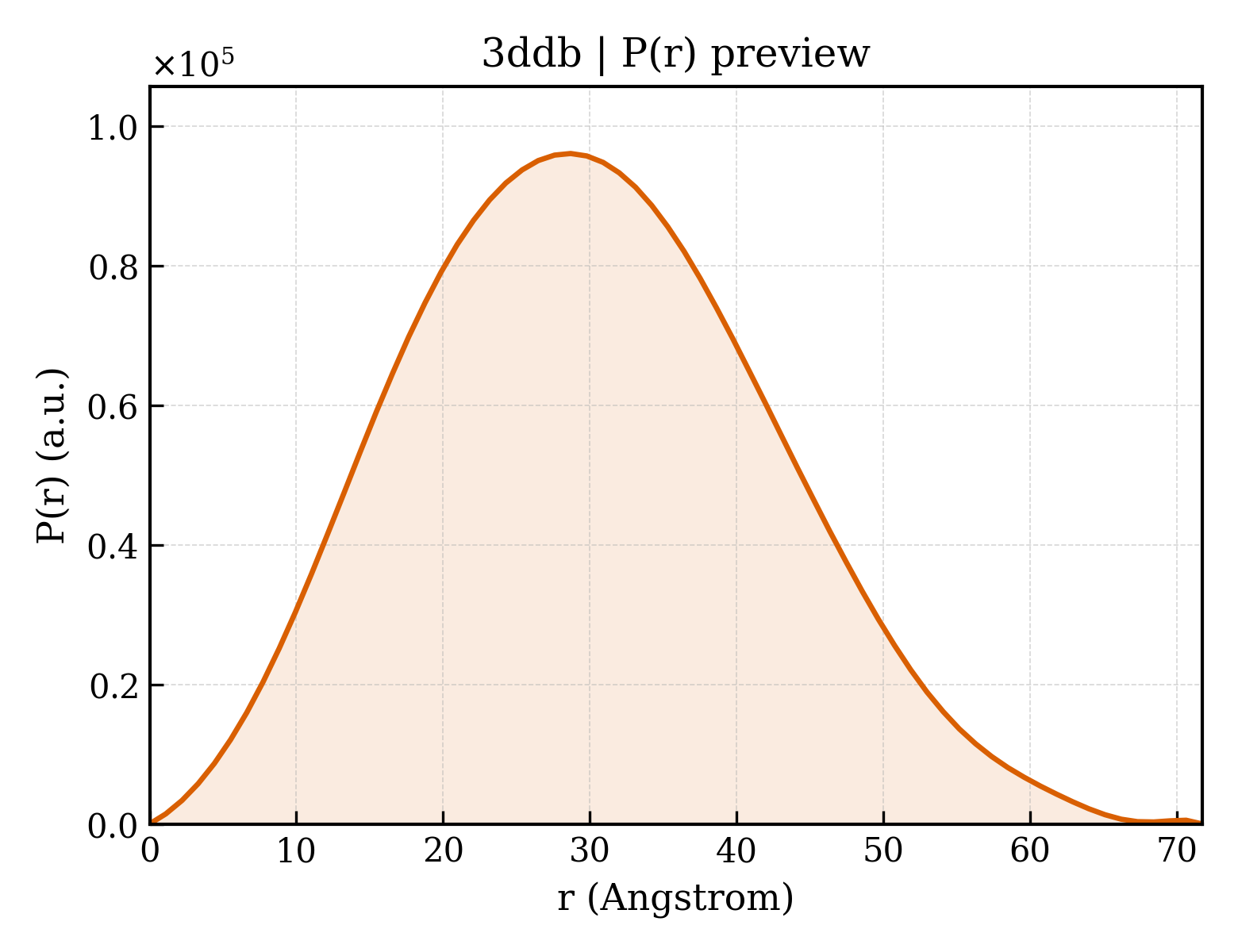

3ddb__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	22.96 Å
Rg (electron density)	21.88 Å
Total Rg	22.89 Å
Atom count	3486
Residues	429
Excluded volume	62282 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3ddb__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Botulinum neurotoxin A light chain
Molecular weight formula_weight	49415.7 kDa
EC 编号 ec_number	3.4.24.69
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	3861

MPFVNKQFNYKDPVNGVDIAYIKIPNAGQMQPVKAFKIHNKIWVIPERDTFTNPEEGDLNPPPEAKQVPVSYYDSTYLSTDNEKDNYLKGVTKLFERIYSTDLGRMLLTSIVRGIPFWGGSTIDTELKVIDTNCINVIQPDGSYRSEELNLVIIGPSADIIQFECKSFGHEVLNLTRNGYGSTQYIRFSPDFTFGFEESLEVDTNPLLGAGKFATDPAVTLAHELIHAGHRLYGIAINPNRVFKVNTNAYYEMSGLEVSFEELRTFGGHDAKFIDSLQENEFRLYYYNKFKDIASTLNKAKSIVGTTASLQYMKNVFKEKYLLSEDTSGKFSVDKLKFDKLYKMLTEIYTEDNFVKFFKVLNRKTYLNFDKAVFKINIVPKVNYTIYDGFNLRNTNLAANFNGQNTEINNMNFTKLKNFTGLFEHHHHHH

Source Source

Source organism organism	Clostridium botulinum
NCBI taxonomy ID ncbi_taxonomy_id	1491
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Synaptosomal-associated protein 25
Molecular weight formula_weight	763.0 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

RRATKMX

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 5 Entity 5 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	375

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	3ddbA00
Class class	3 — Alpha Beta
Architecture architecture	90 — Alpha-Beta Complex
Topology topology	1240 — Zincin-like
Homologous superfamily homologous superfamily	10 — Metalloproteases ("zincins"), catalytic domain like

▶

Unit-cell length a length_a	50.871 Å
Unit-cell length b length_b	66.581 Å
Unit-cell length c length_c	65.062 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	98.34 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	2

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	1.600 Å
Low-resolution limit resolution_low	32.420 Å
R factor r_factor	0.2000
R_work r_work	0.2000
R_free r_free	0.2180
