SAXSdb — 3sfv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ras-related protein Rab-1A

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–176	Fragment：residues 1-176 Mutation：S25N	LidA protein, substrate of the Dot/Icm system × 1 （A5IFX1） GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.8；293 K；28% Jeffamin ED-2001, 0.1M sodium citrate, pH 4.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.73 Å R-free 0.228

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3SFV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2FOL Crystal structure of human RAB1A in complex with GDP Deposited 2006-01-13	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 5–176（172 aa）	Not recorded	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 UNX UNKNOWN LIGAND × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；291 K；25% PEG3350, 0.2M magnesium chloride, 0.1M Tris, pH 8.5, vapor diffusion, sitting drop, temperature 291K	Resolution 2.63 Å R-free 0.252
2WWX Crystal structure of the SidM/DrrA(GEF/GDF domain)-Rab1(GTPase domain) complex Deposited 2009-10-30	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 4–178（175 aa） Fragment：GTPASE DOMAIN, RESIDUES 4-178	Mutation：YES	No recorded non-water small molecule	X-RAY DIFFRACTION mmCIF provides none of the parsed conditions	Resolution 1.50 Å R-free 0.231
3L0I Complex structure of SidM/DrrA with the wild type Rab1 Deposited 2009-12-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–177（177 aa） Fragment：small GTPase domain, residues 1-177	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；1.1M ammonium sulfate, 0.1M sodium citrate, 0.4M Li2SO4, 0.1M di-ammonium tartrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.85 Å R-free 0.266
3L0I Complex structure of SidM/DrrA with the wild type Rab1 Deposited 2009-12-10	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–177（177 aa） Fragment：small GTPase domain, residues 1-177	Non-standard monomer：Yes (specific site not provided by mmCIF)	SO4 SULFATE ION × 2 CL CHLORIDE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；277 K；1.1M ammonium sulfate, 0.1M sodium citrate, 0.4M Li2SO4, 0.1M di-ammonium tartrate, pH 5.6, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 2.85 Å R-free 0.266
3TKL Crystal structure of the GTP-bound Rab1a in complex with the coiled-coil domain of LidA from Legionella pneumophila Deposited 2011-08-27	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–191（191 aa） Fragment：UNP residues 1-191	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES, 25% PEG3350, 0.7% butanol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.18 Å R-free 0.252
4FMB VirA-Rab1 complex structure Deposited 2012-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 6–176（171 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；298 K；0.8 M ammonium sulfate and 0.1 M Tris-HCl (pH 7.6), VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.20 Å R-free 0.247
4FMB VirA-Rab1 complex structure Deposited 2012-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 6–176（171 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；298 K；0.8 M ammonium sulfate and 0.1 M Tris-HCl (pH 7.6), VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.20 Å R-free 0.247
4FMB VirA-Rab1 complex structure Deposited 2012-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 6–176（171 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；298 K；0.8 M ammonium sulfate and 0.1 M Tris-HCl (pH 7.6), VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.20 Å R-free 0.247
4FMB VirA-Rab1 complex structure Deposited 2012-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 12 PDB declaration: dodecameric	Chain B 6–176（171 aa） Chain D 6–176（171 aa） Chain F 6–176（171 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 6 GDP GUANOSINE-5'-DIPHOSPHATE × 6 MG MAGNESIUM ION × 6	X-RAY DIFFRACTION X-ray crystallization conditions pH 7.6；298 K；0.8 M ammonium sulfate and 0.1 M Tris-HCl (pH 7.6), VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.20 Å R-free 0.247
4FMC EspG-Rab1 complex Deposited 2012-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 6–176（171 aa）	Not recorded	PGE TRIETHYLENE GLYCOL × 1 AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；298 K；20% PEG3350 and 0.1 M potassium sodium tartrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.277
4FMC EspG-Rab1 complex Deposited 2012-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 6–176（171 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；298 K；20% PEG3350 and 0.1 M potassium sodium tartrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.277
4FMC EspG-Rab1 complex Deposited 2012-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 14–115（102 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；298 K；20% PEG3350 and 0.1 M potassium sodium tartrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 2.80 Å R-free 0.277
4FMD EspG-Rab1 complex structure at 3.05 A Deposited 2012-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 6–176（171 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；298 K；20% PEG3350, 0.1 M trisodium citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.05 Å R-free 0.266
4FMD EspG-Rab1 complex structure at 3.05 A Deposited 2012-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 6–176（171 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 PGE TRIETHYLENE GLYCOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；298 K；20% PEG3350, 0.1 M trisodium citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.05 Å R-free 0.266
4FMD EspG-Rab1 complex structure at 3.05 A Deposited 2012-06-16	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 13–176（164 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 7；298 K；20% PEG3350, 0.1 M trisodium citrate, pH 7.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 3.05 Å R-free 0.266
4FME EspG-Rab1-Arf6 complex Deposited 2012-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 6–176（171 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；298 K；8% PEG8000, 0.1 M NaKPO4 (pH 6.2), and 0.2 M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 4.10 Å R-free 0.249
4FME EspG-Rab1-Arf6 complex Deposited 2012-06-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain E 6–176（171 aa）	Not recorded	AF3 ALUMINUM FLUORIDE × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 2 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions pH 6.2；298 K；8% PEG8000, 0.1 M NaKPO4 (pH 6.2), and 0.2 M NaCl, VAPOR DIFFUSION, HANGING DROP, temperature 298K	Resolution 4.10 Å R-free 0.249
4IRU Crystal Structure of lepB GAP core in a transition state mimetic complex with Rab1A and ALF3 Deposited 2013-01-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 4–177（174 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACT ACETATE ION × 4 GOL GLYCEROL × 7 K POTASSIUM ION × 5 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；12% PEG4000, 0.1M Hepes, 0.2M potassium acetate, 0.002M aluminium chloride, 0.02M sodium fluoride, 0.01M 2-mercaptoethanol, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.20 Å R-free 0.288
4IRU Crystal Structure of lepB GAP core in a transition state mimetic complex with Rab1A and ALF3 Deposited 2013-01-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 4–177（174 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	ACT ACETATE ION × 8 GOL GLYCEROL × 1 K POTASSIUM ION × 1 MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；12% PEG4000, 0.1M Hepes, 0.2M potassium acetate, 0.002M aluminium chloride, 0.02M sodium fluoride, 0.01M 2-mercaptoethanol, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.20 Å R-free 0.288
4IRU Crystal Structure of lepB GAP core in a transition state mimetic complex with Rab1A and ALF3 Deposited 2013-01-15	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 4–177（174 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	MG MAGNESIUM ION × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；291 K；12% PEG4000, 0.1M Hepes, 0.2M potassium acetate, 0.002M aluminium chloride, 0.02M sodium fluoride, 0.01M 2-mercaptoethanol, pH 7.2, VAPOR DIFFUSION, HANGING DROP, temperature 291K	Resolution 3.20 Å R-free 0.288
4JVS Crystal structure of LepB GAP domain from Legionella drancourtii in complex with Rab1-GDP and AlF3 Deposited 2013-03-26	Different construct Different mutation/modification Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–177（177 aa） Fragment：UNP residues 1-177	Not recorded	ACY ACETIC ACID × 1 GDP GUANOSINE-5'-DIPHOSPHATE × 1 AF3 ALUMINUM FLUORIDE × 1 MG MAGNESIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；pH 8.5；298 K；0.2M ammonium acetate, 0.1M Tris, 25%(w/v) polyethylene glycol 3350, pH 8.5, EVAPORATION, temperature 298.0K	Resolution 2.78 Å R-free 0.265
7EQ2 Crystal structure of GDP-bound Rab1a-T75D Deposited 2021-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–176（176 aa）	Mutation：T75D	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 NCO COBALT HEXAMMINE(III) × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；291.15 K；40mM Lithium chloride, 20mM Magnesium chloride hexahydrate, 80mM NaCl, 2mM Hexammine cobalt(III) chloride, 40mM Sodium cacodylate trihydrate pH 5.5, 30% v/v (+/-)-2-Methyl-2,4-pentanediol	Resolution 1.55 Å R-free 0.185
7EQ2 Crystal structure of GDP-bound Rab1a-T75D Deposited 2021-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–176（176 aa）	Mutation：T75D	GDP GUANOSINE-5'-DIPHOSPHATE × 1 MG MAGNESIUM ION × 1 NCO COBALT HEXAMMINE(III) × 2 MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1 CAC CACODYLATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions EVAPORATION；291.15 K；40mM Lithium chloride, 20mM Magnesium chloride hexahydrate, 80mM NaCl, 2mM Hexammine cobalt(III) chloride, 40mM Sodium cacodylate trihydrate pH 5.5, 30% v/v (+/-)-2-Methyl-2,4-pentanediol	Resolution 1.55 Å R-free 0.185
9MHF Cryo-EM reconstruction of PI3KC3-C1 in complex with Human RAB1A(Q70L) Deposited 2024-12-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–205（205 aa）	Mutation：Q70L	GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 MYR MYRISTIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.73 Å
9MHG Cryo EM reconstruction of PI3KC3-C1 in complex with Human RAB1A(Q70L), VPS34 kinase domain in the inactive conformation Deposited 2024-12-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–205（205 aa）	Mutation：Q70L	GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2 MYR MYRISTIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；OG supplemented at time of grid preparation 0.05% cryo-EM vitrification conditions Cryogen ETHANE；100% humidity, 3 s wait time, blot force -15	Resolution 3.20 Å
9MHH PI3KC3-C1 in complex with RAB1A. VPS34 kinase domain active conformation Deposited 2024-12-11	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 1–205（205 aa）	Mutation：Q70L	GTP GUANOSINE-5'-TRIPHOSPHATE × 2 MG MAGNESIUM ION × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4；OG supplemented at time of grid preparation 0.05% cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.50 Å

14 other PDB entries and 26 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	RAB1A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 6–181； UniProt 1–176

LidA protein, substrate of the Dot/Icm system

Legionella pneumophila

UniProt A5IFX1

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 224–559	Fragment：Coiled-coil domain	Ras-related protein Rab-1A × 1 （P62820） GDP GUANOSINE-5'-DIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 4.8；293 K；28% Jeffamin ED-2001, 0.1M sodium citrate, pH 4.8, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 1.73 Å R-free 0.228

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3SFV	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
3TKL Crystal structure of the GTP-bound Rab1a in complex with the coiled-coil domain of LidA from Legionella pneumophila Deposited 2011-08-27	Different construct Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 187–449（263 aa） Fragment：Coiled-coil domain	Not recorded	MG MAGNESIUM ION × 1 GTP GUANOSINE-5'-TRIPHOSPHATE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1M HEPES, 25% PEG3350, 0.7% butanol, pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.18 Å R-free 0.252
4H5Y High-resolution crystal structure of Legionella pneumophila LidA (60-594) Deposited 2012-09-19	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 60–594（535 aa） Fragment：UNP residues 60-594	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；200 mM trimethylamine N-oxide, pH 8.0, 20% w/v PEG2000 MME, 1% glycerol, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.10 Å R-free 0.249

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A5IFX1_LEGPC
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–336； UniProt 224–559

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3sfv
Deposition date deposition_date	2011-06-14
Structure title title	Crystal structure of the GDP-bound Rab1a S25N mutant in complex with the coiled-coil domain of LidA from Legionella pneumophila
Keywords keywords	;LidA-Rab Complex, Coiled-coil domain, Type IV effector protein from legionella, GDP Binding, protein transport-protein binding complex ;; protein transport/protein binding
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	26.96 Å
Radius of gyration Rg (electron density) rg_electron	26.08 Å
Forward intensity I(0) i0	61368100.00
Molecular weight molecular_weight	60560.0 kDa
Excluded volume excluded_volume	75667 Å³
Envelope volume envelope_volume	97391 Å³
Hydration-shell volume shell_volume	31560 Å³
Envelope diameter envelope_diameter	99.8 Å
Shell Rg shell_rg	32.87 Å
Envelope Rg envelope_rg	26.43 Å
Shape Rg shape_rg	26.08 Å
Total Rg total_rg	26.79 Å
Total atoms total_atoms	4261
Residues n_residues	521
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	95.3 Å
Rg (real space) rg_real	26.94 Å
Rg uncertainty (real space) rg_real_error	0.69 Å
I(0) (real space) i0_real	6.1370e+07
I(0) uncertainty (real space) i0_real_error	9.8340e+05
Rg (reciprocal space) rg_reciprocal	26.95 Å
I(0) (reciprocal space) i0_reciprocal	61370000.0000
Solution quality estimate total_estimate	0.8512
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	32.3 Å
Skewness Skewness skewness	0.399
Kurtosis Kurtosis kurtosis	-0.093
Angular range angular_range	— – 0.2950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	10580000.0000
Real-space data points n_real_points	60
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.704; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.995

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Ras-related protein Rab-1A
Molecular weight formula_weight	20466.2 kDa
Mutation mutation	S25N
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4656

GPLGSMSSMNPEYDYLFKLLLIGDSGVGKNCLLLRFADDTYTESYISTIGVDFKIRTIELDGKTIKLQIWDTAGQERFRTITSSYYRGAHGIIVVYDVTDQESFNNVKQWLQEIDRYASENVNKLLVGNKCDLTTKKVVDYTTAKEFADSLGIPFLETSAKNATNVEQSFMTMAAEIKKRM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	LidA protein, substrate of the Dot/Icm system
Molecular weight formula_weight	40201.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

KKLDKLERQGKDLEDKYKTYEENLEGFEKLLTDSEELSLSEINEKMKAFSKDSEKLTQLMEKHKGDEKTVQSLQREHHDIKAKLANLQVLHDAHTGKKSYVNEKGNPVSSLKDAHLAINKDQEVVEHKGQFYLLQKGQWDAIKNDPAALEKAQKDYSQSKHDLATIKMEALIHKLSLEMEKQLETINDLIMSTDPKENEEATKLLHKHNGLNLKLANLQDMLAVHRKEKSFFNEKGEKVTSLNDAHYVIGKDQQLFNLGGKFYPIHKEQKILEKDGKFYLLKQGEDWESIKDSPEKQKKAEHDFHKLQYETPMTVKKLVHHNKGLETTIHKERIEELEHHHHHH

来源 Source

来源生物 organism	Legionella pneumophila
NCBI Class编号 ncbi_taxonomy_id	400673
宿主生物 host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	GUANOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	443.2 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	389

▼

7. Fold Classification (SCOP + CATH) 5 domains

SCOP 2.08 (2 domains)

Domain ID domain_id	d3sfva1
Class class	c — Alpha and beta proteins (a/b)
Fold Fold fold	c.37 — P-loop containing nucleoside triphosphate hydrolases
Superfamily Superfamily superfamily	c.37.1 — P-loop containing nucleoside triphosphate hydrolases
Family Family family	c.37.1.8 — G proteins

Domain ID domain_id	d3sfva2
Class class	l — Artifacts
Fold Fold fold	l.1 — Tags
Superfamily Superfamily superfamily	l.1.1 — Tags
Family Family family	l.1.1.1 — Tags

CATH v4.4 (3 domains)

Domain ID domain_id	3sfvA00
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3sfvB01
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	450 — Beta-Lactamase
Homologous superfamily homologous superfamily	390 —

Domain ID domain_id	3sfvB02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	2010 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	154.314 Å
Unit-cell length b length_b	54.673 Å
Unit-cell length c length_c	61.699 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.730 Å
Low-resolution limit resolution_low	50.000 Å
R factor r_factor	0.1932
R_work r_work	0.1918
R_free r_free	0.2279

fit	/app/data/saxs_computation/sf/3sfv/3sfv.fit
pddf	/app/data/pr_computation/sf/3sfv/3sfv.pr.out
profile	/app/data/saxs_computation/sf/3sfv/3sfv.dat

Crystal structure of the GDP-bound Rab1a S25N mutant in complex with the coiled-coil domain of LidA from Legionella pneumophila

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ras-related protein Rab-1A

State in the Current Structure

Other States of the Same Protein in the Database

LidA protein, substrate of the Dot/Icm system

State in the Current Structure

Other States of the Same Protein in the Database

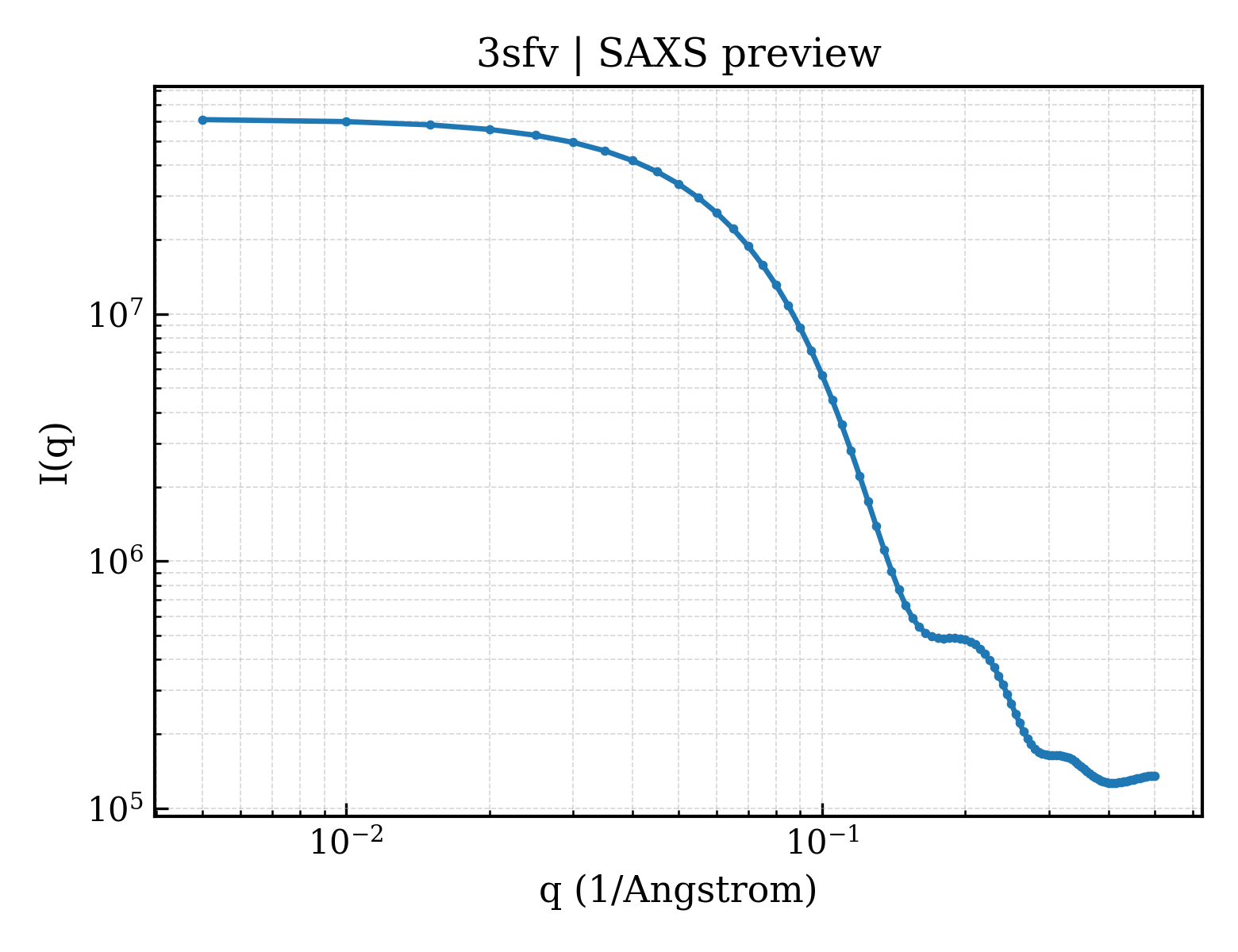

SAXS scattering curve SAXS Profile
