9mhh

PI3KC3-C1 in complex with RAB1A. VPS34 kinase domain active conformation

Method: ELECTRON MICROSCOPY

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Phosphoinositide 3-kinase regulatory subunit 4

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Phosphatidylinositol 3-kinase catalytic subunit type 3 × 1 （Q8NEB9） Beclin 1-associated autophagy-related key regulator × 1 （Q6ZNE5） Beclin-1 × 1 （Q14457） Ras-related protein Rab-1A × 1 （P62820） GUANOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PI3R4_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–1358； UniProt 2–1358

Phosphatidylinositol 3-kinase catalytic subunit type 3

Homo sapiens

UniProt Q8NEB9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Phosphoinositide 3-kinase regulatory subunit 4 × 1 （Q99570） Beclin 1-associated autophagy-related key regulator × 1 （Q6ZNE5） Beclin-1 × 1 （Q14457） Ras-related protein Rab-1A × 1 （P62820） GUANOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PK3C3_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–887； UniProt 1–887

Beclin 1-associated autophagy-related key regulator

Homo sapiens

UniProt Q6ZNE5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Phosphoinositide 3-kinase regulatory subunit 4 × 1 （Q99570） Phosphatidylinositol 3-kinase catalytic subunit type 3 × 1 （Q8NEB9） Beclin-1 × 1 （Q14457） Ras-related protein Rab-1A × 1 （P62820） GUANOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BAKOR_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–492； UniProt 1–492

Beclin-1

Homo sapiens

UniProt Q14457

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Phosphoinositide 3-kinase regulatory subunit 4 × 1 （Q99570） Phosphatidylinositol 3-kinase catalytic subunit type 3 × 1 （Q8NEB9） Beclin 1-associated autophagy-related key regulator × 1 （Q6ZNE5） Ras-related protein Rab-1A × 1 （P62820） GUANOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	BECN1_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 1–450； UniProt 1–450

Ras-related protein Rab-1A

Homo sapiens

UniProt P62820

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Phosphoinositide 3-kinase regulatory subunit 4 × 1 （Q99570） Phosphatidylinositol 3-kinase catalytic subunit type 3 × 1 （Q8NEB9） Beclin 1-associated autophagy-related key regulator × 1 （Q6ZNE5） Beclin-1 × 1 （Q14457） GUANOSINE-5'-TRIPHOSPHATE × 2 MAGNESIUM ION × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	RAB1A_HUMAN
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain E； PDBConstruct 22–226； UniProt 1–205

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9mhh
Deposition date deposition_date	2024-12-11
Structure title title	PI3KC3-C1 in complex with RAB1A. VPS34 kinase domain active conformation
Keywords keywords	Complex, GTPase, GTP-binding, Autophagy, Kinase, Lipid Kinase, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9mhh__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9mhh__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

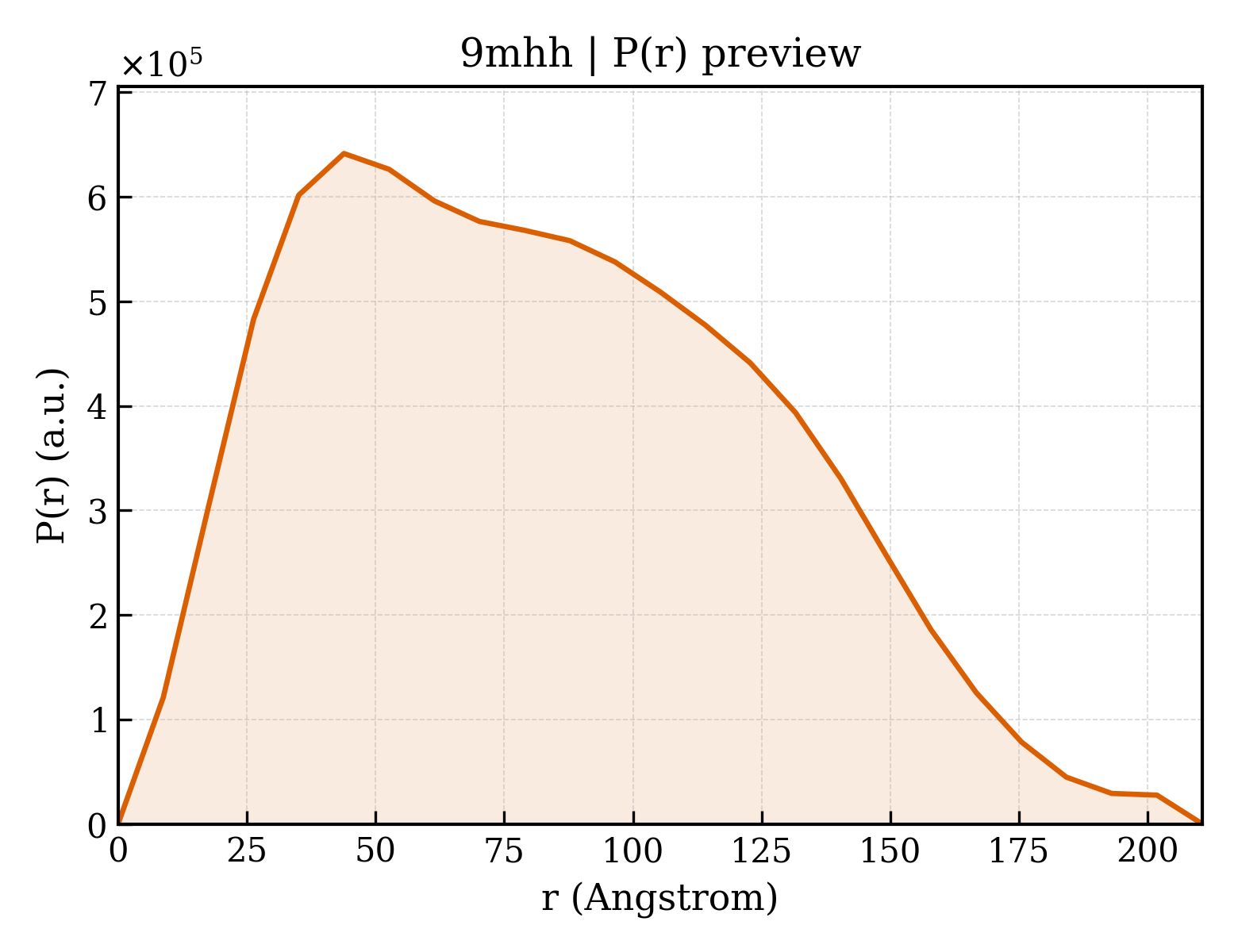

9mhh__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	65.27 Å
Rg (electron density)	66.13 Å
Total Rg	65.95 Å
Atom count	11243
Residues	2794
Excluded volume	154700 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9mhh__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Phosphoinositide 3-kinase regulatory subunit 4
Molecular weight formula_weight	158808.5 kDa
EC 编号 ec_number	2.7.11.1
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11243

MGNQLAGIAPSQILSVESYFSDIHDFEYDKSLGSTRFFKVARAKHREGLVVVKVFAIQDPTLPLTSYKQELEELKIRLNSAQNCLPFQKASEKASEKAAMLFRQYVRDNLYDRISTRPFLNNIEKRWIAFQILTAVDQAHKSGVRHGDIKTENVMVTSWNWVLLTDFASFKPTYLPEDNPADFNYFFDTSRRRTCYIAPERFVDGGMFATELEYMRDPSTPLVDLNSNQRTRGELKRAMDIFSAGCVIAELFTEGVPLFDLSQLLAYRNGHFFPEQVLNKIEDHSIRELVTQMIHREPDKRLEAEDYLKQQRGNAFPEIFYTFLQPYMAQFAKETFLSADERILVIRKDLGNIIHNLCGHDLPEKAEGEPKENGLVILVSVITSCLQTLKYCDSKLAALELILHLAPRLSVEILLDRITPYLLHFSNDSVPRVRAEALRTLTKVLALVKEVPRNDINIYPEYILPGIAHLAQDDATIVRLAYAENIALLAETALRFLELVQLKNLNMENDPNNEEIDEVTHPNGNYDTELQALHEMVQQKVVTLLSDPENIVKQTLMENGITRLCVFFGRQKANDVLLSHMITFLNDKNDWHLRGAFFDSIVGVAAYVGWQSSSILKPLLQQGLSDAEEFVIVKALYALTCMCQLGLLQKPHVYEFASDIAPFLCHPNLWIRYGAVGFITVVARQISTADVYCKLMPYLDPYITQPIIQIERKLVLLSVLKEPVSRSIFDYALRSKDITSLFRHLHMRQKKRNGSLPDCPPPEDPAIAQLLKKLLSQGMTEEEEDKLLALKDFMMKSNKAKANIVDQSHLHDSSQKGVIDLAALGITGRQVDLVKTKQEPDDKRARKHVKQDSNVNEEWKSMFGSLDPPNMPQALPKGSDQEVIQTGKPPRSESSAGICVPLSTSSQVPEVTTVQNKKPVIPVLSSTILPSTYQIRITTCKTELQQLIQQKREQCNAERIAKQMMENAEWESKPPPPGWRPKGLLVAHLHEHKSAVNRIRVSDEHSLFATCSNDGTVKIWNSQKMEGKTTTTRSILTYSRIGGRVKTLTFCQGSHYLAIASDNGAVQLLGIEASKLPKSPKIHPLQSRILDQKEDGCVVDMHHFNSGAQSVLAYATVNGSLVGWDLRSSSNAWTLKHDLKSGLITSFAVDIHQCWLCIGTSSGTMACWDMRFQLPISSHCHPSRARIRRLSMHPLYQSWVIAAVQGNNEVSMWDMETGDRRFTLWASSAPPLSELQPSPHSVHGIYCSPADGNPILLTAGSDMKIRFWDLAYPERSYVVAGSTSSPSVSYYRKIIEGTEVVQEIQNKQKVGPSDDTPRRGPESLPVGHHDIITDVATFQTTQGFIVTASRDGIVKVWKGTENLYFQSGMAAWSHPQFEKGGGARGGSGGGSWSHPQFEKGFDYKDDDDK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Phosphatidylinositol 3-kinase catalytic subunit type 3
Molecular weight formula_weight	101680.3 kDa
EC 编号 ec_number	2.7.1.137
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MGEAEKFHYIYSCDLDINVQLKIGSLEGKREQKSYKAVLEDPMLKFSGLYQETCSDLYVTCQVFAEGKPLALPVRTSYKAFSTRWNWNEWLKLPVKYPDLPRNAQVALTIWDVYGPGKAVPVGGTTVSLFGKYGMFRQGMHDLKVWPNVEADGSEPTKTPGRTSSTLSEDQMSRLAKLTKAHRQGHMVKVDWLDRLTFREIEMINESEKRSSNFMYLMVEFRCVKCDDKEYGIVYYEKDGDESSPILTSFELVKVPDPQMSMENLVESKHHKLARSLRSGPSDHDLKPNAATRDQLNIIVSYPPTKQLTYEEQDLVWKFRYYLTNQEKALTKFLKCVNWDLPQEAKQALELLGKWKPMDVEDSLELLSSHYTNPTVRRYAVARLRQADDEDLLMYLLQLVQALKYENFDDIKNGLEPTKKDSQSSVSENVSNSGINSAEIDSSQIITSPLPSVSSPPPASKTKEVPDGENLEQDLCTFLISRACKNSTLANYLYWYVIVECEDQDTQQRDPKTHEMYLNVMRRFSQALLKGDKSVRVMRSLLAAQQTFVDRLVHLMKAVQRESGNRKKKNERLQALLGDNEKMNLSDVELIPLPLEPQVKIRGIIPETATLFKSALMPAQLFFKTEDGGKYPVIFKHGDDLRQDQLILQIISLMDKLLRKENLDLKLTPYKVLATSTKHGFMQFIQSVPVAEVLDTEGSIQNFFRKYAPSENGPNGISAEVMDTYVKSCAGYCVITYILGVGDRHLDNLLLTKTGKLFHIDFGYILGRDPKPLPPPMKLNKEMVEGMGGTQSEQYQEFRKQCYTAFLHLRRYSNLILNLFSLMVDANIPDIALEPDKTVKKVQDKFRLDLSDEEAVHYMQSLIDESVHALFAAVVEQIHKFAQYWRK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Beclin 1-associated autophagy-related key regulator
Molecular weight formula_weight	55387.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

MASPSGKGARALEAPGCGPRPLARDLVDSVDDAEGLYVAVERCPLCNTTRRRLTCAKCVQSGDFVYFDGRDRERFIDKKERLSRLKSKQEEFQKEVLKAMEGKWITDQLRWKIMSCKMRIEQLKQTICKGNEEMEKNSEGLLKTKEKNQKLYSRAQRHQEKKEKIQRHNRKLGDLVEKKTIDLRSHYERLANLRRSHILELTSVIFPIEEVKTGVRDPADVSSESDSAMTSSTVSKLAEARRTTYLSGRWVCDDHNGDTSISITGPWISLPNNGDYSAYYSWVEEKKTTQGPDMEQSNPAYTISAALCYATQLVNILSHILDVNLPKKLCNSEFCGENLSKQKFTRAVKKLNANILYLCFSQHVNLDQLQPLHTLRNLMYLVSPSSEHLGRSGPFEVRADLEESMEFVDPGVAGESDESGDERVSDEETDLGTDWENLPSPRFCDIPSQSVEVSQSQSTQASPPIASSSAGGMISSAAASVTSWFKAYTGHR

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 polymer

Description description	Beclin-1
Molecular weight formula_weight	51953.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MEGSKTSNNSTMQVSFVCQRCSQPLKLDTSFKILDRVTIQELTAPLLTTAQAKPGETQEEETNSGEEPFIETPRQDGVSRRFIPPARMMSTESANSFTLIGEASDGGTMENLSRRLKVTGDLFDIMSGQTDVDHPLCEECTDTLLDQLDTQLNVTENECQNYKRCLEILEQMNEDDSEQLQMELKELALEEERLIQELEDVEKNRKIVAENLEKVQAEAERLDQEEAQYQREYSEFKRQQLELDDELKSVENQMRYAQTQLDKLKKTNVFNATFHIWHSGQFGTINNFRLGRLPSVPVEWNEINAAWGQTVLLLHALANKMGLKFQRYRLVPYGNHSYLESLTDKSKELPLYCSGGLRFFWDNKFDHAMVAFLDCVQQFKEEVEKGETRFCLPYRMDVEKGKIEDTGGSGGSYSIKTQFNSEEQWTKALKFMLTNLKWGLAWVSSQFYNK

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 5 Entity 5 polymer

Description description	Ras-related protein Rab-1A
Molecular weight formula_weight	25206.5 kDa
EC 编号 ec_number	3.6.5.2
Mutation mutation	Q70L
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MKSSHHHHHHENLYFQSNAMGMSSMNPEYDYLFKLLLIGDSGVGKSCLLLRFADDTYTESYISTIGVDFKIRTIELDGKTIKLQIWDTAGLERFRTITSSYYRGAHGIIVVYDVTDQESFNNVKQWLQEIDRYASENVNKLLVGNKCDLTTKKVVDYTTAKEFADSLGIPFLETSAKNATNVEQSFMTMAAEIKKRMGPGATAGGAEKSNVKIQSTPVKQSGGGCC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 6 Entity 6 non-polymer

Description description	GUANOSINE-5'-TRIPHOSPHATE
Molecular weight formula_weight	523.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	triclinic

Resolution resolution	4.50 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	151763
