9rxb

VPS34-CII (VPS34/VPS15/BECLIN1/UVRAG) bound to RAB5A (Q79L) on the VPS34 and VPS15 subunits

Method: ELECTRON MICROSCOPY D_max: 214.3 Å Quality: GOOD

SAXS Profile

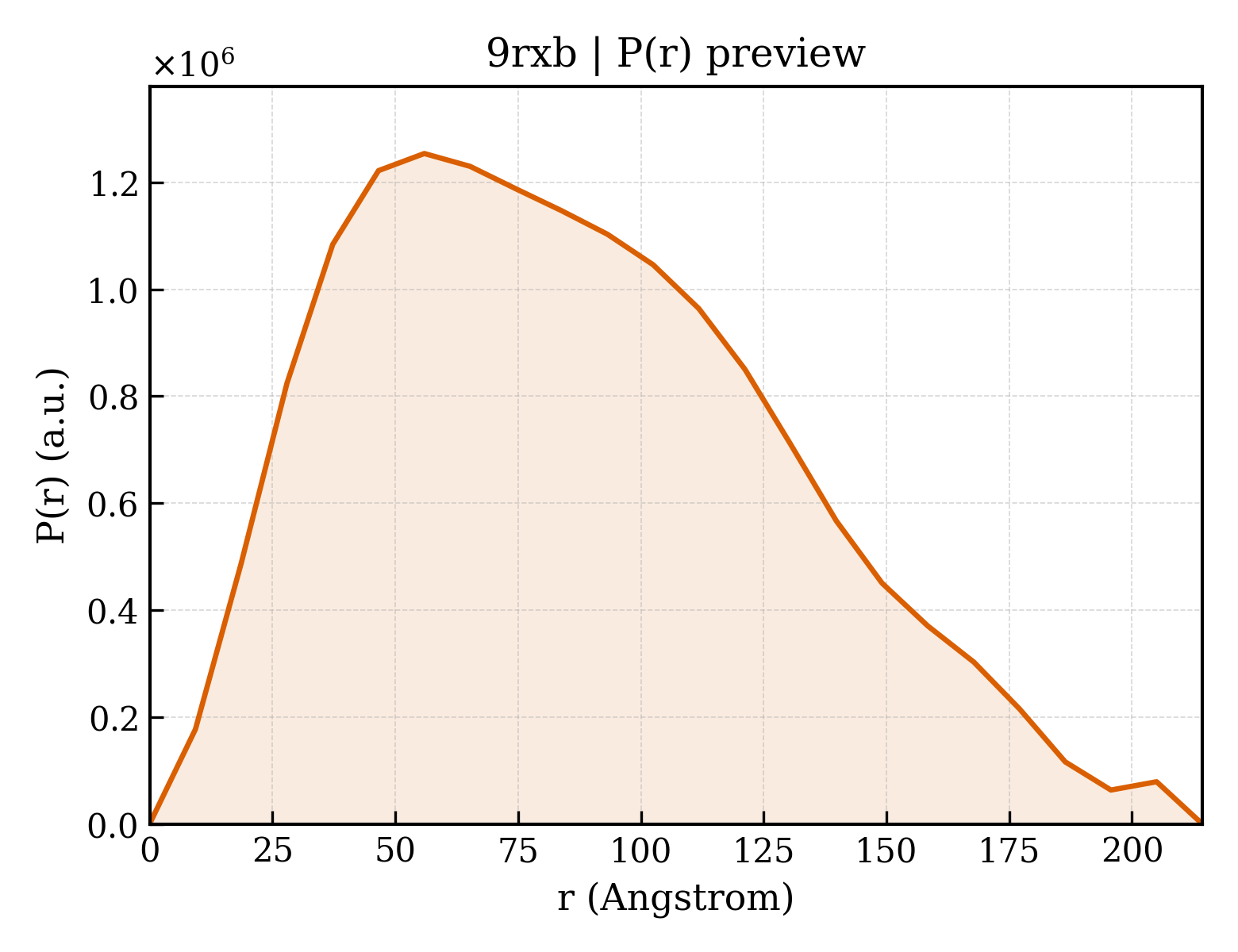

P(r) Distribution

▼

1. Structure Basics

entry_id	9rxb
deposition_date	2025-07-10
title	VPS34-CII (VPS34/VPS15/BECLIN1/UVRAG) bound to RAB5A (Q79L) on the VPS34 and VPS15 subunits
keywords	Lipid kinase, GTPase, kinase, autophagy, endocytic trafficking, SIGNALING PROTEIN, ENDOCYTOSIS; ENDOCYTOSIS
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	67.44 Å
rg_electron	67.91 Å
i0	1810160000.00
molecular_weight	361410.0 kDa
excluded_volume	453880 Å³
envelope_volume	739680 Å³
shell_volume	96179 Å³
envelope_diameter	245.0 Å
shell_rg	61.88 Å
envelope_rg	67.38 Å
shape_rg	67.93 Å
total_rg	67.71 Å
total_atoms	25421
n_residues	3147
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	214.3 Å
rg_real	67.66 Å
rg_real_error	1.86 Å
i0_real	1.8100e+09
i0_real_error	4.3880e+07
rg_reciprocal	66.37 Å
i0_reciprocal	1806000000.0000
total_estimate	0.8245
solution_quality	GOOD a GOOD solution
n_peaks	2
r_peak_primary	55.9 Å
skewness	0.432
kurtosis	-0.473
angular_range	— – 0.1150 Å⁻¹
current_alpha	0.0005
highest_alpha	152400000.0000
n_real_points	24
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.915; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.936; Smooth: 0.035

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (10)

Entity 1 polymer

description	Phosphatidylinositol 3-kinase catalytic subunit type 3
formula_weight	101680.3 kDa
ec_number	2.7.1.137
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	25421

MGEAEKFHYIYSCDLDINVQLKIGSLEGKREQKSYKAVLEDPMLKFSGLYQETCSDLYVTCQVFAEGKPLALPVRTSYKAFSTRWNWNEWLKLPVKYPDLPRNAQVALTIWDVYGPGKAVPVGGTTVSLFGKYGMFRQGMHDLKVWPNVEADGSEPTKTPGRTSSTLSEDQMSRLAKLTKAHRQGHMVKVDWLDRLTFREIEMINESEKRSSNFMYLMVEFRCVKCDDKEYGIVYYEKDGDESSPILTSFELVKVPDPQMSMENLVESKHHKLARSLRSGPSDHDLKPNAATRDQLNIIVSYPPTKQLTYEEQDLVWKFRYYLTNQEKALTKFLKCVNWDLPQEAKQALELLGKWKPMDVEDSLELLSSHYTNPTVRRYAVARLRQADDEDLLMYLLQLVQALKYENFDDIKNGLEPTKKDSQSSVSENVSNSGINSAEIDSSQIITSPLPSVSSPPPASKTKEVPDGENLEQDLCTFLISRACKNSTLANYLYWYVIVECEDQDTQQRDPKTHEMYLNVMRRFSQALLKGDKSVRVMRSLLAAQQTFVDRLVHLMKAVQRESGNRKKKNERLQALLGDNEKMNLSDVELIPLPLEPQVKIRGIIPETATLFKSALMPAQLFFKTEDGGKYPVIFKHGDDLRQDQLILQIISLMDKLLRKENLDLKLTPYKVLATSTKHGFMQFIQSVPVAEVLDTEGSIQNFFRKYAPSENGPNGISAEVMDTYVKSCAGYCVITYILGVGDRHLDNLLLTKTGKLFHIDFGYILGRDPKPLPPPMKLNKEMVEGMGGTQSEQYQEFRKQCYTAFLHLRRYSNLILNLFSLMVDANIPDIALEPDKTVKKVQDKFRLDLSDEEAVHYMQSLIDESVHALFAAVVEQIHKFAQYWRK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Phosphoinositide 3-kinase regulatory subunit 4
formula_weight	154659.2 kDa
ec_number	2.7.11.1
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

GNQLAGIAPSQILSVESYFSDIHDFEYDKSLGSTRFFKVARAKHREGLVVVKVFAIQDPTLPLTSYKQELEELKIRLNSAQNCLPFQKASEKASEKAAMLFRQYVRDNLYDRISTRPFLNNIEKRWIAFQILTAVDQAHKSGVRHGDIKTENVMVTSWNWVLLTDFASFKPTYLPEDNPADFNYFFDTSRRRTCYIAPERFVDGGMFATELEYMRDPSTPLVDLNSNQRTRGELKRAMDIFSAGCVIAELFTEGVPLFDLSQLLAYRNGHFFPEQVLNKIEDHSIRELVTQMIHREPDKRLEAEDYLKQQRGNAFPEIFYTFLQPYMAQFAKETFLSADERILVIRKDLGNIIHNLCGHDLPEKAEGEPKENGLVILVSVITSCLQTLKYCDSKLAALELILHLAPRLSVEILLDRITPYLLHFSNDSVPRVRAEALRTLTKVLALVKEVPRNDINIYPEYILPGIAHLAQDDATIVRLAYAENIALLAETALRFLELVQLKNLNMENDPNNEEIDEVTHPNGNYDTELQALHEMVQQKVVTLLSDPENIVKQTLMENGITRLCVFFGRQKANDVLLSHMITFLNDKNDWHLRGAFFDSIVGVAAYVGWQSSSILKPLLQQGLSDAEEFVIVKALYALTCMCQLGLLQKPHVYEFASDIAPFLCHPNLWIRYGAVGFITVVARQISTADVYCKLMPYLDPYITQPIIQIERKLVLLSVLKEPVSRSIFDYALRSKDITSLFRHLHMRQKKRNGSLPDCPPPEDPAIAQLLKKLLSQGMTEEEEDKLLALKDFMMKSNKAKANIVDQSHLHDSSQKGVIDLAALGITGRQVDLVKTKQEPDDKRARKHVKQDSNVNEEWKSMFGSLDPPNMPQALPKGSDQEVIQTGKPPRSESSAGICVPLSTSSQVPEVTTVQNKKPVIPVLSSTILPSTYQIRITTCKTELQQLIQQKREQCNAERIAKQMMENAEWESKPPPPGWRPKGLLVAHLHEHKSAVNRIRVSDEHSLFATCSNDGTVKIWNSQKMEGKTTTTRSILTYSRIGGRVKTLTFCQGSHYLAIASDNGAVQLLGIEASKLPKSPKIHPLQSRILDQKEDGCVVDMHHFNSGAQSVLAYATVNGSLVGWDLRSSSNAWTLKHDLKSGLITSFAVDIHQCWLCIGTSSGTMACWDMRFQLPISSHCHPSRARIRRLSMHPLYQSWVIAAVQGNNEVSMWDMETGDRRFTLWASSAPPLSELQPSPHSVHGIYCSPADGNPILLTAGSDMKIRFWDLAYPERSYVVAGSTSSPSVSYYRKIIEGTEVVQEIQNKQKVGPSDDTPRRGPESLPVGHHDIITDVATFQTTQGFIVTASRDGIVKVWKSRPTTASENLYFQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 3 polymer

description	Beclin-1
formula_weight	51953.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MEGSKTSNNSTMQVSFVCQRCSQPLKLDTSFKILDRVTIQELTAPLLTTAQAKPGETQEEETNSGEEPFIETPRQDGVSRRFIPPARMMSTESANSFTLIGEASDGGTMENLSRRLKVTGDLFDIMSGQTDVDHPLCEECTDTLLDQLDTQLNVTENECQNYKRCLEILEQMNEDDSEQLQMELKELALEEERLIQELEDVEKNRKIVAENLEKVQAEAERLDQEEAQYQREYSEFKRQQLELDDELKSVENQMRYAQTQLDKLKKTNVFNATFHIWHSGQFGTINNFRLGRLPSVPVEWNEINAAWGQTVLLLHALANKMGLKFQRYRLVPYGNHSYLESLTDKSKELPLYCSGGLRFFWDNKFDHAMVAFLDCVQQFKEEVEKGETRFCLPYRMDVEKGKIEDTGGSGGSYSIKTQFNSEEQWTKALKFMLTNLKWGLAWVSSQFYNK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 4 polymer

description	UV radiation resistance associated protein
formula_weight	78289.9 kDa
mutation	P10Q
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	D

MSASASVGGQVPQPPPGPAAALPPGSAARALHVELPSQQRRLRHLRNIAARNIVNRNGHQLLDTYFTLHLCSTEKIYKEFYRSEVIKNSLNPTWRSLDFGIMPDRLDTSVSCFVVKIWGGKENIYQLLIEWKVCLDGLKYLGQQIHARNQNEIIFGLNDGYYGAPFEHKGYSNAQKTILLQVDQNCVRNSYDVFSLLRLHRAQCAIKQTQVTVQKIGKEIEEKLRLTSTSNELKKKSECLQLKILVLQNELERQKKALGREVALLHKQQIALQDKGSAFSAEHLKLQLQKESLNELRKECTAKRELFLKTNAQLTIRCRQLLSELSYIYPIDLNEHKDYFVCGVKLPNSEDFQAKDDGSIAVALGYTAHLVSMISFFLQVPLRYPIIHKGSRSTIKDNINDKLTEKEREFPLYPKGGEKLQFDYGVYLLNKNIAQLRYQHGLGTPDLRQTLPNLKNFMEHGLMVRCDRHHTSSAIPVPKRQSSIFGGADVGFSGGIPSPDKGHRKRASSENERLQYKTPPPSYNSALAQPVTTVPSMGETERKITSLSSSLDTSLDFSKENKKKGEDLVGSLNGGHANVHPSQEQGEALSGHRATVNGTLLPSEQAGSASVQLPGEFHPVSEAELCCTVEQAEEIIGLEATGFASGDQLEAFNCIPVDSAVAVECDEQVLGEFEEFSRRIYALNENVSSFRRPRRSSDK

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 5 polymer

description	Ras-related protein Rab-5A
formula_weight	23333.2 kDa
ec_number	3.6.5.2
mutation	C19S, C63S, Q79L
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	E,F

MASRGATRPNGPNTGNKISQFKLVLLGESAVGKSSLVLRFVKGQFHEFQESTIGAAFLTQTVSLDDTTVKFEIWDTAGLERYHSLAPMYYRGAQAAIVVYDITNEESFARAKNWVKELQRQASPNIVIALSGNKADLANKRAVDFQEAQSYADDNSLLFMETSAKTSMNVNEIFMAIAKKLPKNEPQNPGANSARGRGVDLTEPTQPTRNQC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 6 non-polymer

description	GUANOSINE-5'-DIPHOSPHATE
formula_weight	443.2 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	MAGNESIUM ION
formula_weight	24.3 kDa
src_method	syn
entity_count	3

Entity 8 non-polymer

description	MYRISTIC ACID
formula_weight	228.4 kDa
src_method	syn
entity_count	1

Entity 9 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	1

Entity 10 non-polymer

description	GUANOSINE-5'-TRIPHOSPHATE
formula_weight	523.2 kDa
src_method	syn
entity_count	2

▶

6. Citations (2)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	4.03 Å
resolution_method	—
num_particles	31935

fit	/app/data/saxs_computation/rx/9rxb/9rxb.fit
pddf	/app/data/pr_computation/rx/9rxb/9rxb.pr.out
profile	/app/data/saxs_computation/rx/9rxb/9rxb.dat
