SAXSdb — 3vq2

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Toll-like receptor 4

Mus musculus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 4 其他Polymer 2 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain A； UniProt 22–627 Chain B； UniProt 22–627	Fragment：UNP residues 22-627	Lymphocyte antigen 96 × 2 （Q9JHF9） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 2 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 2 DAO LAURIC ACID × 2 MYR MYRISTIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；18% PEG3350, 0.2M sodium tartrate, 0.1M Bis-Tris propane, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.48 Å R-free 0.267

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3VQ2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2Z64 Crystal structure of mouse TLR4 and mouse MD-2 complex Deposited 2007-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 27–625（599 aa） Fragment：TLR4, UNP residues 27-625	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；296 K；0.1M Na-Cacodylate, 23% PEG 8000, pH 6.5, VAPOR DIFFUSION, temperature 296K	Resolution 2.84 Å R-free 0.290
3VQ1 Crystal structure of mouse TLR4/MD-2/lipid IVa complex Deposited 2012-03-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 22–627（606 aa） Fragment：UNP residues 22-627 Chain B 22–627（606 aa） Fragment：UNP residues 22-627	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 2 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；15% PEG4000, 0.2M Na acetate, 0.1M Tris-HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.70 Å R-free 0.277
5IJB The ligand-free structure of the mouse TLR4/MD-2 complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 26–544（519 aa） Fragment：TLR4 ectodomain (UNP residues 26-544) + VLRB (UNP residues 126-200)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Bicine, pH 7.5, 12% PEG10000	Resolution 2.91 Å R-free 0.308
5IJB The ligand-free structure of the mouse TLR4/MD-2 complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 26–544（519 aa） Fragment：TLR4 ectodomain (UNP residues 26-544) + VLRB (UNP residues 126-200)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Bicine, pH 7.5, 12% PEG10000	Resolution 2.91 Å R-free 0.308
5IJC The crystal structure of mouse TLR4/MD-2/neoseptin-3 complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 26–544（519 aa） Fragment：TLR4 ectodomain (UNP residues 26-544) + VLRB (UNP residues 126-200)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 V2A neoseptin 3 × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 12% PEG8000	Resolution 2.57 Å R-free 0.234
5IJC The crystal structure of mouse TLR4/MD-2/neoseptin-3 complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 26–544（519 aa） Fragment：TLR4 ectodomain (UNP residues 26-544) + VLRB (UNP residues 126-200)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 V2A neoseptin 3 × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 12% PEG8000	Resolution 2.57 Å R-free 0.234
5IJD The crystal structure of mouse TLR4/MD-2/lipid A complex Deposited 2016-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 26–544（519 aa） Fragment：TLR4 ectodomain (UNP residues 26-544) + VLRB (UNP residues 126-200) Chain B 26–544（519 aa） Fragment：TLR4 ectodomain (UNP residues 26-544) + VLRB (UNP residues 126-200)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 2 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 2 DAO LAURIC ACID × 2 MYR MYRISTIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 14% PEG8000, 2.5% PEG400	Resolution 2.70 Å R-free 0.285
5IJD The crystal structure of mouse TLR4/MD-2/lipid A complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 26–544（519 aa） Fragment：TLR4 ectodomain (UNP residues 26-544) + VLRB (UNP residues 126-200)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 1 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 1 DAO LAURIC ACID × 1 MYR MYRISTIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 14% PEG8000, 2.5% PEG400	Resolution 2.70 Å R-free 0.285
5IJD The crystal structure of mouse TLR4/MD-2/lipid A complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 26–544（519 aa） Fragment：TLR4 ectodomain (UNP residues 26-544) + VLRB (UNP residues 126-200)	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 1 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 1 DAO LAURIC ACID × 1 MYR MYRISTIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 14% PEG8000, 2.5% PEG400	Resolution 2.70 Å R-free 0.285
7MLM Crystal structure of mouse TLR4/MD-2 in complex with sulfatides Deposited 2021-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 26–544（519 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 ZKM N-[(1S,2R,3E)-2-hydroxy-1-{[(3-O-sulfo-beta-D-galactopyranosyl)oxy]methyl}heptadec-3-en-1-yl]-hexadecanamide × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M Tris pH8.0, 0.8 M sodium formate, 8% PEG 8000, 8% PEG 1000	Resolution 2.10 Å R-free 0.244
7MLM Crystal structure of mouse TLR4/MD-2 in complex with sulfatides Deposited 2021-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 26–544（519 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ZKM N-[(1S,2R,3E)-2-hydroxy-1-{[(3-O-sulfo-beta-D-galactopyranosyl)oxy]methyl}heptadec-3-en-1-yl]-hexadecanamide × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M Tris pH8.0, 0.8 M sodium formate, 8% PEG 8000, 8% PEG 1000	Resolution 2.10 Å R-free 0.244
8WQT Cryo-EM Structure of Mouse TLR4/MD-2/DLAM1 complex Deposited 2023-10-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 26–629（604 aa） Chain B 26–629（604 aa）	Not recorded	2IL (3R)-3-(dodecanoyloxy)tetradecanoic acid × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 16 GP4 2-amino-2-deoxy-4-O-phosphono-alpha-D-glucopyranose × 2 0IL (3R)-3-(tetradecanoyloxy)tetradecanoic acid × 2 X6Z [(2~{R},3~{S},4~{S},5~{S})-5-methoxy-3,4,6-tris(oxidanyl)oxan-2-yl]methyl dihydrogen phosphate × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8WRY Cryo-EM Structure of Mouse TLR4/MD-2/DLAM3 Complex Deposited 2023-10-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 26–629（604 aa） Chain B 26–629（604 aa）	Not recorded	2IL (3R)-3-(dodecanoyloxy)tetradecanoic acid × 4 0IL (3R)-3-(tetradecanoyloxy)tetradecanoic acid × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 16 GP4 2-amino-2-deoxy-4-O-phosphono-alpha-D-glucopyranose × 2 XIQ 2-(hydroxymethyl)-5-methoxy-3,6-bis(oxidanyl)pyran-4-one × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8WSA Cryo-EM Structure of Mouse TLR4/MD-2/DLAM5 Complex Deposited 2023-10-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 26–629（604 aa） Chain B 26–629（604 aa）	Not recorded	GP4 2-amino-2-deoxy-4-O-phosphono-alpha-D-glucopyranose × 2 A1L01 (3~{S})-3-decanoyloxytetradecanoic acid × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14 2IL (3R)-3-(dodecanoyloxy)tetradecanoic acid × 2 0IL (3R)-3-(tetradecanoyloxy)tetradecanoic acid × 2 X6N [(2~{R},3~{S},4~{R},5~{S})-2-(hydroxymethyl)-5-methoxy-4,6-bis(oxidanyl)oxan-3-yl] dihydrogen phosphate × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

9 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	TLR4_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–606； UniProt 22–627 Author chain B； PDBConstruct 1–606； UniProt 22–627

Lymphocyte antigen 96

Mus musculus

UniProt Q9JHF9

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Heteromer Protein × 4 其他Polymer 2 PDB declaration: tetrameric（4） Consistent with protein copy count	Chain C； UniProt 17–160 Chain D； UniProt 17–160	Not recorded	Toll-like receptor 4 × 2 （Q9QUK6） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 2 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 2 DAO LAURIC ACID × 2 MYR MYRISTIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；18% PEG3350, 0.2M sodium tartrate, 0.1M Bis-Tris propane, pH 7.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.48 Å R-free 0.267

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3VQ2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2Z64 Crystal structure of mouse TLR4 and mouse MD-2 complex Deposited 2007-07-22	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 21–155（135 aa） Fragment：MD-2, UNP residues 21-160	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 9	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.5；296 K；0.1M Na-Cacodylate, 23% PEG 8000, pH 6.5, VAPOR DIFFUSION, temperature 296K	Resolution 2.84 Å R-free 0.290
3VQ1 Crystal structure of mouse TLR4/MD-2/lipid IVa complex Deposited 2012-03-17	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 17–160（144 aa） Chain D 17–160（144 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 2 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；293 K；15% PEG4000, 0.2M Na acetate, 0.1M Tris-HCl, pH 8.5, VAPOR DIFFUSION, SITTING DROP, temperature 293K	Resolution 2.70 Å R-free 0.277
5IJB The ligand-free structure of the mouse TLR4/MD-2 complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 19–160（142 aa） Fragment：UNP residues 19-160	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Bicine, pH 7.5, 12% PEG10000	Resolution 2.91 Å R-free 0.308
5IJB The ligand-free structure of the mouse TLR4/MD-2 complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 19–160（142 aa） Fragment：UNP residues 19-160	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；0.1 M Bicine, pH 7.5, 12% PEG10000	Resolution 2.91 Å R-free 0.308
5IJC The crystal structure of mouse TLR4/MD-2/neoseptin-3 complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 19–160（142 aa） Fragment：UNP residues 19-160	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 6 V2A neoseptin 3 × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 12% PEG8000	Resolution 2.57 Å R-free 0.234
5IJC The crystal structure of mouse TLR4/MD-2/neoseptin-3 complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 19–160（142 aa） Fragment：UNP residues 19-160	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 V2A neoseptin 3 × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 12% PEG8000	Resolution 2.57 Å R-free 0.234
5IJD The crystal structure of mouse TLR4/MD-2/lipid A complex Deposited 2016-03-01	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 19–160（142 aa） Fragment：UNP residues 19-160 Chain D 19–160（142 aa） Fragment：UNP residues 19-160	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 5 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 2 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 2 DAO LAURIC ACID × 2 MYR MYRISTIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 14% PEG8000, 2.5% PEG400	Resolution 2.70 Å R-free 0.285
5IJD The crystal structure of mouse TLR4/MD-2/lipid A complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 19–160（142 aa） Fragment：UNP residues 19-160	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 1 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 1 DAO LAURIC ACID × 1 MYR MYRISTIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 14% PEG8000, 2.5% PEG400	Resolution 2.70 Å R-free 0.285
5IJD The crystal structure of mouse TLR4/MD-2/lipid A complex Deposited 2016-03-01	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 19–160（142 aa） Fragment：UNP residues 19-160	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 LP4 2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose × 1 LP5 (R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE × 1 DAO LAURIC ACID × 1 MYR MYRISTIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293 K；0.1 M Tris, pH 8.0, 0.2 M lithium chloride, 14% PEG8000, 2.5% PEG400	Resolution 2.70 Å R-free 0.285
7MLM Crystal structure of mouse TLR4/MD-2 in complex with sulfatides Deposited 2021-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 19–160（142 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 8 ZKM N-[(1S,2R,3E)-2-hydroxy-1-{[(3-O-sulfo-beta-D-galactopyranosyl)oxy]methyl}heptadec-3-en-1-yl]-hexadecanamide × 6	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M Tris pH8.0, 0.8 M sodium formate, 8% PEG 8000, 8% PEG 1000	Resolution 2.10 Å R-free 0.244
7MLM Crystal structure of mouse TLR4/MD-2 in complex with sulfatides Deposited 2021-04-28	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 19–160（142 aa）	Not recorded	NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 ZKM N-[(1S,2R,3E)-2-hydroxy-1-{[(3-O-sulfo-beta-D-galactopyranosyl)oxy]methyl}heptadec-3-en-1-yl]-hexadecanamide × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293.15 K；0.1 M Tris pH8.0, 0.8 M sodium formate, 8% PEG 8000, 8% PEG 1000	Resolution 2.10 Å R-free 0.244
8WQT Cryo-EM Structure of Mouse TLR4/MD-2/DLAM1 complex Deposited 2023-10-12	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 19–160（142 aa） Chain D 19–160（142 aa）	Not recorded	2IL (3R)-3-(dodecanoyloxy)tetradecanoic acid × 4 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 16 GP4 2-amino-2-deoxy-4-O-phosphono-alpha-D-glucopyranose × 2 0IL (3R)-3-(tetradecanoyloxy)tetradecanoic acid × 2 X6Z [(2~{R},3~{S},4~{S},5~{S})-5-methoxy-3,4,6-tris(oxidanyl)oxan-2-yl]methyl dihydrogen phosphate × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8WRY Cryo-EM Structure of Mouse TLR4/MD-2/DLAM3 Complex Deposited 2023-10-16	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Other combination Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 19–160（142 aa） Chain D 19–160（142 aa）	Not recorded	2IL (3R)-3-(dodecanoyloxy)tetradecanoic acid × 4 0IL (3R)-3-(tetradecanoyloxy)tetradecanoic acid × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 16 GP4 2-amino-2-deoxy-4-O-phosphono-alpha-D-glucopyranose × 2 XIQ 2-(hydroxymethyl)-5-methoxy-3,6-bis(oxidanyl)pyran-4-one × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.60 Å
8WSA Cryo-EM Structure of Mouse TLR4/MD-2/DLAM5 Complex Deposited 2023-10-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 19–160（142 aa） Chain D 19–160（142 aa）	Not recorded	GP4 2-amino-2-deoxy-4-O-phosphono-alpha-D-glucopyranose × 2 A1L01 (3~{S})-3-decanoyloxytetradecanoic acid × 2 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 14 2IL (3R)-3-(dodecanoyloxy)tetradecanoic acid × 2 0IL (3R)-3-(tetradecanoyloxy)tetradecanoic acid × 2 X6N [(2~{R},3~{S},4~{R},5~{S})-2-(hydroxymethyl)-5-methoxy-4,6-bis(oxidanyl)oxan-3-yl] dihydrogen phosphate × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 8 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.10 Å

9 other PDB entries and 14 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	LY96_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–144； UniProt 17–160 Author chain D； PDBConstruct 1–144； UniProt 17–160

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3vq2
Deposition date deposition_date	2012-03-17
Structure title title	Crystal structure of mouse TLR4/MD-2/LPS complex
Keywords keywords	Leucine rich repeat MD-2 related lipid recognition, receptor innate immunity, lipid binding, glycosylation, secreted, IMMUNE SYSTEM; IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	40.06 Å
Radius of gyration Rg (electron density) rg_electron	39.63 Å
Forward intensity I(0) i0	392662000.00
Molecular weight molecular_weight	167710.0 kDa
Excluded volume excluded_volume	212320 Å³
Envelope volume envelope_volume	281010 Å³
Hydration-shell volume shell_volume	59844 Å³
Envelope diameter envelope_diameter	143.0 Å
Shell Rg shell_rg	44.74 Å
Envelope Rg envelope_rg	39.28 Å
Shape Rg shape_rg	39.66 Å
Total Rg total_rg	39.85 Å
Total atoms total_atoms	11798
Residues n_residues	1432
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	131.8 Å
Rg (real space) rg_real	40.10 Å
Rg uncertainty (real space) rg_real_error	1.05 Å
I(0) (real space) i0_real	3.9270e+08
I(0) uncertainty (real space) i0_real_error	7.6080e+06
Rg (reciprocal space) rg_reciprocal	40.06 Å
I(0) (reciprocal space) i0_reciprocal	392600000.0000
Solution quality estimate total_estimate	0.6310
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	50.7 Å
Skewness Skewness skewness	0.421
Kurtosis Kurtosis kurtosis	-0.102
Angular range angular_range	— – 0.1950 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	46040000.0000
Real-space data points n_real_points	40
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.839; Stabil: 1.000; Sysdev: 0.025; Positv: 1.000; Valcen: 0.996; Smooth: 0.610

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (9)

Entity 1 Entity 1 polymer

Description description	Toll-like receptor 4
Molecular weight formula_weight	68713.3 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	11815

PGSLNPCIEVVPNITYQCMDQKLSKVPDDIPSSTKNIDLSFNPLKILKSYSFSNFSELQWLDLSRCEIETIEDKAWHGLHHLSNLILTGNPIQSFSPGSFSGLTSLENLVAVETKLASLESFPIGQLITLKKLNVAHNFIHSCKLPAYFSNLTNLVHVDLSYNYIQTITVNDLQFLRENPQVNLSLDMSLNPIDFIQDQAFQGIKLHELTLRGNFNSSNIMKTCLQNLAGLHVHRLILGEFKDERNLEIFEPSIMEGLCDVTIDEFRLTYTNDFSDDIVKFHCLANVSAMSLAGVSIKYLEDVPKHFKWQSLSIIRCQLKQFPTLDLPFLKSLTLTMNKGSISFKKVALPSLSYLDLSRNALSFSGCCSYSDLGTNSLRHLDLSFNGAIIMSANFMGLEELQHLDFQHSTLKRVTEFSAFLSLEKLLYLDISYTNTKIDFDGIFLGLTSLNTLKMAGNSFKDNTLSNVFANTTNLTFLDLSKCQLEQISWGVFDTLHRLQLLNMSHNNLLFLDSSHYNQLYSLSTLDCSFNRIETSKGILQHFPKSLAFFNLTNNSVACICEHQKFLQWVKEQKQFLVNVEQMTCATPVEMNTSLVLDFNNSTCYM

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Drosophila

Entity 2 Entity 2 polymer

Description description	Lymphocyte antigen 96
Molecular weight formula_weight	16627.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

ESEKQQWFCNSSDAIISYSYCDHLKFPISISSEPCIRLRGTNGFVHVEFIPRGNLKYLYFNLFISVNSIELPKRKEVLCHGHDDDYSFCRALKGETVNTSIPFSFEGILFPKGHYRCVAEAIAGDTEEKLFCLNFTIIHRRDVN

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Drosophila

Entity 3 Entity 3 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	man
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-4-O-phosphono-beta-D-glucopyranose
Molecular weight formula_weight	711.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 non-polymer

Description description	;(R)-((2R,3S,4R,5R,6R)-3-HYDROXY-2-(HYDROXYMETHYL)-5-((R)-3-HYDROXYTETRADECANAMIDO)-6-(PHOSPHONOOXY)TETRAHYDRO-2H-PYRAN-4-YL) 3-HYDROXYTETRADECANOATE ;
Molecular weight formula_weight	711.9 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 7 Entity 7 non-polymer

Description description	LAURIC ACID
Molecular weight formula_weight	200.3 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 8 Entity 8 non-polymer

Description description	MYRISTIC ACID
Molecular weight formula_weight	228.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	17

▼

7. Fold Classification (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

Domain ID domain_id	3vq2A00
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

Domain ID domain_id	3vq2B00
Class class	3 — Alpha Beta
Architecture architecture	80 — Alpha-Beta Horseshoe
Topology topology	10 — Leucine-rich repeat, LRR (right-handed beta-alpha superhelix)
Homologous superfamily homologous superfamily	10 — Ribonuclease Inhibitor

Domain ID domain_id	3vq2C00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	770 —

Domain ID domain_id	3vq2D00
Class class	2 — Mainly Beta
Architecture architecture	60 — Sandwich
Topology topology	40 — Immunoglobulin-like
Homologous superfamily homologous superfamily	770 —

▶

8. Citations (1)

▶

Unit-cell length a length_a	85.813 Å
Unit-cell length b length_b	144.320 Å
Unit-cell length c length_c	86.940 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	95.16 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 1 21 1
Space-group number int_tables_number	4
Crystal system crystal_system	—

Resolution resolution	2.480 Å
Low-resolution limit resolution_low	86.590 Å
R factor r_factor	0.2230
R_work r_work	0.2207
R_free r_free	0.2673

fit	/app/data/saxs_computation/vq/3vq2/3vq2.fit
pddf	/app/data/pr_computation/vq/3vq2/3vq2.pr.out
profile	/app/data/saxs_computation/vq/3vq2/3vq2.dat

Crystal structure of mouse TLR4/MD-2/LPS complex

1. Protein Identity and Related Structures Protein Identity & Related Structures

Toll-like receptor 4

State in the Current Structure

Other States of the Same Protein in the Database

Lymphocyte antigen 96

State in the Current Structure

Other States of the Same Protein in the Database

SAXS scattering curve SAXS Profile

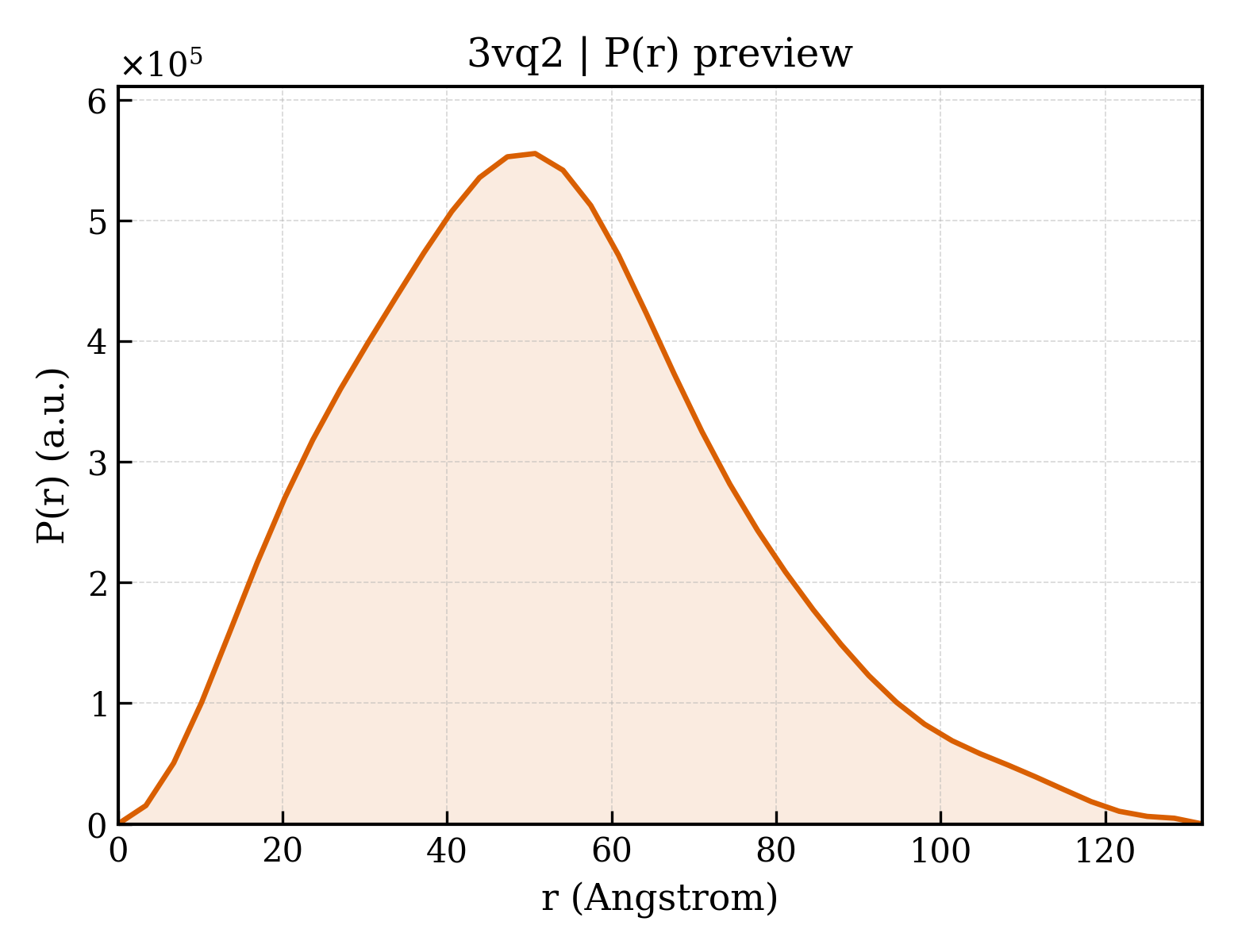

P(r) Distance Distribution P(r) Distribution
