SAXSdb — 3w3x

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Importin subunit beta-3

Saccharomyces cerevisiae

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Phosphate system positive regulatory protein PHO4 × 1 （P07270）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	IMB3_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1078； UniProt 1–1089

Phosphate system positive regulatory protein PHO4

OrganismNot specified

UniProt P07270

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Importin subunit beta-3 × 1 （P32337）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHO4_YEAST
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–27； UniProt 140–166

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3w3x
Deposition date deposition_date	2012-12-28
Structure title title	Crystal structure of Kap121p bound to Pho4p
Keywords keywords	HEAT repeat, nuclear import, PROTEIN TRANSPORT-TRANSCRIPTION complex; PROTEIN TRANSPORT/TRANSCRIPTION
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

3w3x__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

3w3x__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

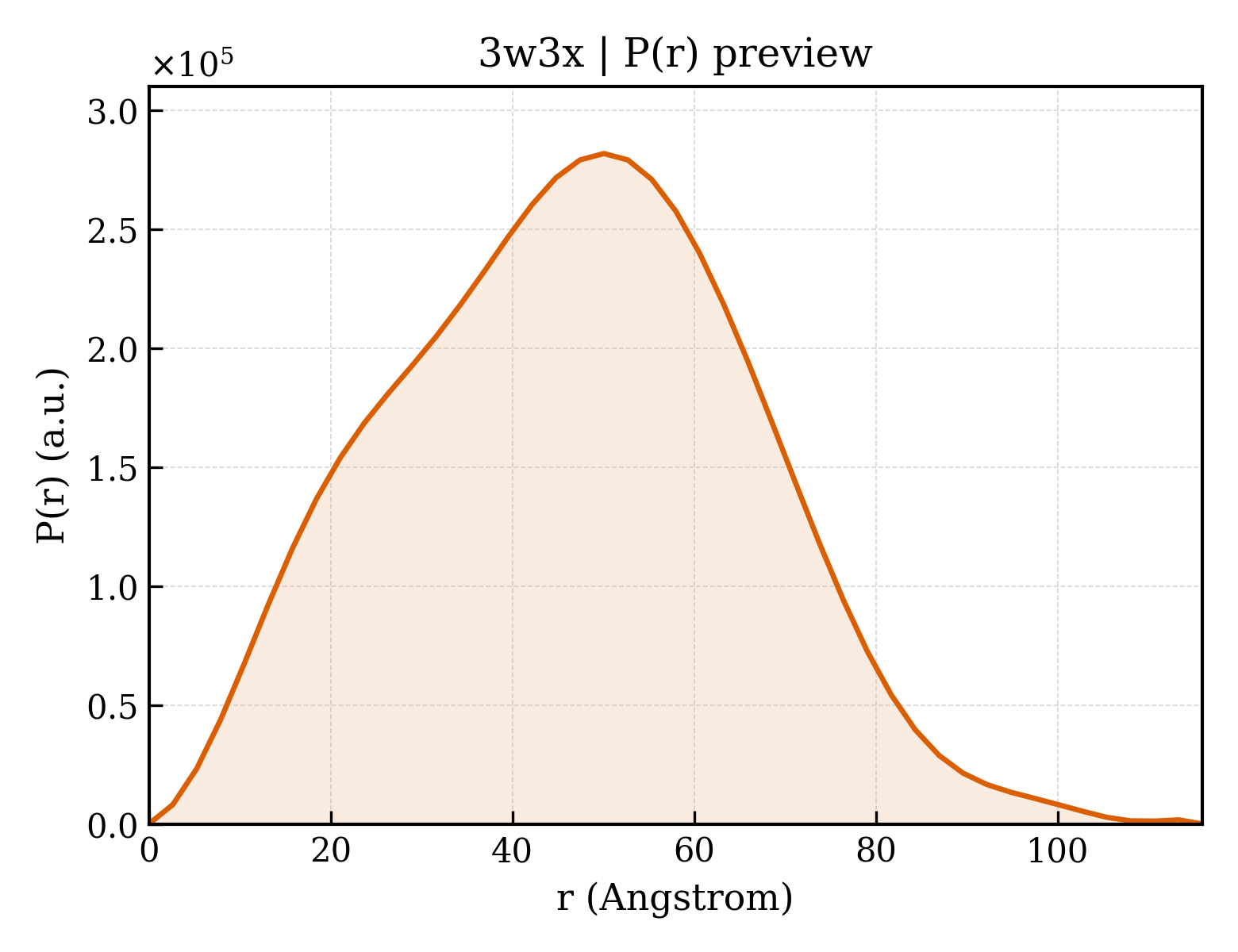

3w3x__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.92 Å
Rg (electron density)	35.29 Å
Total Rg	35.76 Å
Atom count	7849
Residues	1031
Excluded volume	141090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`3w3x__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Importin subunit beta-3
Molecular weight formula_weight	119912.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7849

MSALPEEVNRTLLQIVQAFASPDNQIRSVAEKALSEEWITENNIEYLLTFLAEQAAFSQDTTVAALSAVLFRKLALKAPITHIRKEVLAQIRSSLLKGFLSERADSIRHKLSDAIAECVQDDLPAWPELLQALIESLKSGNPNFRESSFRILTTVPYLITAVDINSILPIFQSGFTDASDNVKIAAVTAFVGYFKQLPKSEWSKLGILLPSLLNSLPRFLDDGKDDALASVFESLIELVELAPKLFKDMFDQIIQFTDMVIKNKDLEPPARTTALELLTVFSENAPQMCKSNQNYGQTLVMVTLIMMTEVSIDDDDAAEWIESDDTDDEEEVTYDHARQALDRVALKLGGEYLAAPLFQYLQQMITSTEWRERFAAMMALSSAAEGCADVLIGEIPKILDMVIPLINDPHPRVQYGCCNVLGQISTDFSPFIQRTAHDRILPALISKLTSECTSRVQTHAAAALVNFSEFASKDILEPYLDSLLTNLLVLLQSNKLYVQEQALTTIAFIAEAAKNKFIKYYDTLMPLLLNVLKVNNKDNSVLKGKCMECATLIGFAVGKEKFHEHSQELISILVALQNSDIDEDDALRSYLEQSWSRICRILGDDFVPLLPIVIPPLLITAKATQDVGLIEEEEAANFQQYPDWDVVQVQGKHIAIHTSVLDDKVSAMELLQSYATLLRGQFAVYVKEVMEEIALPSLDFYLHDGVRAAGATLIPILLSCLLAATGTQNEELVLLWHKASSKLIGGLMSEPMPEITQVYHNSLVNGIKVMGDNCLSEDQLAAFTKGVSANLTDTYERMQDRHGDGDEYNENIDEEEDFTDEDLLDEINKSIAAVLKTTNGHYLKNLENIWPMINTFLLDNEPILVIFALVVIGDLIQYGGEQTASMKNAFIPKVTECLISPDARIRQAASYIIGVCAQYAPSTYADVCIPTLDTLVQIVDFPGSKLEENRSSTENASAAIAKILYAYNSNIPNVDTYTANWFKTLPTITDKEAASFNYQFLSQLIENNSPIVCAQSNISAVVDSVIQALNERSLTEREGQTVISSVKKLLGFLPSSDAMAIFNRYPADIMEKVHKWFA

Source Source

Source organism organism	Saccharomyces cerevisiae
Common name common_name	;Baker's yeast ;
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Phosphate system positive regulatory protein PHO4
Molecular weight formula_weight	2938.3 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SANKVTKNKSNSSPYLNKRRGKPGPDS

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	3w3xA01
Class class	1 — Mainly Alpha
Architecture architecture	25 — Alpha Horseshoe
Topology topology	10 — Leucine-rich Repeat Variant
Homologous superfamily homologous superfamily	10 — Leucine-rich Repeat Variant

Domain ID domain_id	3w3xA02
Class class	6 — Special
Architecture architecture	10 — Helix non-globular
Topology topology	140 — Helix Hairpins
Homologous superfamily homologous superfamily	1700 —

▶

Unit-cell length a length_a	78.090 Å
Unit-cell length b length_b	126.310 Å
Unit-cell length c length_c	128.050 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	29.500 Å
R factor r_factor	0.2265
R_work r_work	0.2243
R_free r_free	0.2682
