SAXSdb — 3wam

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Microtubule-associated proteins 1A/1B light chain 3C

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 8–125	Fragment：UNP RESIDUES 8-125	CIT CITRIC ACID × 1	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.5M di-Ammonium hydrogen citrate, 10% PEG 3350, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.75 Å R-free 0.211
2	Protein homooligomer Homooligomer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 8–125	Fragment：UNP RESIDUES 8-125	CIT CITRIC ACID × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, HANGING DROP；pH 5；277 K；0.5M di-Ammonium hydrogen citrate, 10% PEG 3350, pH 5.0, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.75 Å R-free 0.211

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3WAM	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2NCN Solution Structure of the Autophagy-Related Protein LC3C Deposited 2016-04-11	Different construct Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–126（126 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 6；293.15 K；Ionic strength (raw mmCIF value) 171；Pressure 1 NMR sample composition 0.35-0.7 mM [U-15N] Microtubule-associated protein light chain 3C (LC3C), 20 mM PIPES, 150 mM sodium chloride, 0.1 mM EDTA, 2% [U-2H] glycerol, 90% H2O, 10% D2O, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35-0.7 mM [U-13C; U-15N] Microtubule-associated protein light chain 3C (LC3C), 20 mM PIPES, 150 mM sodium chloride, 0.1 mM EDTA, 2% [U-2H] glycerol, 90% H2O, 10% D2O, 90% H2O/10% D2O \| 90% H2O/10% D2O NMR sample composition 0.35-0.7 mM [U-13C; U-15N] Microtubule-associated protein light chain 3C (LC3C), 20 mM PIPES, 150 mM sodium chloride, 0.1 mM EDTA, 2% [U-2H] glycerol, 100% D2O, 100% D2O \| 100% D2O	Resolution not provided
3VVW NDP52 in complex with LC3C Deposited 2012-07-28	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–126（126 aa） Fragment：UNP residues 1-126	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7；293 K；16% PEG6000, 0.01M sodium citrate , pH 7.0, Vapor Diffusion, temperature 293K	Resolution 2.50 Å R-free 0.252
3WAP Crystal structure of Atg13 LIR-fused human LC3C_8-125 Deposited 2013-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 8–125（118 aa） Fragment：UNP RESIDUES 436-447, 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；0.1M Sodium acetate trihydrate, 8% PEG 4000, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.10 Å R-free 0.273
3WAP Crystal structure of Atg13 LIR-fused human LC3C_8-125 Deposited 2013-05-06	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 8–125（118 aa） Fragment：UNP RESIDUES 436-447, 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 4.6；277 K；0.1M Sodium acetate trihydrate, 8% PEG 4000, pH 4.6, VAPOR DIFFUSION, SITTING DROP, temperature 277K	Resolution 3.10 Å R-free 0.273
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 8–125（118 aa） Fragment：UNP residues 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 8–125（118 aa） Fragment：UNP residues 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 8–125（118 aa） Fragment：UNP residues 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 8–125（118 aa） Fragment：UNP residues 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 8–125（118 aa） Fragment：UNP residues 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 8–125（118 aa） Fragment：UNP residues 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 7 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain M 8–125（118 aa） Fragment：UNP residues 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246
5DPW Crystal structure of PLEKHM1 LIR in complex with human LC3C_8-125 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 8 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain O 8–125（118 aa） Fragment：UNP residues 8-125	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；278 K；0.2 M Potassium Phosphate monobasic, 20% w/v Polyethylene glycol 3,350	Resolution 2.19 Å R-free 0.246

4 other PDB entries and 12 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	MLP3C_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 3–120； UniProt 8–125

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3wam
Deposition date deposition_date	2013-05-06
Structure title title	Crystal structure of human LC3C_8-125
Keywords keywords	UBIQUITIN-LIKE FOLD, AUTOPHAGY, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	15.17 Å
Radius of gyration Rg (electron density) rg_electron	13.74 Å
Forward intensity I(0) i0	3528450.00
Molecular weight molecular_weight	13687.0 kDa
Excluded volume excluded_volume	17391 Å³
Envelope volume envelope_volume	19415 Å³
Hydration-shell volume shell_volume	11989 Å³
Envelope diameter envelope_diameter	44.1 Å
Shell Rg shell_rg	19.46 Å
Envelope Rg envelope_rg	14.06 Å
Shape Rg shape_rg	13.73 Å
Total Rg total_rg	15.02 Å
Total atoms total_atoms	963
Residues n_residues	115
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

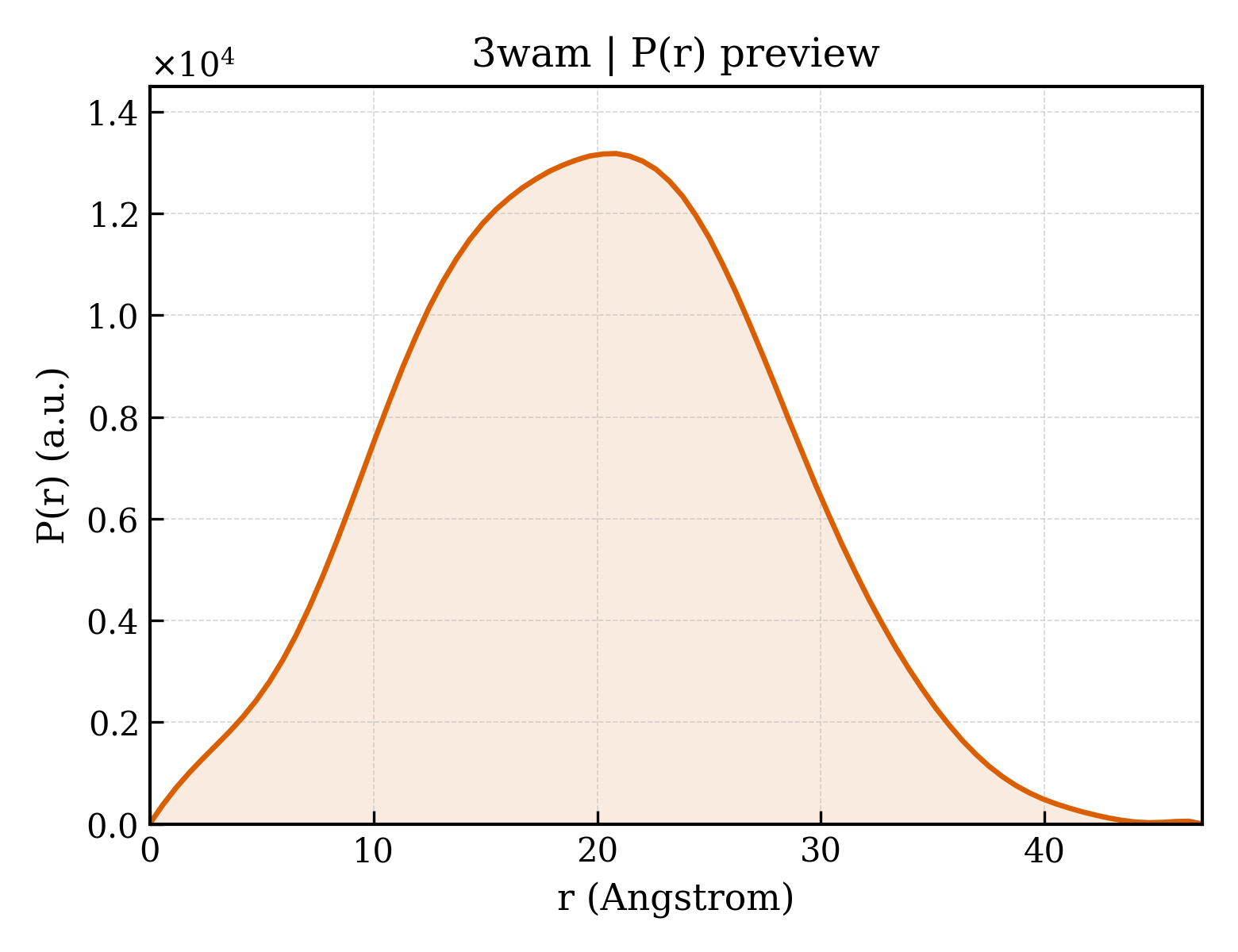

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	47.0 Å
Rg (real space) rg_real	15.05 Å
Rg uncertainty (real space) rg_real_error	0.22 Å
I(0) (real space) i0_real	3.5280e+06
I(0) uncertainty (real space) i0_real_error	3.7340e+04
Rg (reciprocal space) rg_reciprocal	15.06 Å
I(0) (reciprocal space) i0_reciprocal	3528000.0000
Solution quality estimate total_estimate	0.8963
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	20.8 Å
Skewness Skewness skewness	0.090
Kurtosis Kurtosis kurtosis	-0.406
Angular range angular_range	— – 0.5000 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	751600.0000
Real-space data points n_real_points	80
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.890; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.988

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Microtubule-associated proteins 1A/1B light chain 3C
Molecular weight formula_weight	13952.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1077

GSPSVRPFKQRKSLAIRQEEVAGIRAKFPNKIPVVVERYPRETFLPPLDKTKFLVPQELTMTQFLSIIRSRMVLRATEAFYLLVNNKSLVSMSATMAEIYRDYKDEDGFVYMTYASQETF

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	114

▼

7. Fold Classification (SCOP + CATH) 2 domains

SCOP 2.08 (1 domains)

Domain ID domain_id	d3wama_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.15 — beta-Grasp (ubiquitin-like)
Superfamily Superfamily superfamily	d.15.1 — Ubiquitin-like
Family Family family	d.15.1.0 — automated matches

CATH v4.4 (1 domains)

Domain ID domain_id	3wamA00
Class class	3 — Alpha Beta
Architecture architecture	10 — Roll
Topology topology	20 — Ubiquitin-like (UB roll)
Homologous superfamily homologous superfamily	90 — Phosphatidylinositol 3-kinase Catalytic Subunit; Chain A, domain 1

▶

8. Citations (1)

▶

Unit-cell length a length_a	71.720 Å
Unit-cell length b length_b	71.720 Å
Unit-cell length c length_c	55.650 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	—

Resolution resolution	1.750 Å
Low-resolution limit resolution_low	27.830 Å
R factor r_factor	0.1736
R_work r_work	0.1716
R_free r_free	0.2113
