SAXSdb — 3zvr

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

DYNAMIN-1

RATTUS NORVEGICUS

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 1–752	Fragment：DYNAMIN 1 G397D DELTA PRD, RESIDUES 1-752 Mutation：YES	1PE PENTAETHYLENE GLYCOL × 3	X-RAY DIFFRACTION X-ray crystallization conditions：pH 7.7；52.5 MM TRIS.HCL PH 7.7, 175 MM NACL, 32.5 MM NANO3, 20 % V/V PEG 400, 0.97 MM BETA-MERCAPTOETHANOL, 31.9 MICROM DYN1 G397D DELTA PRD	Resolution 3.10 Å R-free 0.272

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 3ZVR	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2AKA Structure of the nucleotide-free myosin II motor domain from Dictyostelium discoideum fused to the GTPase domain of dynamin 1 from Rattus norvegicus Deposited 2005-08-03	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain B 6–304（299 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；Tris, PEG 8000, MPD, DTT, magnesium chloride, pH 8.00, VAPOR DIFFUSION, HANGING DROP, temperature 277K	Resolution 1.90 Å R-free 0.224

1 other PDB entries and 1 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	DYN1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 21–772； UniProt 1–752

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	3zvr
Deposition date deposition_date	2011-07-27
Structure title title	Crystal structure of Dynamin
Keywords keywords	HYDROLASE, DRP1, DRP, ENDOCYTOSIS, MITOCHONDRIAL FISSION, GTPASE, STALK, PH, BSE, MEMBRANE FISSION; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	51.66 Å
Radius of gyration Rg (electron density) rg_electron	52.89 Å
Forward intensity I(0) i0	87470100.00
Molecular weight molecular_weight	77672.0 kDa
Excluded volume excluded_volume	97689 Å³
Envelope volume envelope_volume	164070 Å³
Hydration-shell volume shell_volume	28334 Å³
Envelope diameter envelope_diameter	171.4 Å
Shell Rg shell_rg	49.93 Å
Envelope Rg envelope_rg	51.58 Å
Shape Rg shape_rg	52.99 Å
Total Rg total_rg	52.42 Å
Total atoms total_atoms	10945
Residues n_residues	669
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

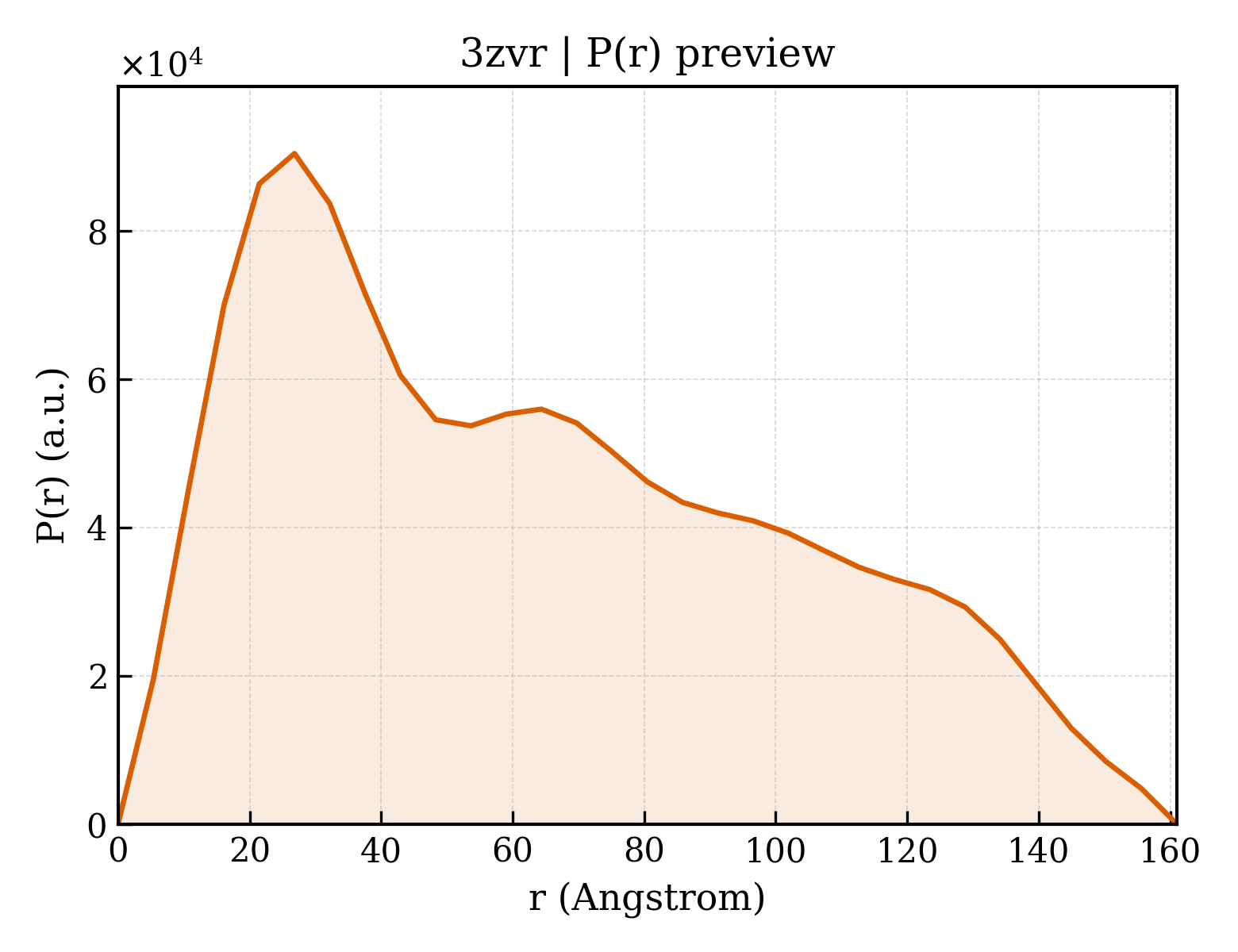

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	161.0 Å
Rg (real space) rg_real	52.38 Å
Rg uncertainty (real space) rg_real_error	2.09 Å
I(0) (real space) i0_real	8.7470e+07
I(0) uncertainty (real space) i0_real_error	1.8620e+06
Rg (reciprocal space) rg_reciprocal	51.03 Å
I(0) (reciprocal space) i0_reciprocal	87310000.0000
Solution quality estimate total_estimate	0.6118
Solution quality rating solution_quality	REASONABLE a REASONABLE solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	26.8 Å
Skewness Skewness skewness	0.456
Kurtosis Kurtosis kurtosis	-0.868
Angular range angular_range	— – 0.1500 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	2302000.0000
Real-space data points n_real_points	31
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.273; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.130; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	DYNAMIN-1
Molecular weight formula_weight	88362.6 kDa
EC 编号 ec_number	3.6.5.5
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	10950

MGSSHHHHHHSSGLVPRGSHMGNRGMEDLIPLVNRLQDAFSAIGQNADLDLPQIAVVGGQSAGKSSVLENFVGRDFLPRGSGIVTRRPLVLQLVNSTTEYAEFLHCKGKKFTDFEEVRLEIEAETDRVTGTNKGISPVPINLRVYSPHVLNLTLVDLPGMTKVPVGDQPPDIEFQIRDMLMQFVTKENCLILAVSPANSDLANSDALKIAKEVDPQGQRTIGVITKLDLMDEGTDARDVLENKLLPLRRGYIGVVNRSQKDIDGKKDITAALAAERKFFLSHPSYRHLADRMGTPYLQKVLNQQLTNHIRDTLPGLRNKLQSQLLSIEKEVDEYKNFRPDDPARKTKALLQMVQQFAVDFEKRIEGSGDQIDTYELSGGARINRIFHERFPFELVKMEFDEKELRREISYAIKNIHDIRTGLFTPDLAFEATVKKQVQKLKEPSIKCVDMVVSELTSTIRKCSEKLQQYPRLREEMERIVTTHIREREGRTKEQVMLLIDIELAYMNTNHEDFIGFANAQQRSNQMNKKKTSGNQDEILVIRKGWLTINNIGIMKGGSKEYWFVLTAENLSWYKDDEEKEKKYMLSVDNLKLRDVEKGFMSSKHIFALFNTEQRNVYKDYRQLELACETQEEVDSWKASFLRAGVYPERVGDKEKASETEENGSDSFMHSMDPQLERQVETIRNLVDSYMAIVNKTVRDLMPKTIMHLMINNTKEFIFSELLANLYSCGDQNTLMEESAEQAQRRDEMLRMYHALKEALSIIGDINTTTVST

来源 Source

来源生物 organism	RATTUS NORVEGICUS
通用名 common_name	NORWAY RAT
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	PENTAETHYLENE GLYCOL
Molecular weight formula_weight	238.3 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	5

▼

7. Fold Classification (SCOP + CATH) 3 domains

CATH v4.4 (3 domains)

Domain ID domain_id	3zvrA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	50 — Rossmann fold
Homologous superfamily homologous superfamily	300 — P-loop containing nucleotide triphosphate hydrolases

Domain ID domain_id	3zvrA02
Class class	1 — Mainly Alpha
Architecture architecture	20 — Up-down Bundle
Topology topology	120 — Four Helix Bundle (Hemerythrin (Met), subunit A)
Homologous superfamily homologous superfamily	1240 — Dynamin, middle domain

Domain ID domain_id	3zvrA03
Class class	2 — Mainly Beta
Architecture architecture	30 — Roll
Topology topology	29 — PH-domain like
Homologous superfamily homologous superfamily	30 — Pleckstrin-homology domain (PH domain)/Phosphotyrosine-binding domain (PTB)

▶

8. Citations (1)

▶

Unit-cell length a length_a	178.450 Å
Unit-cell length b length_b	191.610 Å
Unit-cell length c length_c	60.520 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	3.100 Å
Low-resolution limit resolution_low	95.805 Å
R factor r_factor	0.2153
R_work r_work	0.2123
R_free r_free	0.2720

fit	/app/data/saxs_computation/zv/3zvr/3zvr.fit
pddf	/app/data/pr_computation/zv/3zvr/3zvr.pr.out
profile	/app/data/saxs_computation/zv/3zvr/3zvr.dat
